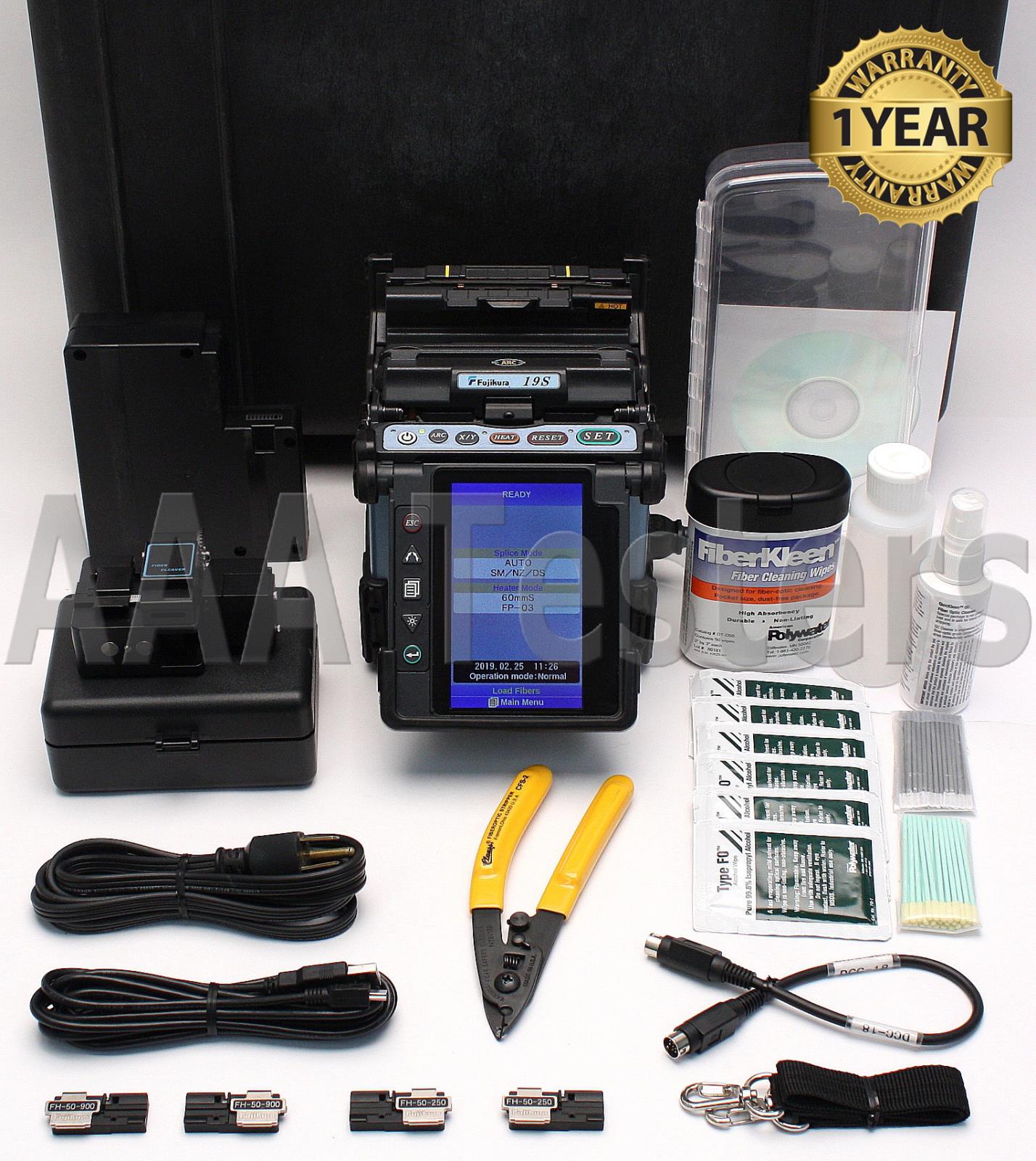

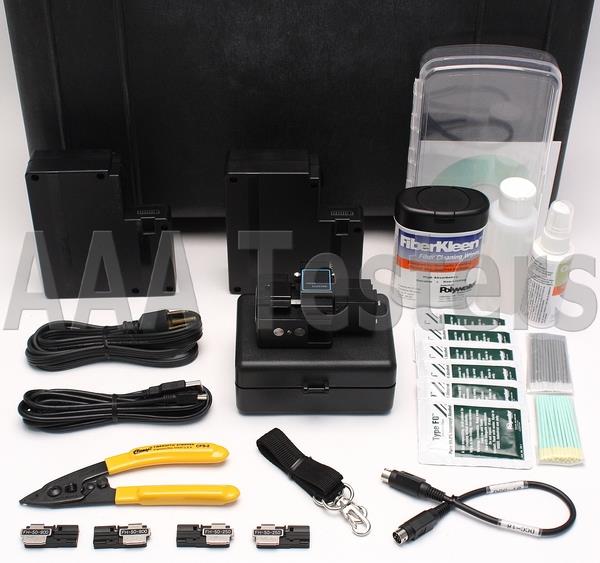

The Following Items Are Included:

Fujikura 19S Fiber Fusion Splicer (BC# 34713-L/T*)
US Fiber Optic USF-21C High Precision Fiber Cleaver w/ Case
Clauss CFS-2 Fiber Optic Stripper
6 Month Fusion Splicer Care Kit FS6MC:
- 4oz Flip Jar Of 99% Alcohol
- (50) Non-Lint Dry Wipes
- (6) Fiber Optic Wipes w/ 99% Alcohol
- 2oz Pump Fast Evaporating Mirror Spray
- (25) Camera Swabs
- (25) V-Groove Swabs
Fujikura ADC-18 AC Adapter Battery Pack w/ Power Cord
Fujikura BTR-09 Battery Pack
DCC-18 Charge Cable
FH-60-250 Fiber Holder Set
FH-60-900 Fiber Holder Set
USB PC Interface Cable
Strap For Unit
User Manual On CD-ROM
Hard Carrying Case (G)

BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS!

This Item Has A Current Calibration!

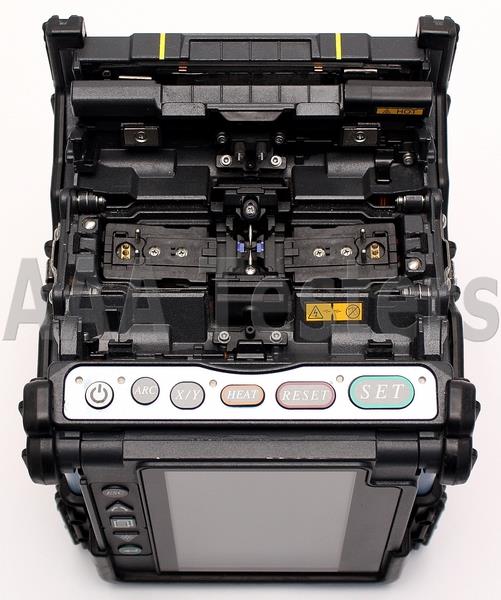

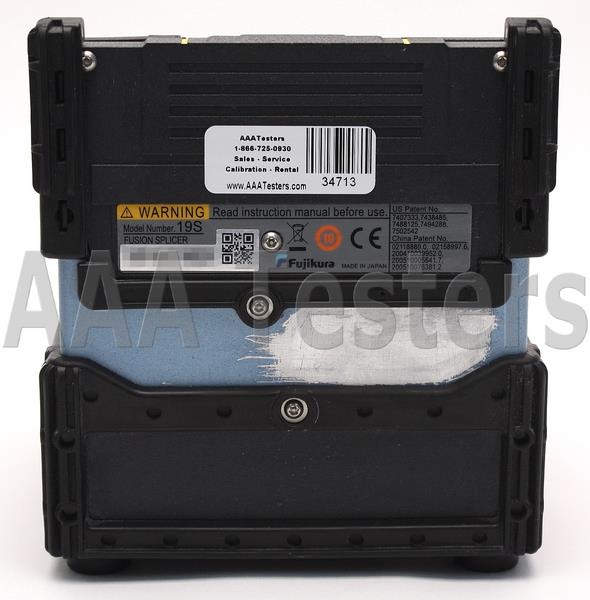

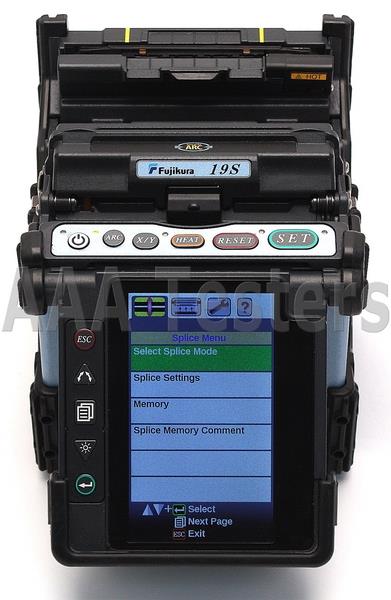

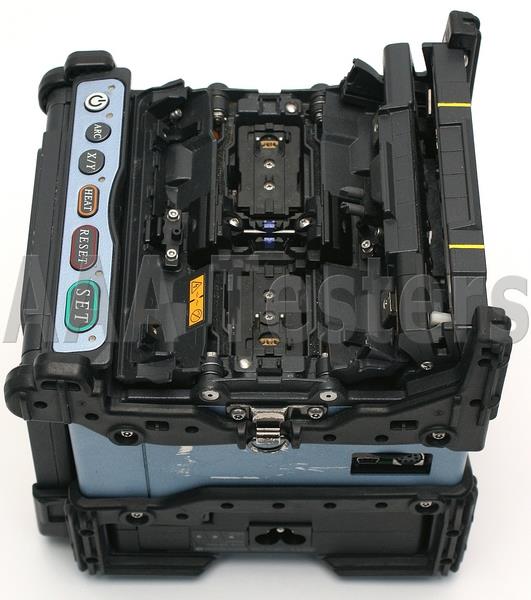

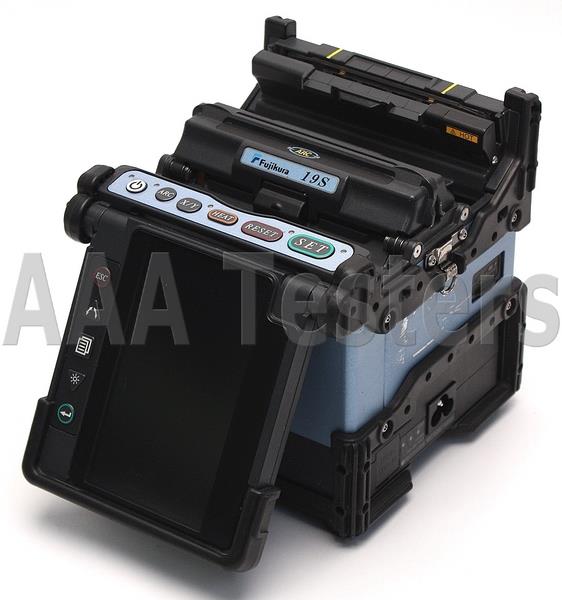

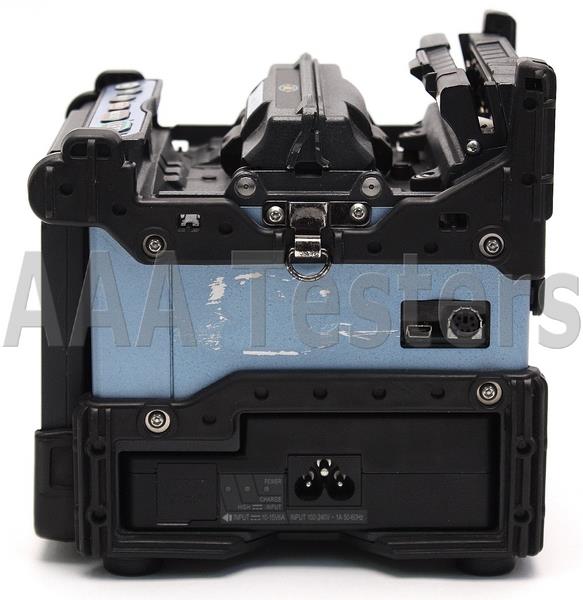

Fujikura 19S SingleMode MultiMode Fixed V-Groove Fiber Fusion Splicer

Includes 6 Month Fusion Splicer Care Kit (FS6MC)
- 4oz Flip Jar Of 99% Alcohol
- (50) Non-Lint Dry Wipes
- (6) Fiber Optic Wipes w/ 99% Alcohol
- 2oz Pump Fast Evaporating Mirror Spray
- (25) Camera Swabs
- (25) V-Groove Swabs

Includes US Fiber Optic USF-21C High Precision Fiber Cleaver, Hard Carrying Case & Accessories As Listed Above!

Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY

Fujikura 19S SM MM Fiber Fusion Splicer
The Fujikura 19S is a low cost, fixed v-groove single fiber splicer with similar features found on the Fujikura 70S. Incorporating the proven ruggedized features pioneered by Fujikura, the 19S has added automated and enhanced user control features to increase splicing efficiency. A user programmable, automated wind protector expedites the splicing process by automatically closing to initiate the splice process, and opening upon splice completion. Fully programmable “auto open sheath clamps” open one or both sheath clamps, after the tensile test, to prepare the fiber for removal. A new automated “clamshell design” tube heater applies heat to both sides of the splice protection sleeve resulting in a faster shrink time. Ruggedness and durability are greatly enhance by a mirror-less optical system and "severe-impact resistant" monitor. An innovative transit case doubles as a built-in or mobile workstation and makes splicing easier than ever before.

Features:

Automated and programmable wind protector
Fully ruggedized for shock, dust and moisture
Li-ion battery with 180 splice/heat cycles per charge
5 mm cleave length for splice on connector or small package needs
Sheath clamp or fiber holder operation
On-board training and support videos
Internet software upgrades
Multi-function transit case with integrated workstation

Applications:

Fiber optic network installation and repair
FuseConnect connector installations
Optoelectronic device manufacturing

Specifications:

Applicable Fibers	Single-mode (G.652 & G.657), Multimode (G.651), DS (G.653), NZDS (G.655)
Cladding Diameter	125 μm
Coating Diameter	100 μm to 1,000 μm
Fiber Cleave Length	5 to 16 mm
Typical Average Splice Loss	0.05 dB with SM, 0.02 dB with MM, 0.08 dB with DS, 0.08 dB with NZDS, measured by cut-back method relevant to ITU-T and IEC standards
Splicing Time	SM FAST mode — 9 seconds; SM AUTO mode — 11 seconds; AUTO mode — 11 seconds
Arc Calibration Method	Automatic, real-time and by using results of previous splice when in AUTO mode, manual arc calibration function available
Splicing Modes	100 preset and user programmable modes
Splice Loss Estimate	Based upon dual camera cladding axis offset alignment data
Storage of Splice Result	Last 2,000 results to be stored in the internal memory
Fiber Display	X or Y, or both X and Y simultaneously. Front or rear monitor display options with automated image orientation
Magnification	320X for single X or Y view, or 200X for X and Y view
Viewing Method	Dual cameras with 4.73 inch TFT color LCD monitor
Operating Condition	0 to 3,660 m above sea level, 0 to 95%RH and -10 to 50°C respectively
Mechanical Proof Test	1.96 to 2.25N
Tube Heater	Built-in tube heater with 30 heating modes; auto-start function
Tube Heating Time	17 seconds with FP3 (40), 5-16 seconds with Fujikura micro sleeves
Protection Sleeve Length	60 mm, 40 mm, micro
Splice/Heat Cycles with Battery	Typical 180 cycles with power save functions activated
Electrode Life	3,000 Arc Discharges
Power Supply	Auto voltage selection from 100 to 240 V AC or 10 to 15 V DC with ADC-18, 14.8 V DC with BTR-09 battery
Terminals	USB 1.1 (USB-B type) for PC communication. Mini-DIN (6-pin) for HJS-02/03 and SH-8 tube heater
Wind Protection	Maximum wind velocity of 15 m/s. (34 mph)
Dimensions	146 W x 159 D x 150 H (mm) / 5.75 W x 6.25 D x 5.9 H (inches)
Weight	2.3 kg (5.1 lbs) with AC adapter; 2.5 kg (5.5 lbs) with battery

For full Fujikura 19S Thermal Imager product specifications, please click here: Fujikura 19S
