80PCS Solar Cable Connectors 4mm-6mm 30Amp Waterproof Solar Panel Wire Joiners

Product Description

Package included:

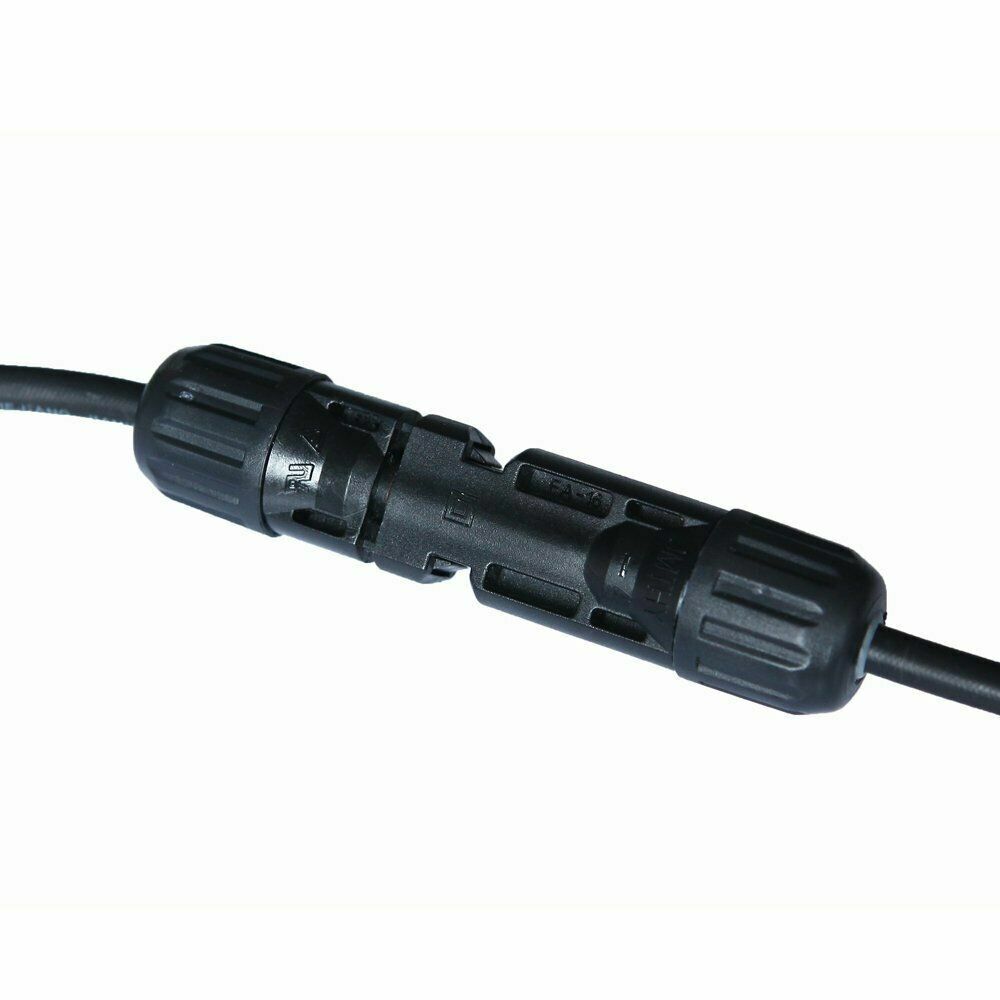

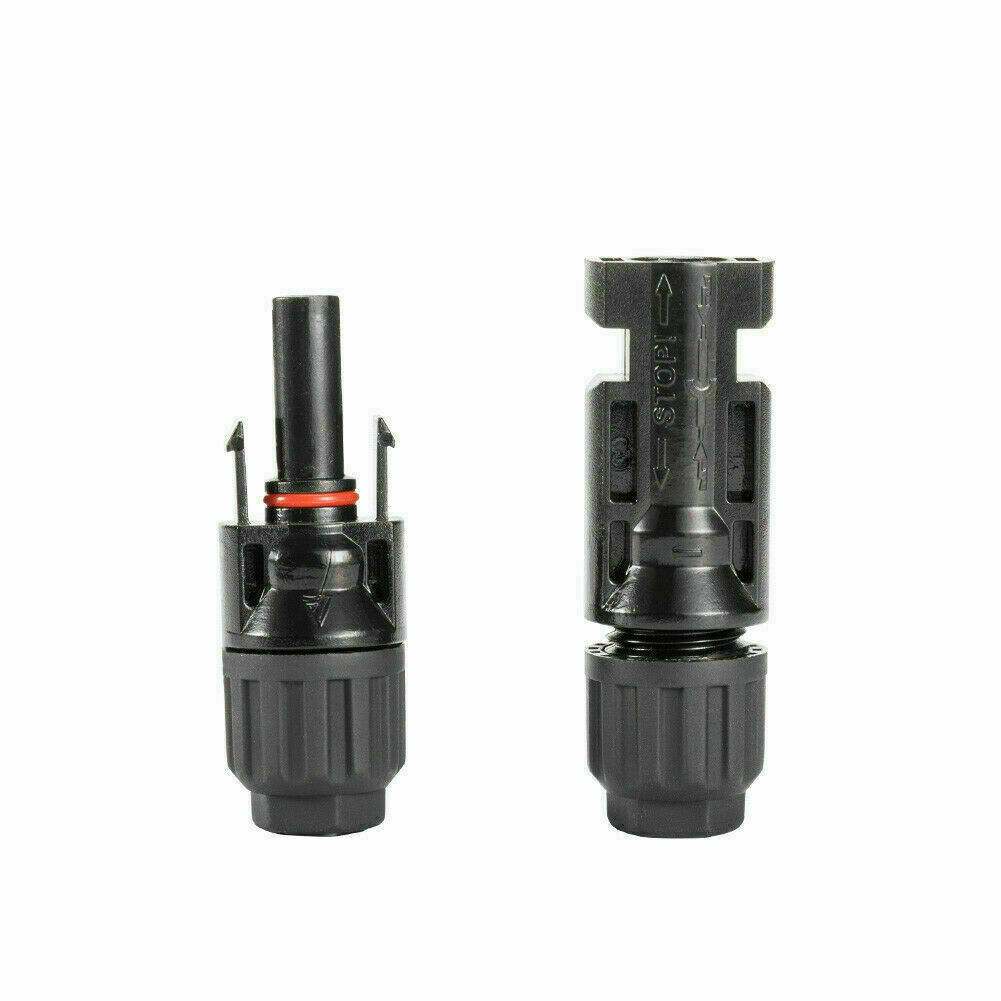

20 pairs of MC4 solar panel cable connectors


Features:

1. Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.

2. Double seal rings for better waterproof effect.

3. Compatible with PV cables with different insulation diameters.

4. Resistance of extra high & low temperature and fireproof.

5. Load capability with big current and high voltage.



Specification:

Insulation Material: PC/PA, black

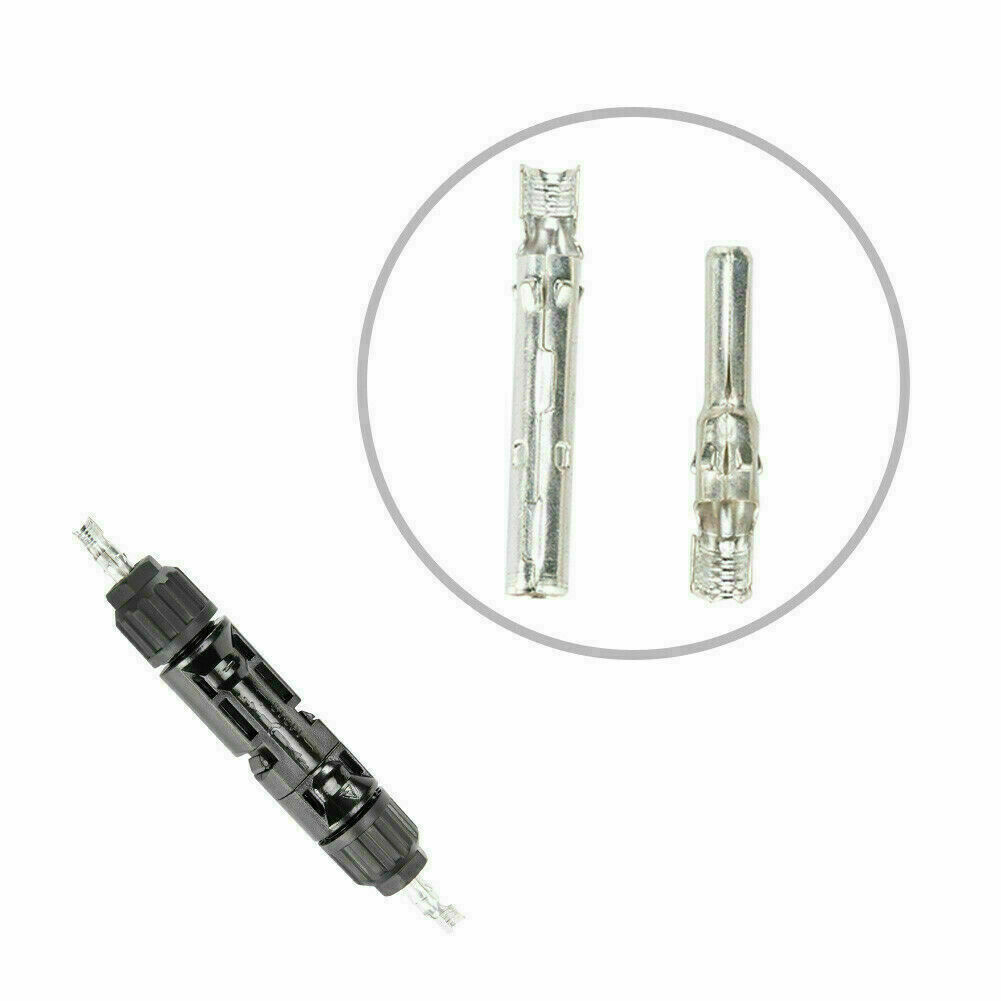

Contact Material: Copper Sliver plated

Temperature Range: -40 C ~ +90 C

Flame Class: UL94-VO or UL94-5VA

Rated Current: 30A

Suitable cable: 2.5mm2, 4mm2, 6mm2(AWG14, AWG12, AWG10)

Pin dimension: 4.0 mm dia.

Contact resistance: ≤0.2mmΩ

Waterproof degree：IP67

Flame class: UL94-VO

-Safety Class: Ⅱ

-Withdrawal force: ≥50N

-Insertion force: ≤50N

-Insulation material: PPO + PA

-Connecting system: crimping connection
