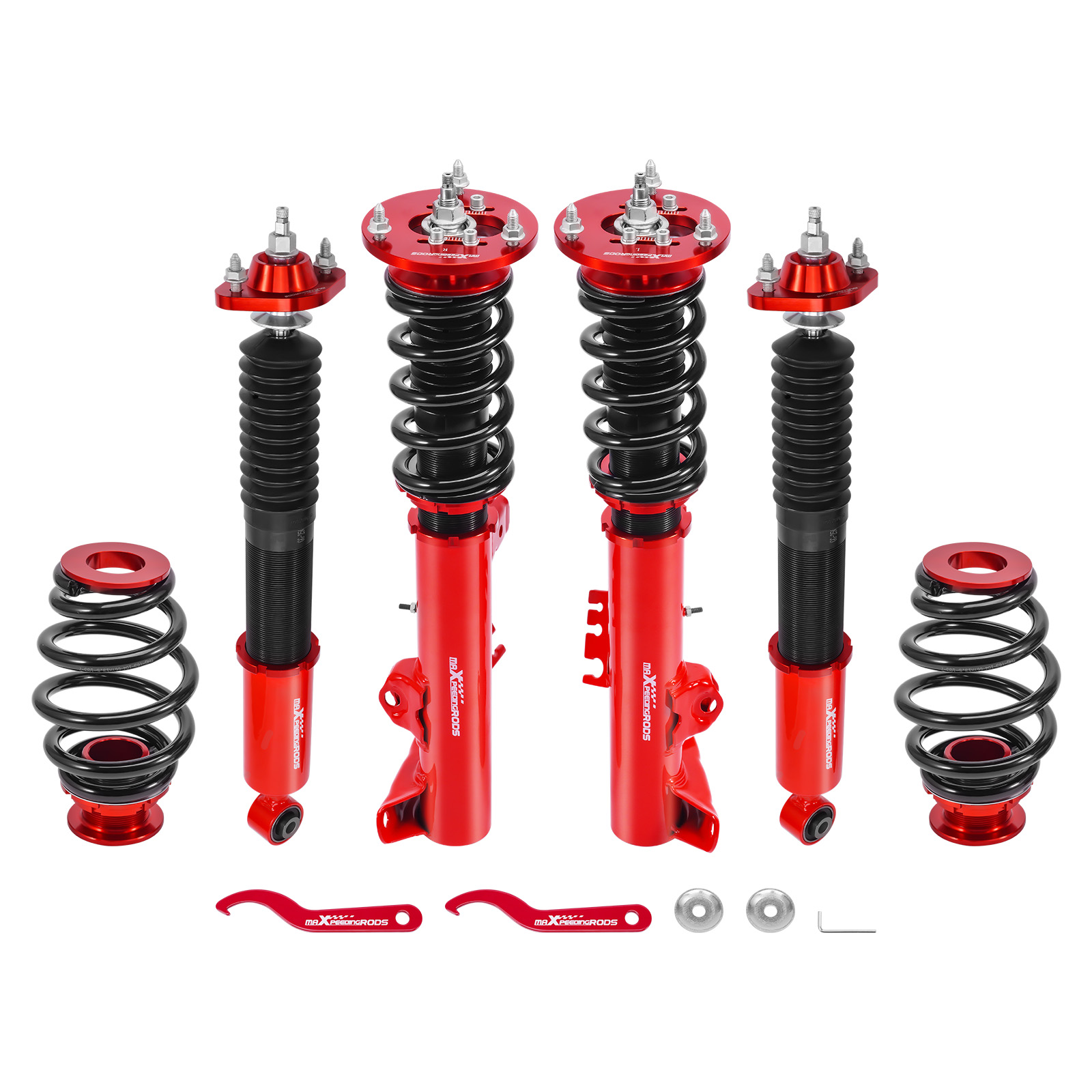

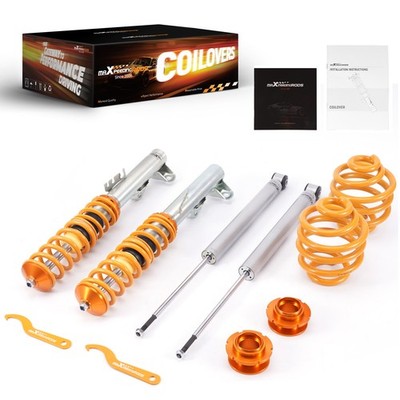

Coilovers Suspension Kit for BMW 3 Series E36 Saloon Estate 1990-1999 328i

For BMW 3 E36 Saloon 09/1990-12/1998

316i 318i 320i 323i 325i 328i 318is 325is 318tds 325tds 325td M3

For BMW 3 E36 Coupe 09/1991-04/1999

318is 316i 320i 323i 323is 325i 328i 328is M3

For BMW 3 Convertible E36 03/1993-04/1999

318i 320i 323i 325i 328i M3

For BMW 3 E36 Touring / Estate 08/1994-12/1999

316i 318i 320i 323i 328i 318tds 325tds

Height adjustable	lowering 25-75mm depending on the vehicle models
Damping adjustable	24 levels of rebound damping force
Spring rate Front	8 kg/mm (448 lbs/in)
Spring rate Rear	7 kg/mm (392 lbs/in)
Front spring inner diameter	70.5 mm
Rear spring inner diameter	63-66 mm
Spring length Front	180 mm
Spring length Rear	183 mm
Front top mounts	pillow ball bearing camber plate
Rear top mounts	pillow ball
Shock type	Twin tube
Spring Preload	7-10 mm
Warranty	2 years
