The latest BT-705 (100-2000CCA) Battery Analyzer form Foxwell is dedicatedly developed to test 12V regular flooded, AGM flat plate, AGM spiral and gel batteries and 12V or 24V starting and charging system. It provides a quick,easy and affordable solution for technicians to check battery health and detect faults of starting and charging system.
FOXWELL BT705 100-2000CCA Battery Analyzer Tester Function:
1.Battery Analyzer: BT705 automobile battery tester designed for 12 V or 24 V batteries with a capacity of 100 to 2000 CCA, such as regular flooded, AGM flat plate, AGM spiral, GEL and deep cycle batteries, 12V or 24V starting and charging system. The test results based on CCA, EN, CA, MCA, DIN, SAE, JIS and IEC Standards.
2.Car Batteries Doctor: Adopt the advanced conductance testing technology, the premium quality copper clip and wire maintain a stable communication all throughout the testing process to provide you with reliable results! Accurately and quickly measure the actual cold cranking amps, capability of the vehicle starting battery and healthy state of the battery itself. CRANKING AND CHARGING SYSTEM TEST: BT705 auto tester displays the decision on the starter system, cranking voltage, and cranking time in milliseconds. Also, the battery diagnostic tool can check 12V or 24V charging system to make sure the output voltage of the generator is in a regular condition, the rectifier diode works fine and the charging current is a normal status.
3.Worth To Own: BT705 car battery analyzer can accurate reading of battery health status in just 2. 5 seconds in its large and easy to use backlit LCD display, help you diagnose and resolve car health problems timely without disconnecting the battery or using a separate battery.
FOXWELL BT705 Support Vehicles:
1. 12V Car Battery Tester
2. 24V Light Duty Truck Battery Tester
FOXWELL BT705 Support Battery Type:
FOXWELL BT-705 Feature:
• Multiple vehicle applications ¨C passenger cars and heavy duty trucks.
• Test batteries from rated from 100 to 2000CCA. Cold Cranking Amps settings is in increments of 1 and you can line up with your battery ratings from 100 to 2000CCA.
• Test multiple battery types- regular flooded, AGM flat plate, AGM spiral and gel.

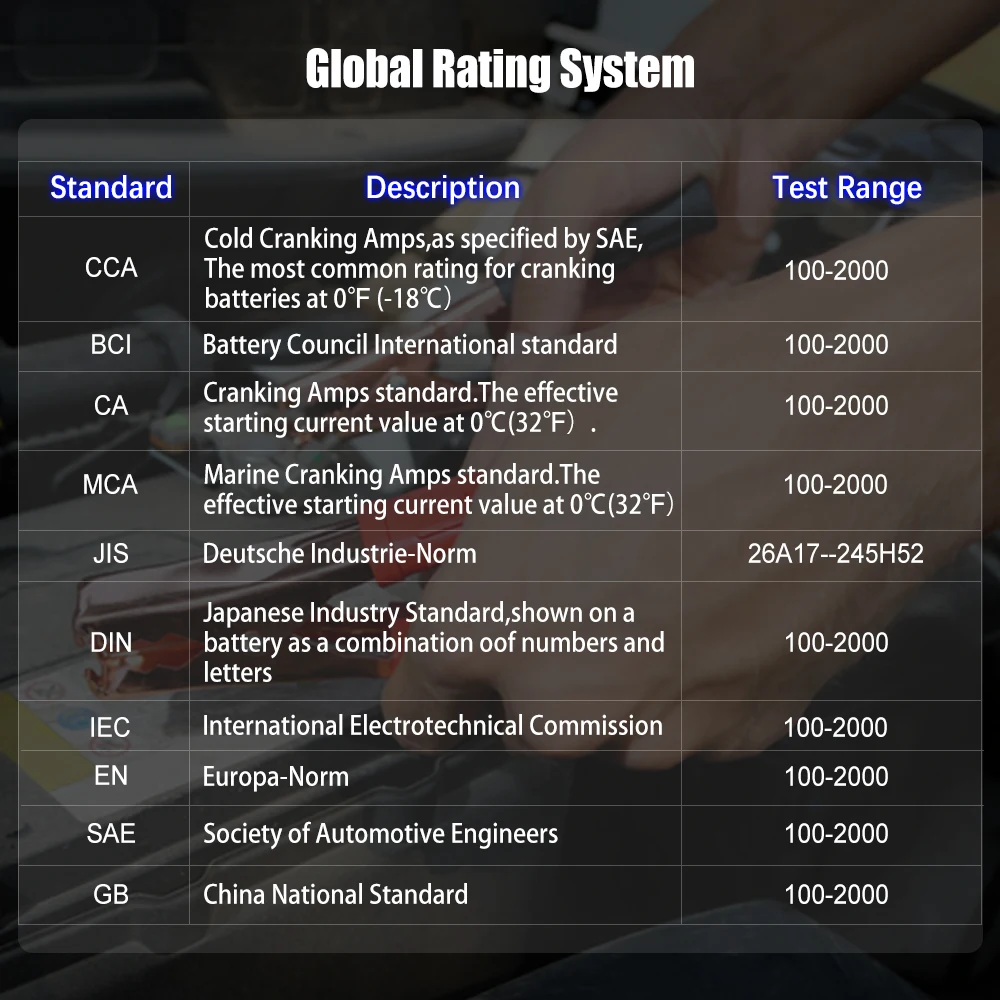

• Test multiple rating systems-CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.
• Test the batteries on the car directly - no need to remove the battery.
• Quick and accurate test result display in just 3 seconds, detects bad cells directly.
• Test 12 or 24 volt charging system.
• Quick starter analysis without disabling the ignition.
• Does not emit light, heat or spark ,or discharge battery-keeps operation safe for all levels of users.
• Automatic temperature compensation.
• Ripple voltage test for easy and intuitive check of faults.
• Extremely easy to use with large backlight LCD display and menu-driven operation.

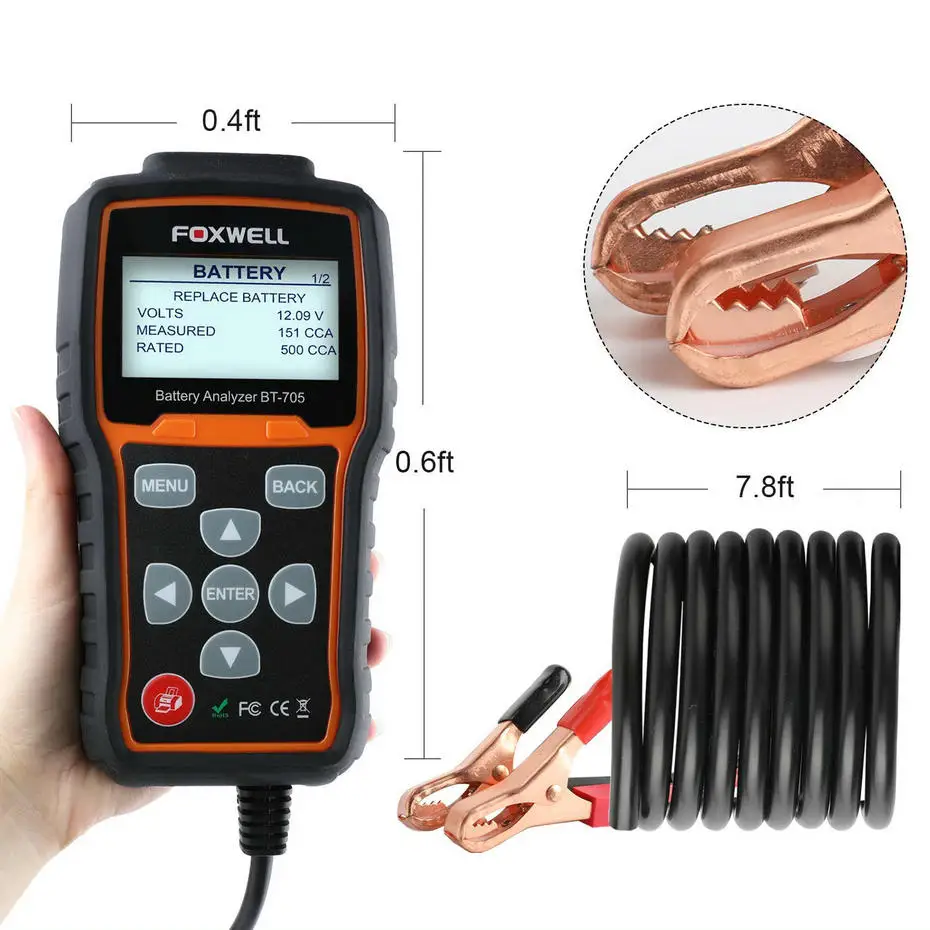

• Rubberized sleeve protects, 7.8ft tester cable with metal alligator clips. Viewing/Printing Test Results, allow you view test results and print the data via optional Bluetooth printer.
SOH: The health status of battery.
SOC: The state of charge.
RES: The internal resistance of the battery.
Foxwell BT705 Supports Functions:
1.Multiple Battery Types
Work for regular flooded, AGM flat plate, AGM spiral and gel.
2.Vehicle Battery Analysis

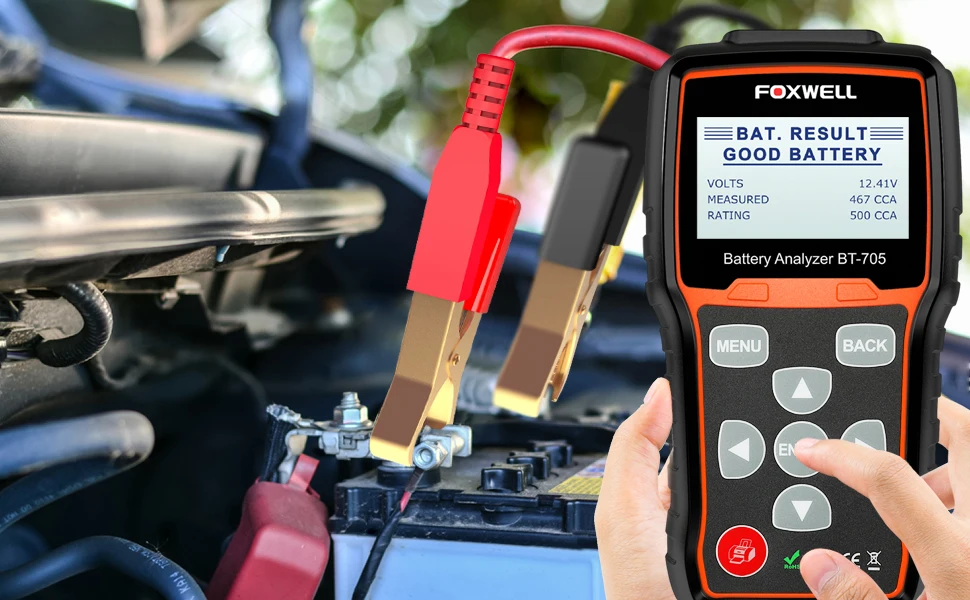

• GOOD BATTERY: Battery is in good condition.
• GOOD-RECHARGE: Battery is in good condition but low current.
• CHARGE and RETEST: Fully charge the battery and retest. If you still get CHARGE and RETEST after fully charge the battery, replace it.
• REPLACE BATTERY: The battery is almost dead or the connection between the battery and battery cable is poor. Replace the battery and retest; or disconnect the battery cables and retest the battery using the out-of-vehicle test.
• BAD CELL-REPLACE: The battery may be damaged.
3.Vehicle Crabking Analysis
• CRANKING NORMAL: The starter voltage is normal and the battery is fully charged.
• LOW VOLTAGE: The starter voltage is low and the battery is fully charged.
• CHARGE BATTERY: The starter voltage is low and the battery is discharged. Fully charge the battery and repeat the starter system test.
• REPLACE BATTERY: Battery must be replaced before the starting system can be tested.
• NO START: No vehicle start detected.
• CRANKING SKIPPED: A start was not detected.
4.Vehicle alternator charging system analysis
• NO PROBLEMS: System is showing normal output from the alternator.
• NO OUTPUT: No alternator output detected. Check connections to and from the alternator, especially the connection to the battery.
• LOW OUTPUT: Alternator not providing sufficient to power the system's electrical loads and charge the battery.
• HIGH OUTPUT: Alternator voltage output exceeds the normal limits.
• EXCESSIVE RIPPLE: Excessive AC ripple detected. One or more diodes in the alternator are not working or there is stator damage.

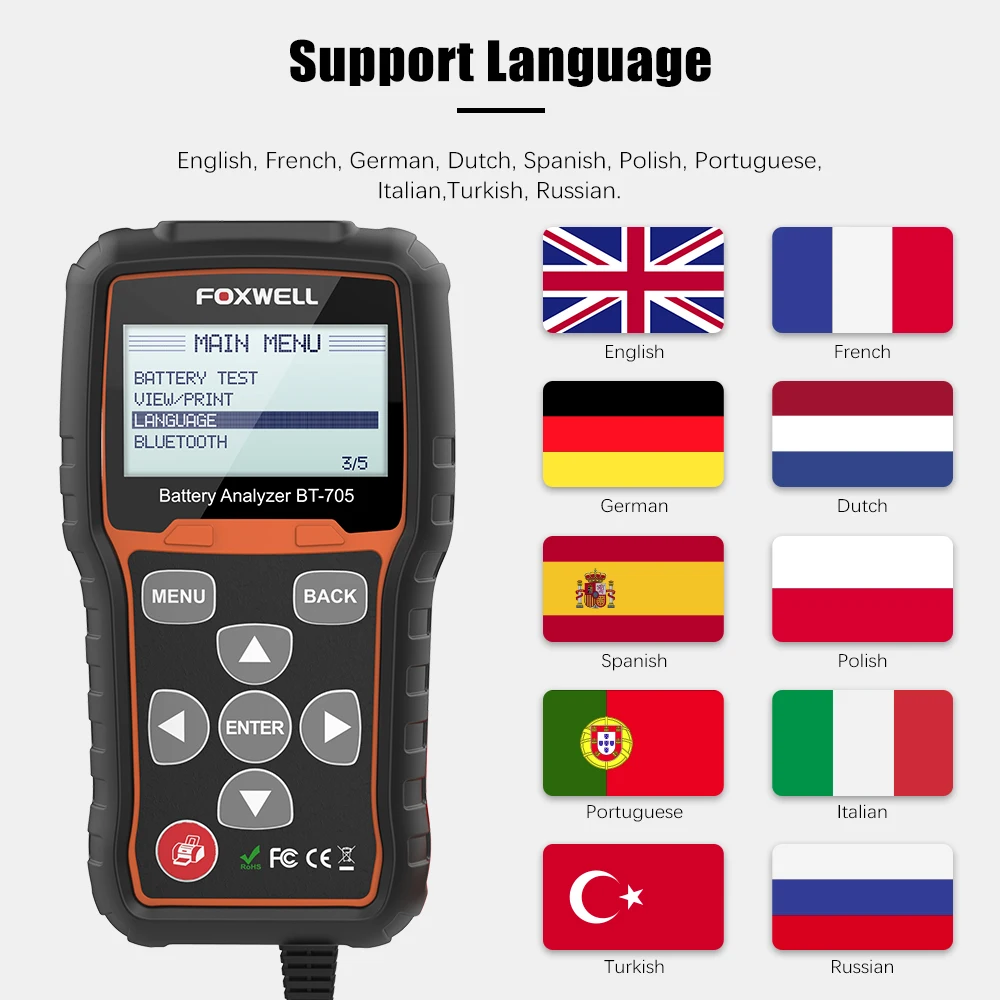

Foxwell BT705 Support Language
English, French, German, Dutch, Spanish, Polish, Portuguese, Italian, Turkish, Russian
Packing List
1PC * Car Battery Analyzer Foxwell BT705 Main Unit
1PC * User's Guide
1PC * Carry Pouch
