1pc

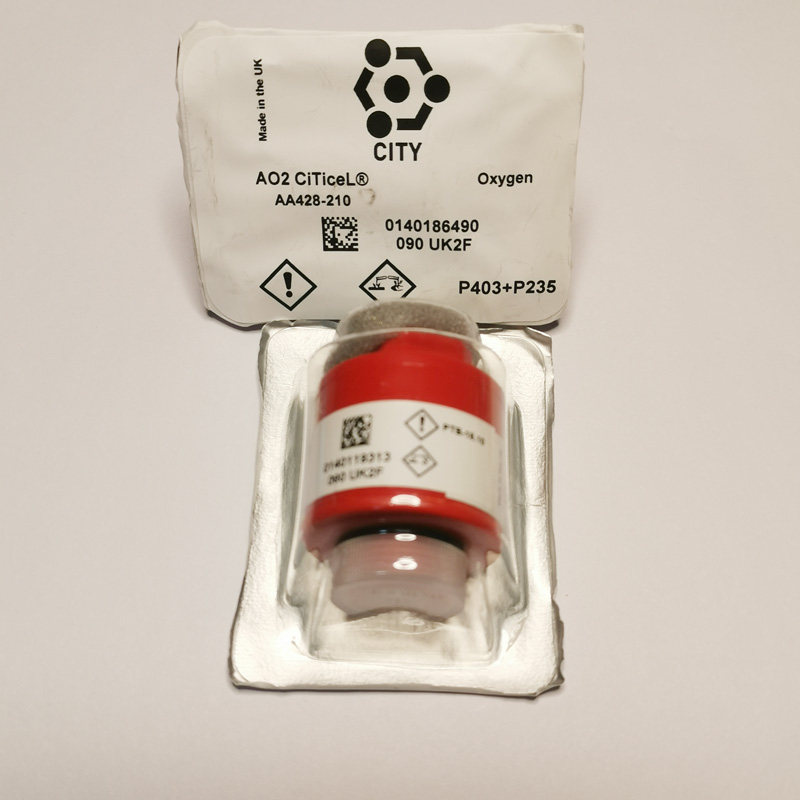

British CITY car oxygen sensor AO2, the AO2 PTB-18.10 oxygen sensor used on the oxygen index tester is a consumable. When it comes into contact with the air, a chemical reaction occurs. Generally, the validity period of the oxygen sensor is one year. The package must be airtight, usually in a sealed plastic package filled with nitrogen, and the best storage temperature is between 0°C and 20°C.
AO2 PTB-18.10 is used in various instruments related to oxygen testing, such as: vehicle exhaust gas detection instrument, exhaust gas environmental protection detection instrument, oxygen index test instrument.

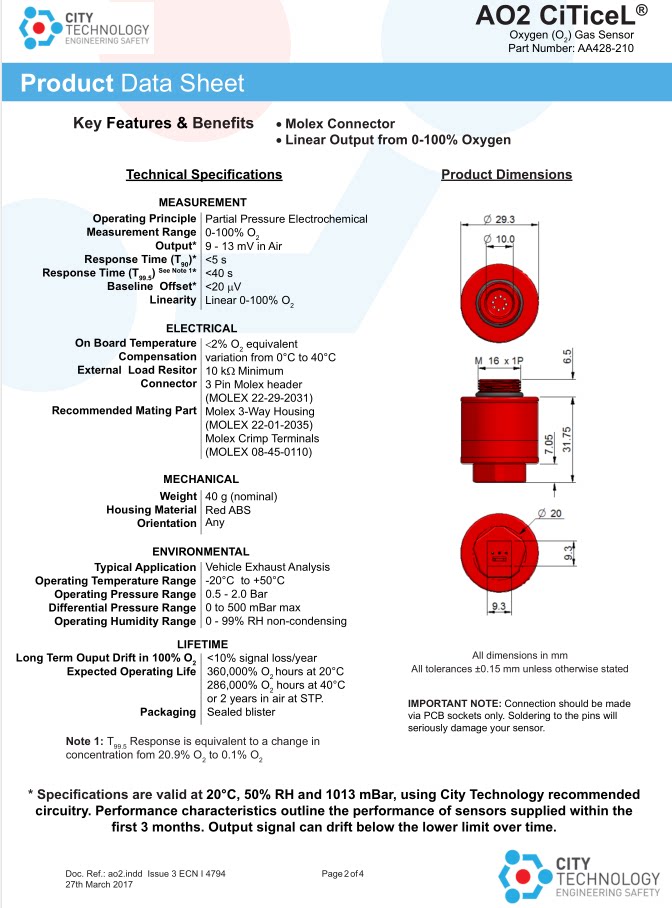

AO2 product parameters:
(1) Output: 9-13mV in air
(2) Range: 0-100%O2
(3) Accuracy: 0.01%O2
(4) Expected service life: 360,000% O2 hours at 20°C, 286,000% O2 hours at 40°C, or two years at STP in air
(5) T90 response time: <5 seconds
(6) T99.5 response time: <40 seconds
(7) 100% oxygen in the signal: 100±1%
(8) Linear: 0-100%O2
(9) Zero offset value: <20µV
(10) Temperature range: -20℃—+50℃
(11) Temperature compensation: <2% variation 0°C to 40°C (as shown)
(12) Differential pressure range: 0-500mbar Max
(13) Absolute pressure range: 500-2000mbar
(14) Relative humidity range: 0-99% non-condensing
(15) Long-term output drift: <10% signal loss/year
(16) Recommended load resistance min: 10kΩ
The output of the AO2 sensor varies with temperature, but gradually integrates thermistors to compensate for these changes. A thermistor is used to give the AO2 a very stable output over a wide temperature range.
The AO2 PTB-18.10 oxygen sensor used in the oxygen index meter is a consumable, and when it comes into contact with air, a chemical reaction begins.
Shelf life:
In general, the validity period for use is one year.
The original packaging of the oxygen sensor must be sealed, usually in a sealed plastic package filled with nitrogen.
The best storage temperature is between 0°C and 20°C.
