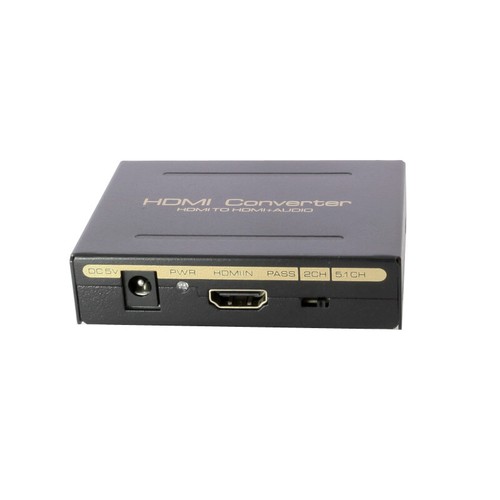

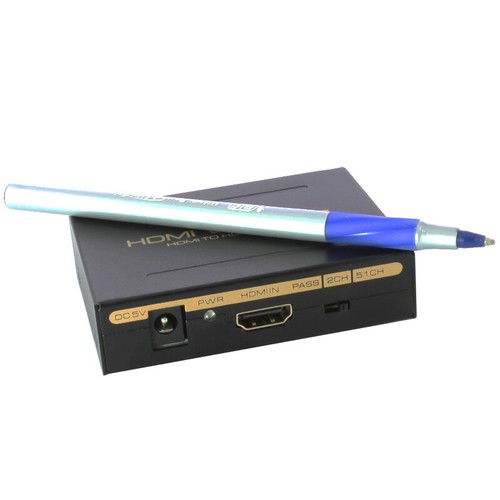

HDMI Audio Extractor to SPDIF RCA Stereo L/R Analog Output Converter
The HDMI to HDMI converter allows the HD Source connected to single HD Display and adds extra one L+R
and SPDIF audio out port.
The devices offer solutions for noise, space and security concerns, data center control, information
distribution, conference room presentation, school and corporate training environments.
This device can extract the digital 2CH PCM stereo audio signal from the HDMI input and convert it to 2CH
analog stereo output through its RCA style L/R analog output AND SPDIF output at the same time.
The SPDIF output can support 5.1CH audio including Dolby Digitla 5.1CH and DTS 5.1CH; it does NOT support
Dolby Digital Plus and PCM 5.1CH and beyond.
Product Feature:
Extract the digital audio signal from the HDMI input and convert it to 2 channel analog stereo output or
5.1 channel Audio output
Supports the highest video resolution to 1080p. Supports 225MHz/2.25Gbps per channel bandwidth
Supports 12bit per channel (36bit all channel) deep color. Supports HDCP, Video EDID Pass Through;
Plug & Play
Audio EDID Settings: 2CH for L/R or SPDIF stereo output; 5.1CH for SPDIF Output, Supports
uncompressed audio such as LPCM. Supports compressed audio such as DTS Digital, Dolby Digital
Provides the Best Flexibility through Three NEW Audio EDID Settings: Pass, 2CH and 5.1CH, Support 3D
video (To get 3D, all units connected to the splitter outputs must support 3D). This item supports Apple
TV and various Blu-ray player and satellite receivers
Product Specification:
HDMI resolution: 1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Audio output: L/R+SPDIF
Max bandwidth: 225MHz
Max baud rate: 6.75Gbps
Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal: 5Volts p-p (TTL)
Input cable distance: within 15m AWG26 HDMI standard cable
Output cable distance: within 20m AWG26 HDMI standard cable
Max working current: 500mA
Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range: (-15 to +55 C;)
Operating Humidity range: 5 to 90%RH (No Condensation)
Dimension (L x W x H): 84.5 x 61.8 x 21 (mm)
Package Included:
1x HDMI Audio Extractor
1x DC Power Adaptor
1x Use Manual
