Description

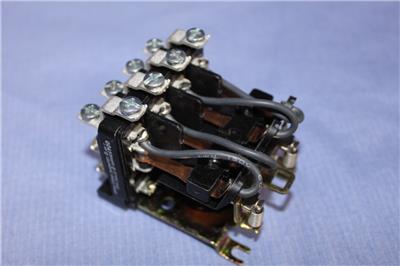

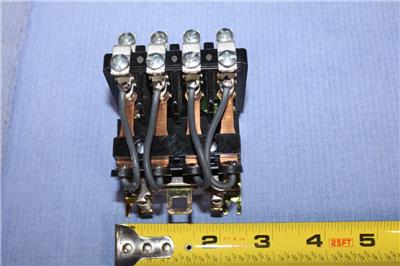

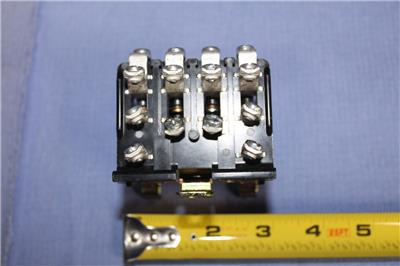

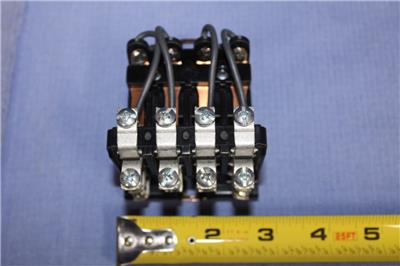

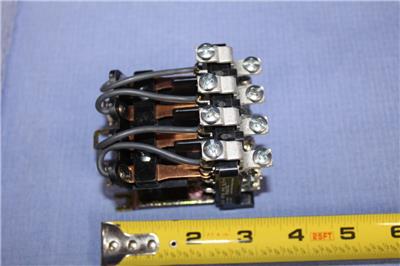

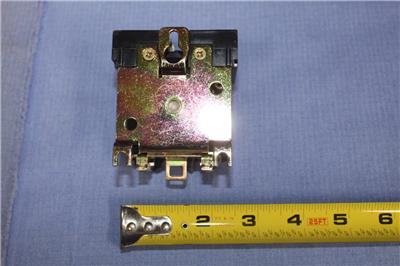

Phillips ECG

RLY1763

Heavy Duty, Open Frame, Power Relay

4PDT, 25A, 24VDC

  • Single or Polyphase Service
  • Contacts Rated at 25 A
  • Screw Terminals
  • Specfications:
    • Input Voltage : 24VDC
    • Typ. Res. Ohms: 130
    • Nom. Power: 4.4VA
    • Contacts Arrang.: 4PDT
    • Max. Curr. @ 28VDC 240VAC: 25A
    • Maximum Contact Ratings:
      • Contact Horsepower Rating: 1 HP @ 120/240 VAC
    • Duty: Conintuous
    • Expected Electrical Life: 100,000 Operations
    • Operating Temp.: -55 deg.C to +45 deg.C
    • Initial Insulation Resistance: 100 Megohms
    • Operate and Release Time: 25 msec Max.
    • Terminals:
      • Coil: 8-32 Screw
      • Contacts: 8-32 Screw
