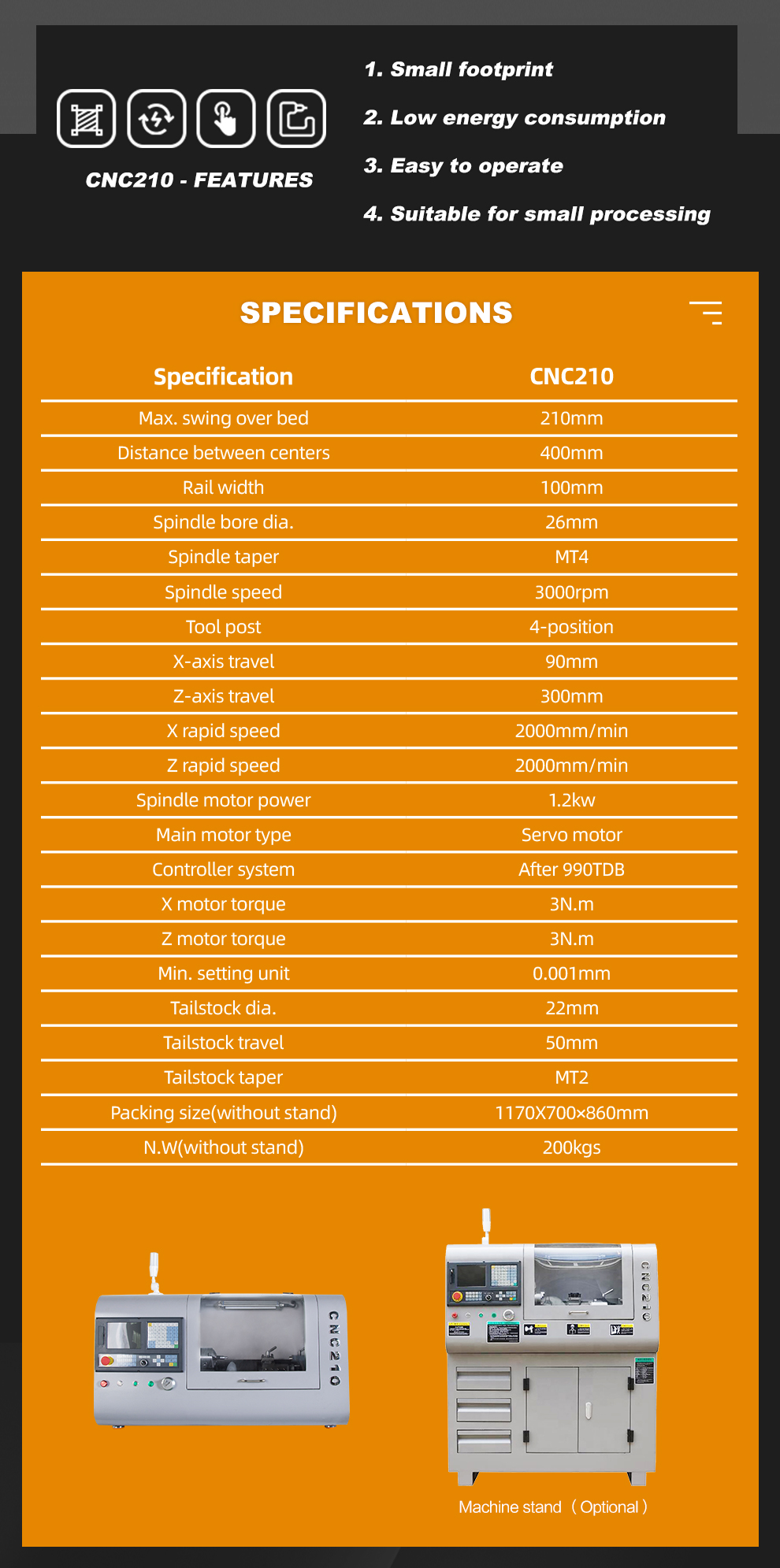

Specifics

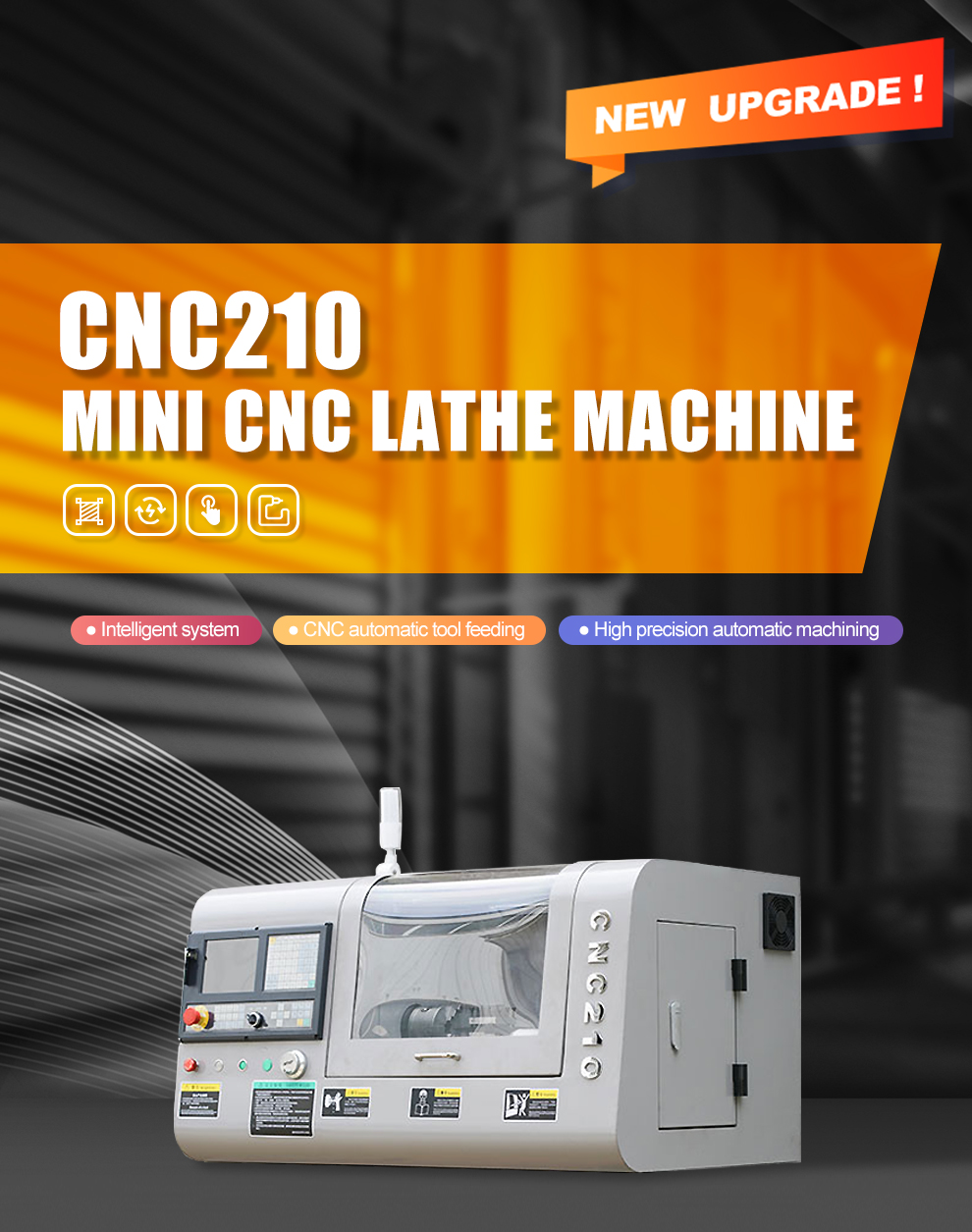

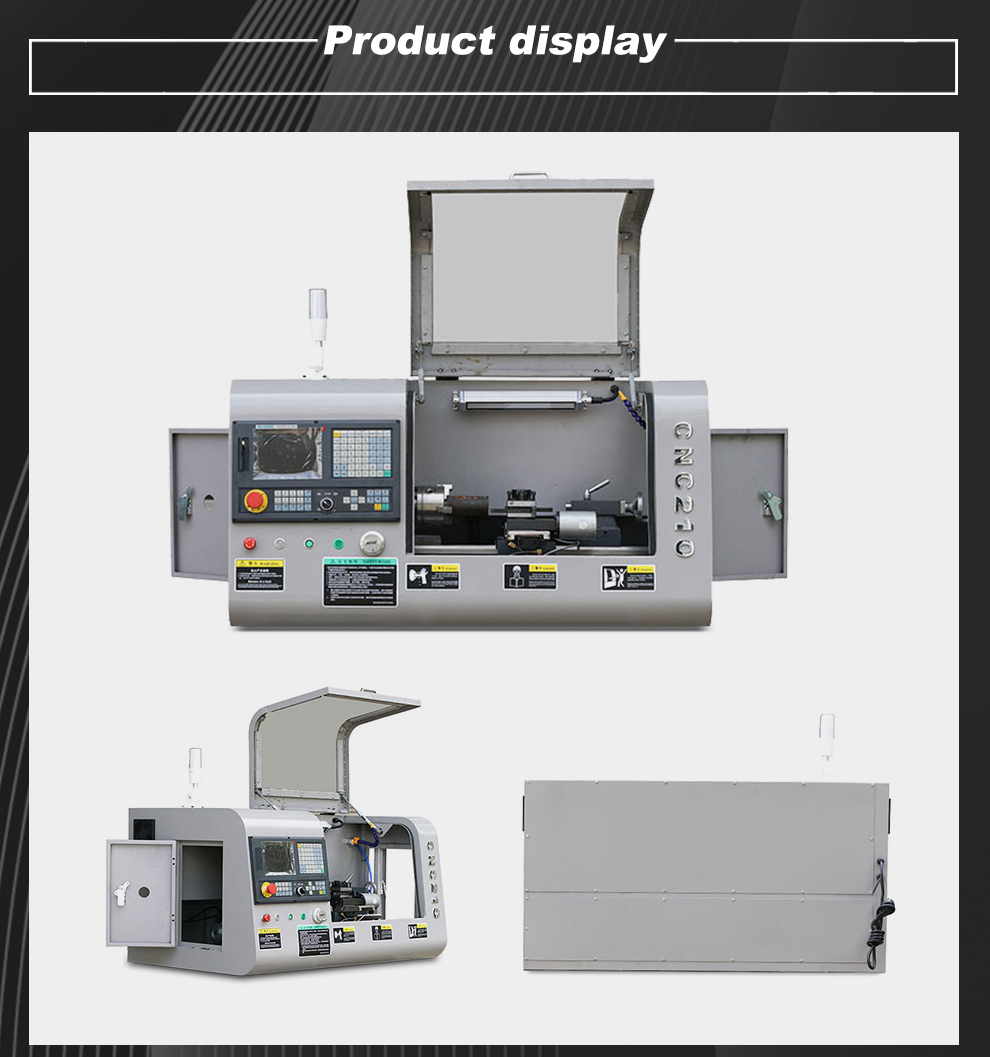

- Model : CNC210 Mini Lathe CNC Machine without stand
- Max.swing over bed : 210mm
- Max.swing over carriage : 100mm
- Distance between centers : 26mm
- Spindle bore : 26mm
- Spindle taper : MT4
- X travel : 90mm
- Z travel : 300mm

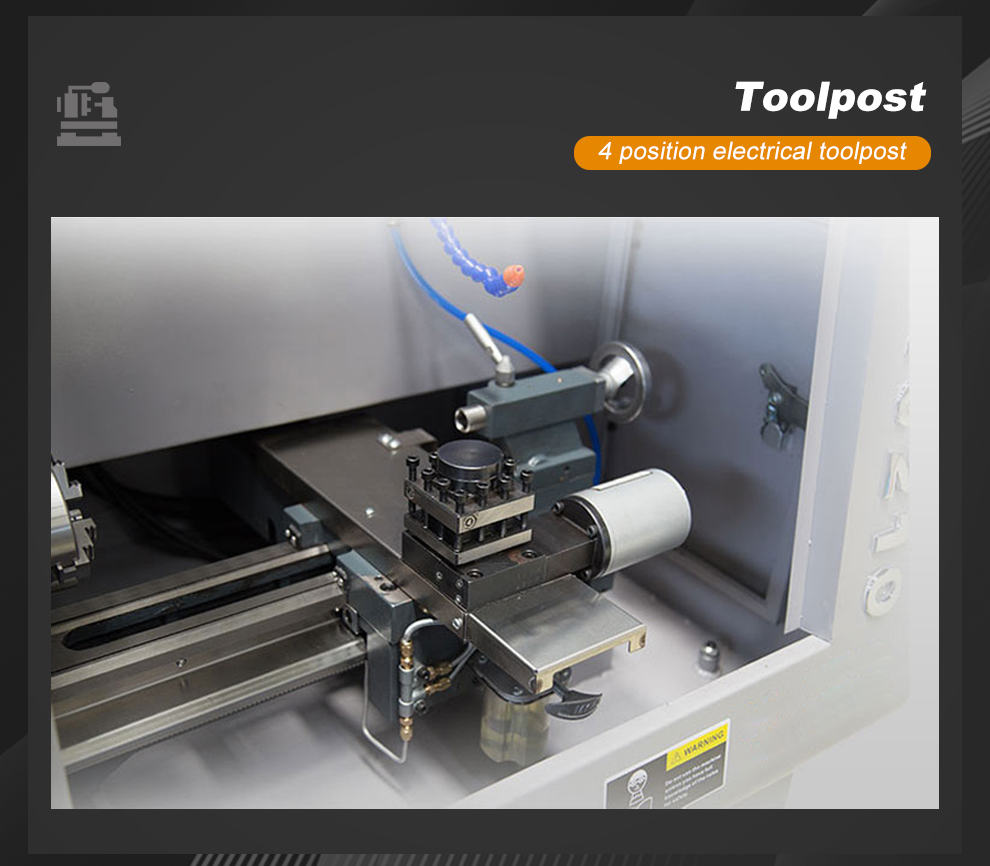

- Tool post : 4-position
- rapid speed : 3m/min
- Feeding motor power : 3.0 N.M
- Feeding motor type : step motor
- Spindle motor power： 1.2KW
- Spindle motor type：incremental Servo motor
- Min.setting unit： 0.001mm

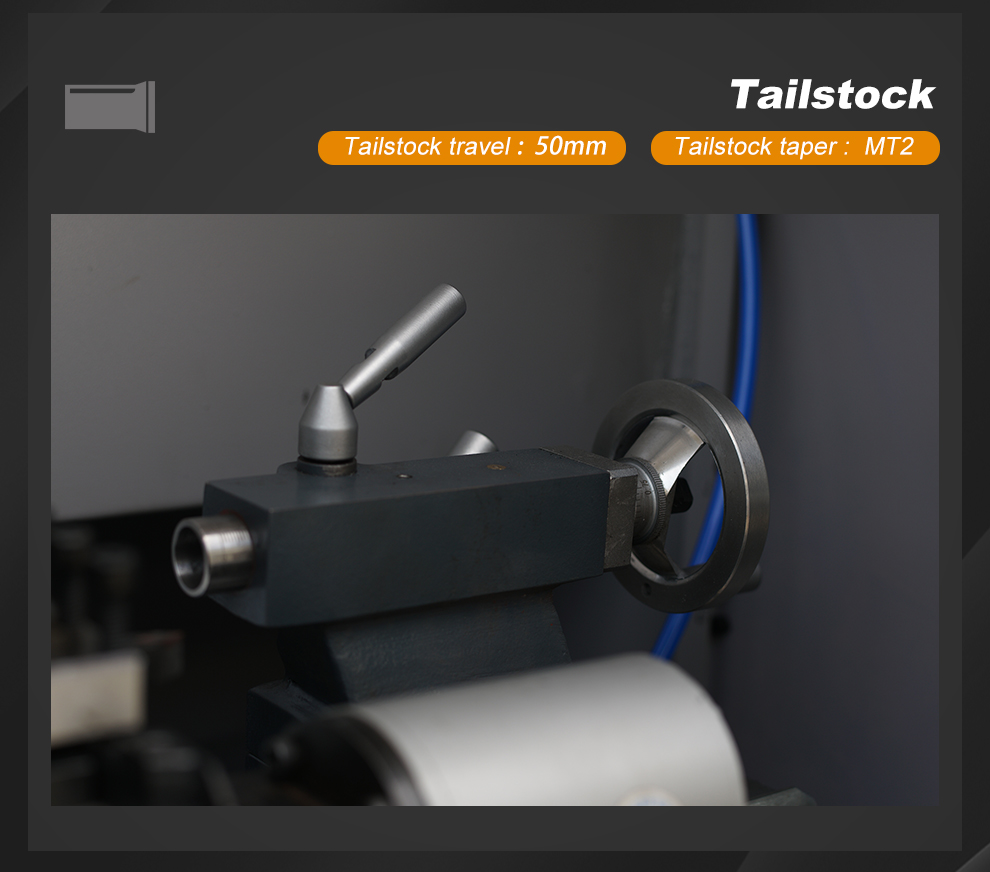

- Tailstock dia.： 22mm
- Tailstock travel： 50mm
- Tailstock taper： MT2

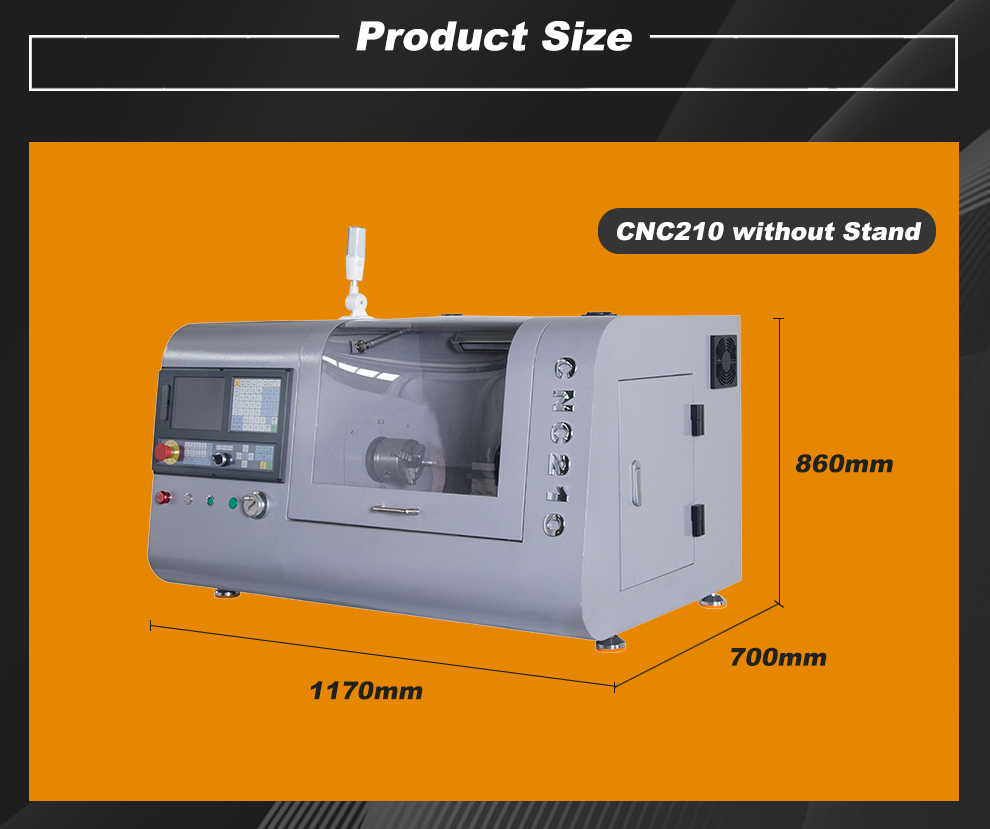

- Overall size： 1170*700*860mm
- Net weight： 200KG

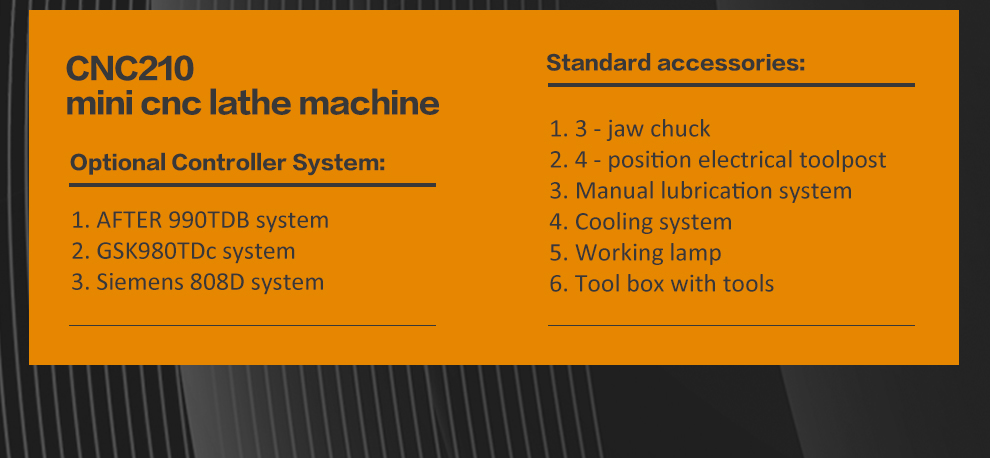

Machine Includes:
- Mini Lathe CNC Machine

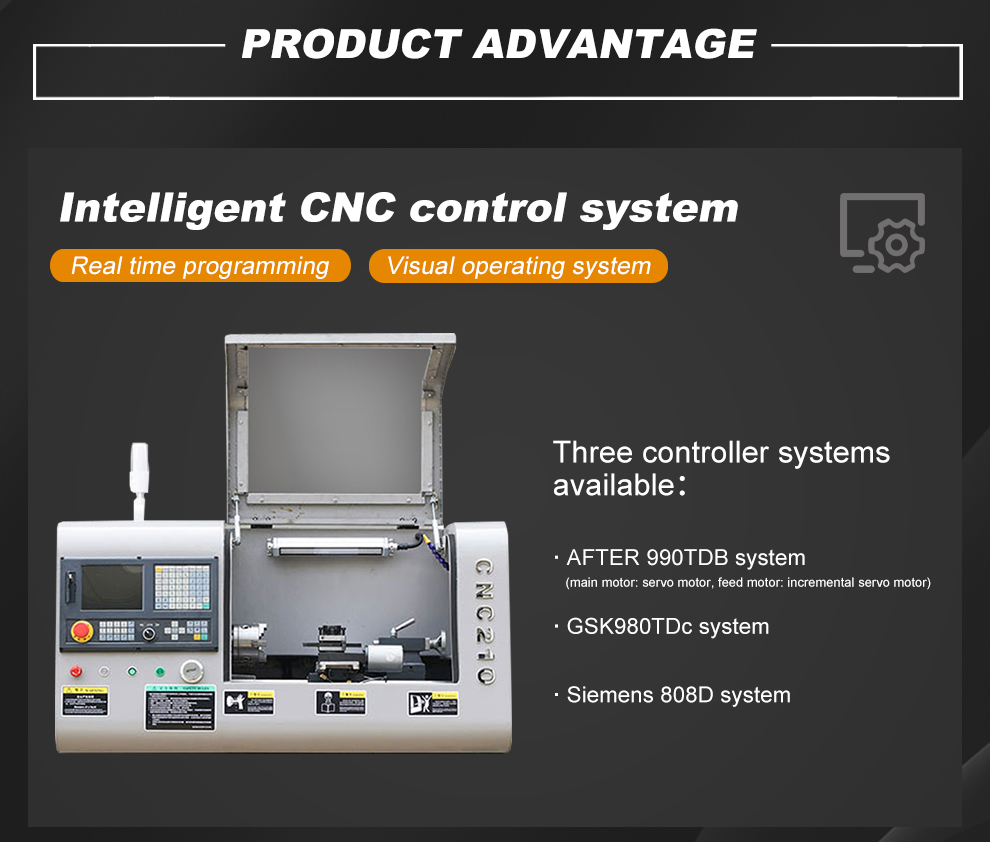

- AFTER 990TDB system

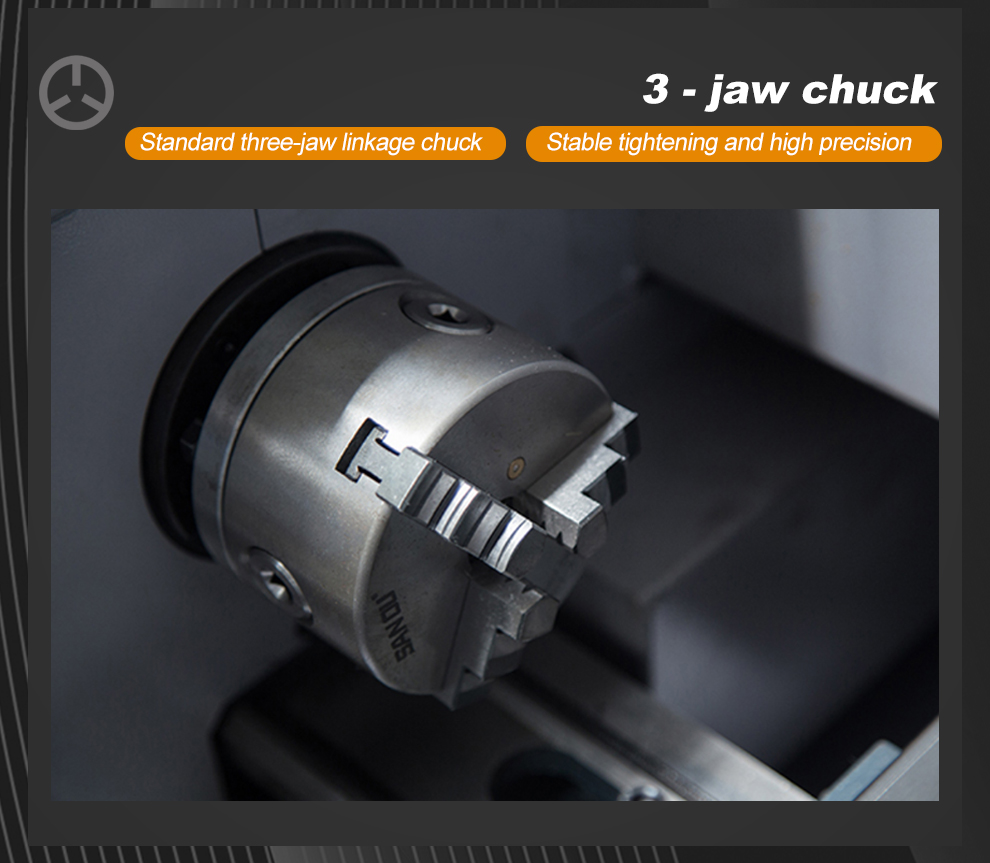

- 3-jaw chuck
- 4-position electrical toolpost
- Manual lubrication system

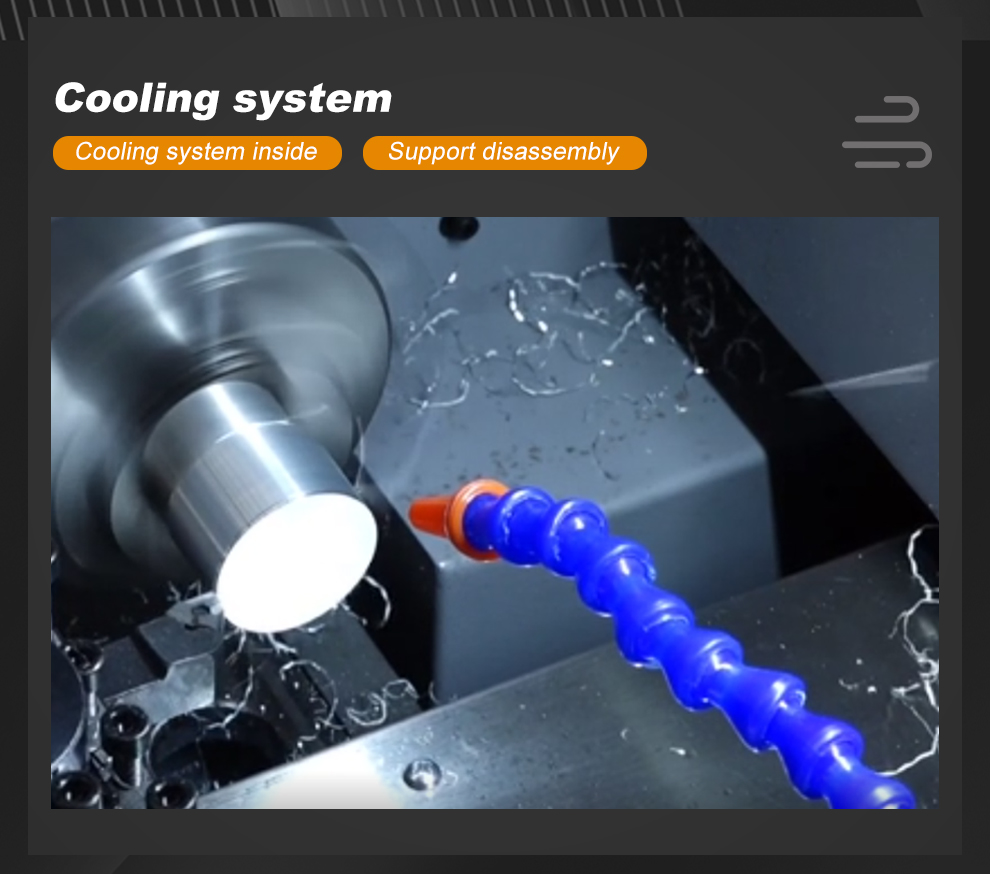

- Cooling system

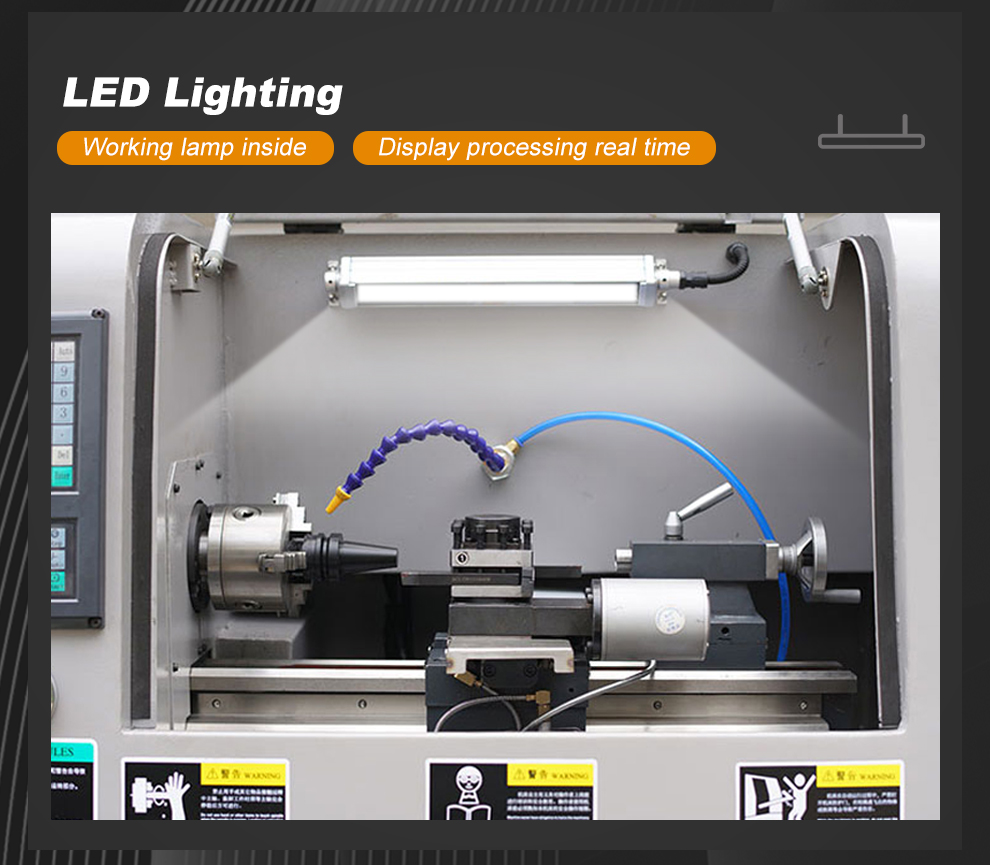

- Working lamp
- Tool box with tools
Features:
- Small footprint.
- Low energy consumption.
- Easy to operate.
- Suitable for small processing.
Operation video of Mini Lathe CNC Machine
