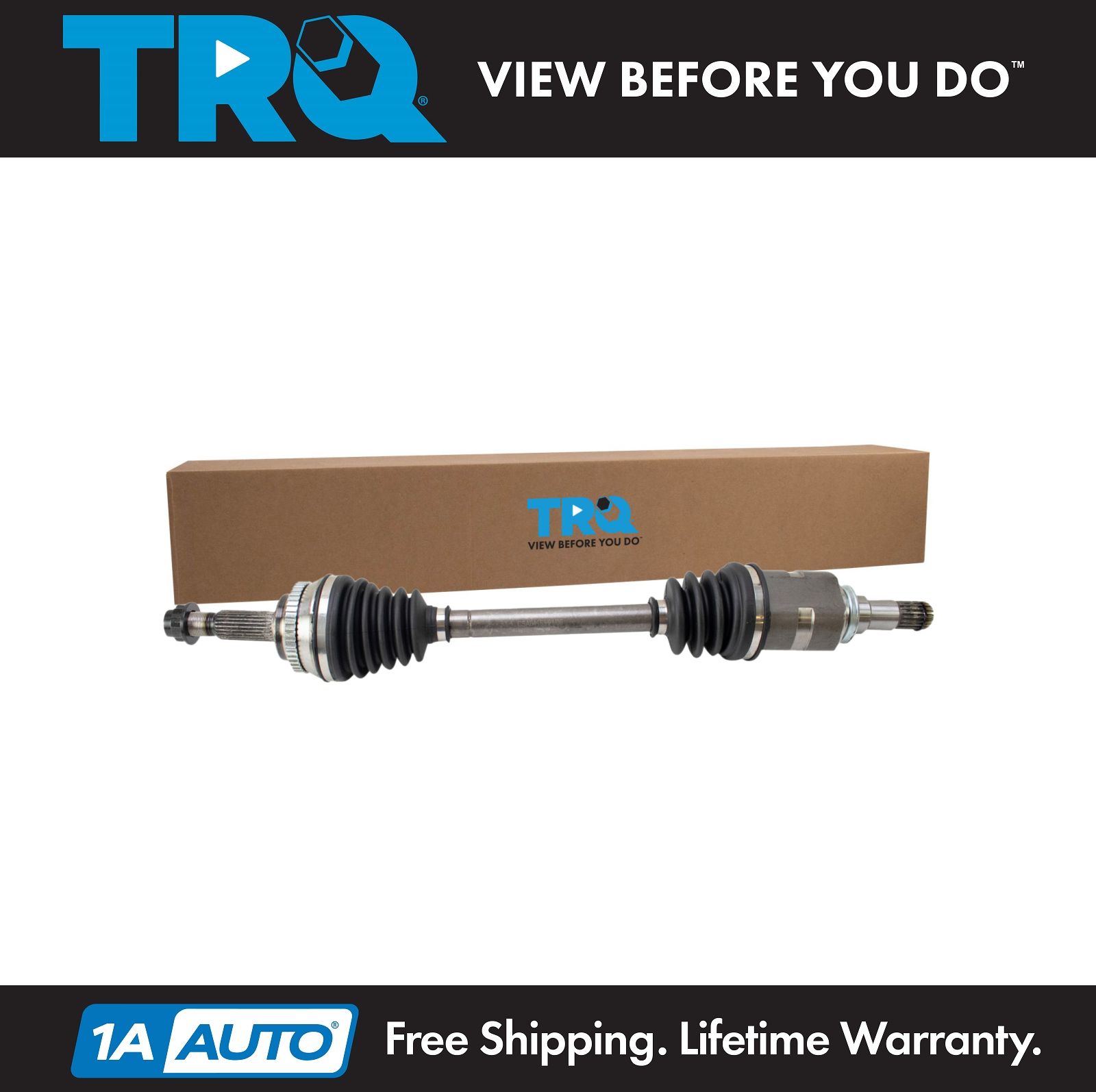

CV Axle Assembly

Check Fitment for Your Vehicle

2009 Pontiac Vibe L4 1.8L From 8/01/08 Production Date Front Driver Side
2010 Pontiac Vibe L4 1.8L Front Driver Side
2009-2010 Toyota Corolla Base Model Front Driver Side
2009-2010 Toyota Corolla LE Front Driver Side
2009-2010 Toyota Corolla S Front Driver Side
2009-2010 Toyota Corolla XLE Front Driver Side
2011-2018 Toyota Corolla Front Driver Side
2019 Toyota Corolla Sedan Automatic CVT Transmission Front Driver Side
2009-2013 Toyota Matrix Base Model Front Driver Side

Verify exact fit by year, make, model, and options.

What’s in the Box

Product Attributes

Axle Nut Socket Size: 1.18 in
Inboard Spline Quantity: 20
Compressed Length: 25.43 in
Outboard Spline Quantity: 26
Axle Nut Socket Size: 30 mm
ABS Tone Ring Tooth Quantity: 48
Compressed Length: 646 mm
Axle Nut Thread Size: M22x1.5
Outboard Joint Type: Male
Inboard Joint Type: Male
Grade Type: Standard Replacement
ABS Tone Ring Included: Yes
Axle Nut Included: Yes
Inboard Boot Material: Neoprene
Outboard Boot Material: Neoprene

Reference Numbers

Lifetime Warranty

This item is backed by our limited lifetime warranty. In the event this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.
