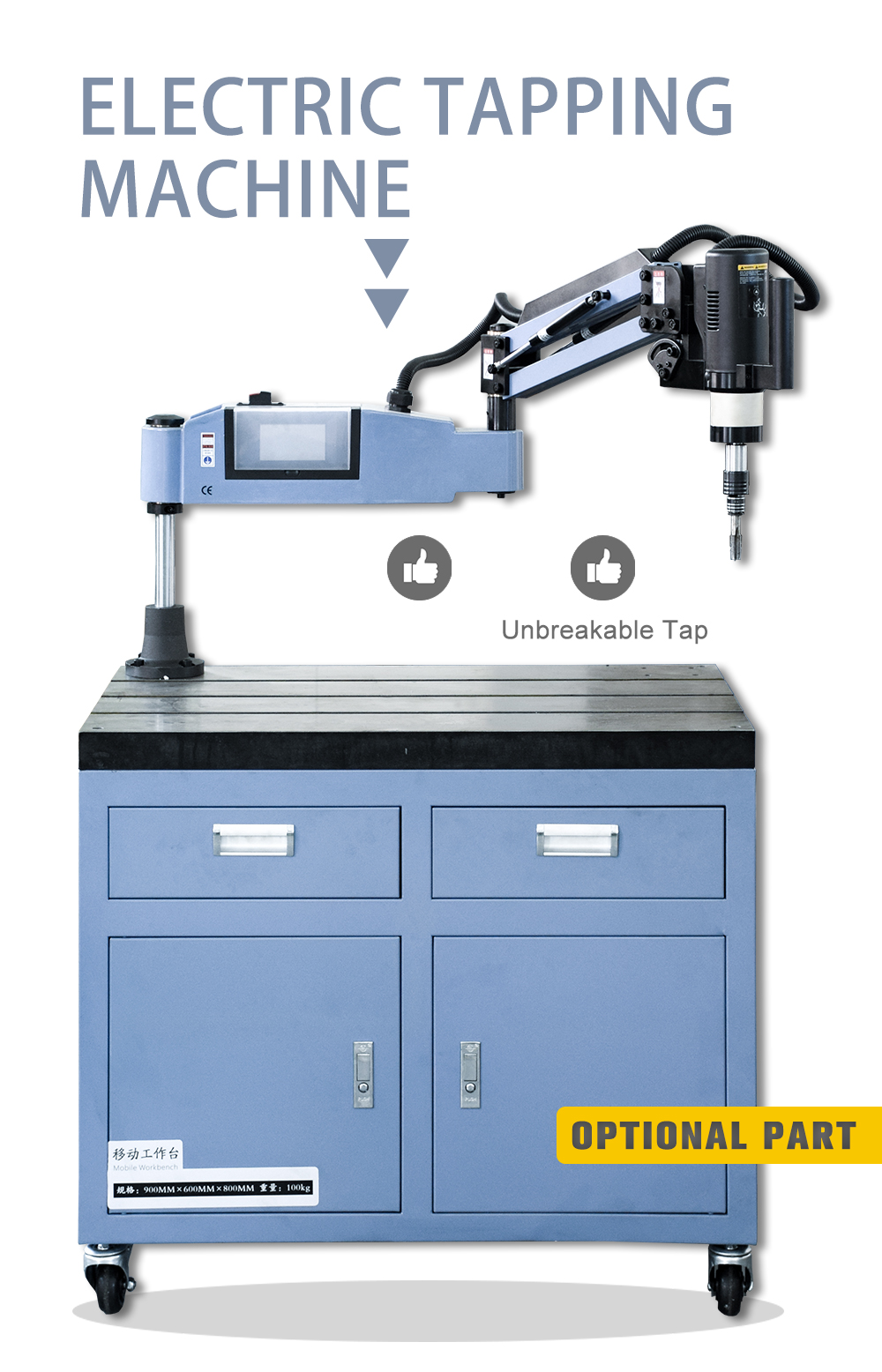

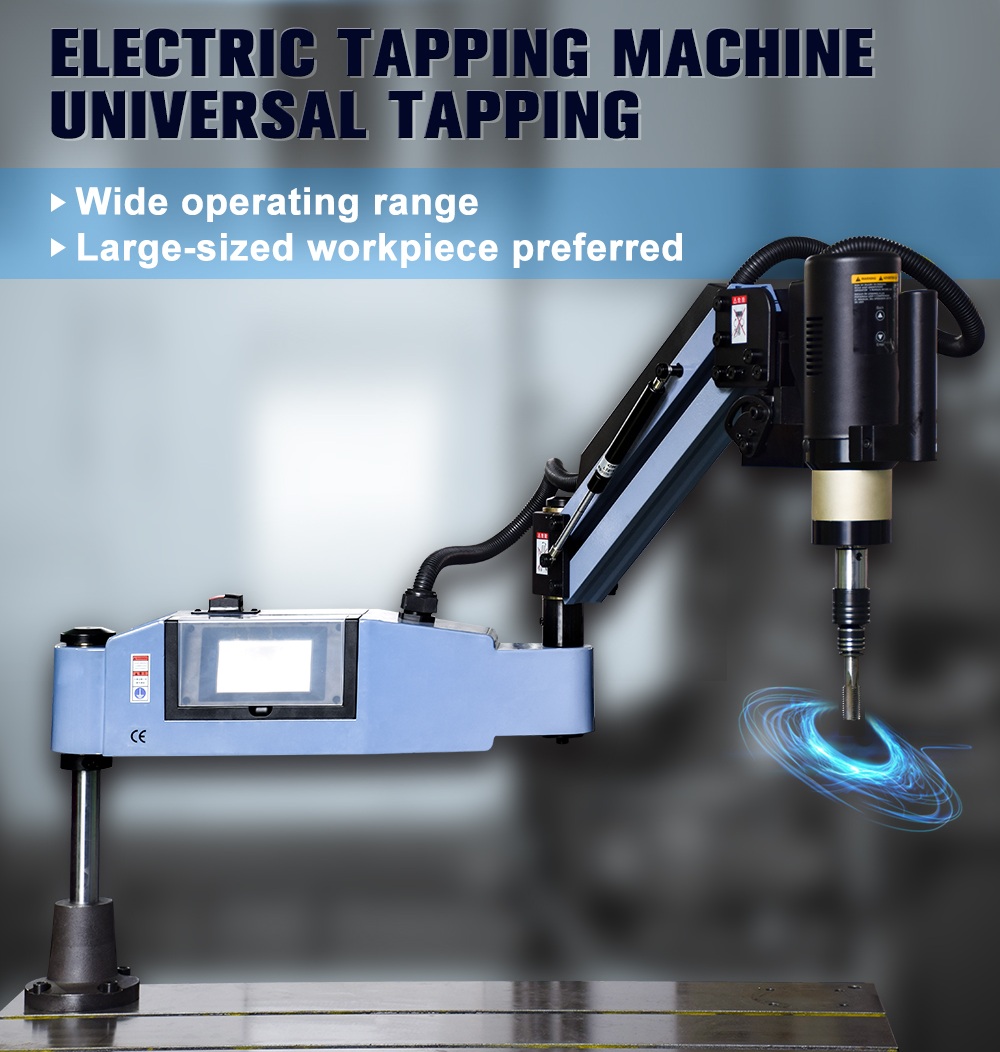

360° Flexible Electric Tapping Arm SFX-M30R Servo Motor Tapping Machine
FREE SHIPPING; DOOR-TO-DOOR SERVICE; NO OTHER CHARGES

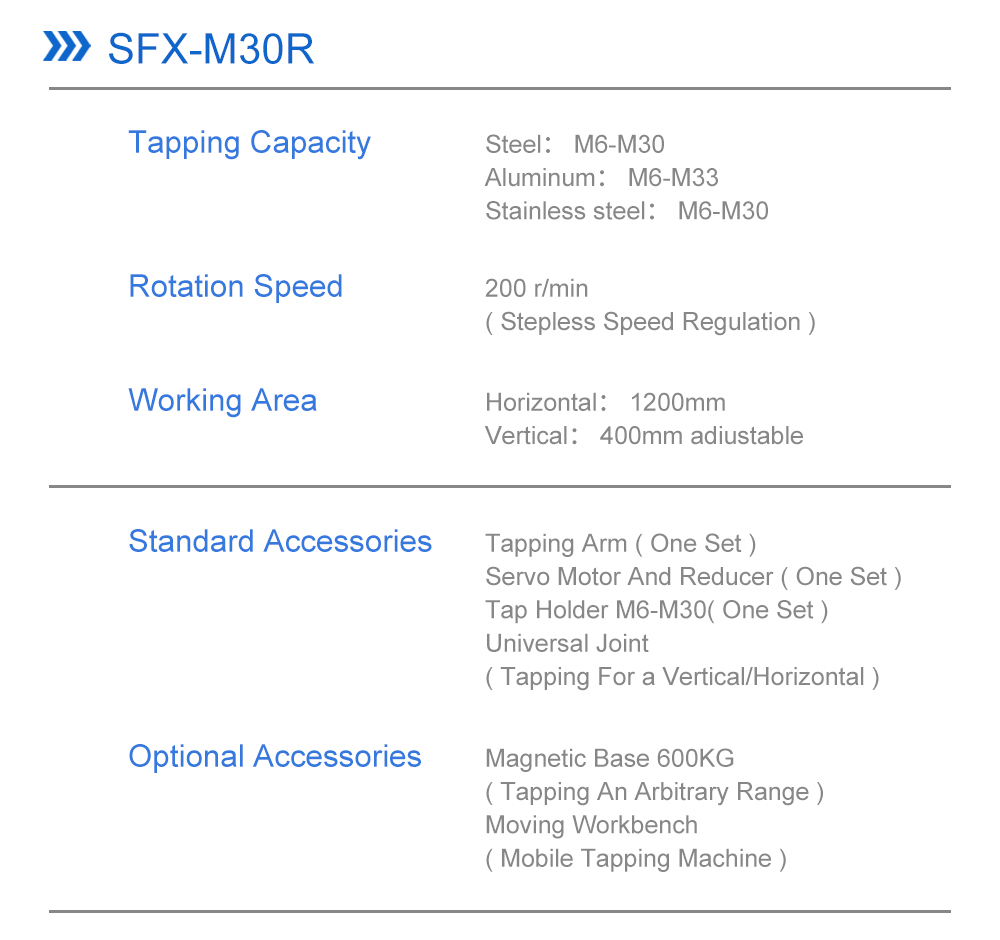

specification:
- Product name: Electric tapping machine Arm
- Model: SFX-M30R
- Voltage: 110V
- Power: 1200W
- Tapping range: M6-M33 for Aluminum; M6-M30 for Steel and Stainless Steel.
- Motor speed: 200rpm(adjustable)
- Working radius: 1200mm
- Working direction: Universal
- Package dimensions: 700*650*250cm
Package weight: 58kg(128lbs)

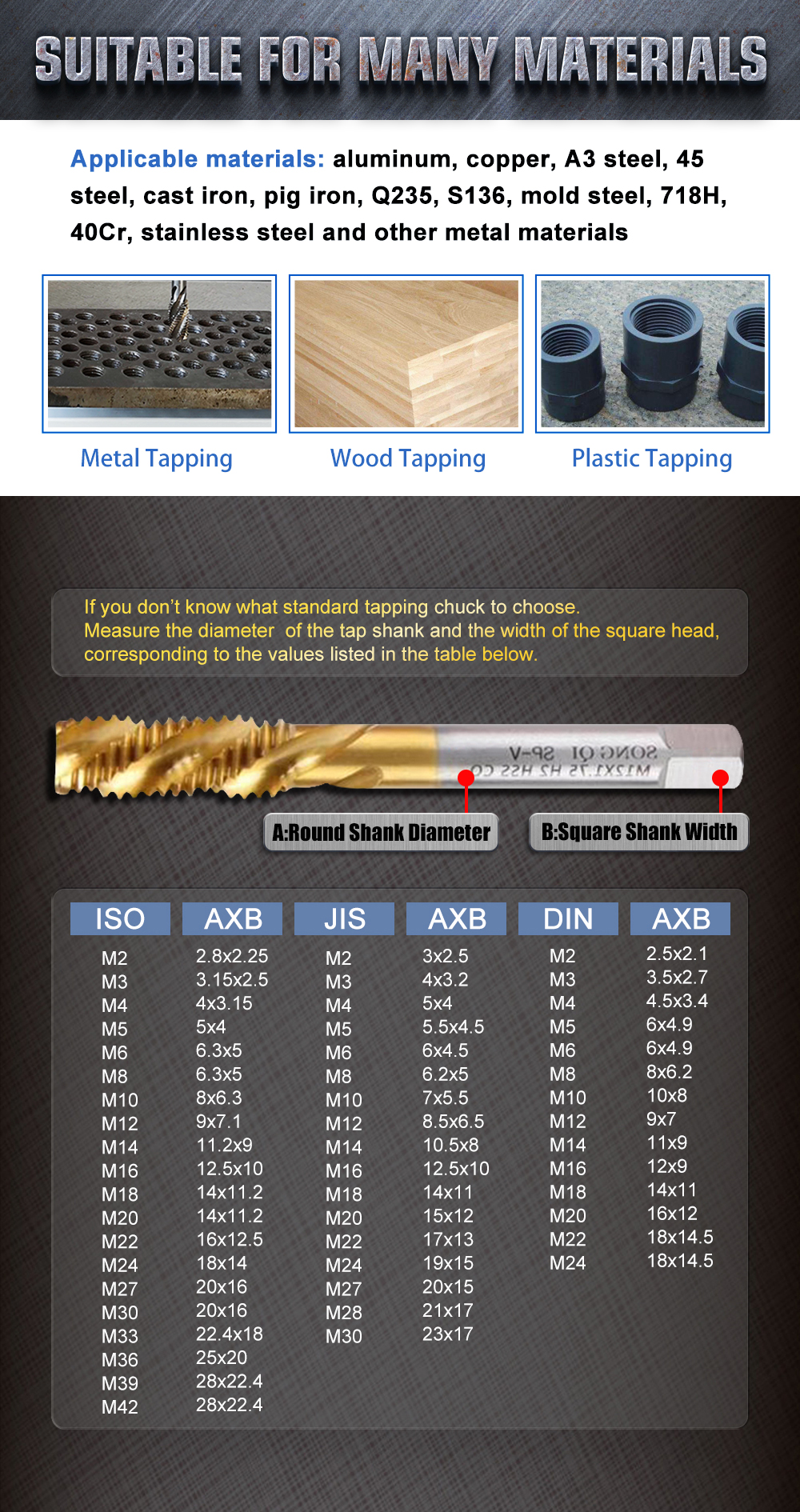

Tapping Chuck configuration:
ISO Standard(9pcs): M6-M8, M10, M12, M14, M16, M18-M20, M22 M24, M27-M30
JIS Standard(12pcs): M6, M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30
DIN Standard(11pcs): M6, M8, M10, M12, M14, M16, M18, M20, M22-M24, M27, M30
Note: The ISO standard chucks will be sent by default. If you need JIS or DIN standards, please leave a message to replace them.
