Rockville K5 W15K5S2 15" 2000w 2 Ohm Car Audio Subwoofer Sub 500w RMS CEA Rated!
Click Thumbnails to Enlarge
Condition and Warranty
Condition: BRAND NEW IN ORIGINAL PACKAGING
Warranty: 1 YEAR AUDIOSAVINGS
Product Description
All about your K5 SERIES:
Wiring for 1 SVC 2 Ohm SUBS:
Wiring for 2 SVC 2 Ohm SUBS:
Features:

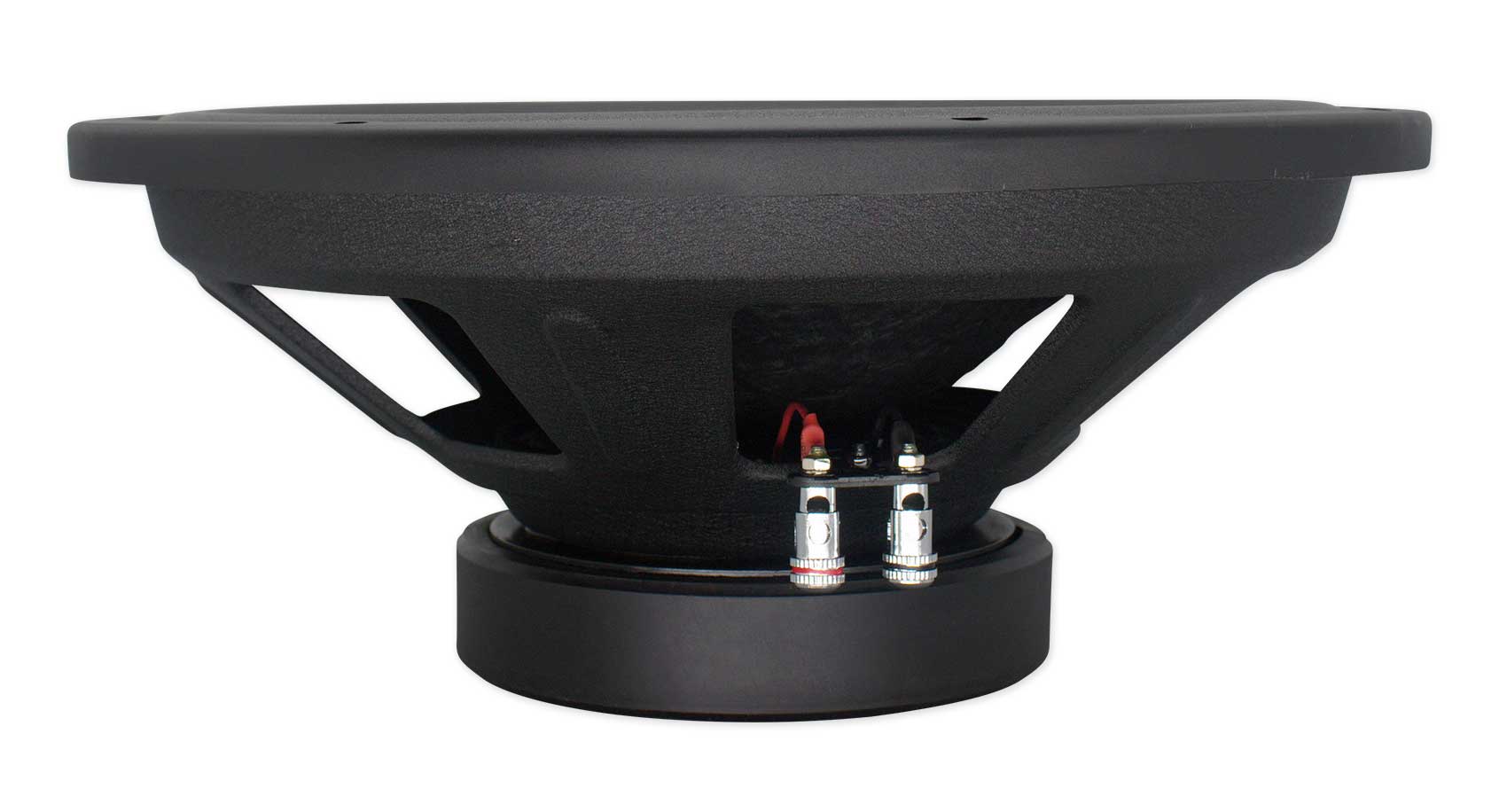

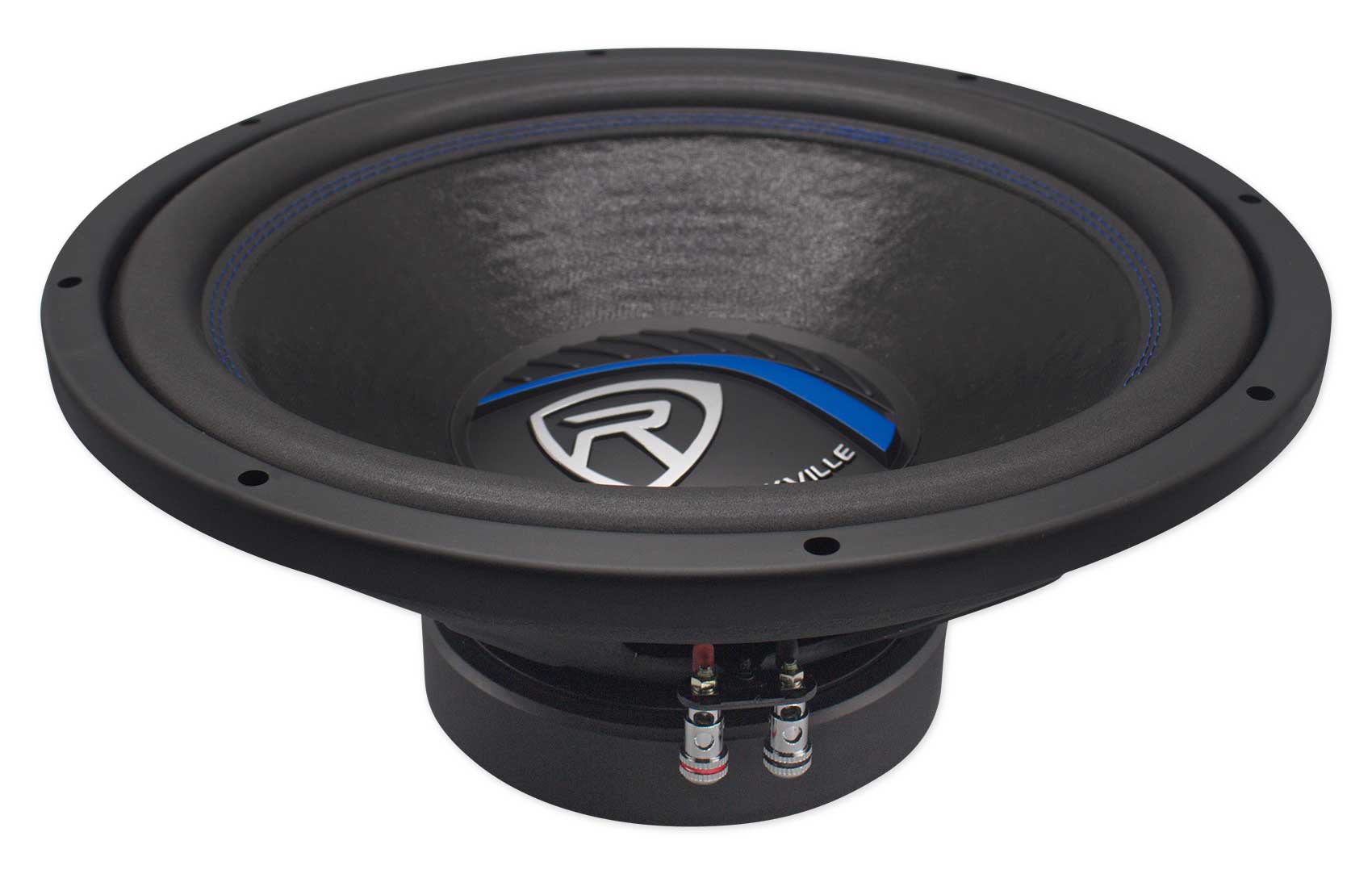

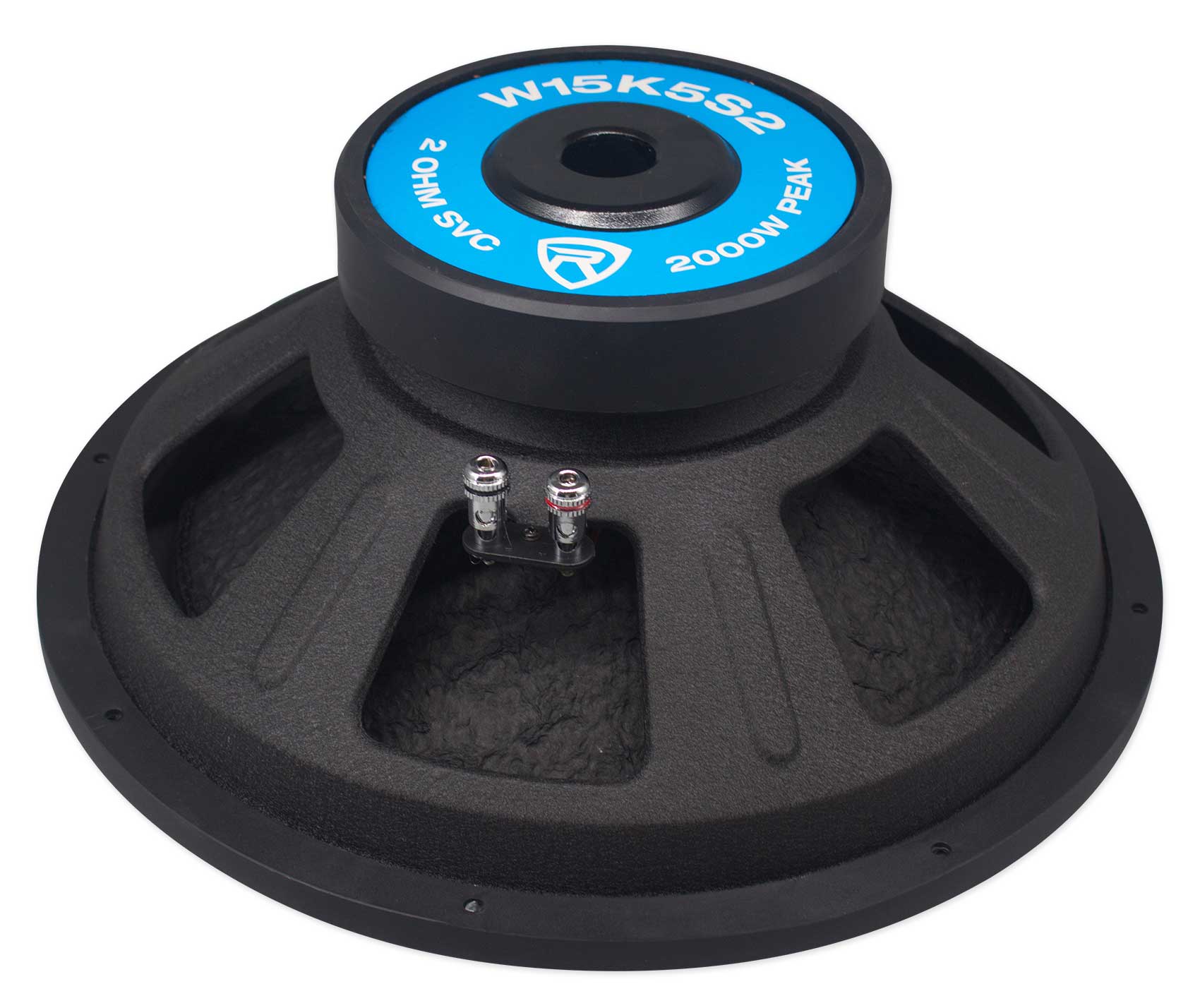

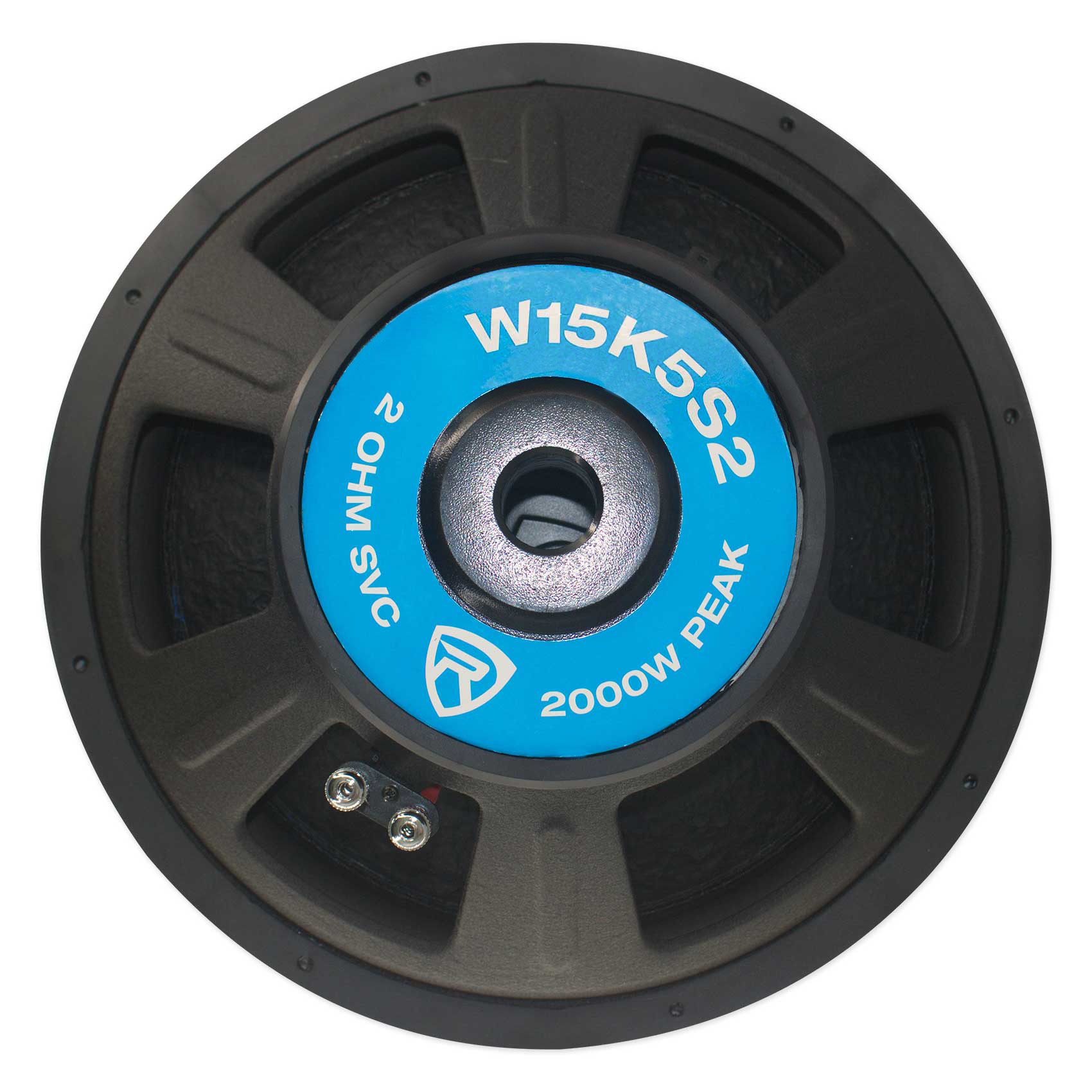

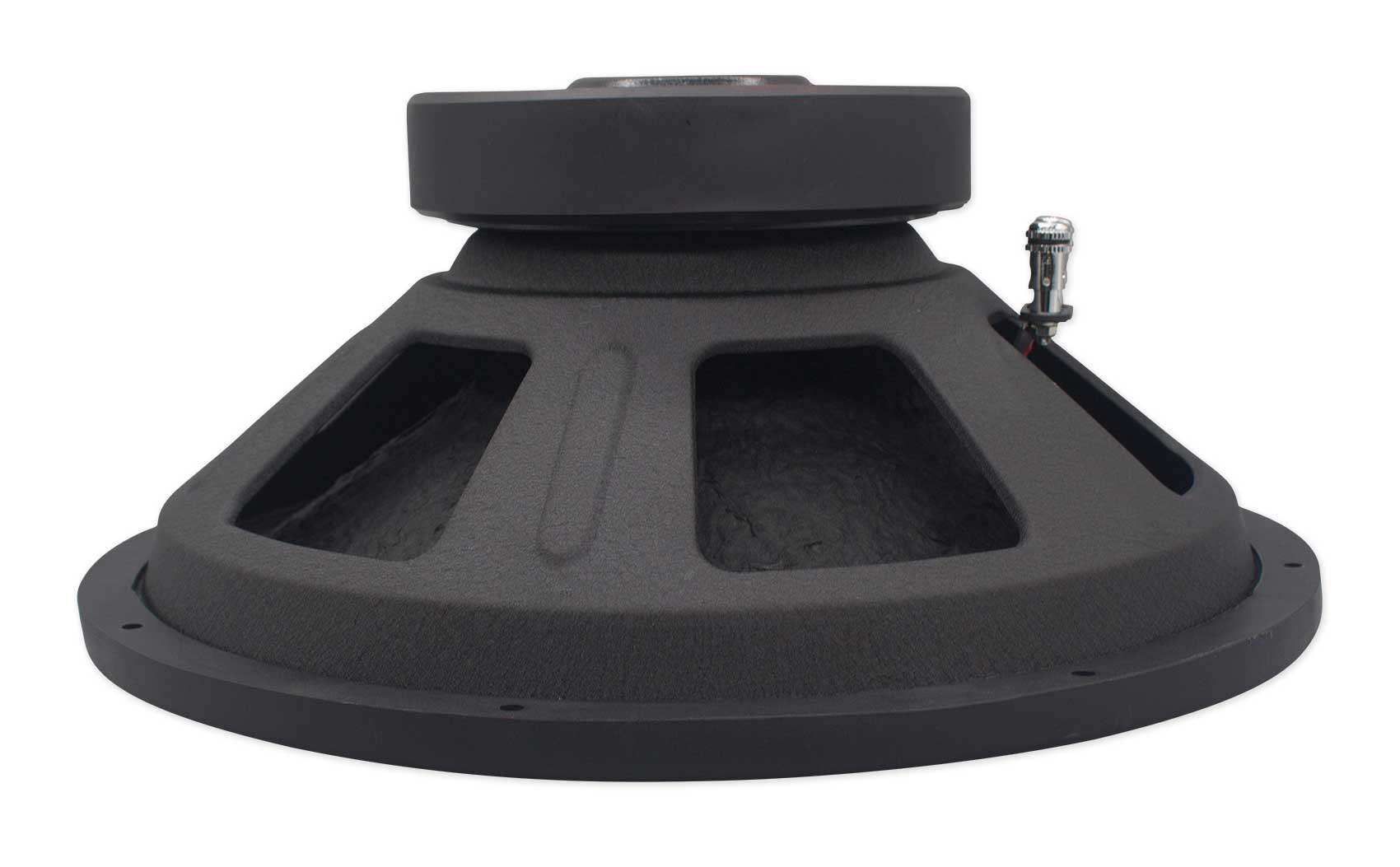

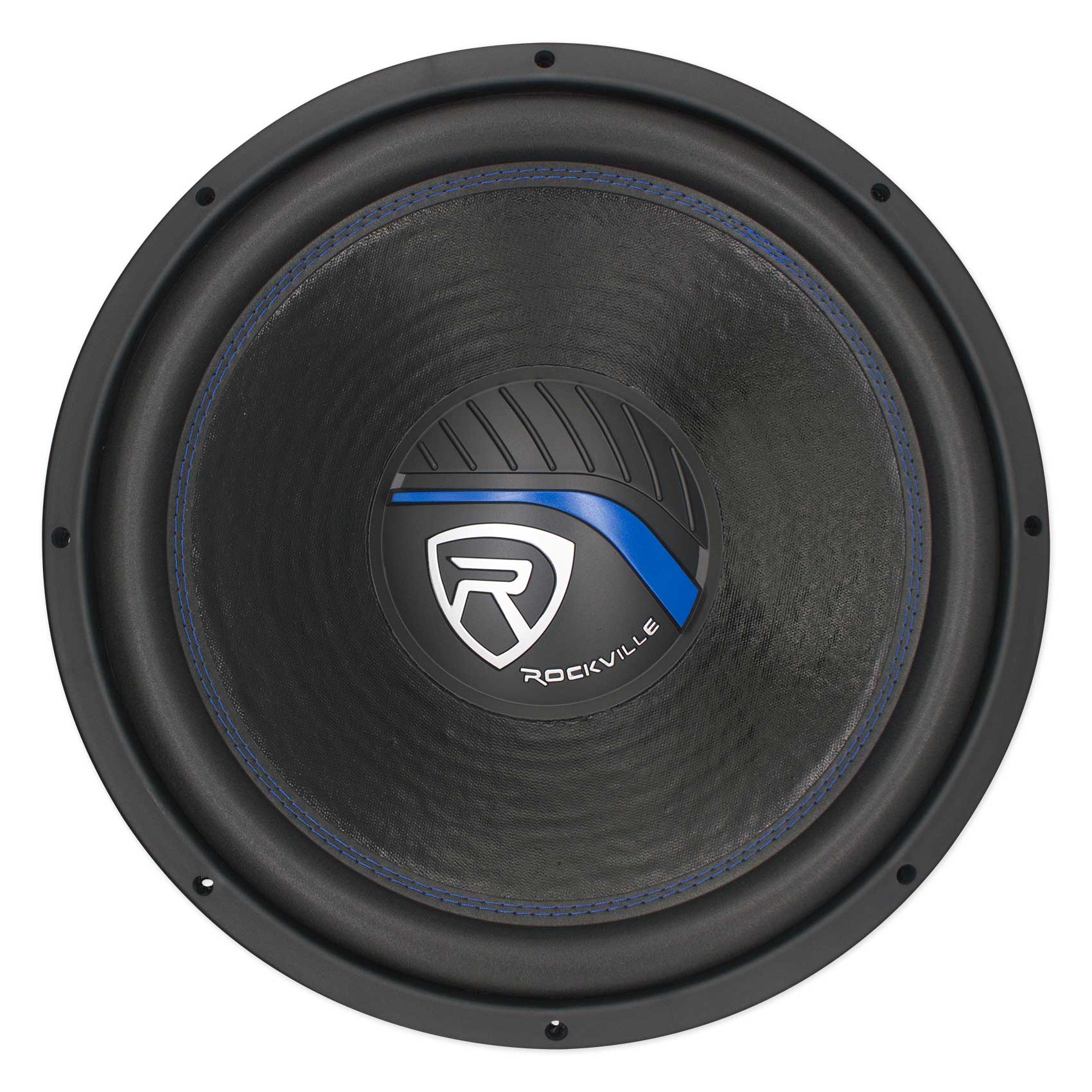

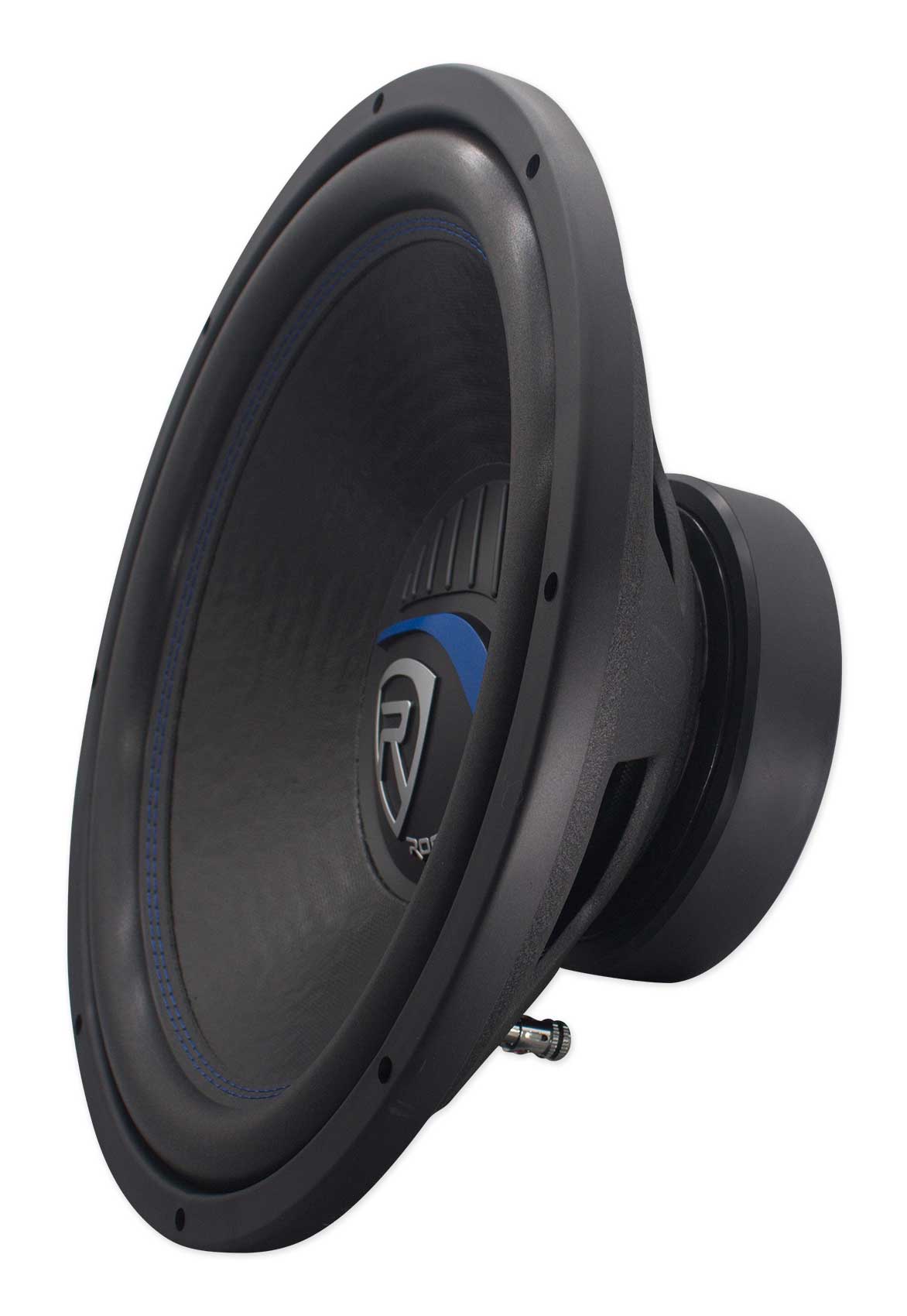

- Rockville W15K5S2 K5 Series 15" 2-Ohm Car Subwoofer
- Peak Power Handling: 2000 Watts
- Program Power Handling: 1000 Watts
- CEA Rated RMS Power Handling: 500 Watts
- 2.5" 4-Layer Black Aluminum Voice Coils Wound with OFC (100% Copper) Wire
- The wire we use to wind the voice coil is imported from Japan which is way better quality than the standard China wire
- 60 Oz High Quality Magnet
- Cast Iron Basket With Black Sanded Finish
- Fiber Reinforced Ultra Stiff Black Non-Pressed Paper Cone – This cone is very efficient which makes the speaker sound louder even without requiring a lot of power to push it
- Thick Foam Surround Provides Incredible Sound Quality With Minimal Distortion
- Blue Stitching Cone Reinforcement Ensures Long Life
- Paper Dust cap is light weight and efficient helping the sub to play louder even if your amp is not so powerful
- Chrome-Plated Binding Post Terminals - These are the best terminals on the market and they accept any gauge wire
- Impedance: Single 2-Ohm Voice Coils
- Vented Hole on T-yoke Enhances Heat Dissipation
- Rubber Boot Magnet Covers Make the Woofer Look Nice and Protects the Magnet
- Mounting Gasket with Rockville branding looks great and Makes it Easy To Mount the Subwoofer Air-Tight
- High BL Magnetic Motor Gap
- We use the highest grade black glue that handles extremely high temperatures which allows our woofer to handle even more power than they are rated

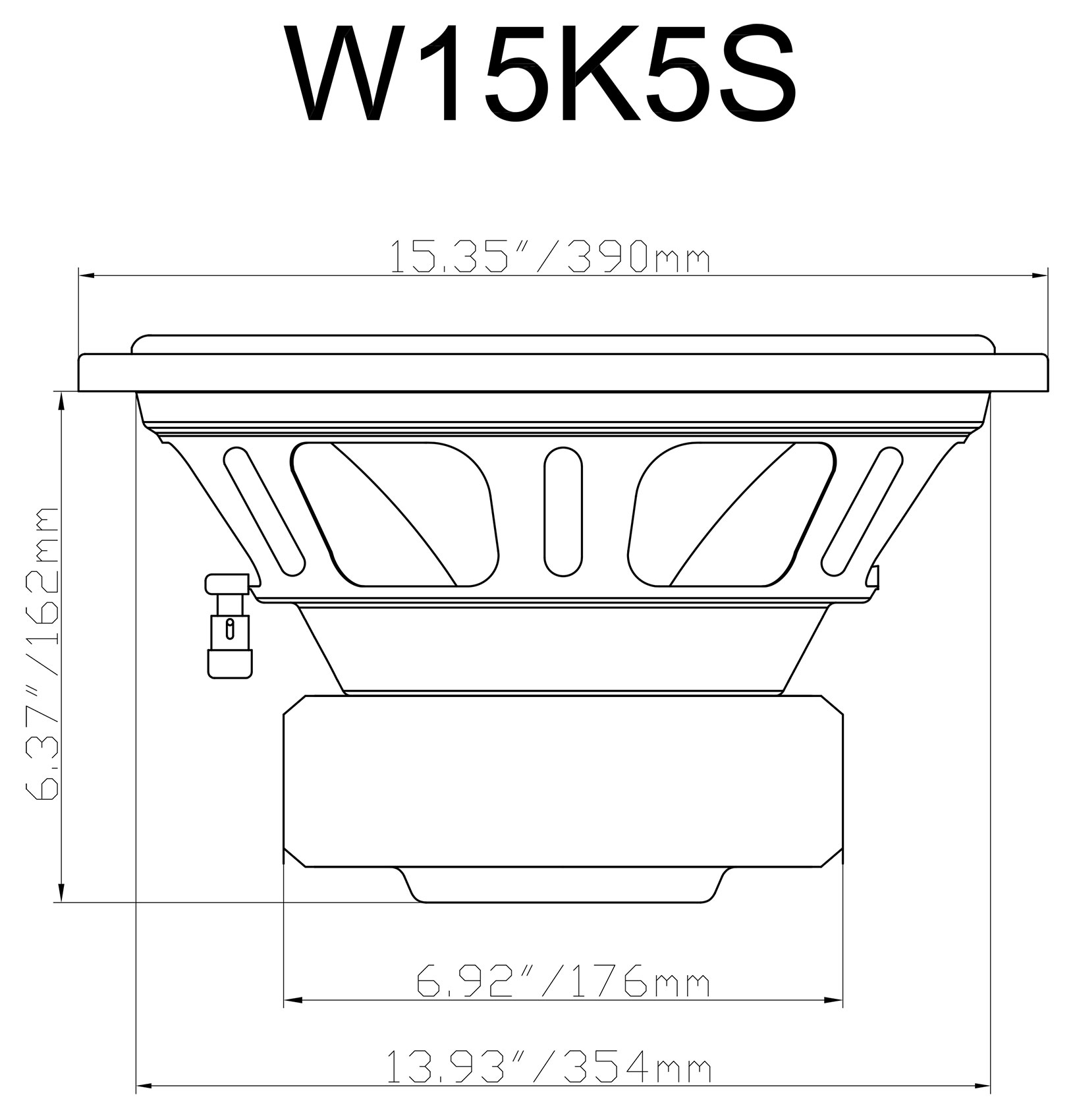

- Cutout Diameter: 13.85 inches
- Mounting Depth: 5.98 inches
- Frequency Response: 28.6 Hz - 1.0K kHz
- 6mm T-Yoke + 8 mm Washer
- Sensitivity: 90.1dB
- Sealed Enclosure Volume:1.5 – 2.5 Cubic Feet
- Vented/Ported Enclosure Volume: 2.0 – 3.5 Cubic Feet
- Weight: 13.4 Lbs.
- Shipping Weight: 15.4 Lbs.
- Shipping Box Dimensions: 16.53x 16.53 x 9.76 Inches
Detailed Info:
- Body: Non-Pressed Paper
- Gap Plate Inside Diameter: 80mm (3.14 inches)
- Gap Plate Outside Diameter: 156mm (6.14 inches)
- Gap Plate Thickness: 25mm (0.98 inches)
- Yoke Outside Diameter: 145mm (5.7 inches)
- Yoke Thickness: 6mm (0.23 inches)
- Yoke Pole Diameter: 50mm (2 inches)
T/S Parameters (Tested on a Klippel)
| Electrical Parameters | |||
| Re | 1.96 | Ohm | Electrical voice coil resistance at DC |
| Le | 0.818 | mH | Frequency-independent part of the voice coil inductance |
| L2 | 1.841 | mH | Para-inductance of the voice coil |
| R2 | 15.38 | Ohm | Electrical resistance due to eddy current losses |
| Cmes | 1155.17 | μF | Electrical capacitance representing moving mass |
| Lces | 26.84 | mH | Electrical inductance representing driver compliance |
| Res | 25.84 | Ohm | Resistance due to mechanical losses |
| fs | 28.6 | Hz | Driver resonance frequency |
| Mechanical Parameters | |||
| (using laser) | |||
| Mms | 216.253 | g | Mechanical mass of driver diaphragm assembly, including air load and voice coil |
| Mmd (Sd) | 190.481 | g | Mechanical mass of the voice coil and diaphragm without air load |
| Rms | 7.245 | kg/s | Mechanical resistance of total-driver losses |
| Cms | 0.143 | mm/N | Mechanical compliance of driver suspension |
| Kms | 6.97 | N/mm | Mechanical stiffness of driver suspension |
| Bl | 13.682 | N/A | Force factor (Bl product) |
| Lambda s | -0.022 | Suspension creep factor |
| Loss factors | ||
| Qtp | 0.38 | Total Q-factor considering all losses |
| Qms | 5.361 | Mechanical Q-factor of driver in free air, considering RMS only |
| Qes | 0.407 | Electrical Q-factor of driver in free air, considering Re only |
| Qts | 0.378 | Total Q-factor considering Re and Rms only |
| Other Parameters | |||
| Vas | 131.2399 | l | Equivalent air volume of suspension |
| n0 | 0.724 | % | Reference efficiency (2 pi-radiation using Re) |
| Lm | 90.8 | dB | Characteristic sound pressure level (SPL at 1m for 1W @ Re) |
| Lnom | 90.88 | dB | Nominal sensitivity (SPL at 1m for 1W @ Zn) |
| rmse Z | 6.08 | % | Root-mean-square fitting error of driver impedance Z(f) |
| rmse Hx | 3.21 | % | Root-mean-square fitting error of transfer function Hx (f) |
| Series resistor | 0 | Ohm | Resistance of the series resistor |
| Sd | 804.25 | cm2 | Diaphragm area |
