Model: TD1800-Internal Sensors

TPMS Description :
TD1800 Tire pressure vibration monitoring system is the world first and only TPMS that can detect tire and rim abnormal, its already patents in multiple countries. Beside detect tire pres sure and tire temperature, we have develop new feature by using the six-way triaxial vibration sensor, through complicated mathematical calculus analysis abnormal tire vibration. TPVMS is capable of detect tire tread peeling, tire crack or fetal tire deformation, poor installation, aluminum rim deformation and other issues ... , instant reduce risk, more secure on driving safety.

JOSN ELECTRONIC CO., LTD. was founded in 1997, Over the years JOSN ELECTRONIC CO., LTD. has grown remarkably and has become one of the leading Wireless TPMS expert in the world. In addition, JOSN ELECTRONIC CO., LTD. is cooperate with Taipei Metro System that produce and offer only the highest quality wireless data recorder. Our efficient and expert service has also earned us the trust of customers from around the world.


Features:


Specification:
Monitor Receiver:
- Operating voltage: 3V DC / 12V DC
- Operating temperature: -20℃ ~ 80℃
- Dimensions: 70mm x 54.8mm x 24mm
- Weight: 74.0g (±1)
- Battery: AAA 1.5V x2
- Battery life: 3 months

Sensor Transmitter: (Internal)
- Pressure tolerance: ±1 PSI
- Temperature tolerance: ±3℃
- Operating voltage: 3V DC
- Operating temperature: -40℃ ~ 125
- Dimensions: 66.0mm x 33.0mm x 13.5mm
- Weight: 42.0g (±1)
- Angle adjustable valve stem: 18 ~43
- Battery life: 3 years
- Battery: CR2032
(The battery for internal sensors is specially for TPMS,and the battery also can be replaced, you only have to buy the "CR2032" )

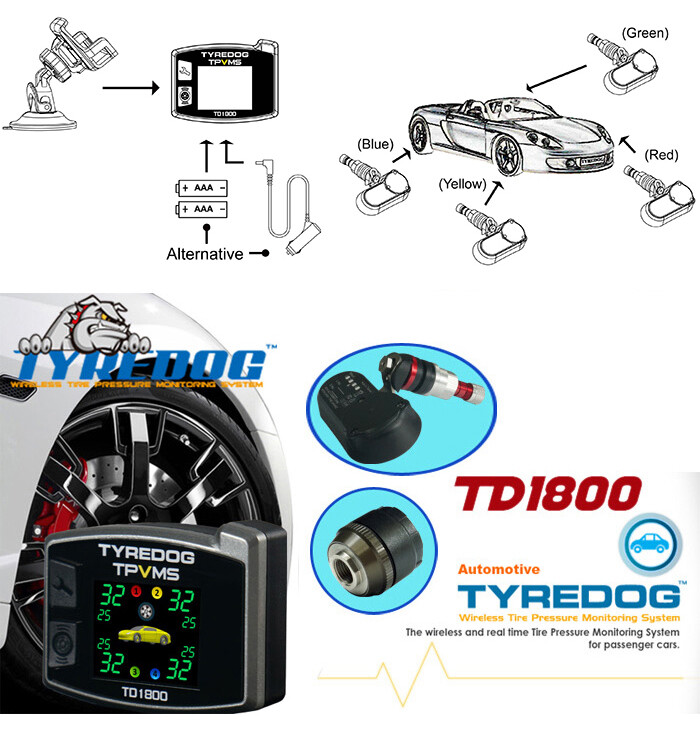

Accessories incloud:
TD1800A-I TFT monitor
TD1800A-I Tyre pressure Internal Sensor × 4
User's guide × 1
Self adhesive base plate × 1
Suction plate × 1
Mounting frame for TFT monitor × 1
AAA 1.5v battery × 2
Vehicle external power cable × 1

TYREDOG TD1800 Tire Pressure Vibration Monitoring System great advantage:
1. Improve receiver sensitivity, in a open field the transmitting distance can reach up to 150 meters.
2. Exclusive RF technology, stronger anti-interference, effectively solve the tint window film,poor reception caused by main console electronic interference problem.
3. Color TFT display dynamic layout, the receiver can be operate with AAA battery instead of the hard wire.
4. Exclusive low-energy tracking 24-hour full-time detection, before engine start to predict tire status.
5. Monitor with multi-language built in, users can choose the language version.
6. Pressure, temperature unit selection is available.
7. Self-correction function restarted tire detection.
8. Adjustable detection sensitivity, provide more reference data.
9. High accuracy, completely replace visual inspection or mechanical measurements.
10. Replaceable battery, eliminating the costly system replacement.
11. Easy to install, obtained patented on anti-theft ring to avoid stealing or loss. (External type)
12. Adjustable valve, suitable for most of the rims. (Internal type).

Why Buy TYREDOG:





Warranty:
2 year limited warranty. Buyers should pay for shipping fees.

Location & Made:
TAIWAN

TYREDOG TPVMS TD1800 TPMS:
TPVMS TD1800 TPMS Video

TYREDOG TD1800 Tire Pressure Vibration Monitoring System


International Buyers, Please Note:
