2N2288 Ge PNP Power BJT by
Solitron 60 Watt
Part Number =
2N2288
Manufacturer Name = Solitron
Description = Ge PNP Power
BJT
V(BR)CEO (V) = 40
V(BR)CBO (V) = 40
I(C) Abs.(A) Collector Current
= 10
Absolute Max. Power Diss. (W) = 60
I(CBO)
Max. (A) = 5.0m
@V(CBO) (V) (Test Condition) = 40
V(CE)sat Max.(V) =
1.0
@I(C) (A) (Test Condition) = 5.0
@I(B) (A) (Test Condition) =
500m
h(FE) Min. Static Current Gain = 20
h(FE) Max. Current gain. =
60
@I(C) (A) (Test Condition) = 5.0
@V(CE) (V) (Test Condition) =
2.0
Package = TO-3
Military = N
Discontinued Rare Power
Transistor
A bipolar junction transistor (BJT) is a type of transistor.
It is a three-terminal device constructed of doped semiconductor
material and may be used in amplifying or switching applications.
Bipolar transistors are so named because their operation involves both
electrons and holes.
Although a small part of the transistor current is
due to the flow of majority carriers, most of the transistor current is due to
the flow of minority carriers and so BJTs are classified as 'minority-carrier'
devices.
A Very Rare Piece of Vintage
& Early Transistor History.
Nice Collectors Item of Early Vintage
Semiconductor BJT.
NEW Old Stock perfect condition for it's age - 1969 Vintage.
A fine addition to upgrade your
vintage semiconductor collection.

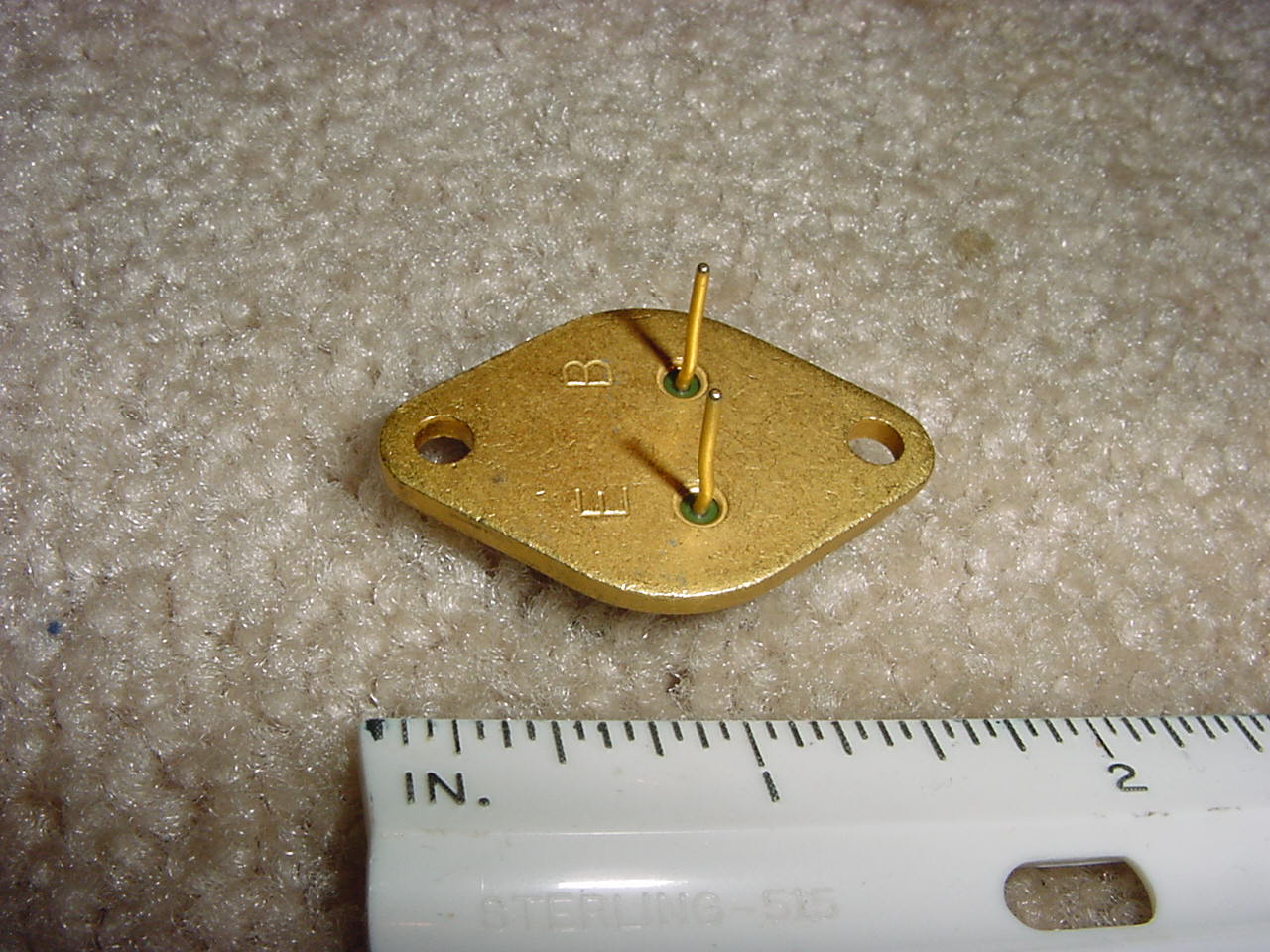

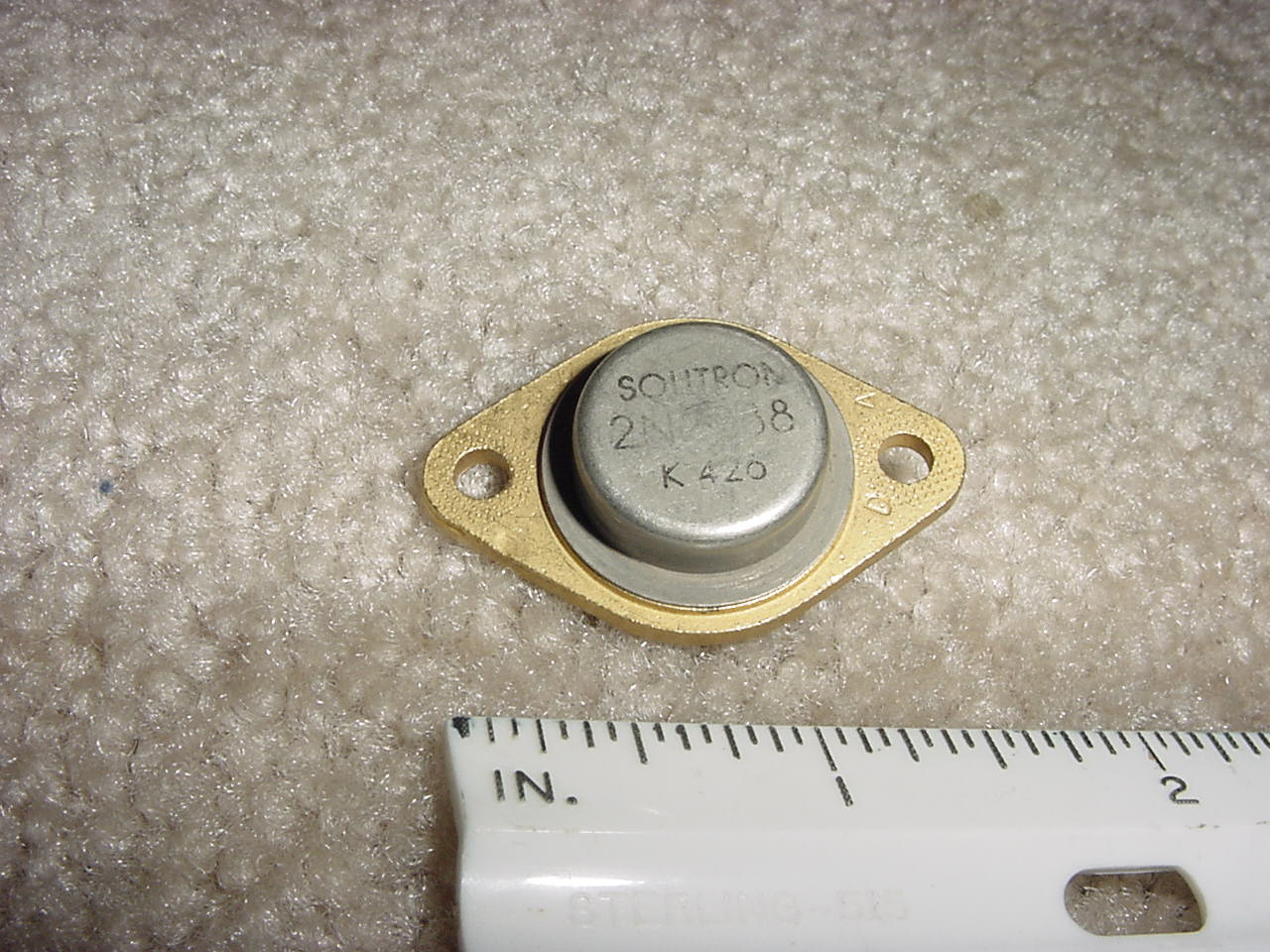

See pictures for additional
information.
