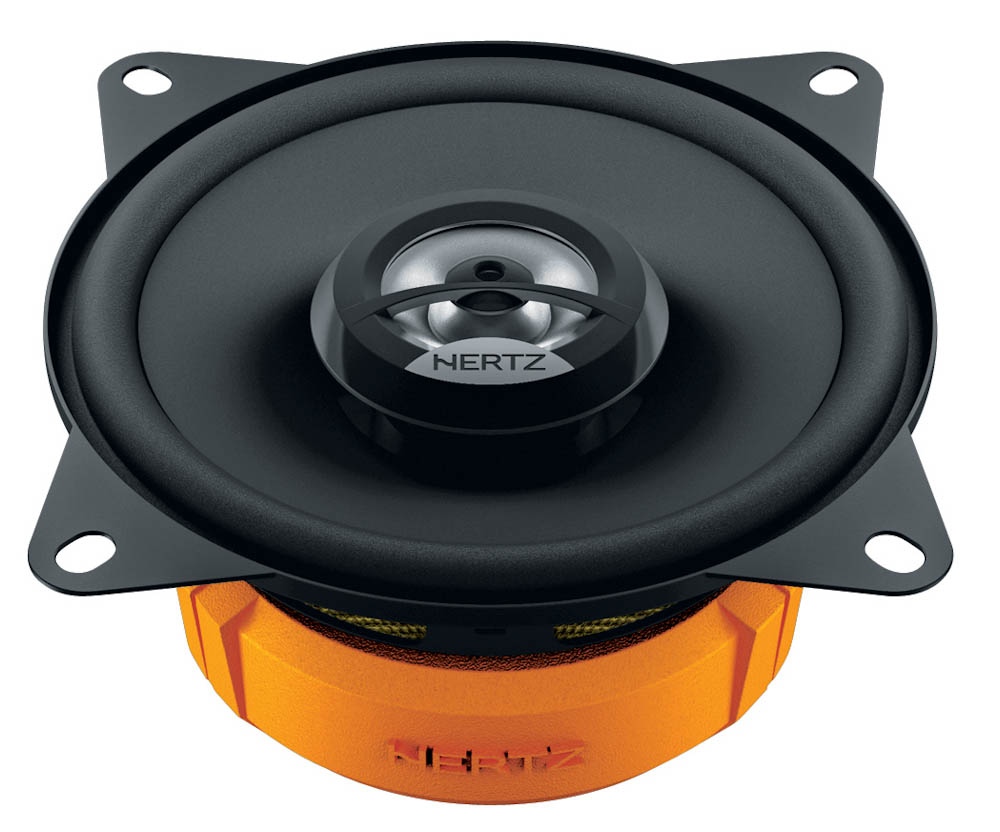

Speakers DCX 100.3 Two way coaxial

To meet all installation needs, without giving up on Hertz quality and performance, The DCX 100.3 car audio coaxials is designed with maniacal care to provide a linear frequency response and ensure high reliability. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a pressed-paper cone provide the optimum ratio between installation friendliness and sound with dynamic and emotional impact.

• Large motor assembly for mobile voice coil control.
• Pure copper voice coil, wound on conex former, for maximum lightness.
• Water-repellent treated paper cone.
• TPU surround, for wide excursion and resonance damping.
• Neodymium tweeter with PEI dome, for compactness and energy at high frequencies.
• DIN size basket protected by abrasion-proof dust paint.
• Tin-plated, high current terminals.
• Silver-plated lead wires for maximum reliability and conductivity.
• Butyl rubber protective cover, against crashes and abrasions.
• Epoxy glue for basket and motor system provides perfect coupling.
• Low carbon content plates for maximum magnetic permeability and high heat dissipation.

Data table:

• Power Handling - Peak W 60
• Power Handling - Continuous W 30
• Impedance Ω 4
• Frequency response Hz 70 ÷ 21k
• Sensitivity dB SPL 92
• Voice coil Ø mm (in.) 25 (1.0)
• Woofer size mm (in.) 100 (4.0)
• Tweeter size mm (in.) 15 (0.6)
• Woofer magnet : High density flux ferrite
• Tweeter magnet : Neodymium
• Woofer cone : Water-repellent pressed paper
• Tweeter dome : PEI
