Aptiv (formerly Delphi)  - is a world leader in supplying vehicle electric and electronic distribution systems, with an unsurpassed reputation in the design, development, and manufacture of electrical and electronic connection systems and devices. For more than 100 years, Delphi has focused on providing greater product performance and driving tomorrow's technology. Packard Electric was acquired by Delphi Connection Systems in 1995.

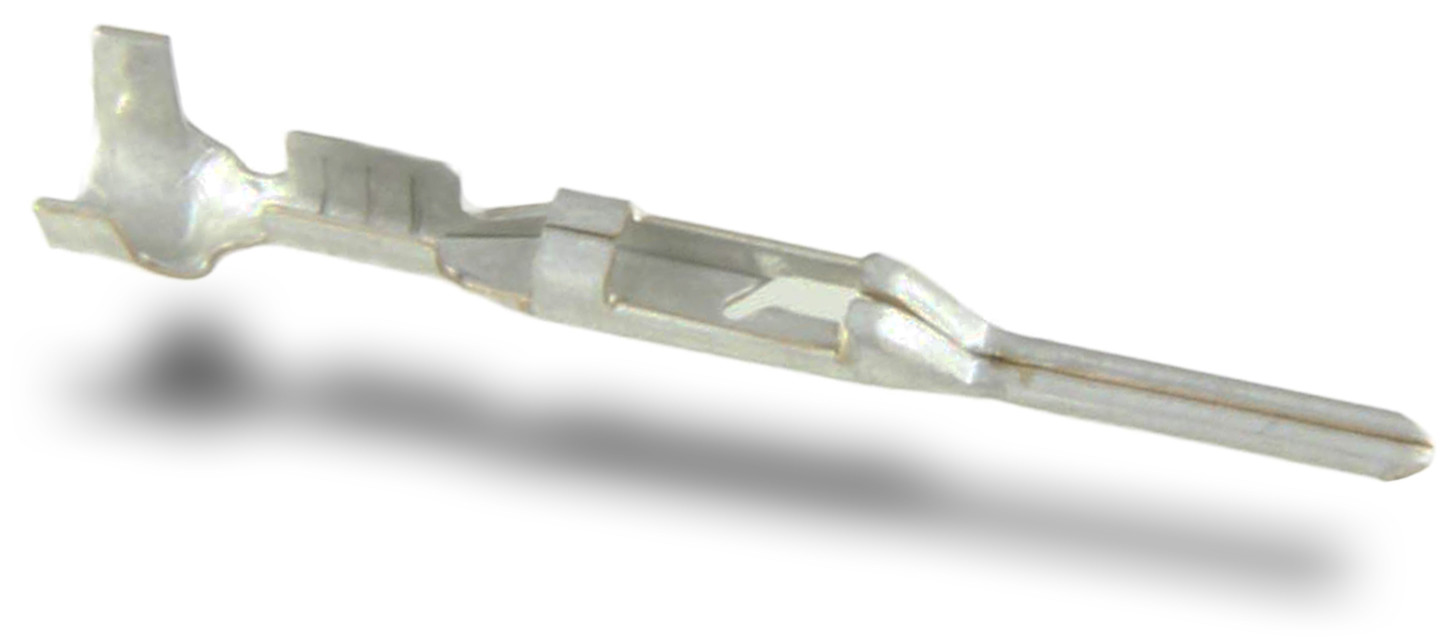

DELPHI GT 150, GT-150 Series Male & Female Terminals Gauge Size 20 22 GA

Overview: GT 150 Connectors have a small package size suited to fit the shrinking space requirements of today's vehicles and equipment. Tangless terminals with stamped serrations, Connector Position Assurance (CPA), Terminal Position Assurance (TPA), and Primary Lock Reinforcement (PLR) with positive connector seal retention make Delphi's GT 150 connectors easy to install and durable in heavy duty environments.

Features & Benefits

  • Surface Plating: SN
  • Material Thickness [mm]: 0.30
  • Cross Section [mm2]: 0.35-0.55
  • Crimp Process: CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
  • Insulation Range Φ[mm]: 1,45 - 1,88
  • Gauge Size: 20-22 AWG
  • Seal(s): 15366021
  • Cable type code legend: 1005:
  • Industry Designator: SAE
  • Conductor Material: Copper
  • Conductor Plating: NONE
  • Insul. Material: PVC, PVDF, XLPE
  • Insul. Wall Designator: Thin
  • The temperature range from -40°C to 125°C,

Packaging Content:

  • Qty: 12 Delphi  Crimp Male Terminal
  • Qty: 12 Delphi Crimp Female Terminals
  • Come in the Reel Packaging
Benefits Strip/Reel Terminals:

Strip/Reel Packaging Contacts have an easier time handling the terminals while they are attached to the strip. Whenever yours hand are steady or not then maybe this will make things easier for you while on your project.


Specification:
Description :GT Series Terminals
Product Type :Terminals
Status :
In stock Same day Shipping
Terminal Family :GT 150 Series
Gender :Male Female
Sealable :Sealed
Material :CuSn3Zn9
Application:Universal
Terminals Plating:Tin
Minimum Cable Diameter:1.20mm
Maximum Cable Diameter:1.85mm
Minimum Cable Core Cross Section:0.35(mm2)
Maximum Cable Core Cross Section:0.50 (mm2)
Voltage Drop:Less than 10.0
Temperature Range :-40°C to 125°C
