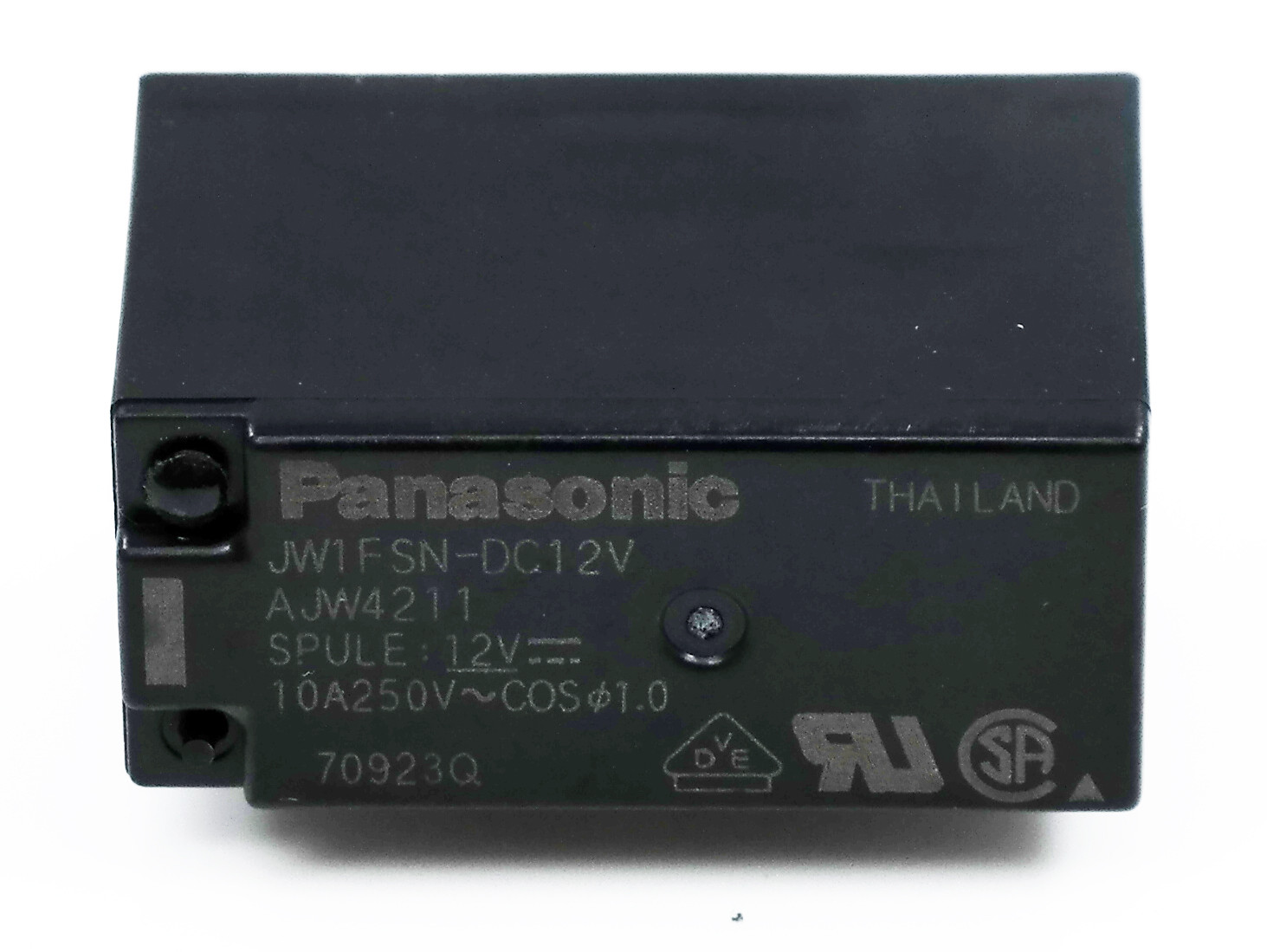

Panasonic Electronic Components is an industry leading manufacturer of high quality, standard, and custom electronic components and semiconductors. Choosing Panasonic Electronic Component's capacitors and other passive products means you receive the most reliable and advanced electronic components the industry has to offer. Panasonic JW1FSN-DC12V PCB Relay Miniature SPDT 10A @ 250VAC 12VDC |
Item Specification:
- Panasonic General Purpose Relays
- Coil Voltage: 12 VDC
- Relay Contact Form: 1 Form C (SPDT-NO, NC)
- Contact Current Rating: 10 A
- Contact Termination: Solder Pin
- Mounting Style: Through Hole
- Switching Voltage: 250 VAC, 30 VDC
- Coil Termination: Solder Pin
- Coil Type: Non-Latching
- Coil Resistance: 270 Ohms
- Coil Current: 44 mA
- Contact Material: Silver Tin Oxide (AgSnO)
- Contact Form: SPDT (1 Form C)
- Power Consumption: 530 mW
What is included:
- Qty: 1 - 10A 12VDC
- Made by PANASONIC
Specifications
| Manufacturer | Panasonic Electric Works | |
|---|---|---|
| Series | JW Series | |
| Packaging | Tray | |
| Part Status | Active | |
| Relay Type | General Purpose | |
| Coil Type | Non Latching | |
| Coil Current | 44.0mA | |
| Coil Voltage | 12VDC | |
| Contact Form | SPDT (1 Form C) | |
| Contact Rating (Current) | 10A | |
| Switching Voltage | 250VAC, 30VDC - Max | |
| Turn On Voltage (Max) | 8.4 VDC | |
| Turn Off Voltage (Min) | 1.2 VDC | |
| Operate Time | 15ms | |
| Release Time | 5ms | |
| Features | Sealed - Fully | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Operating Temperature | -40°C ~ 60°C | |
| Contact Material | Silver Nickel (AgNi) | |
| Coil Power | 530 mW | |
| Coil Resistance | 270 Ohms |
