Aptiv (formerly Delphi)  - is a world leader in supplying vehicle electric and electronic distribution systems, with an unsurpassed reputation in the design, development, and manufacture of electrical and electronic connection systems and devices. For more than 100 years, Delphi has focused on providing greater product performance and driving tomorrow's technology. Packard Electric was acquired by Delphi Connection Systems in 1995.

APTIV ( Formerly Delphi) Weather Pack Connectors 22-Conductors  Terminal Kit

Click Image to EnlargerOverview: Weather Pack, also known as Delphi Packard Weatherpack, are popular wire connectors commonly used in automotive applications as they seal against moisture, dust and dirt. Weather Pack Connectors can withstand exposure to extreme temperatures, moisture, harsh engine compartment fluids and chemicals, making them ideal for industrial, heavy equipment and marine applications. Terminals are designed to mate with appropriate cable seals.  The female connector (tower connector) and the male connector (shroud connector) locks together with dual-lock tangs to secure terminals firmly into the connector housing, and ensure strong electrical conductivity. Weather Pack connectors are made of a self-lubricating silicone and are multi-ribbed to prevent moisture and other contaminants from entering the connector and causing terminal corrosion. The seal is placed on the wire and then the terminal is crimped to the seal.

Weather-Pack HighLight

Weather-Pack Highlight

-20 amps continuous maximum current rating

-Connector Position Assurance (CPA) available

-Dual-locking tangs on terminals

-Low energy, low voltage capability

-40°C to 125°C temperature range

Features & Benefits

  • Weather-Pack Series Sealed System
  • In-line connector
  • Secondary Lock (Cover)
  • Low energy, Low voltage capability.
  • Body Connector are locking nylon and sealed against moisture, dust and dirt
  • Connector body comes with a self-lubricating silicone seal to reduce the engagement assembly force.
  • 20 amps continuous maximum current rating Pin and sleeve configuration
  • Dual-locking tangs on terminals
  • Min. Cable Diameter 0.155 inch (3.96mm)
  • Max. Cable Diameter 0.155 inch (3.96mm)
  • Gauge Wire Accepted: 18 20 AWG
  • The temperature range from -40°C to 125°C,

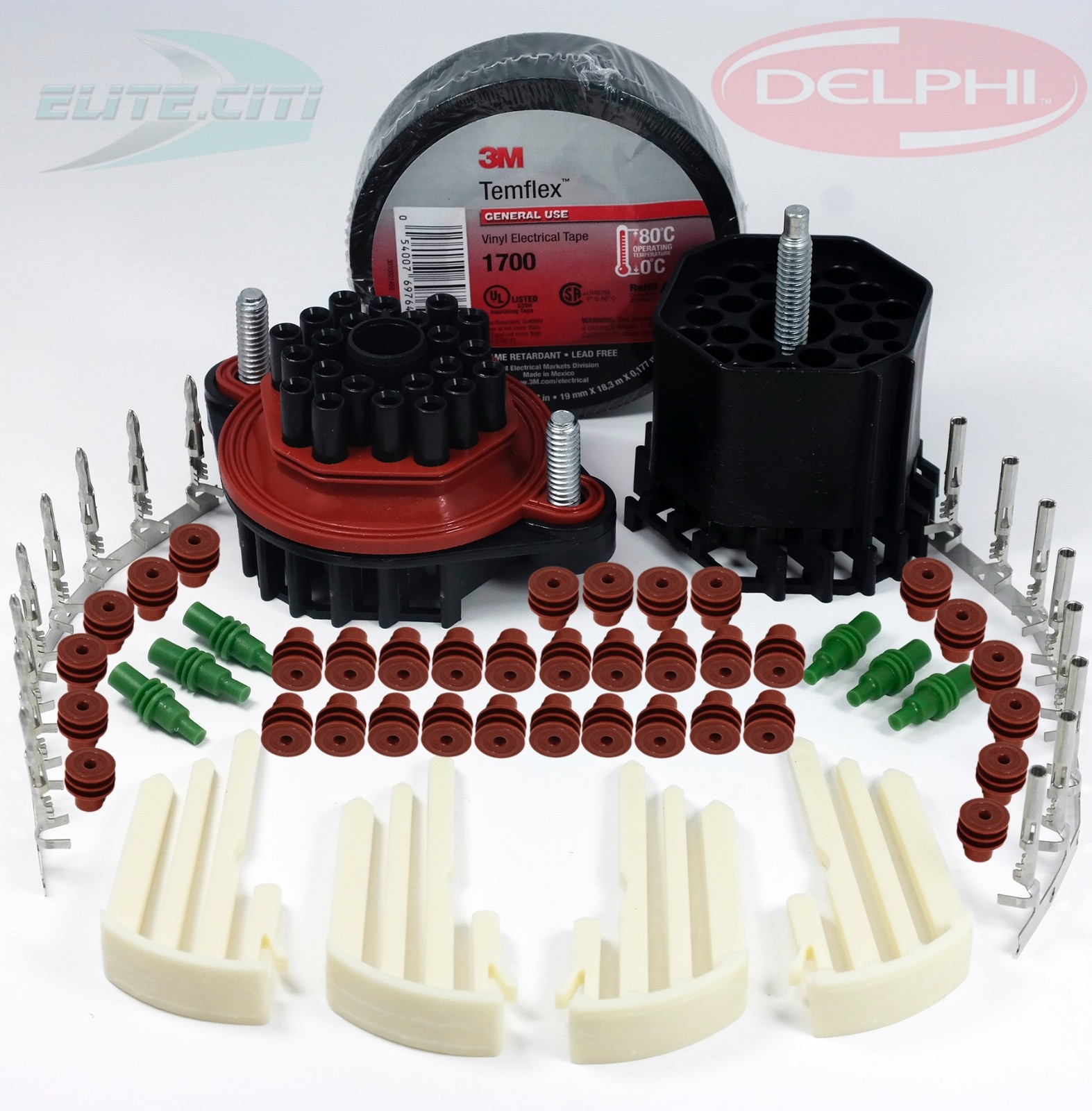

Packaging Content:

  • Qty: 1 Delphi 22 Way Male Housing
  • Qty: 1 Delphi 22 Way Female Housing
  • Qty: 4 Delphi Secondary Lock
  • Qty: 6 Delphi Cavity Plug (Cavity plugs seal unused female and male cavities)
  • Qty: 22 Delphi 18,20 GA Crimp Male Terminal (Strip Packaging )
  • Qty: 22 Delphi 18,20 GACrimp Female Terminal (Strip Packaging )
  • Qty: 44 Delphi 18,20 Cable Seal Dark Red.
  • Qty: 1 Roll of 3M 3/4 All In & Out Door Tape Electrical Tape.
Benefits Strip/Reel Contacts
Strip/Reel Packaging Contacts have an easier time handling the terminals while they are attached to the strip. Whenever yours hand are steady or not then maybe this will make things easier for you.

Specification:
Description :Weather-Pack ( Sealed Connector Set)
Product Type :22 Way Connector w/ Terminals Cable Sealer
Status :
In stock Same day Shipping
Terminal Family :Weather-Pack
Gender :Male & Female
Sealable :Sealed
Material :PP
Application:Inline ( Wire to Wire )
Terminals Plating:Tin
Minimum Cable Diameter: ( Red 0.122 inch - 3.11mm)
Maximum Cable Diameter:(Red 0.122 inch - 3.11mm)
Minimum Cable Core Cross Section:18, 20 AWG
Maximum Cable Core Cross Section:18, 20 AWG
Voltage Drop:Less than 3
Temperature Range :-40°C to 125°C
