Fluke Networks DS3/E3 Visual Uptime Select ASE Inline Probe
This ASE is designed for deployment at the network demarcation point between a subscriber’s CPE and the WAN
Monitor ATM data on DS3 lines

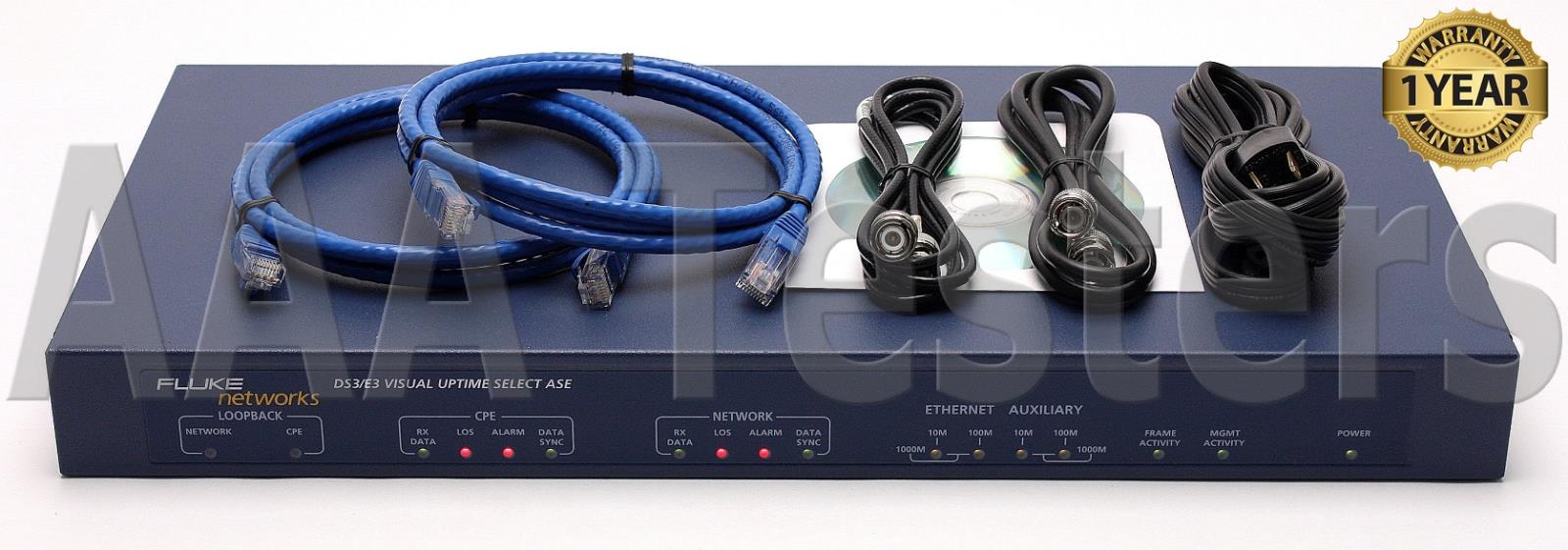

Includes Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Fluke Networks DS3/E3 Inline Probe
The Visual UpTime® Select™ DS3/E3* LinkSafe™ inline probe ASE complies with Class A standards for countries using DS3 access lines and supports digital transmission at the DS3 rate of 45 Mbps. This ASE supports IP Transport software for deployment in ATMbased data networks that use IP switching over DS3 physical lines.
The DS3/E3 ASE includes LinkSafe technology to protect circuit integrity in case of an ASE outage, as well as power failure notification.This ASE is designed for deployment at the network demarcation point between a subscriber’s CPE and the WAN. The figure below shows the ASE positioned between a Line Services Unit and a customer edge router on a DS3 line.
What are ASEs?
ASEs (Analysis Service Elements) are data collection and network performance monitoring hardware devices placed on a wide area network (WAN) or Local Area Network (LAN) as part of the Visual Performance Management system, which offers in-depth, real-time, and historical visibility into the performance of your applications infrastructure. Data gathered by ASEs is stored in the Visual Performance Manager server and displayed and analyzed from the Web portal interface. As a service level management tool, ASEs indicate when services are being met, provide warnings when services start to degrade, and send alerts when services are not met.
Features:
- Monitor ATM data on DS3 lines
- IP Transport software
- LinkSafe technology
- VoIP call monitoring
- Application analysis capability
- LAN management port
- Realtime events
Specifications:
General
|
Dimensions
|
1 EIA unit (1.75”) high x 17” wide rack-mountable chassis
|
Weight
|
7 lbs.
|
Data Rate
|
up to 45 Mbps synchronous
|
Timing Mode
|
Derived externally from the network.
|
Environment
|
| Operating Temperature |
0° to +40°C (+32° to +104°F)
|
Storage Temperature
|
-20° to +55°C (-4° to +131°F)
|
Clearance Requirement
|
Minimum of 3” (7.62 cm) space on sides.
|
Operating/Storage Humidity
|
10% to 90% non-condensing
|
Power Requirements
|
Input
|
100 to 240 VAC
|
Frequency
|
50/60 Hz
|
Input Current Rating
|
1.0 Amps nominal
|
Network/User Interface
|
Line Rate
|
44.736 Mbps
|
Line Coding
|
B3ZS
|
Cell Scrambling
|
On or Off
|
Line Build Out
|
Long = more than 225 feet. Short = 225 feet or less.
|
Connector
|
4 BNC (75 ohm), Network Tx and Rx, CPE Tx and Rx
|
Impedance
|
Input and Output 75 ohms
|
Pulse Shape
|
Compliant ITU-T recommendation G.703
|
Framing
|
C-bit or M23
|
Cell Delineation
|
HEC or PLCP
|
Serial Port Interface
|
Baud Rate
|
57600, 19200, or 9600 bps
|
Parity
|
8 data bits, no parity
|
Stop Bit
|
1 stop bit
|
Electrical Format
|
EIA RS-232, DTE
|
Connector
|
RJ-45
|
Ethernet 10/100/1000 BaseT Interface
|
Bit Rate
|
10, 100, or 1000 Mbps
|
Connector
|
RJ-45
|
|
|
|
|
