600W/500W/400W/300W/200W
Grid tie inverter,pure sine wave inverter.
DC11V-32V to AC110V or 220V,50Hz/60Hz AUTO.
For 18V/36cells Solar Panel.
With MPPT Functions.
1. The inverter is designed to handle PV panels as input source only and will not work with batteries/wind turbines as input source.
2. The 18V inverter panel Voc voltage needs to be less than 31V. For 24V/36V inverter panels, the Voc voltage needs to be more than 31V but less than the maximum PV input (as updated by the inverter).
3. The minimum power for solar panels should be half the power of the inverters.
4. If the red LED light on or all LED lights are off, please contact us first. Sometimes replacing some AC or DC side parts can make the item work again.
5. Before using the item, please make sure that all connections are tight. Otherwise, the product may short circuit.
6. The fan will turn on when the temperature inside the item reaches 38 degrees.
7. Please make sure that the item is in a good environment for cooling.

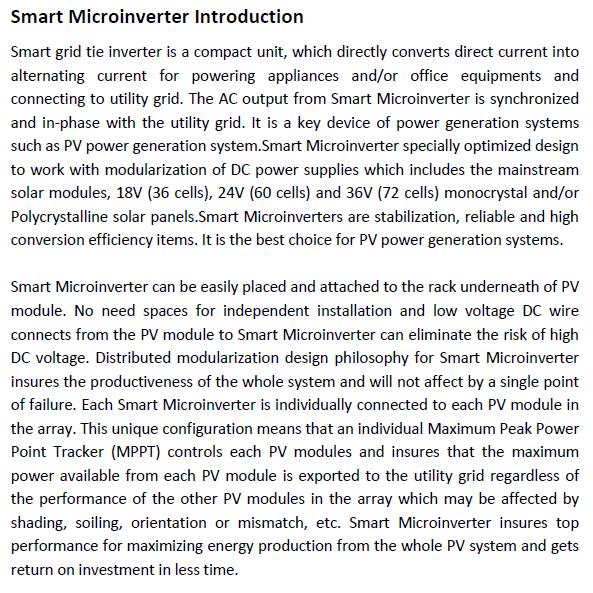

Introduction:

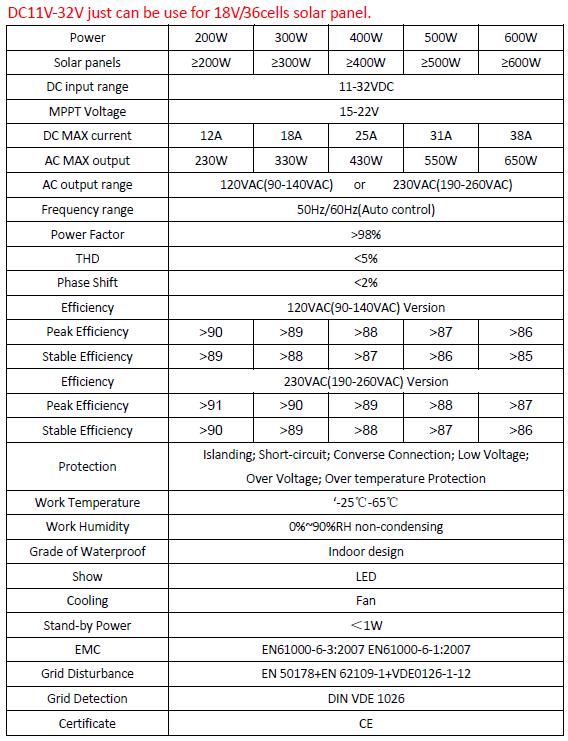

Technical Parameters:
