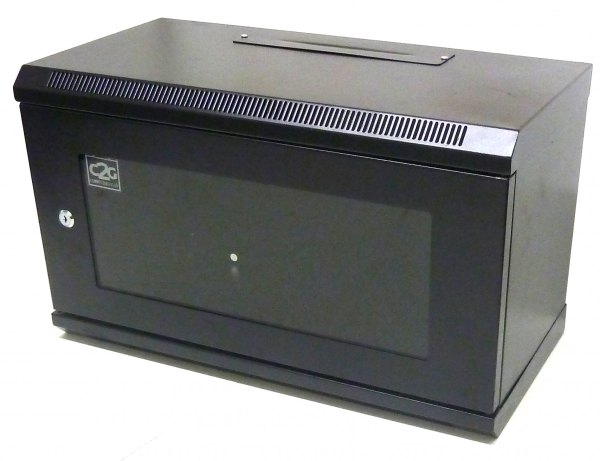

Our wall-mounted data cabinets are designed to  combine a neat appearance with convenience and functionality.

Our 450MM data cabinets feature removable side doors and fan cut-outs in both the top and bottom of the unit.

Cabinet Bundles:
If you require accessories with your cabinet, please call us on 0121 605 8477 - we can tailor make a bundle pack for you!

They  are supplied ready-assembled for immediate use and have the  following features as standard (below):

Patch Panels (C5e  & C6)
(Click to view)

Cable Management  Accessories
(Click to view)

Power  Distribution Units
 (Click to view)

  • Lockable Steel-Framed Door supplied with Two Keys
  • Transparent Window for monitoring of equipment.
  • Adjustable Front and Rear Profiles to enable eg rear mounting of PDU if required.
  • Supplied with cage nuts and mounting  screws to support equipment.
  • Upper and Lower Cable Entry Points with  removable covers
  • Quick release front door - enabling easy  removal for access while cabling.
  • Multiple Venting Holes to keep equipment cool  (there is space for a fan tray).
    •

These cabinets are designed to be  used in home or small office applications, and in larger  installations, where they can provide a useful distribution point  that perhaps might serve one floor. They are designed to house  standard Patch Cords, 19" Patch Panels or Power Distribution Units (PDUs).

Manufacturer: Comlynx Communications Ltd
Order Code: DLX-C-6U-CAB
Product EAN: Various
Rack Specification: 19" Data Rack
Main Colour: Stealthy Black, Office Grey, Ivory White
Coating: Powder Coat
Rack Capacity: 6U
Metal Thickness: 1.0mm
Door Configuration: Safety Glass, Lockable, Horizontally Reversible
Internal Depth: 300MM: 248mm, 450MM: 389mm
External Dimensions (WxDxH): 300MM: 600x305x353mm, 450MM: 600x455x350mm
Package Dimensions (WxDxH): 300MM: 615x335x375mm, 450MM: 620x485x375mm
Nett Weight: 300MM: 11kg, 450MM: 14kg
Gross Weight: 300MM: 13kg, 450MM: 16kg
Assembly Required: Ready Assembled For Immediate Use
Package Contents: 1x Data Cabinet, 6x Cage Nuts, 2x Keys

All of these are available from our  eBay shop, along with handy items to enable neater patching such as  Jumper Ring Bars and Brush Tidy Bars.
