This Item Has A Current Calibration!
|
|
|
|

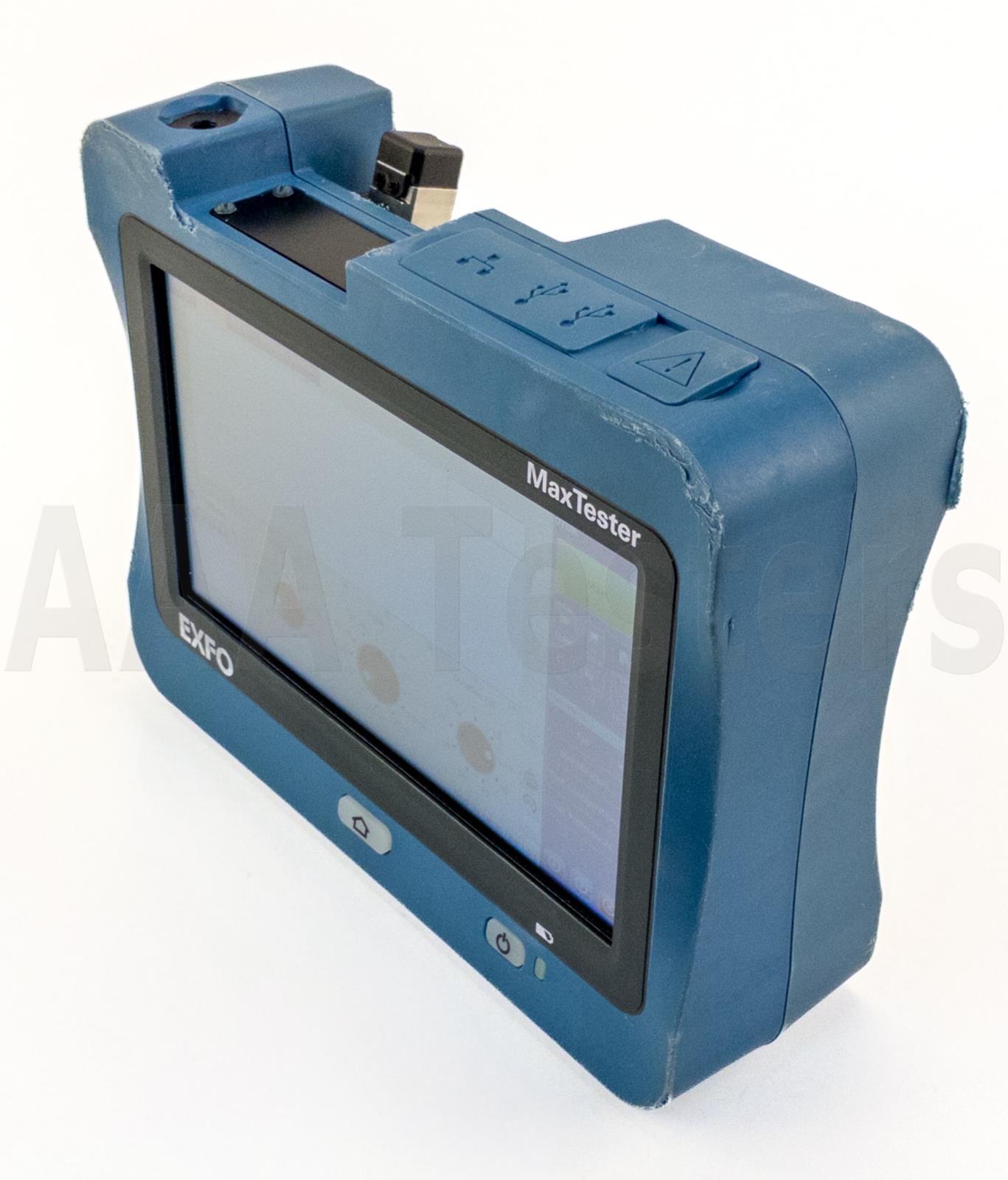

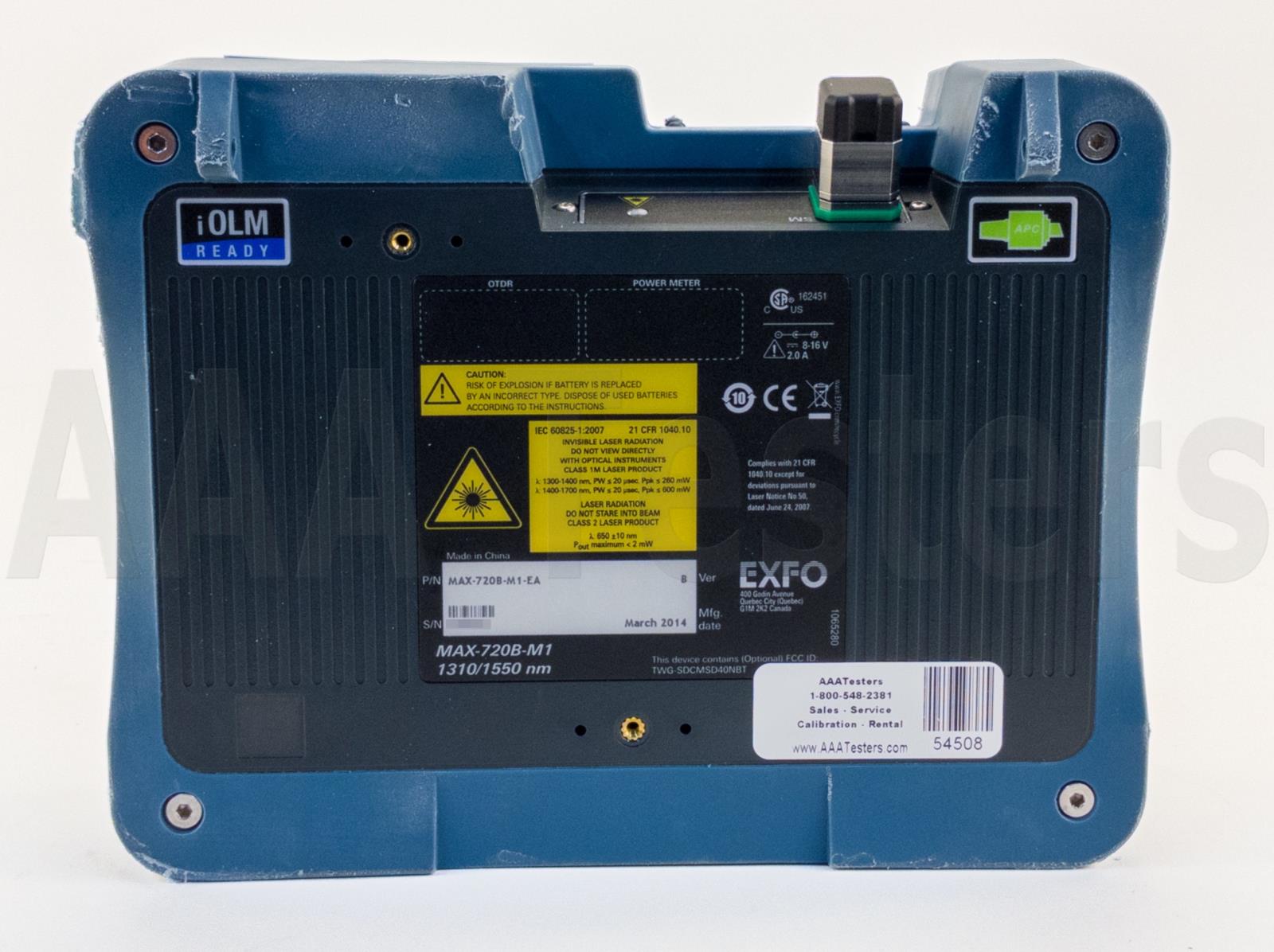

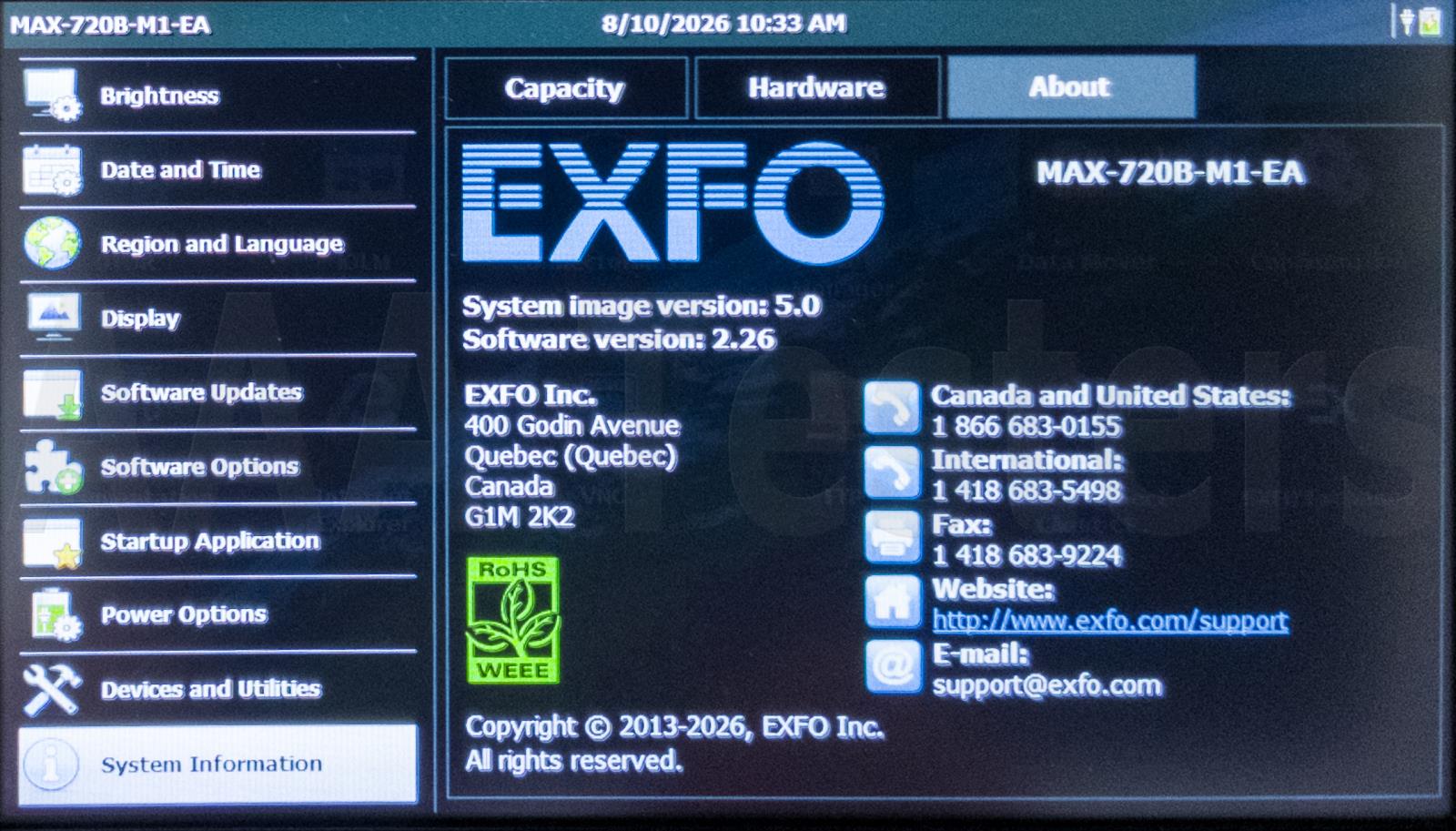

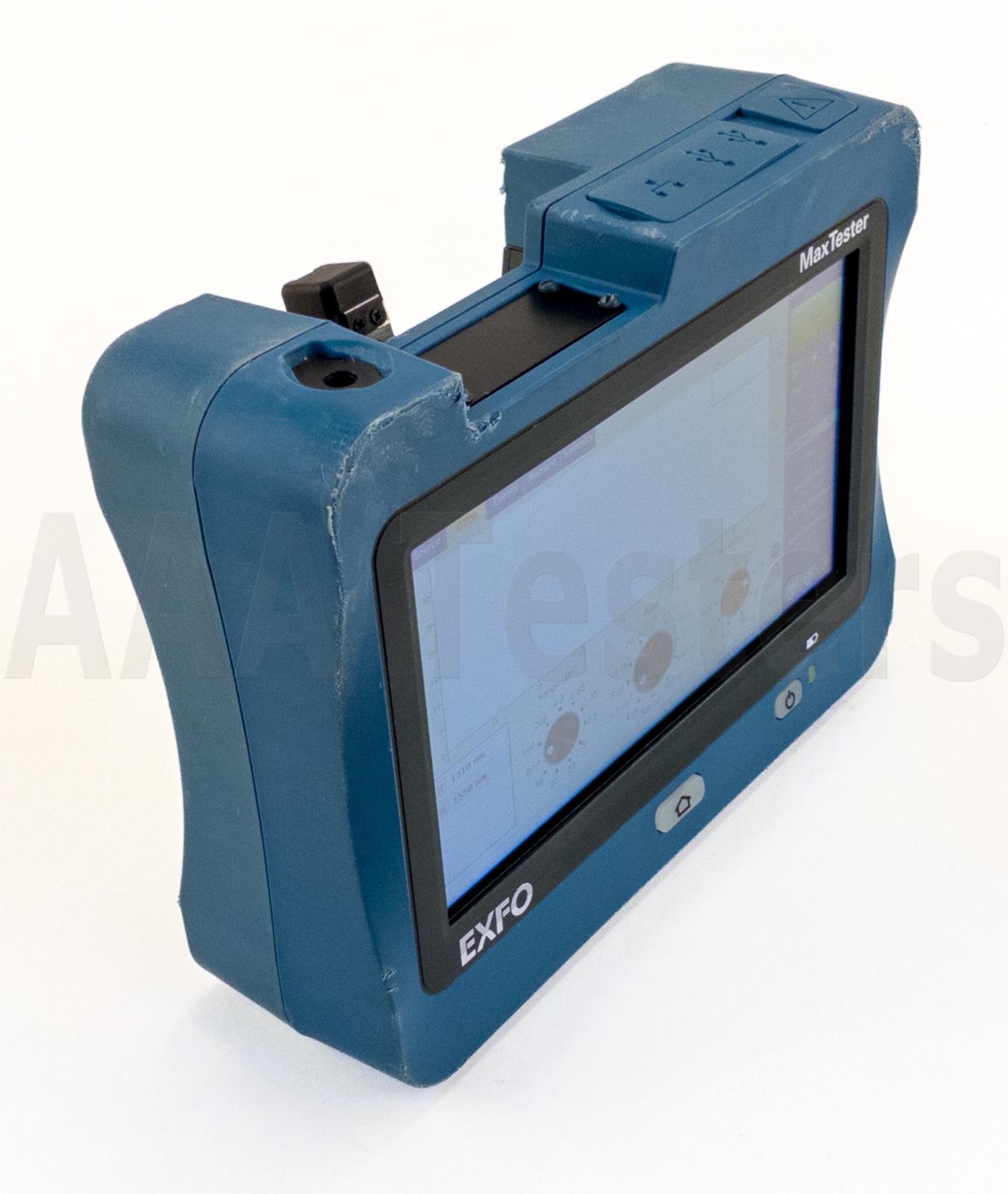

EXFO MaxTester MAX-720B-M1-EA SingleMode 1310 / 1550nm OTDR/iOLM Tester

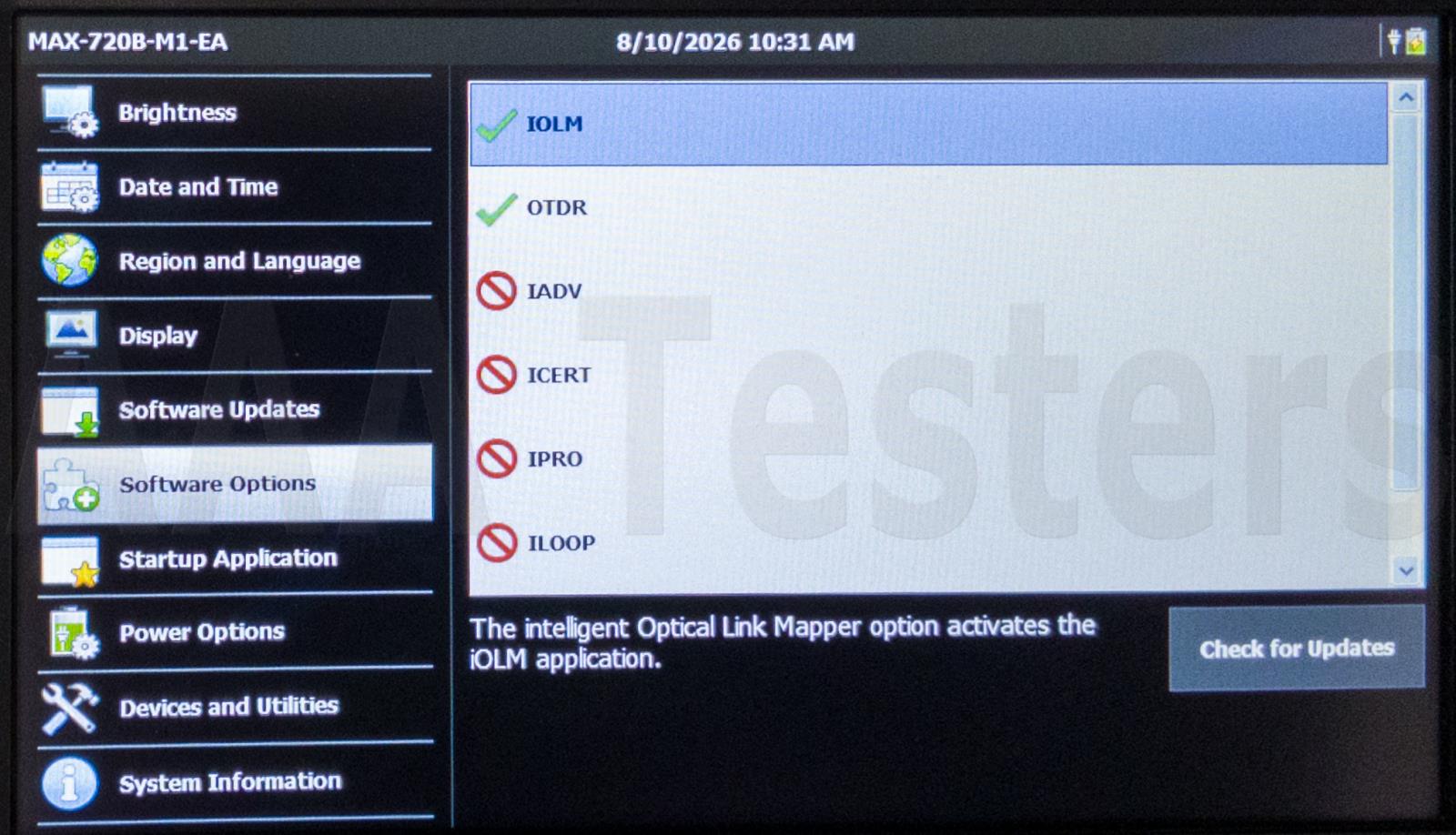

Options:
IOLM
OTDR

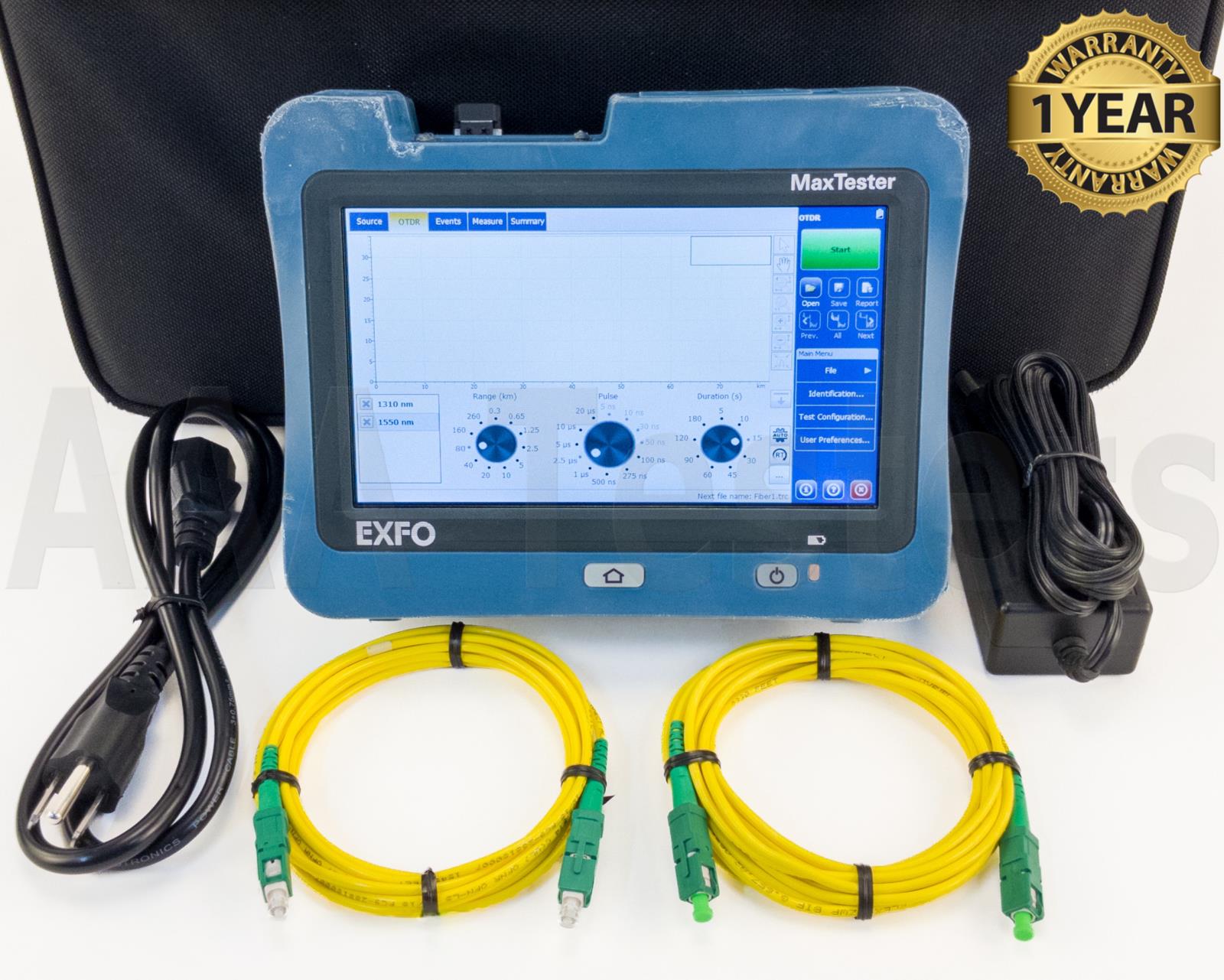

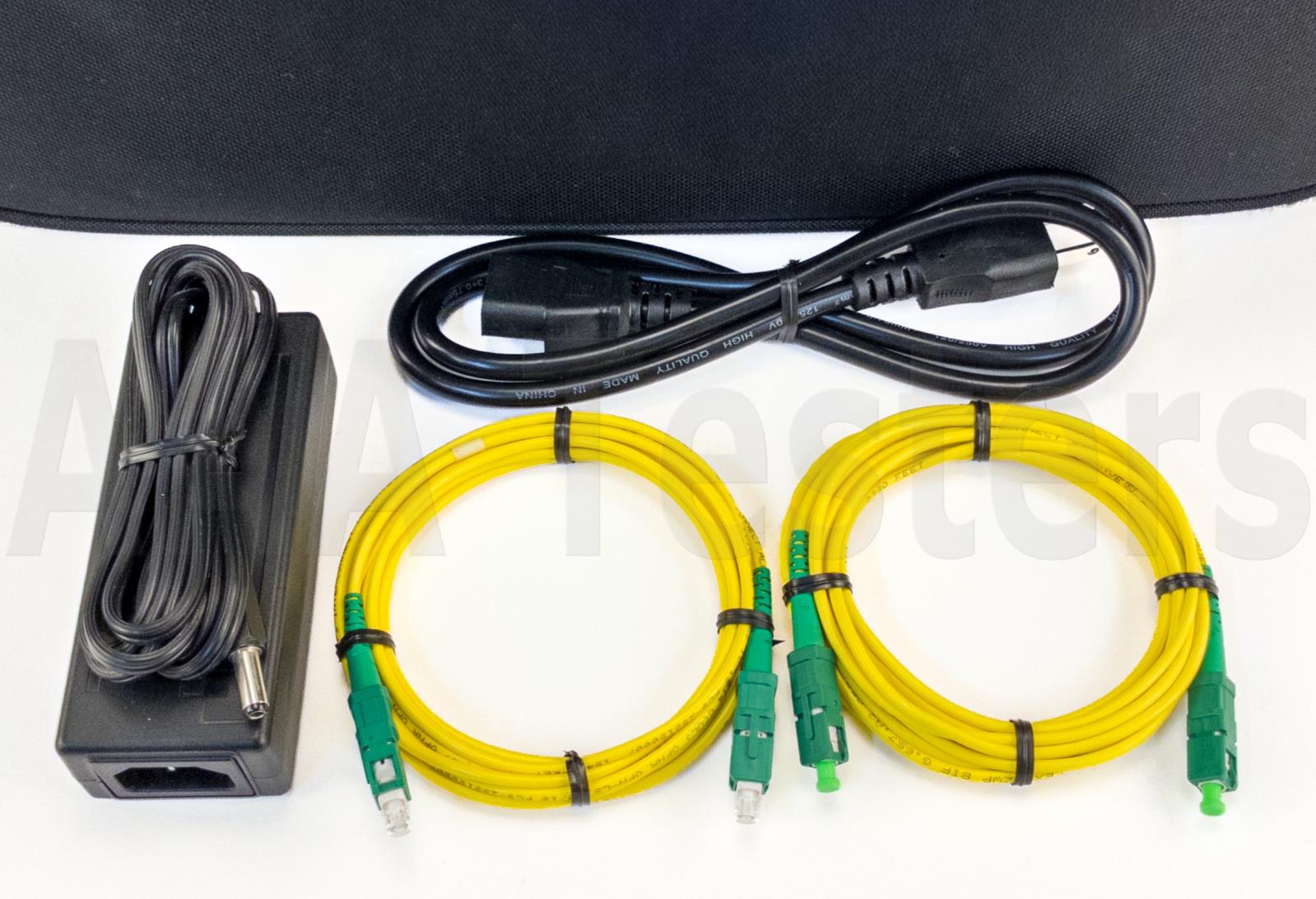

Includes Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY
EXFO MAX-720B MaxTester SM Fiber OTDR
THE HANDHELD OTDR... REINVENTED.
The MAX-700B series is the first tablet-inspired OTDR line that is handy, lightweight and rugged enough for any outside plant environment. With a 7-inch, outdoor-enhanced touchscreen–the most efficient handheld display in the industry–it delivers an unprecedented user experience. Its intuitive Windows-like GUI ensures a fast learning curve. Plus, its new and improved OTDR2.0 environment offers icon-based functions, instant boot-up, automatic macrobend finders as well as improved auto and real-time modes.
The Max-700B series is a line of genuine high-performance OTDRs from the world’s leading manufacturer. It delivers EXFO’s tried and true OTDR quality and accuracy along with the best optical performance for right-first-time results, every time.
The amazing 12-hour battery life will never let a technician down, and the plug-and-play hardware options, like the VFL, power meter and USB tools, make every technician’s job easier.
Most importantly, the Max-700B series is finally bringing the iOLM, an intelligent OTDR-based application, to the handheld market. This advanced software turns even the most complex trace analysis into a simple, one-touch task.
Ultimately, the Max-700B series is small enough to fit in your hand and big enough to fit all your needs!
THE PORTAL SOLUTION DESIGNED FOR ALL YOUR TESTING NEEDS
The MAX-720B OTDR/iOLM features a dynamic range of 36 dB and 0.8-3.5 m dead zones. This ensures the efficient testing of closely spaced events, such as patchords and patch panels in COs. It is also optimized for the point-to-point testing of any access network.
Features:
- Handy, lightweight, powerful, tablet-inspired design
- 7-inch, outdoor-enhanced touchscreen – the biggest in the handheld industry
- 12-hour autonomy
- Dead zones: EDZ 0.8 m, ADZ 3.5 m
- Dynamic range: 36/34 dB
- Rugged design built for outside plant
- iOLM-ready: intelligent and dynamic application that turns complex OTDR trace analysis into a one-touch task
Applications:
- Access network construction
- Private networks
- Central offi ce (CO) link certifi cation
Specifications;
| Display |

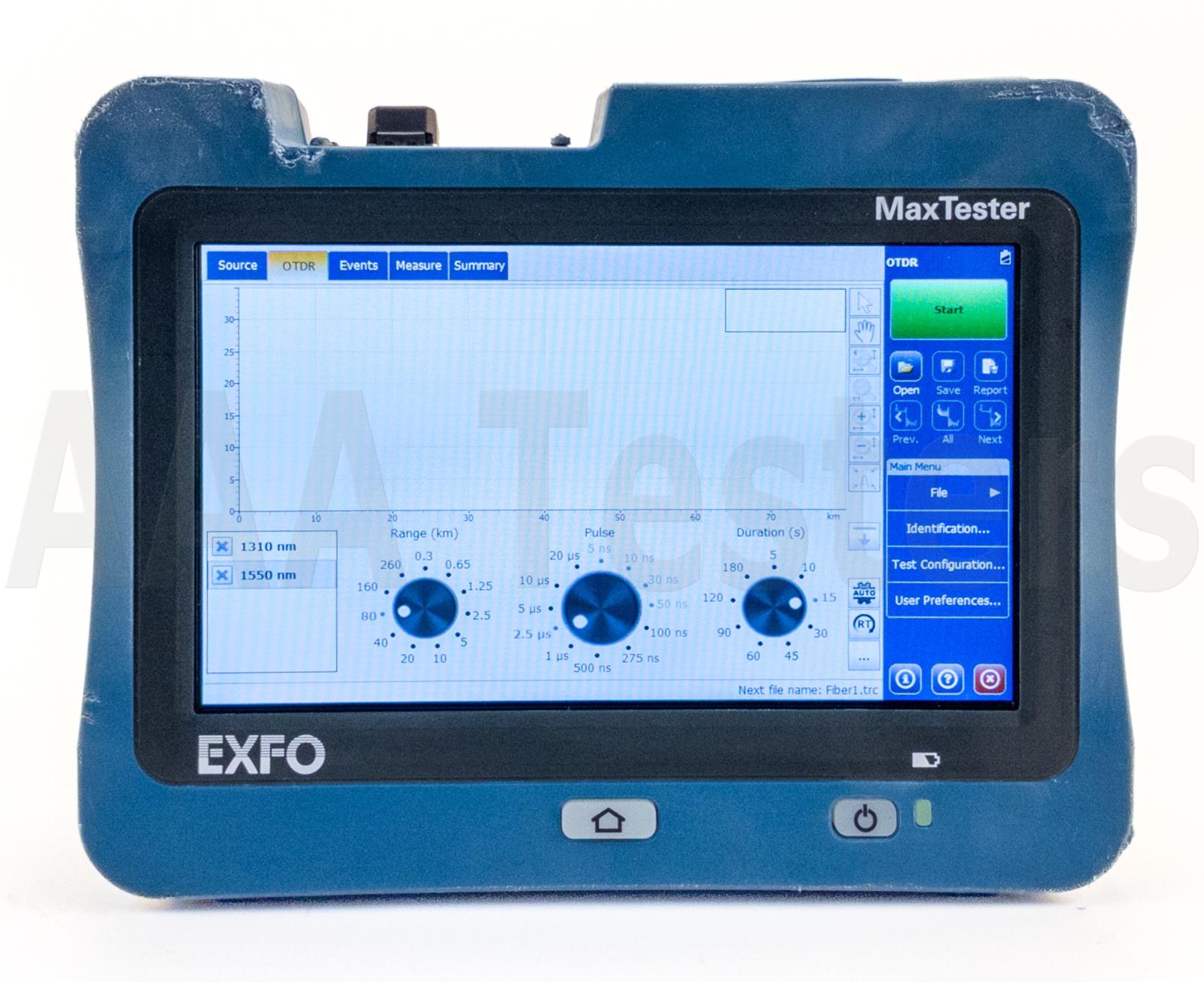

7 in (178 mm) outdoor-enhanced touchscreen, 800 x 480 TFT |
| Interfaces |

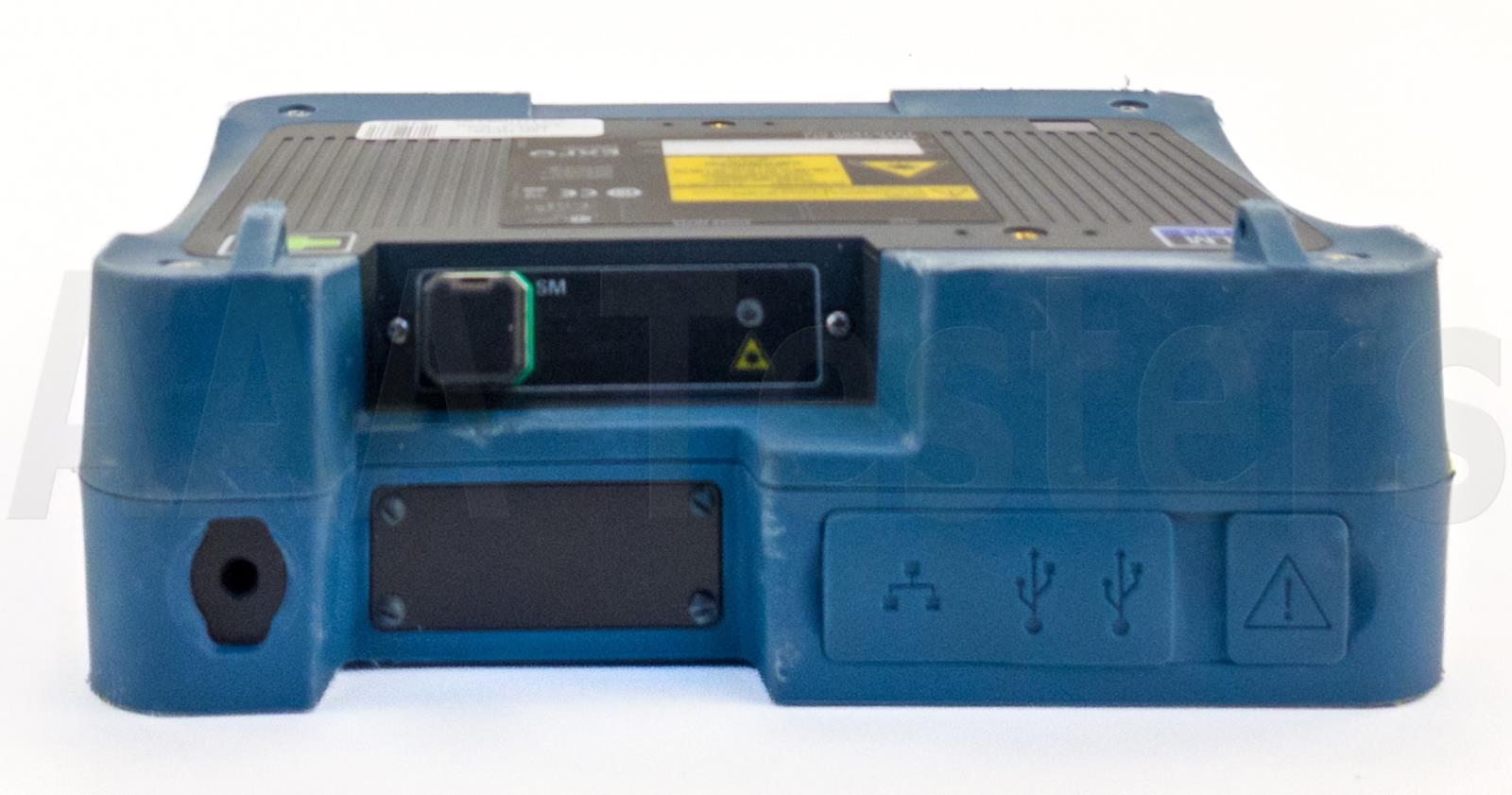

Two USB 2.0 ports RJ-45 LAN 10/100 Mbit/s |
| Storage |
2 GB internal memory (20 000 OTDR traces, typical) |
| Batteries |
Rechargeable lithium-polymer battery
12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138 |
| Power supply |
Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum |
Wavelength (nm)
|
1310/1550 |
| Dynamic range (dB) |
36/34 |
| Event dead zone (m) |
0.8 |
| Attenuation dead zone (m) |
3.5
|
| Distance range (km) |
0.1 to 260 km |
| Pulse width (ns) |
5 ns to 20 us |
| Linearity (dB/dB) |
±0.03 |
| Loss threshold (dB) |
0.01 |
| Loss resolution (dB) |
0.001 |
| Sampling resolution (m) |
0.04 to 5 |
| Sampling points |
Up to 256 000 |
| Distance uncertainty (m) |
±(0.75 + 0.0025 % x distance + sampling resolution) |
| Measurement time |
User-defined (60 min. maximum) |
| Reflectance accuracy (dB) |
±2
|
| Typical real-time refresh (Hz) |
3 |

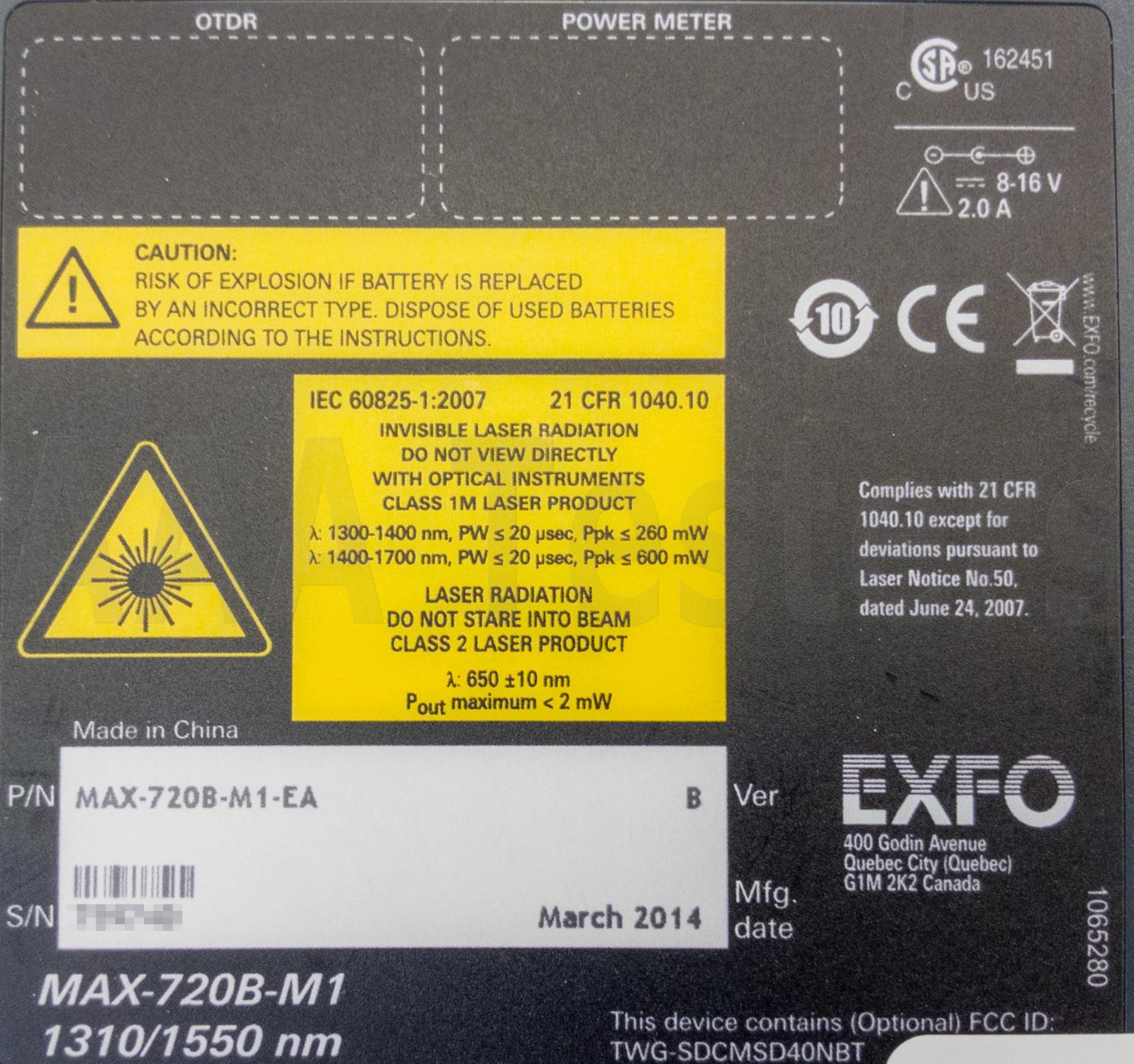

Laser Safety
|
1M
|
| GENERAL SPECIFICATIONS |
| Size (H x W x D) |
200 mm x 155 mm x 68 mm (7 7/8 in x 6 1/8 in x 2 ¾ in) |
| Weight (with battery) |
1.29 kg (2.8 lb) |
| Temperature |
Operating: –10 °C to 50 °C (14 °F to 122 °F)
Storage: –40 °C to 70 °C (–40 °F to 158 °F) a |
| Relative humidity |
0 % to 95 % noncondensing |
For full EXFO MAX-720B product specifications, please click here: EXFO MAX-720B
|
|
|
|
