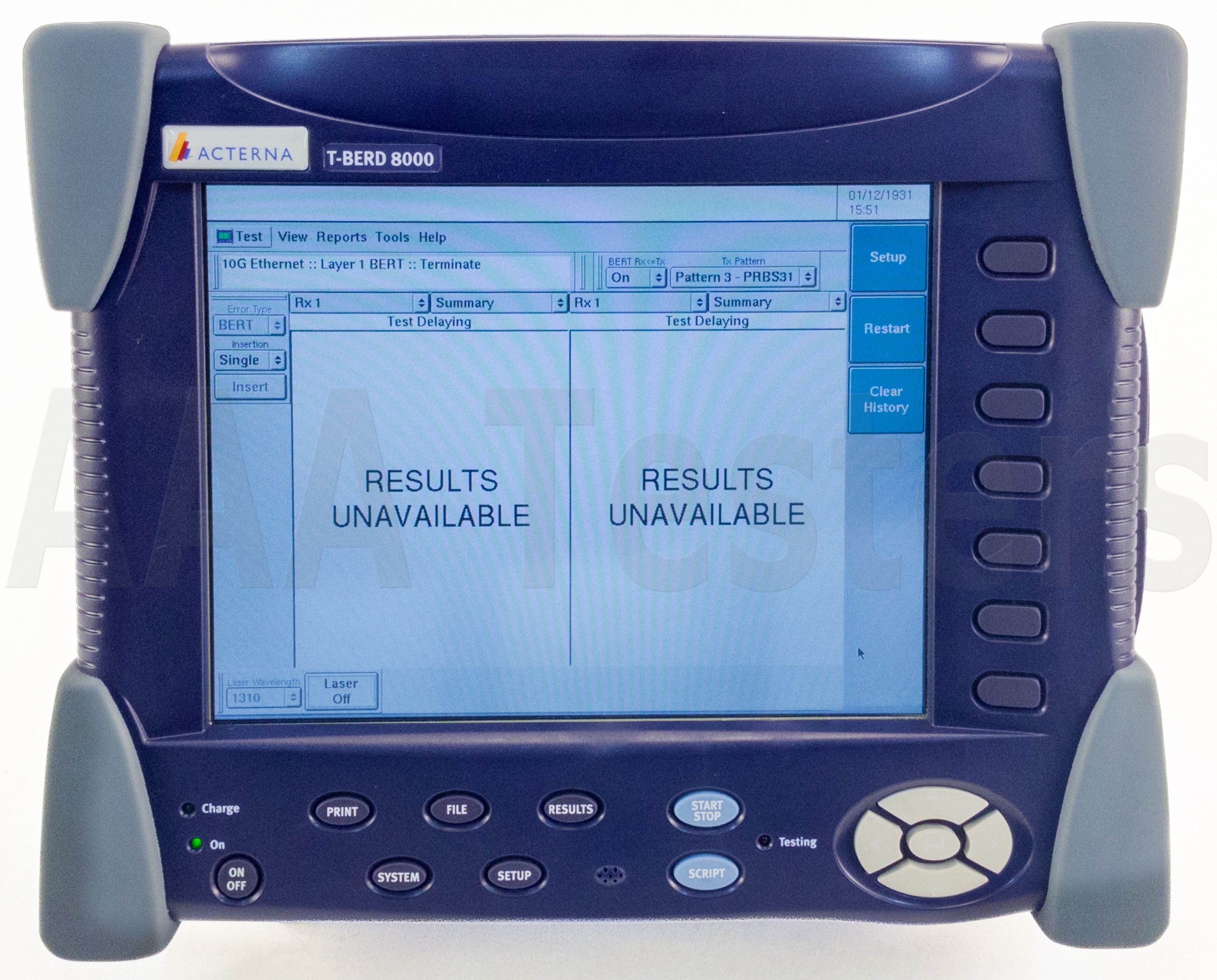

JDSU T-BERD 8000 w/ 10G WAN LAN Transport Module
10GigE LAN Optical SM Source:
- 1310nm
The T-BERD MTS-8000 features a full dual-port capability for 10/100/1000 copper and optical GigE interfaces!

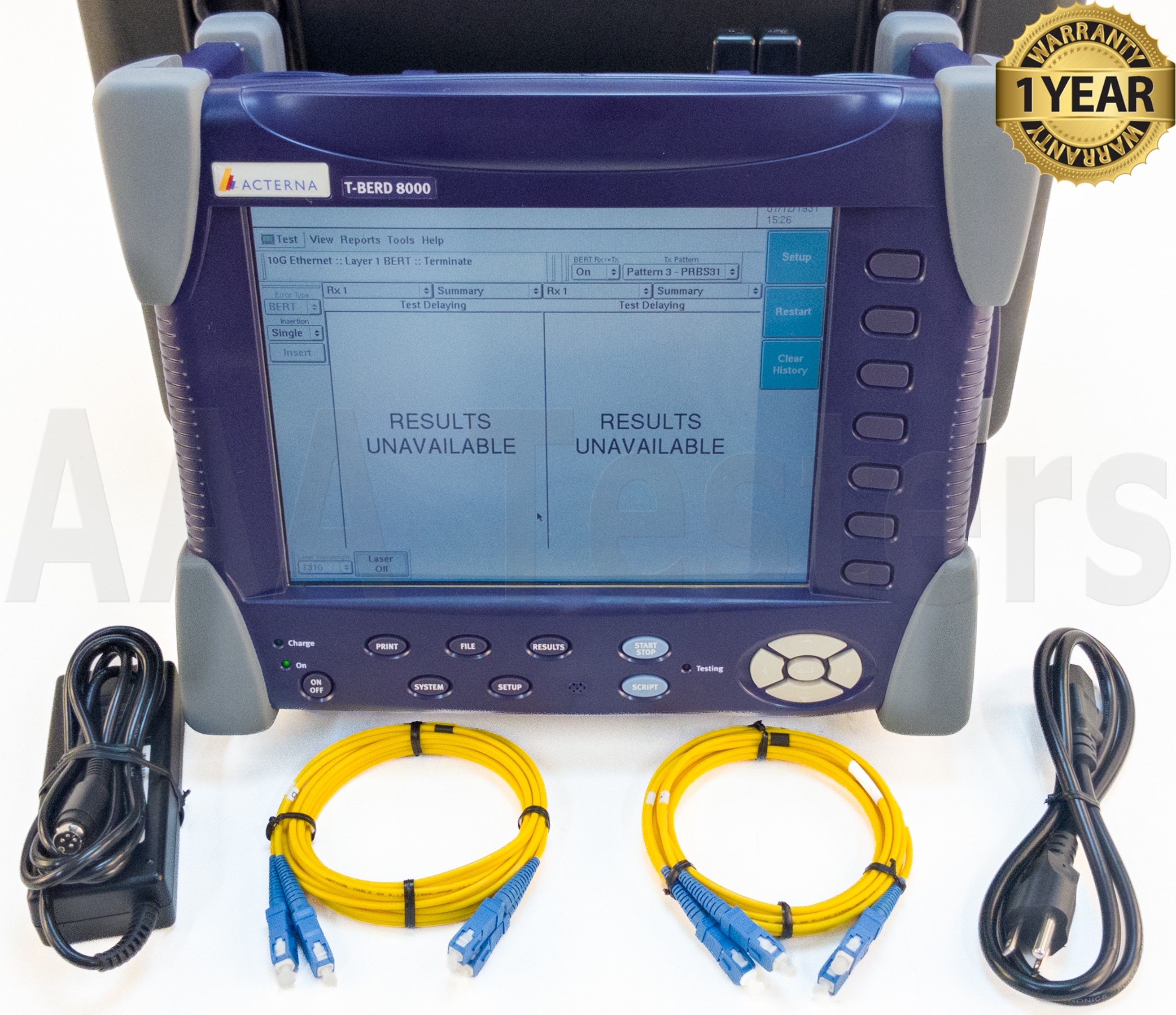

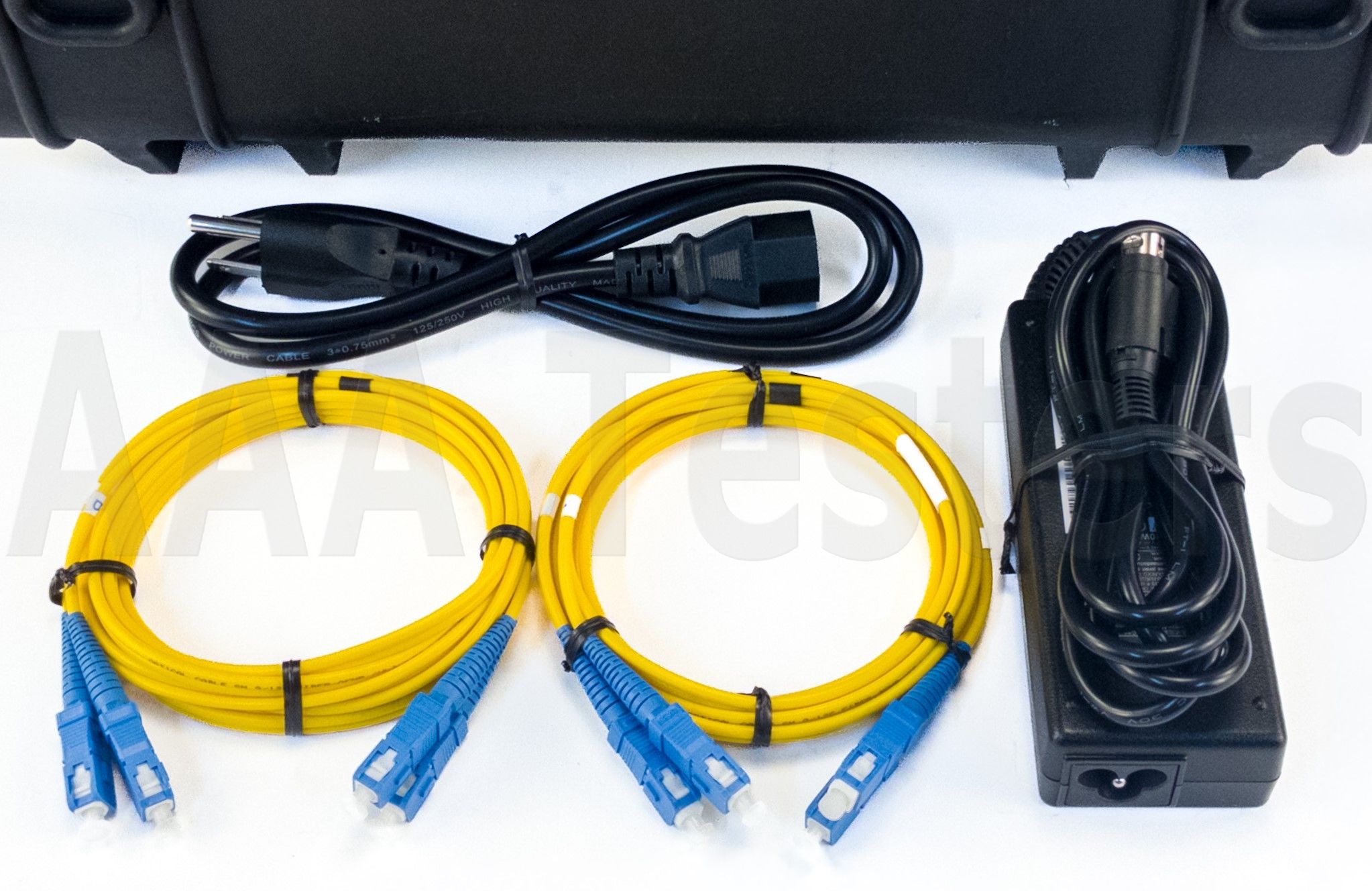

Includes Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished/Calibrated
Calibrated: Yes
Warranty: 1 Year Warranty
JDSU T-BERD 8000 w/ 10G WAN LAN Transport Module
JDSU TB MTS-8000 Test Platform Mainframe
Combining multiple test capabilities with unprecedented levels of field modularity, the JDSU T-BERD MTS-8000 is a scalable field platform for provisioning and maintaining short-haul, long-haul, FTTx, Metro, CWDM, transport, data and DWDM networks. The optical time domain reflectometer (OTDR) is at the core of fiber optic characterization. Allowing measurement of fiber link attenuation, attenuation coefficient, reflection, splice/connector loss, and point of error, all as part of the fiber distance function.
- Field installable single slot plug-in module for the MTS-8000
- Impressive speed and high performance testing (up to 128,000 acquisition points with 0.1 s real time sweep)
- Shortest event dead zone of 1 m, highest dynamic range of 44 dB at 1550 nm
- Automatic and advanced functions for maximum user flexibility
- Complete fiber characterization solution combining chromatic dispersion, polarization mode dispersion, and spectral attenuation testing capability in the MTS-8000 test platform
- Powerful report generation facilities using FiberTrace and FiberCable PC software

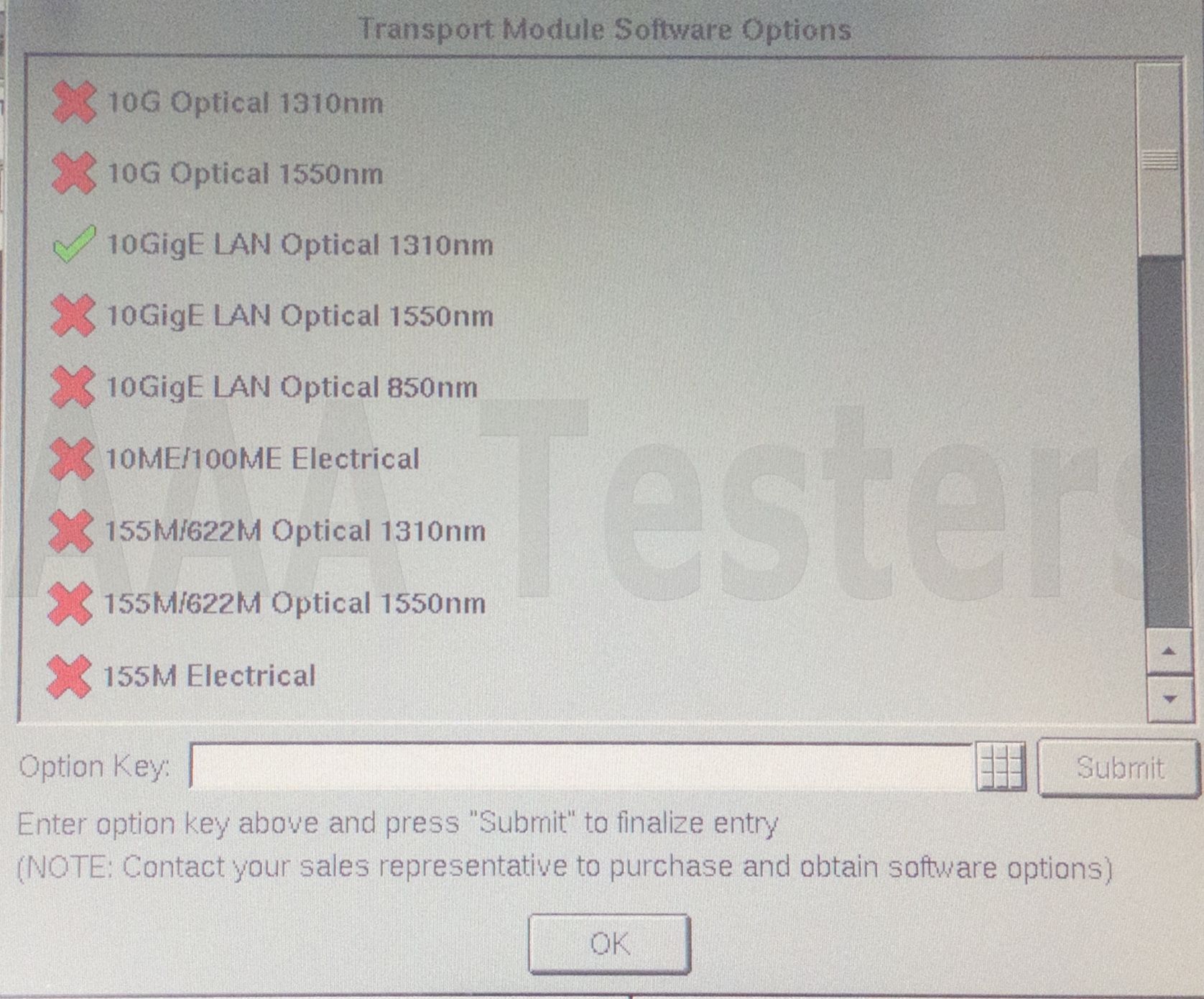

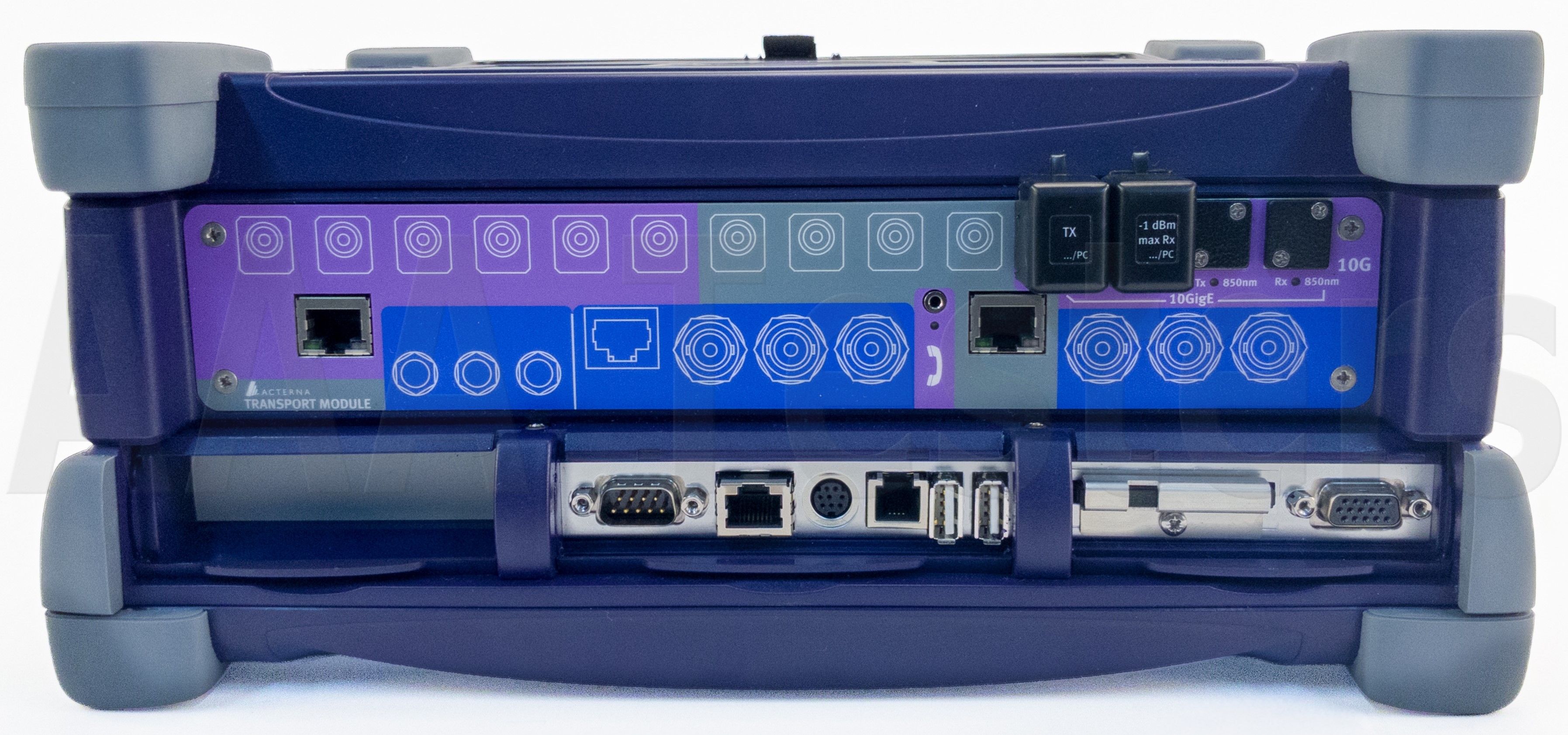

JDSU TB MTS-8000 10GigE LAN Optical 1310nm Transport Module
This is most compact test solution on the market and is ideal for eld-test applications. Its ruggedness and optional battery power and control connectivity can withstand the most diverse test conditions. With capabilities designed for carrier Ethernet packet transport, long haul, and metro-core networks, as well as government telecommunication centers, the module represents the latest innovation for the family of award-winning, industry-leading T-BERD MTS test solutions. These elements combine to provide the right test tool for achieving quicker execution and easier mobility, especially during service activation and troubleshooting. The module integrates native pluggable optics support for both the C form-factor plug-ables (CFP) applicable to 40 and 100 G line rates and the quad small form-factor plug-ables (QSFP+) applicable to 40 G line rates. It also provides clocking options for synchronous Ethernet and optical transport networks (OTNs) based on internal, recovered, and external clock SMA selections.
The TB MTS-8000 Transport module also enables technicians to test two routes between the same origination point and the same termination point. If a customer is experiencing different delays on two parallel routes, the TB/MTS 8000 can be used to establish two VLAN or IP connections, with different tags and user priorities on each port, to a remote site. This test setup allows for verification of the round trip delay (RTD) on each path independently to determine if the delay is the same on both routes, and to verify/compare the delay on the two different routes.
The TB MTS-8000 Transport Module answers the call by providing the most complete Metro test solution on the market, including advanced features for Layer 4 and above application-centric testing, IPTV testing, and Fiber Channel (FC) testing up to 10 Gb/s.
Features:
- Supports both 40 and 100 GE tests
- Provides OTU3 and OTU4 and a100 GE client in OTU4
- Supports 10 concurrent Ethernet data streams for service testing
- Ready for 40/43 G SONET/SDH/ OTN
- Measures high-accuracy round-trip latency (150 ns accuracy)
- Layer 3 test features include ping/ ARP and traceroute for IPv4/IPv6
JDSU TB MTS-8000 Test Platform Mainframe:
| General (typical at 25°C) |
Display
|
10.4-inch high-visibility touchscreen |
| Interchangeable optical connectors |
FC, SC, DIN, LC (PC or APC), and ST (PC) |
| Measurement range |
+10 to −60 dBm |
| Wavelength range |
800 to 1650 nm |
| Absolute uncertainty |
±0.2 dB |
| Laser safety class |
Class 1 |
| Output power level |
–3.5 dBm |
| Power Meter Power Range |
–3 to –55 dBm |

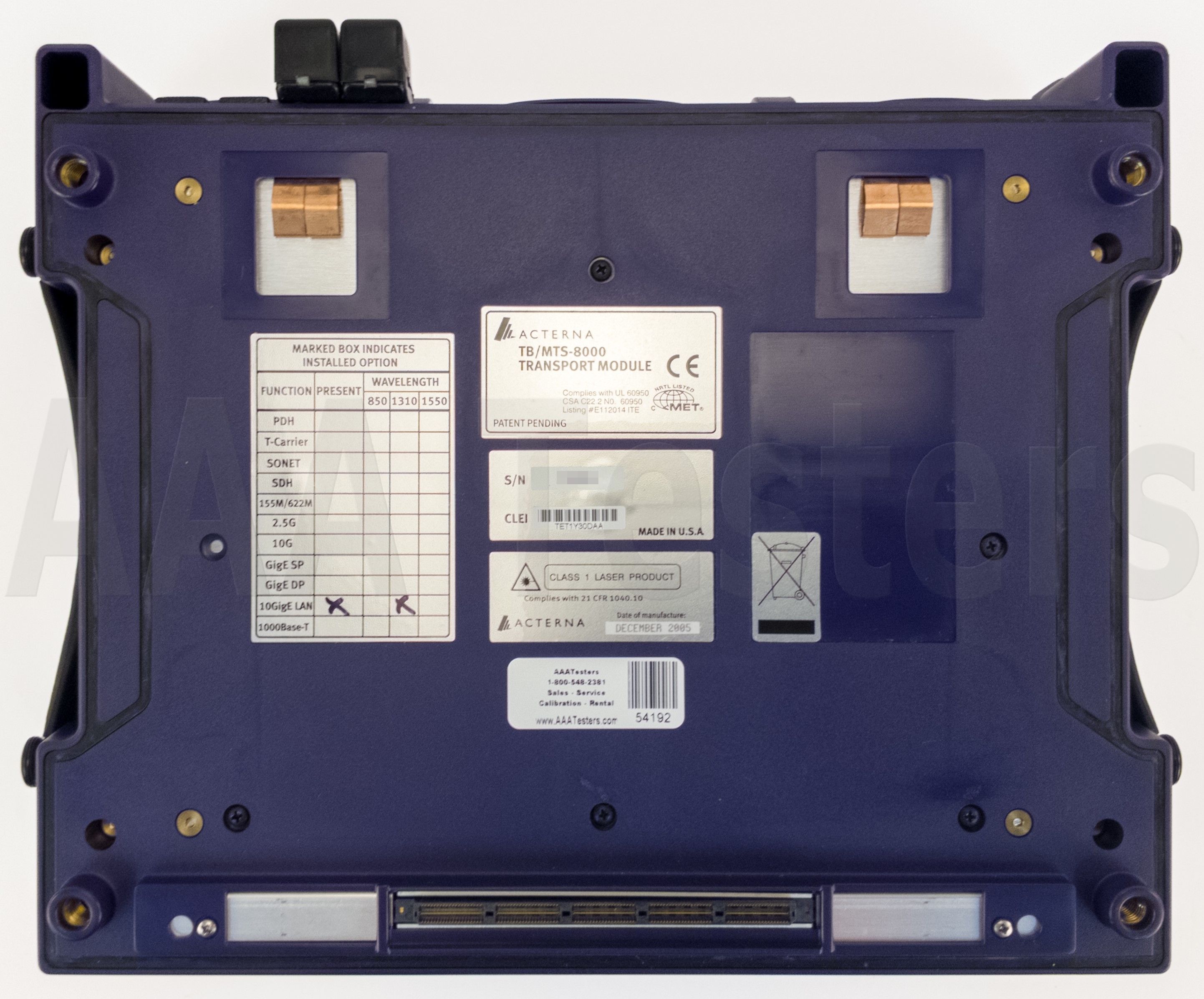

JDSU TB MTS-8000 10GigE LAN Optical 1310nm Transport Module:
| Display |
High visibility touch screen TFT color display 26.42 cm
800 x 600 LCD 10.4 in |
| Storage |
Internal memory: 8 MB
Hard disk minimum 20 GB |
| AC/DC Transport Module power adapter |
85-260 V, 50-60 Hz, 2 A
Output: 26 V, 11.5 A |
| Transmitter |
Wavelength: 1550nm
Output power: 0 to + 3 dBm
Extinction ratio: >8.2 dB |
| Receiver |
Wavelength: 1310 to 1550 nm
Overload: > + 3 dBm
Reflectance: < -27 dB |
| Modes of Operation |
Terminate, Intrusive through mode, Monitor |
| Transmit Timing Source |
Internal, Recovered, External (BITs, SETs) |
|
