* Trimble TSC7 Data Collector (BC# -L/T*)
- Trimble Access Software
* Carrying Case
|
|
Condition: Refurbished
Warranty: 1 Year Warranty
|
|
|
|
|

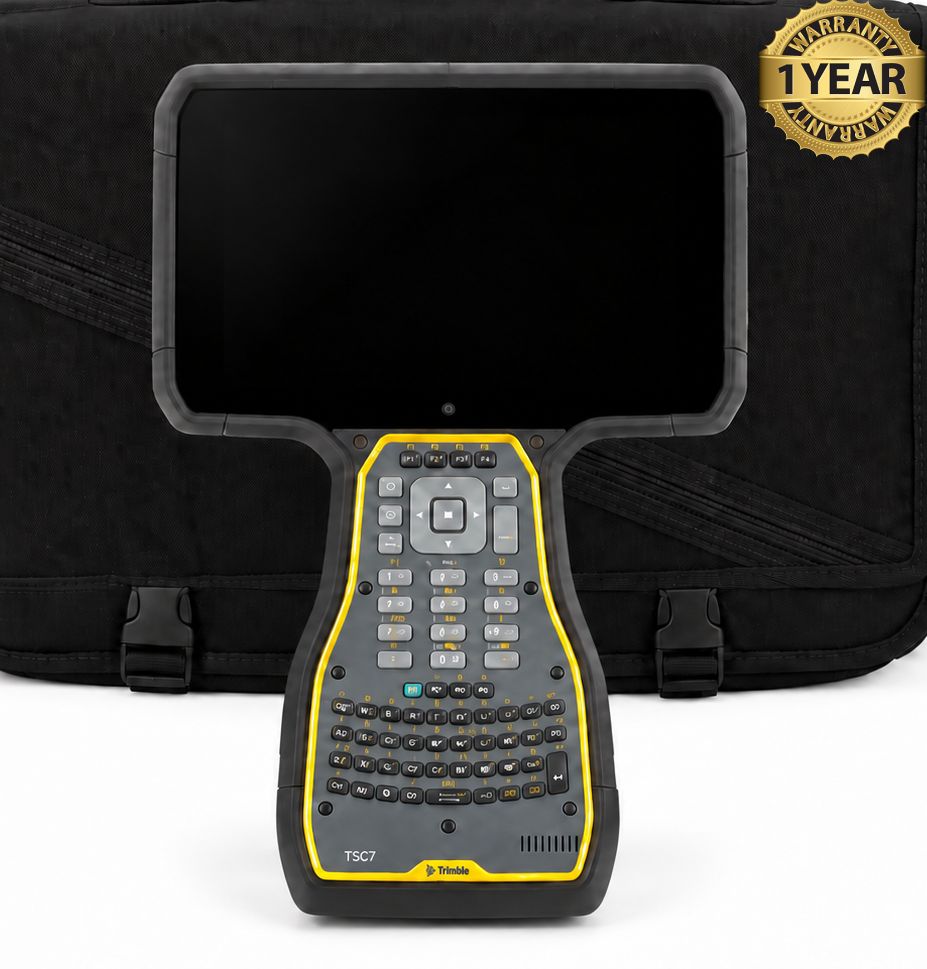

Trimble TSC7 Field Controller Data Collector w/ Trimble Access Software
Trimble TSC7 Field Controller
Big screen. Giant potential.
Redesigned from the ground up, the Trimble TSC7 controller with Trimble Access field software combines the power of a tablet, laptop and survey-rugged design into one device. Bringing the latest in field technology, this powerful combination of hardware and software unleashes a competitive advantage for how you survey in the field.
With the TSC7, you don't just get the big picture. You control it.
Introducing the Trimble TSC7, the rugged, ergonomic controller that delivers the power and flexibility of Microsoft Windows 10 Pro and Trimble Access software on a seven-inch touch screen. This powerful combination unleashes unlimited potential for your workflow.
Features:
- Optimized for Trimble Access field software
- Large 7-inch multi-touch screen for finger or stylus
- Sunlight readable display
- Secure Windows 10 Pro operating system
- Compatible with Microsoft Office, web browsers, and other third-party apps
- Manages large project files, complex imagery, point clouds, and other 3D data
- Intel Pentium processor with 8 GB RAM and 64 GB internal memory
- Comprehensive connectivity options
- Front- and rear-facing cameras
- Backlit keypad with customizable button commands
- User-interchangeable EMPOWER modules, including a long-range radio
- Military-spec rugged design, engineering and performance
- Ergonomic form factor
- Hot-swappable batteries with LED indicators
Specifications:
| PHYSICAL SPECIFICATIONS |
| Size |
20.9 x 30.2 x 7.0 cm (8.2 x 11.9 x 2.76”). Angled design. |
| Weight |
1.42 kg (3.12 lb) |
| Housing |
Glass-fibre reinforced resin with integrated drop bumpers |
| ENVIRONMENTAL SPECIFICATIONS |
| Operating Temperature |
-30°C to 60°C (-22°F to 140°F) MIL-STD-810G 501.5 Procedures II (operation) |
| Storage Temperature |
–40 °C to 70 °C (–40 °F to 158 °F) MIL-STD-810G 501.5 Procedures I (storage) |
| Sand & dust |
IP6x: 8 hours of operation with blowing talcum powder (IEC60529) |
| Water |
IPx8: Immersion, up to 1 m (3.2 ft) depth for 2 hours |
| Drop |
26 drops at room temperature from 1.22 m (4 ft) onto plywood over concrete MIL-STD-810G, Method 516.6, Procedure IV |
| Humidity |
90 % RH temp cycle +30°C/+60°C (86°F/140°F) MIL-STD-810G, Method 507.5, II |
| Vibration |
Operating MIL-STD 810G 514.6 I & II, non-operating I, cat 24 |
| Altitude |
Operational at 4,572 m (15,000 ft), MIL-STD-810G, Method 500.5, (Altitude) I (storage) & II (operating) |
| Temperature Shock |
Survives cycles between –30 oC and 60 oC (–22 oF and 140 oF), MIL-STD-810G, 503.5,I |
| Solar Exposure |
Survives prolonged solar exposure, MIL-STD810G Method 505.5, II |
| SECURITY |
TPM 2.0 (Trusted Platform Module) |
| CONFIGURATIONS |
| EMPOWER module support |
2 x module bays |
| CERTIFICATIONS |
| Country certifications |
FCC, NRTL, ICES, IC, ACMA, RSM, ANATEL, BIS,
WPC, MCMC, CERT, CE, CB, TRA, NCC, ICASA,
RCM, VCCI, KC, CCC, SRRC, FAC, EAC, BSMI
approvals, NRTL scheme |
| Environmental |
EU RoHS, China RoHS, REACH, WEEE |
| COMPATIBLE FIELD SOFTWARE |
Trimble Access version 2017.2x and Trimble Access version 2018 and later
Windows 10 Pro 64 bit applications. |
| ELECTRICAL SPECIFICATIONS |
| Processor |
Intel Apollo Lake - N4200, 64-bit quad-core |
| Memory |
8 GB RAM, LPDDR4 |
| Storage |
64 GB eMMC |
| Expansion |
via SDXC card up to 2 TB |
| Batteries |
2 x 3100 mAh (22.53 Wh) min. capacity/3150 mAh
(22.90 Wh) nominal capacity; removable, hot
swappable, charge LED indicator |
| Battery life |
Medium usage approx. 5 hours, can range 4–7
hours (depending on display settings, connectivity,
data processing, ambient temperature, etc.) |
| Charging time |
Full-charge 3.5 hours, fast-charge (80 %) 1 3⁄4 hours |
| Power input |
19V/5A charging |
| Notification LED |
Charging and power status |
| Display |
7”, 1280 x 800 landscape, 16:10, 800 nits sunlight
readable. LED backlit, Gorilla® Glass 3.0, 10 point
capacitive multitouch with stylus,touch, and glove
mode |
| Keyboard |
QWERTY or ABCD, with backlight, numeric key
block, Fn keys (6 physical + 6 2nd function Fn keys) |
| Audio |
Speaker and dual digital microphone array with noise reduction |
| External speaker / microphone |
3.5 mm mini-jack or wireless headset |
| I/O |
User replaceable module. Standard: Charger/DC power-in, USB 3.1 Gen 1 type A host, serial RS232 DB-9 |
| WWAN |
Worldwide LTE in regions where it is available,
and compatible with 3G networks
AT&T and Verizon certified. MicroSIM card |
| Wi-Fi |
802.11 a/b/g/ac/n (2.4 GHz/5 GHz ISM radio band) |
| Bluetooth |
BT 2.1 + EDR, BT 4.1 |
| Camera |
Rear camera 8 MP autofocus with flash
Front camera 2 MP fixed-focus |
| GNSS |
Integrated u-blox NEO-M8N, L1, GPS/GLONASS/
BeiDou |
| Sensors |
3-axis accelerometer, magnetic sensor, ambient light sensor, proximity sensor |
|
|
|
|
|
|
|
|
