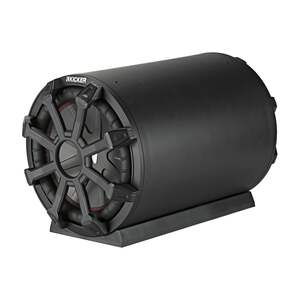

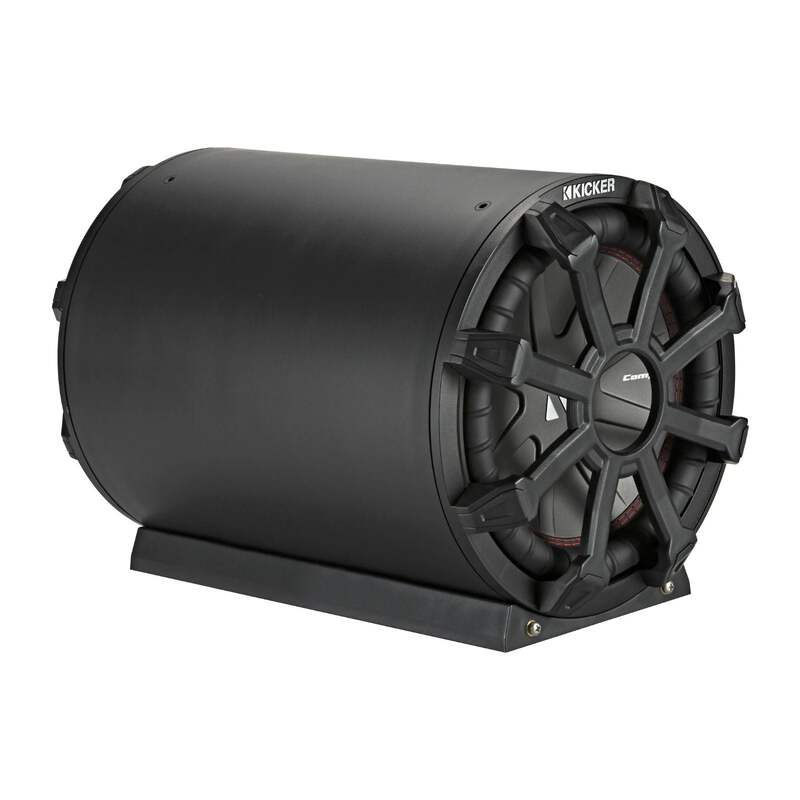

The Kicker 46CWTB102 is a TB 10 inch weatherproof loaded tube enclosure with a 2 ohm CompR woofer and an opposing passive radiator, rated at 400W RMS. It mounts horizontally or vertically and fits where a traditional box will not.

This is the 2 ohm version. A 4 ohm 46CWTB104 and an 8 inch 46CWTB82 are also available.

Key specifications

• Woofer: 10" CompR, two ohm, plus passive radiator
• Enclosure: thick ABS tube, reflex (passive radiator) design
• Power handling: 400W RMS, 800W peak
• Sensitivity: 85.7 dB 1W/1m

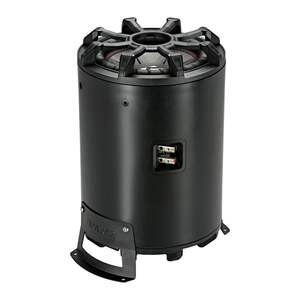

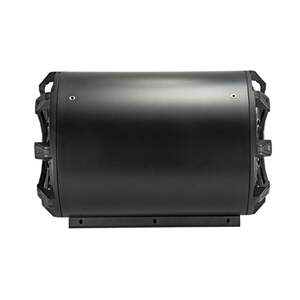

• Mounting: horizontal or vertical
• Dimensions (horizontal): 27 cm W x 27.3 cm H x 42.1 cm D
• Grilles: included

TB 10" Loaded Weatherproof Tube Enclosure - 2 Ohm

46CWTB102

A compact, weatherproof subwoofer enclosure that delivers serious bass without taking over your boot or truck bed.

The Kicker TB fits where a traditional box won't. Mount it horizontally or vertically, in a car, truck or van. The 2 ohm CompR woofer pairs with a passive radiator to push deep, loud bass from a surprisingly small tube.

Features

• Two Ohm Speaker
• 400W RMS
• Thick ABS Tube Construction
• Flexible Horizontal or Vertical Mounting System
• Spring-Loaded Speaker Terminals
• CompR Woofer and Reflex Sub (passive radiator)
• Ceramic Magnet
• Advanced Heat Management System
• Signature Double Red Stitching
• Grilles included

What is a passive radiator? With the TB tube, it is positioned opposite the primary subwoofer within the enclosure. Unlike a conventional subwoofer, it lacks active components such as a magnet or voice coil. Working with the subwoofer, it elevates bass performance without needing a significantly larger enclosure.

• Style: Reflex (passive radiator)

• Woofer Quantity: 1

• Colour: Black

• Impedance (Ohms): 2

• RMS Power (W): 400

• Peak Power (W): 800

• Sensitivity (dB @ 1W/1m): 85.7

• Frequency Response (Hz): N/A

• Height (cm): 27.3

• Width (cm): 27.0

• Top Depth (cm): 42.1

• Bottom Depth (cm): 42.1

• Grilles: Included

• Built-in Amplifier: No

• 1 enclosure assembly
• 2 vertical mounting brackets
• 1 horizontal mount base
• 1 horizontal mount hook (retainer)
• 1 horizontal mount plate (retaining clamp)
• 7 stainless steel M5 x 12 mm button head screws
• 11 nylon flat washers
• 4 stainless steel pan head M4 x 25 mm screws
• Grilles
• Owner's manual
