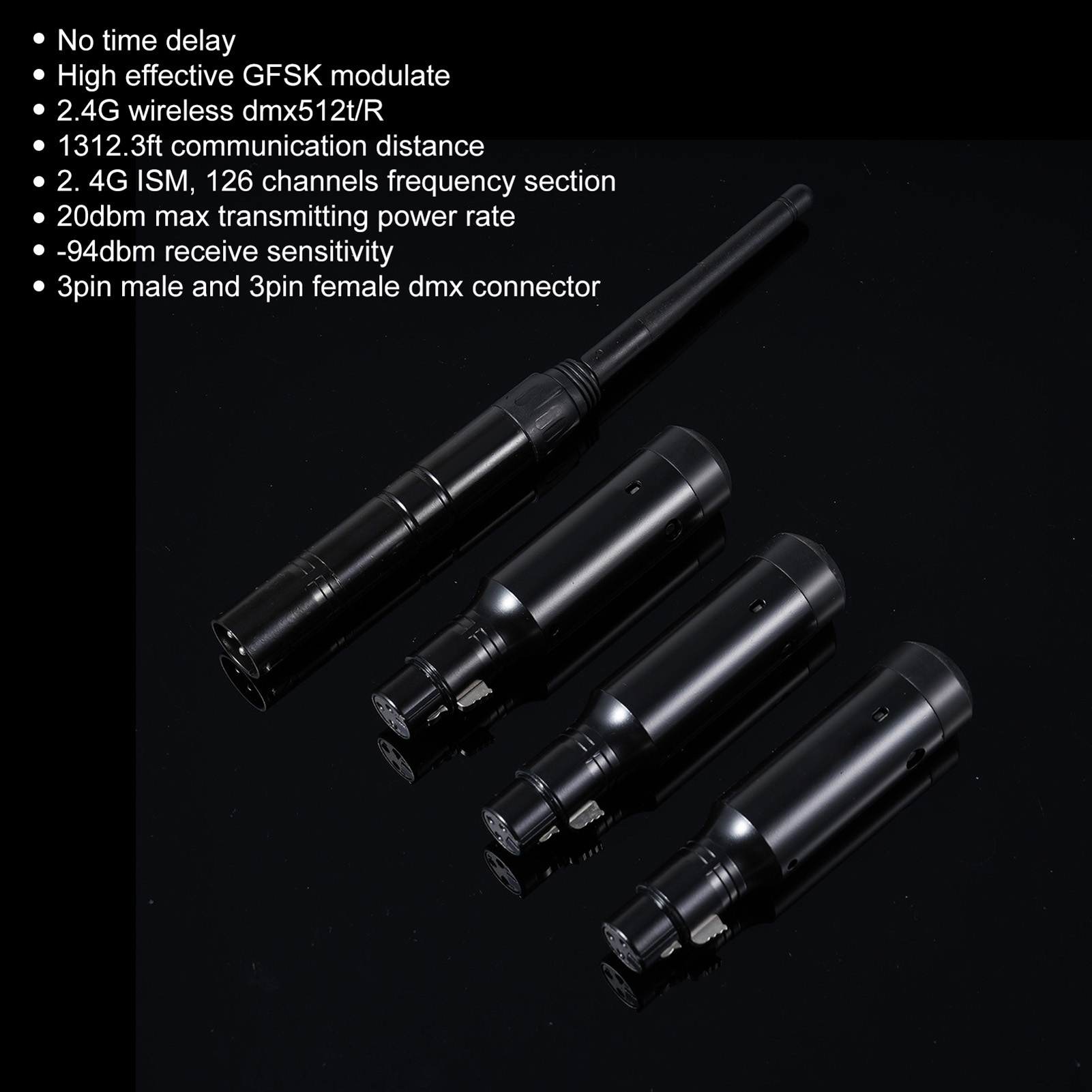

Feature:

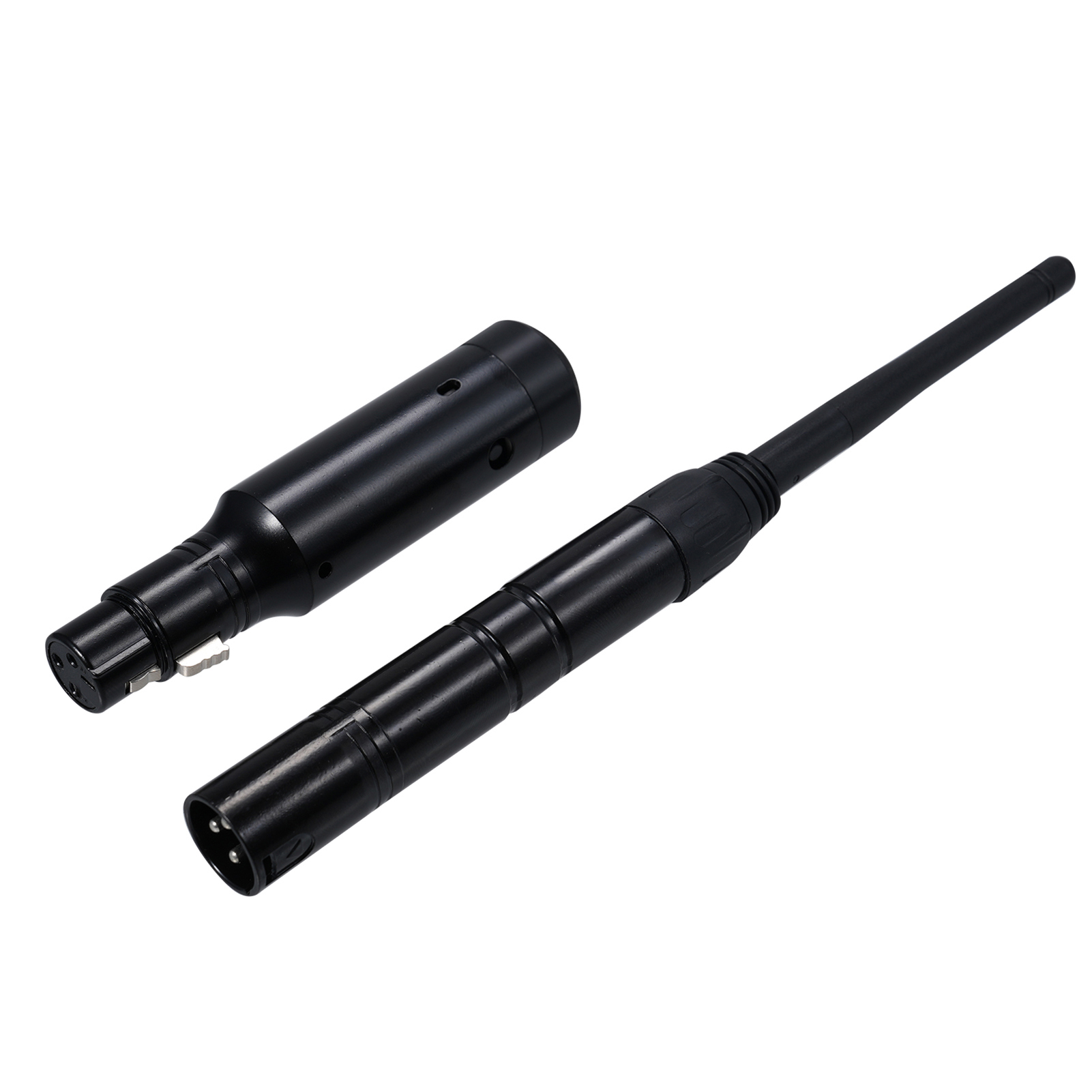

1. DMX512 wireless receivers and transmitter transmit standard DMX512 protocol data (generated by console) by wireless way.
2. No time delay when signal data is transmitting, signal data is in real time and reliable.
3. This product adopts a 2.4G ISM frequency section. Communication distance is about 400M (visible distance).
4. High effective GFSK modulate, communication design; 126 channels jumping frequency automatically, high anti-jamming ability, to ensure that works reliability.
5. 7 groups ID code settable. User can use 7 groups individual wireless net without any interfere.
Specification:
Communication Distance: 400 meters/1312.3ft (visible distance)
Working Frequency Section: 2.4G ISM, 126 channels frequency section
Rotation Angle of Antenna: 90 degree
Receive Sensitivity: -94dBm
Max Transmitting Power Rate: 20dBm

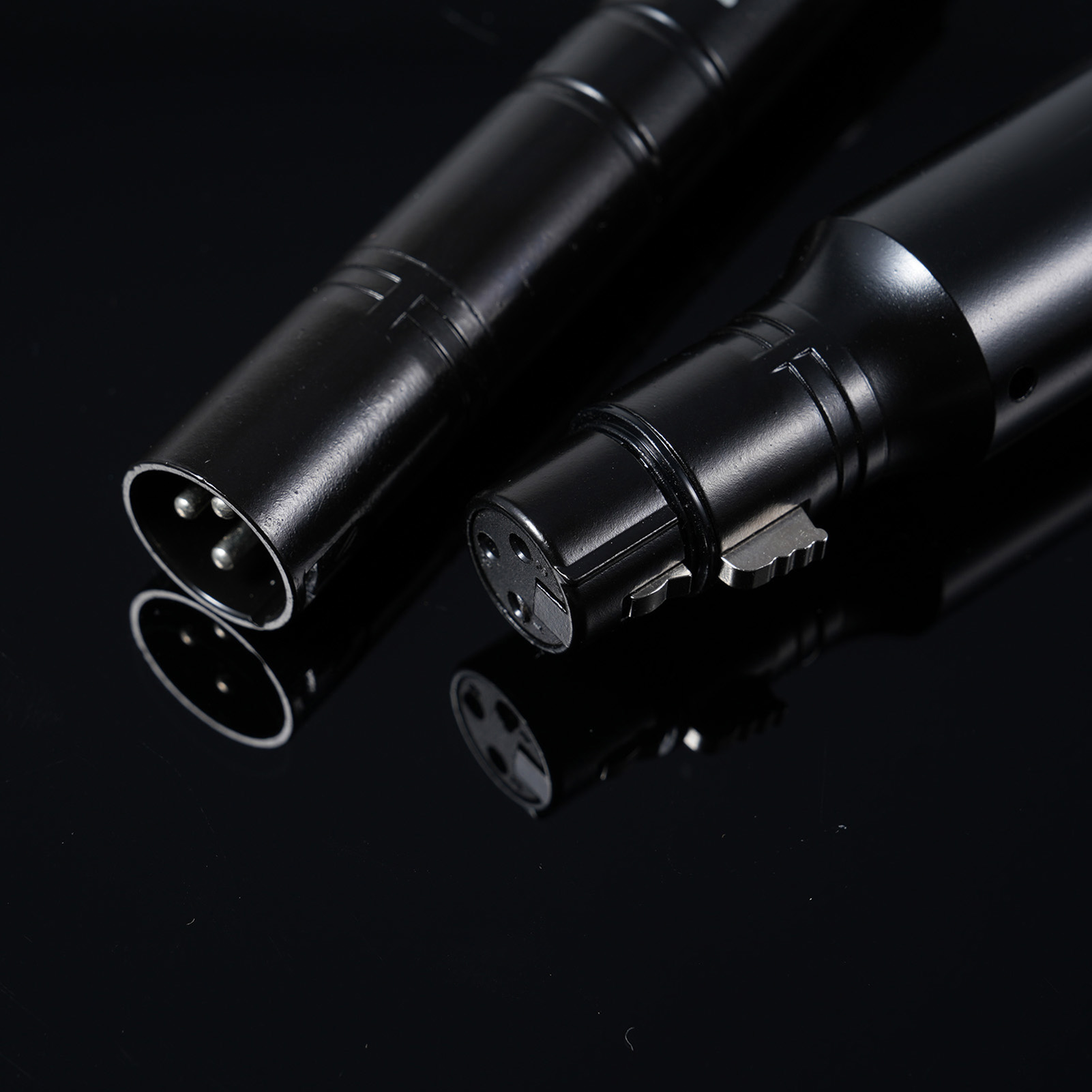

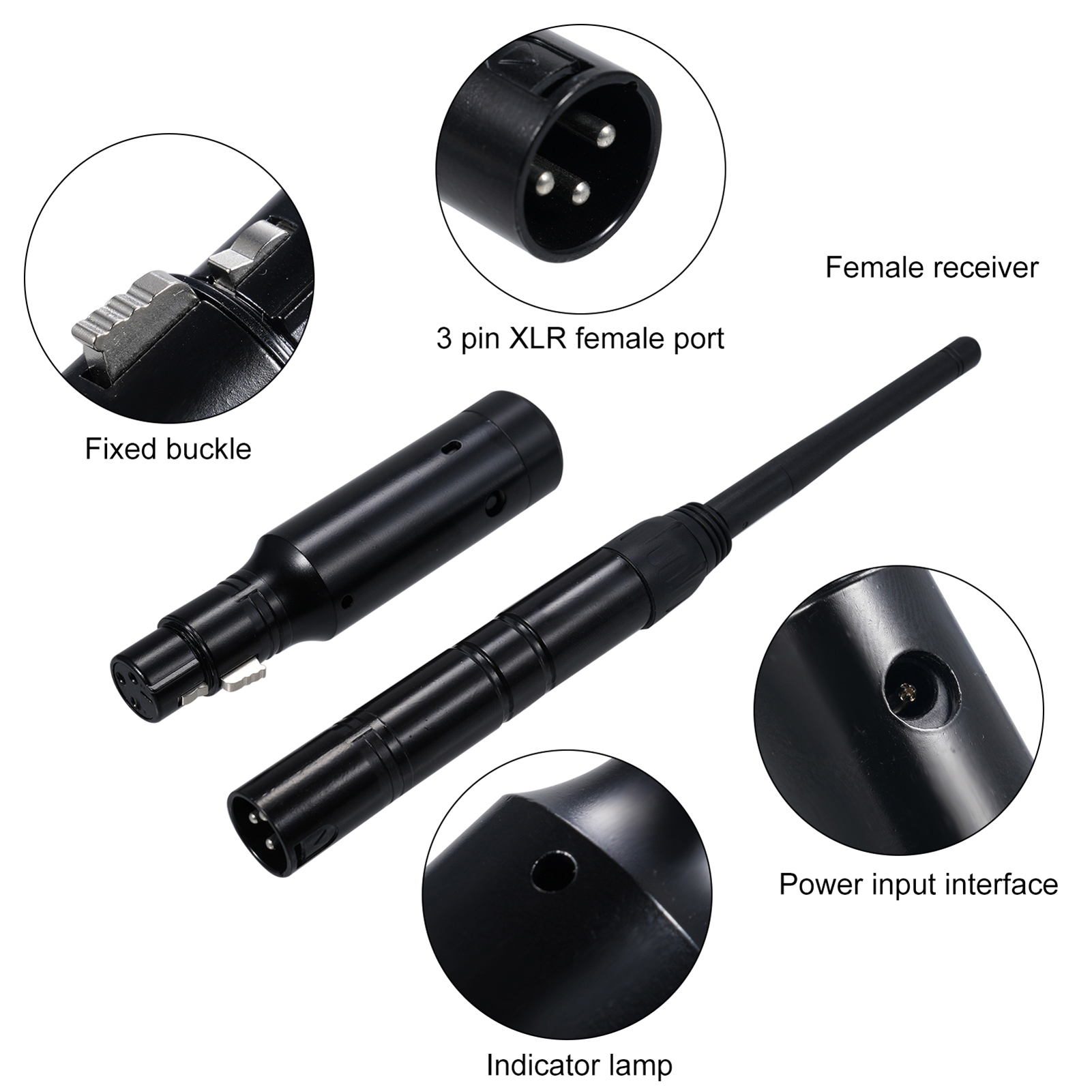

DMX Connector: 3pin male and 3pin female
Material: Iron & Zinc

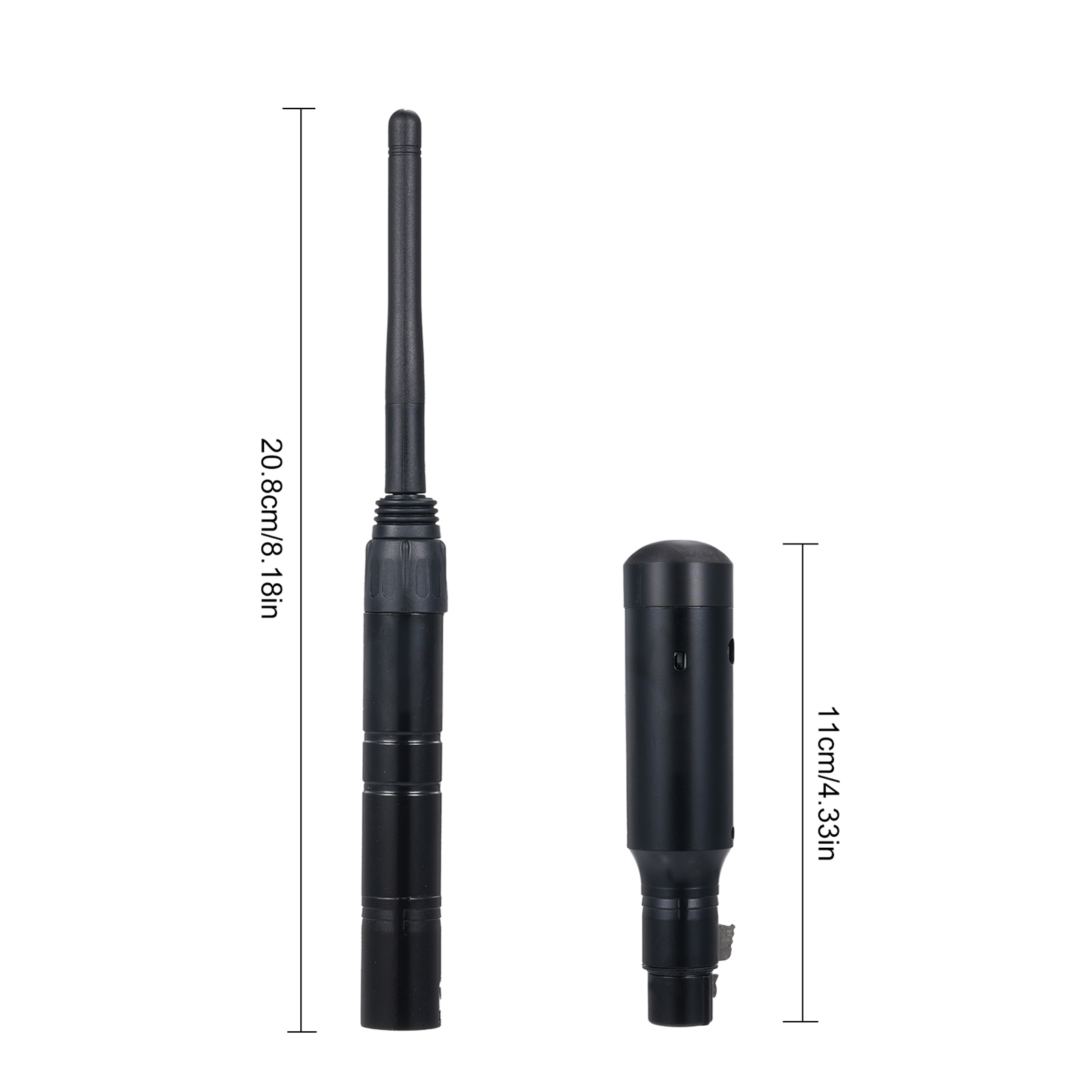

Receiver Size (Each): Approx. 11.0*2.7*2.7cm/4.33*1.06*1.06in
Receiver Weight (Each): Approx. 94g/3.31oz
Transmitter Size: Approx. 13.0*9.0*1.8cm/5.12*3.54*0.70in
Transmitter Weight: Approx. 68g/2.39oz
Package Size: Approx. 18.5*13.0*6.5cm/7.28*5.12*2.56in
Package Weight: Approx. 700g/24.69oz

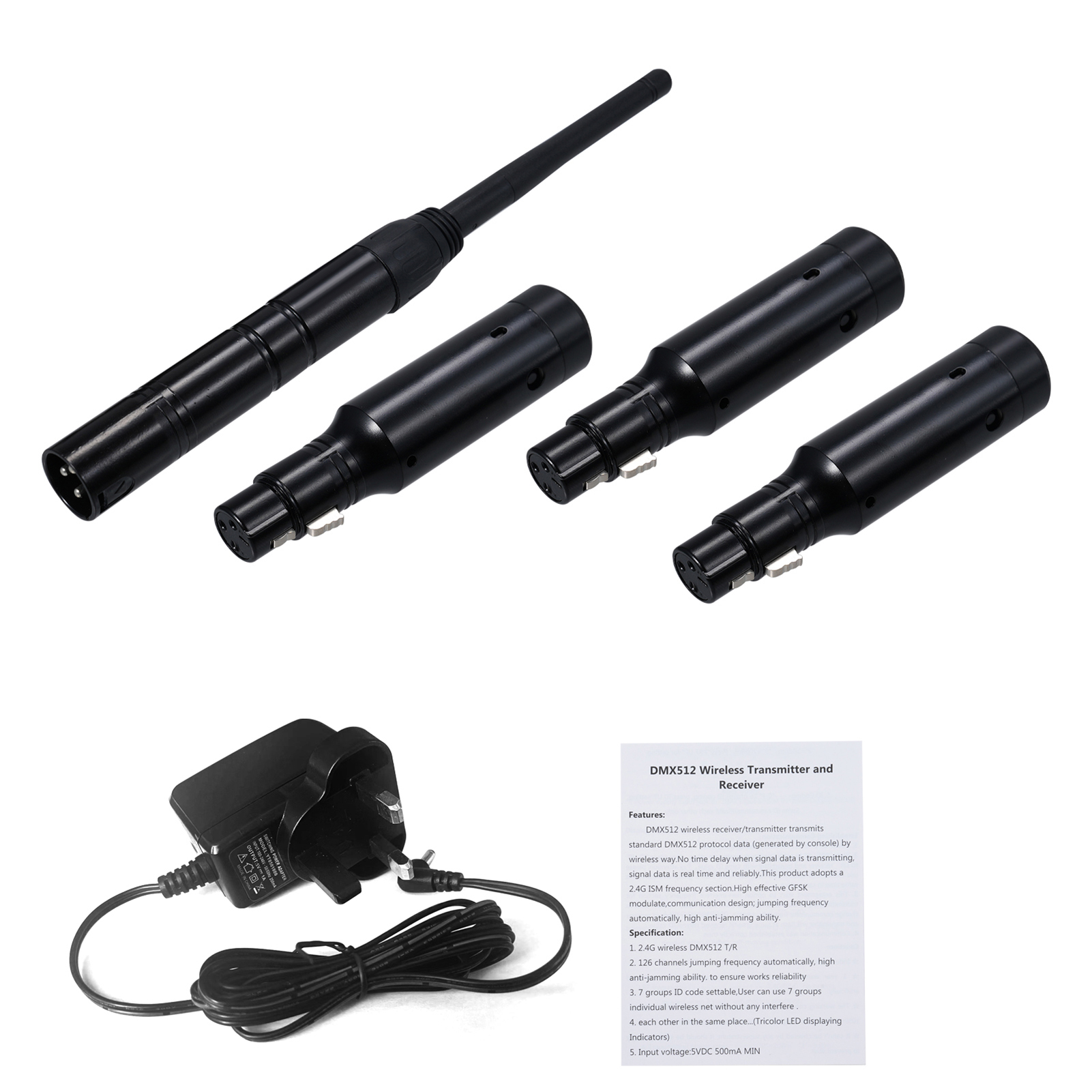

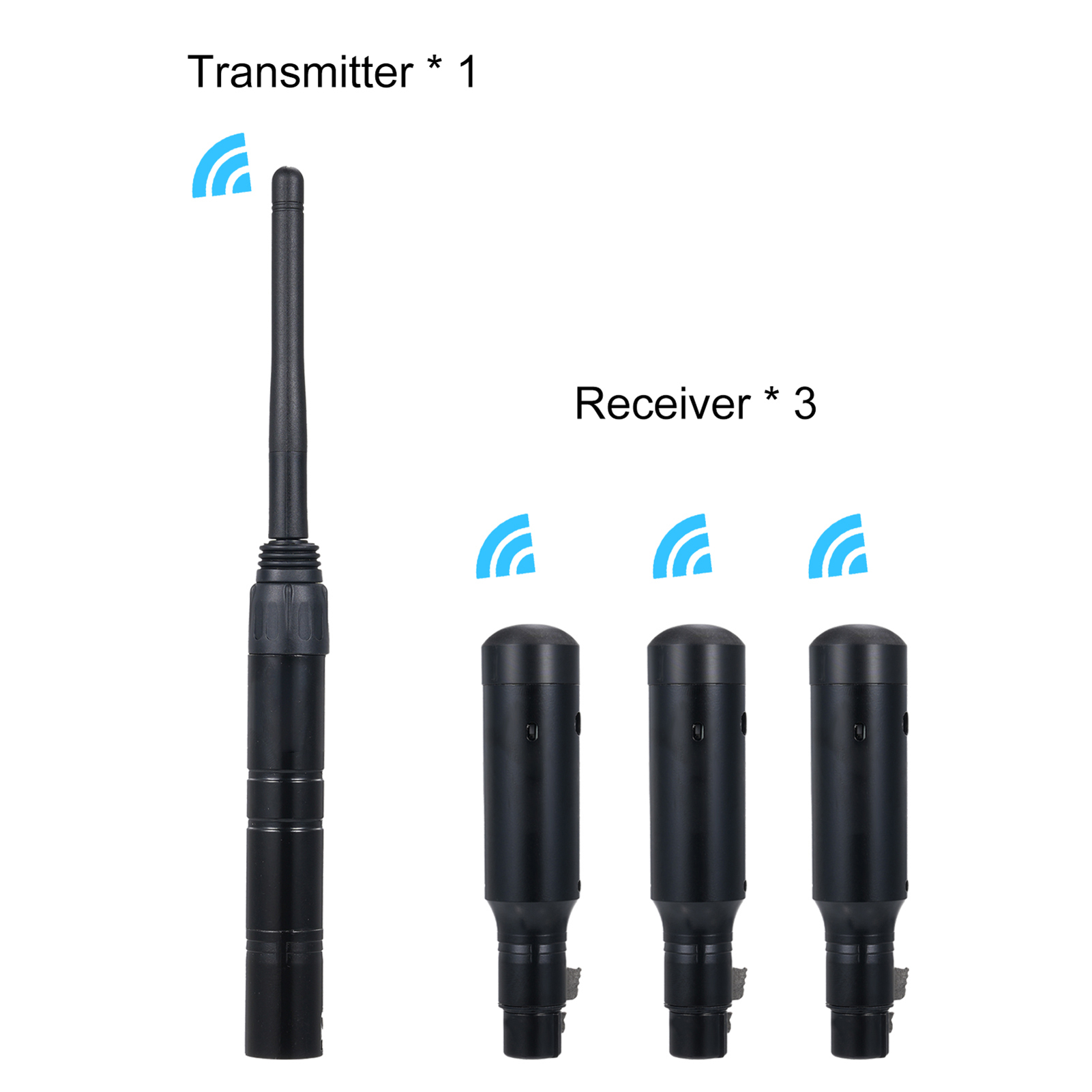

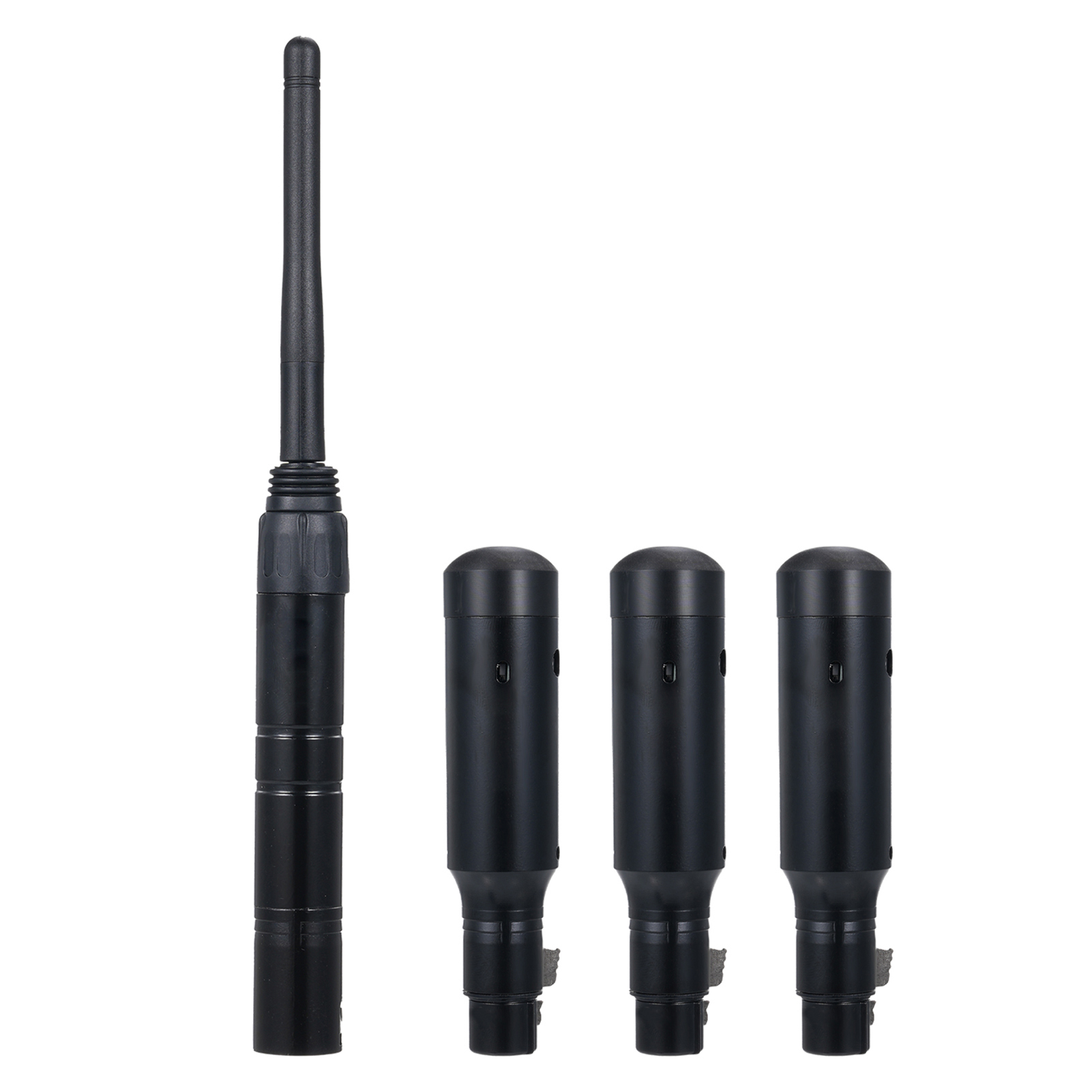

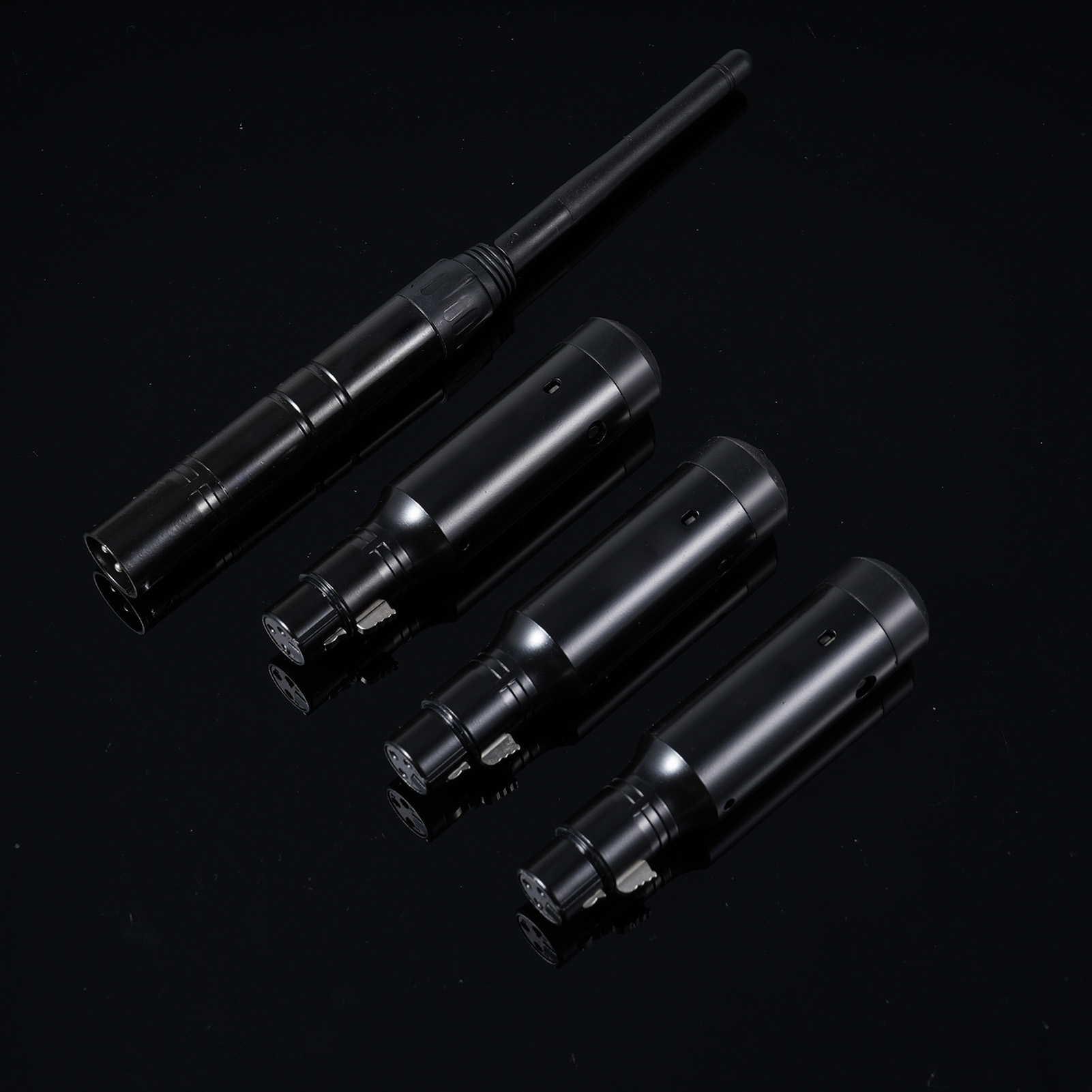

Package List:
1 * DMX Transmitter
3 * DMX Receiver
4 * Power Adapter
2 * User Manual (English)
Note:
Notes:
1. This item is for indoor use only, non-waterproof.

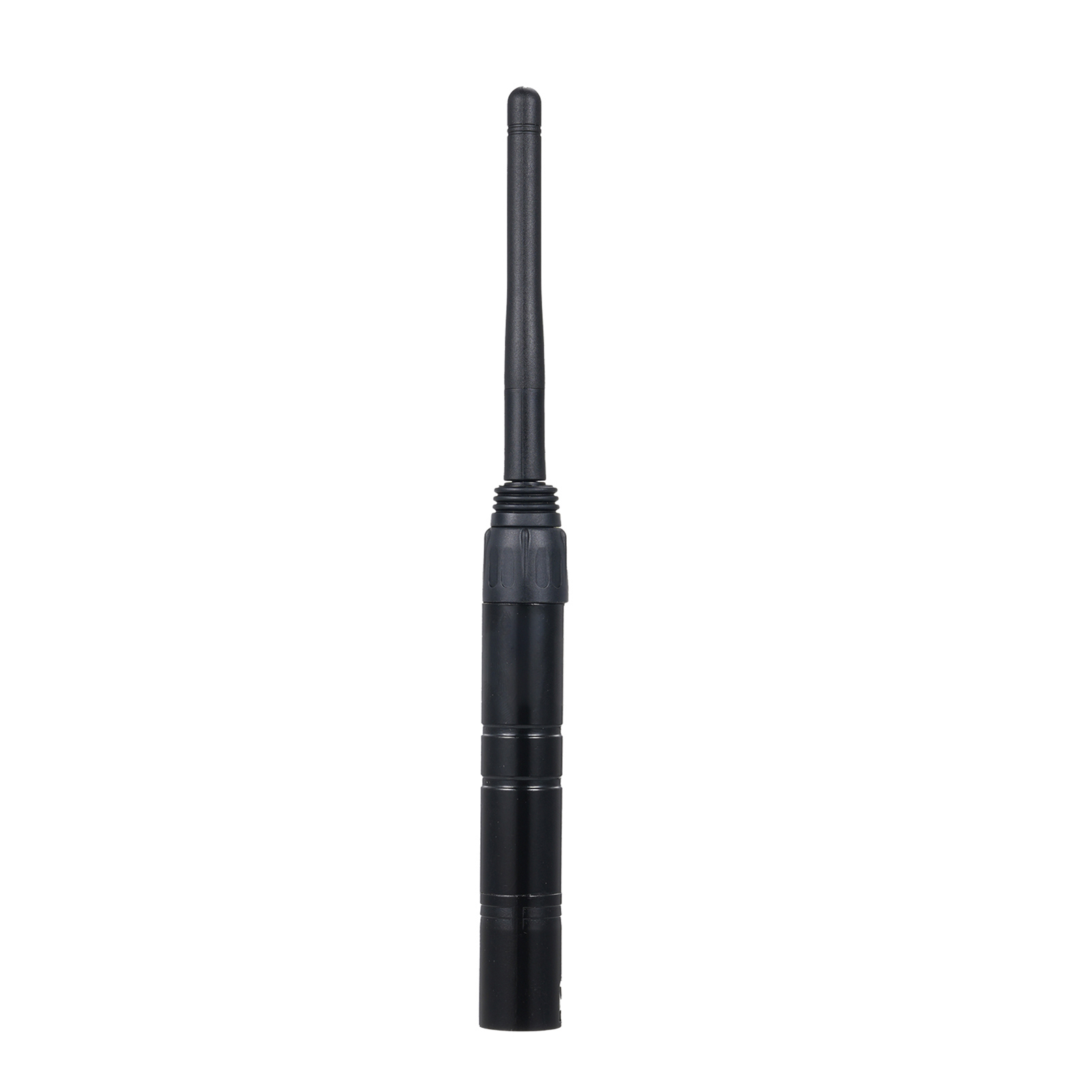

2. The external antenna can be rotated and disassembled, please ensure that the antenna is firmly connceted when used.
