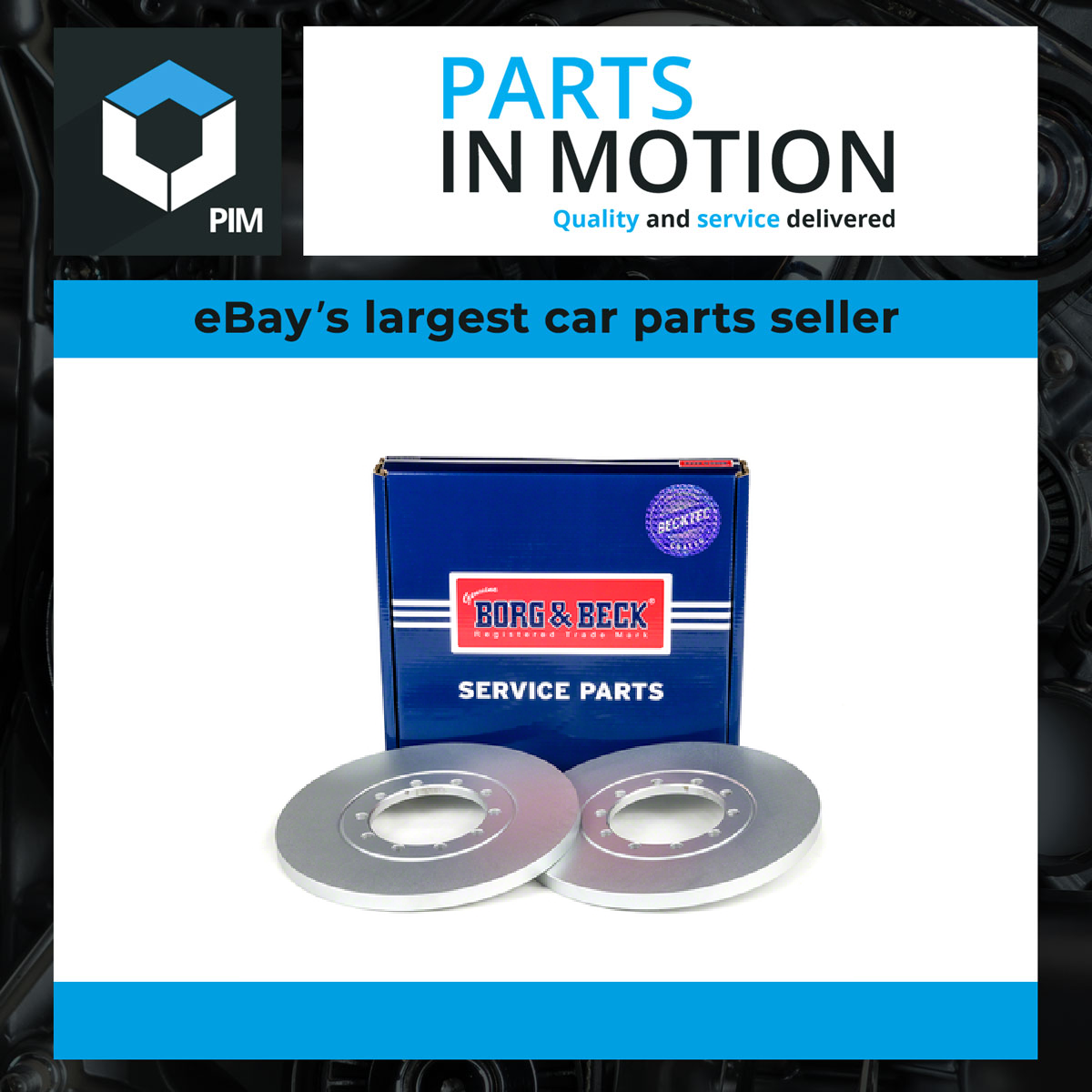

Borg & Beck 2x Brake Discs Pair Solid Rear BBD4566 [PM671194]
2x Brake Discs Pair Solid fits FORD TRANSIT TDCi 3.2D Rear 07 to 14 280mm Set


PartsInMotion benefits

For any queries please contact using the contact seller link provided.
Description

2x Brake Discs Pair Solid fits FORD TRANSIT TDCi 3.2D Rear 07 to 14 280mm Set

BrandBorg & Beck
Placement on VehicleRear Axle
Height16.6 mm
Outer diameter280 mm
Brake Disc Thickness16 mm
Brake Disc Typesolid
Number of Holes10
Minimum thickness15 mm
Inspection TagECE R90 Homologated
Centering Diameter107.6 mm
SurfaceCoated
NoteNumber of mounting bores
Quantity UnitSet
Rotor StyleSolid
TypeBrake Disc Rotor
FunctionBrake Disc


Cross references

A.B.S.17787
ABTEXBD1356S
APECDSK2527, SDK6079, SDK6821
ATE24.0116-0126.1, 416126
BENDIX562537BC
BLUE PRINTADF124317
BORG & BECKBBD4566
BOSCH0 986 479 R92
Brake ENGINEERINGDI956399
BRAKE FITSDK6079
BRAKEWORLDRS0003
BREMBO08.A530.10
COMLINEADC1233
DELPHIBG4075
FAI AutoPartsBD140, FPBD1073
FEBI BILSTEIN40779
FERODODDF1537C
JURATEKFOR120
JURID562537JC-1
KEY PARTSKBD4566
LPRF1019P
METELLI23-0998C
MEYLE715 523 7044, MBD1397
MINTEXMDC1811C
MOTAQUIPLVBD1235Z
NAPANBD5405, PBD8201
NationalNBD1420
NK312577
OPTIMALBS-8366
QUINTON HAZELLBDC5548
sbs1815312577, 3815312577
TEXTAR92152003
TRISCAN8120-16149
TRWDF6049, DF6335S
VAICOV25-40005
ZIMMERMANN250135900

Compatible with the following OEM references

FORD1371420, 1382303, 1464031, 6C112A315AA, 6C112A315AB

Passenger/LCV Vehicles

VehicleBodyFuelFromToDriveValvesBHPKW
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi RWDBusDiesel10/201108/2014RWD1610074
Fitting Position: Rear Axle
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi RWDBusDiesel09/201112/2014RWD1612592
Fitting Position: Rear Axle
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi RWDBusDiesel09/201108/2014RWD16135100
Fitting Position: Rear Axle
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDCiBusDiesel04/200608/2014RWD1611585
Fitting Position: Rear Axle; Brake System: Bosch
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDCiBusDiesel04/200608/2014RWD16140103
Fitting Position: Rear Axle; Brake System: Bosch
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDCiBusDiesel04/200608/2014RWD1610074
Fitting Position: Rear Axle
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDCi 4x4BusDiesel11/200608/2014AWD16140103
Fitting Position: Rear Axle
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 3.2 TDCiBusDiesel02/200808/2014RWD20200147
Fitting Position: Rear Axle; Brake System: Bosch
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi 4x4Platform/ChassisDiesel10/201108/2014AWD1612592
Fitting Position: Rear Axle
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi RWDPlatform/ChassisDiesel10/201108/2014RWD1610074
Fitting Position: Rear Axle
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi RWDPlatform/ChassisDiesel10/201108/2014RWD1612592
Fitting Position: Rear Axle
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi RWDPlatform/ChassisDiesel10/201108/2014RWD16155114
Fitting Position: Rear Axle
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.3 16V CNG RWDPlatform/ChassisPetrol/Compressed Natural Gas (CNG)04/200608/2014RWD16136100
Fitting Position: Rear Axle; Brake System: Bosch
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.3 16V LPG RWDPlatform/ChassisPetrol/Liquified Petroleum Gas (LPG)04/200608/2014RWD16145107
Fitting Position: Rear Axle; Brake System: Bosch
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.3 16V RWDPlatform/ChassisPetrol04/200608/2014RWD16145107
Fitting Position: Rear Axle; Brake System: Bosch
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.4 TDCi 4x4Platform/ChassisDiesel11/200608/2014AWD16140103
Fitting Position: Rear Axle
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.4 TDCi RWDPlatform/ChassisDiesel04/200608/2014RWD1610074
Fitting Position: Rear Axle
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.4 TDCi RWDPlatform/ChassisDiesel04/200608/2014RWD1611585
Fitting Position: Rear Axle; Brake System: Bosch
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.4 TDCi RWDPlatform/ChassisDiesel04/200608/2014RWD16140103
Fitting Position: Rear Axle; Brake System: Bosch
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 3.2 TDCi RWDPlatform/ChassisDiesel09/200708/2014RWD20200147
Fitting Position: Rear Axle; Brake System: Bosch
FORD TRANSIT TOURNEO Bus 2.2 TDCiBusDiesel10/200708/2014FWD16140103
Fitting Position: Rear Axle; Braking/Driving Dynamics: for vehicles with ABS; Tyres: for single tyres
FORD TRANSIT V363 Platform/Chassis (FED, FFD) 2.2 TDCi RWDPlatform/ChassisDiesel08/201312/2018RWD1613599
Fitting Position: Rear Axle; Vehicle type: 250; Vehicle type: 260; Vehicle type: 270; Vehicle type: 280; Vehicle type: 290; Vehicle type: 300; Vehicle type: 310; Tyres: for single tyres; Tyres: for dual tyres
FORD TRANSIT Van (FA_ _) 2.2 TDCi 4x4VanDiesel10/201108/2014AWD1612592
Fitting Position: Rear Axle
FORD TRANSIT Van (FA_ _) 2.2 TDCi RWDVanDiesel10/201108/2014RWD1610074
Fitting Position: Rear Axle
FORD TRANSIT Van (FA_ _) 2.2 TDCi RWDVanDiesel09/201112/2014RWD1612592
Fitting Position: Rear Axle
FORD TRANSIT Van (FA_ _) 2.2 TDCi RWDVanDiesel10/201108/2014RWD16155114
Fitting Position: Rear Axle
FORD TRANSIT Van (FA_ _) 2.2 TDCi RWDVanDiesel10/201108/2014RWD16136100
Fitting Position: Rear Axle
FORD TRANSIT Van (FA_ _) 2.3 16V CNG RWDVanPetrol/Compressed Natural Gas (CNG)04/200608/2014RWD16136100
Fitting Position: Rear Axle; Brake System: Bosch
FORD TRANSIT Van (FA_ _) 2.3 16V LPG RWDVanPetrol/Liquified Petroleum Gas (LPG)04/200608/2014RWD16145107
Fitting Position: Rear Axle; Brake System: Bosch
FORD TRANSIT Van (FA_ _) 2.3 16V RWDVanPetrol04/200608/2014RWD16145107
Fitting Position: Rear Axle; Brake System: Bosch
FORD TRANSIT Van (FA_ _) 2.4 TDCi 4x4VanDiesel11/200608/2014AWD16140103
Fitting Position: Rear Axle
FORD TRANSIT Van (FA_ _) 2.4 TDCi RWDVanDiesel04/200608/2014RWD1611585
Fitting Position: Rear Axle; Brake System: Bosch
FORD TRANSIT Van (FA_ _) 2.4 TDCi RWDVanDiesel04/200608/2014RWD16140103
Fitting Position: Rear Axle; Brake System: Bosch
FORD TRANSIT Van (FA_ _) 2.4 TDCi RWDVanDiesel04/200608/2014RWD1610074
Fitting Position: Rear Axle
FORD TRANSIT Van (FA_ _) 3.2 TDCi RWDVanDiesel09/200708/2014RWD20200147
Fitting Position: Rear Axle; Brake System: Bosch

Borg & Beck is an established world-wide supplier of premium quality automotive components to the vehicle aftermarket, with over 100 years history of engineering excellence and OE pedigree. Starting life back in 1903 and being the first to patent the sliding clutch, Borg & Beck has been a trusted brand by some of the world's largest vehicle manufacturers, in fact there was a time when Borg & Beck Clutches were originally fitted to pretty much every single British-made vehicle.
