Fluke Networks DTX-QUAD-OTDR Singlemode 1310/1550nm & Multimode 850/1300nm OTDR Module With VFL
This Module Will Allow You To Perform Singlemode 1310/1550nm & Multimode 850/1300nm OTDR Testing w/ Your DTX-1800 Cable Analyzer
This Sale Is For The OTDR Module Only. DTX-1800 Not Included!
Dynamic Range:
850 / 1300 nm : 24 / 26 dB
1310 / 1550 nm : 26 / 24 dB

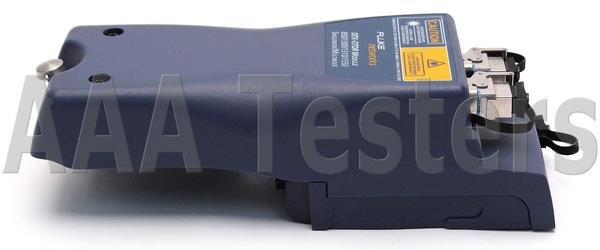

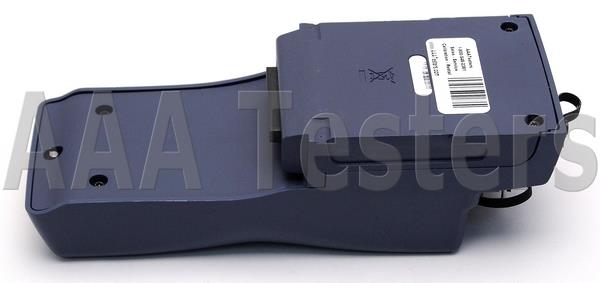

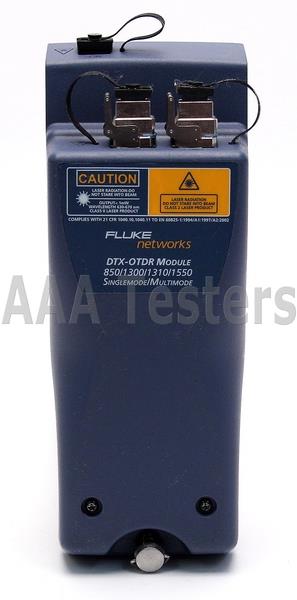

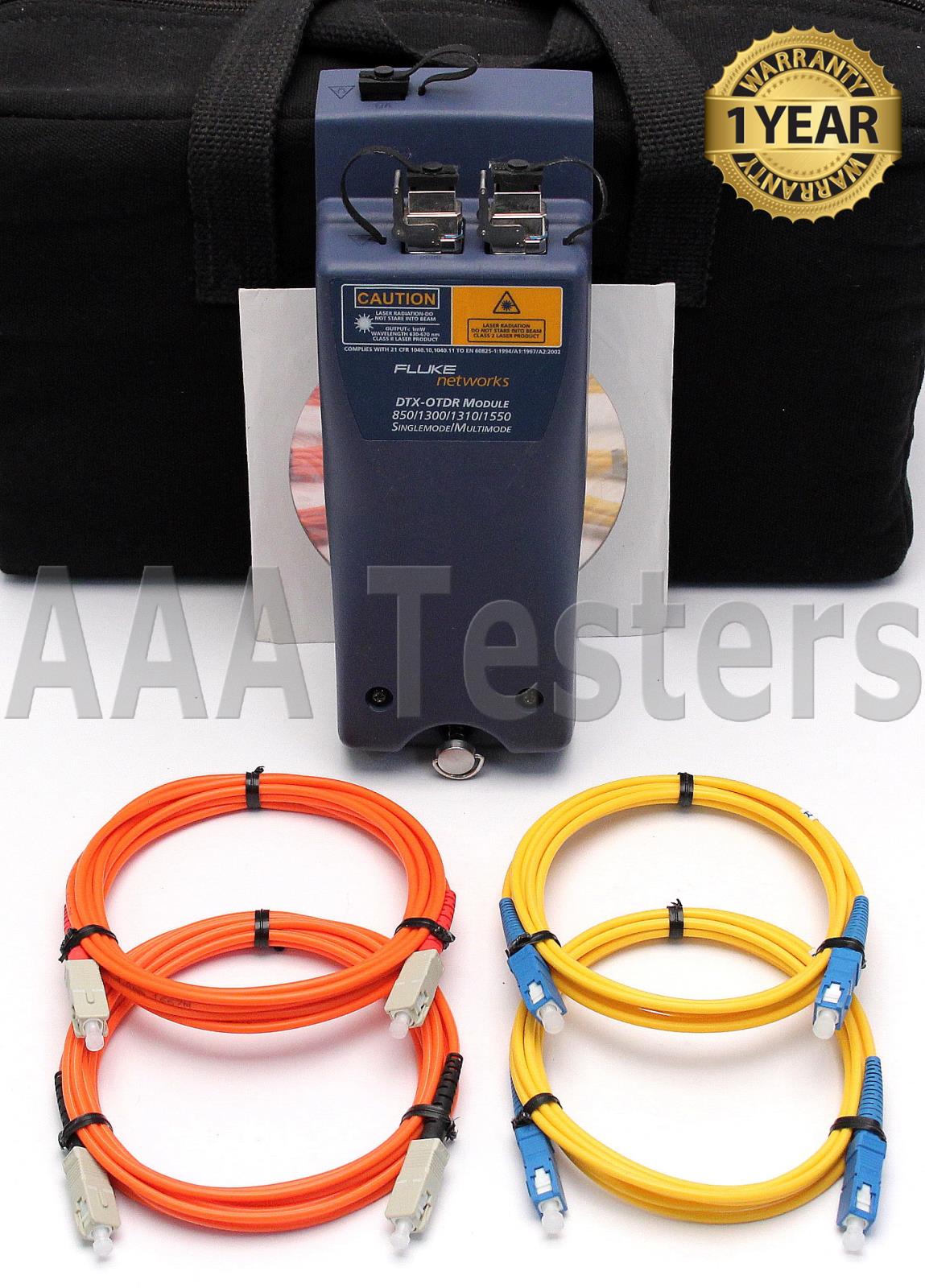

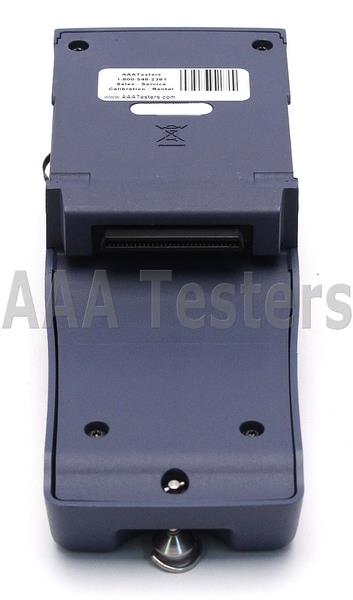

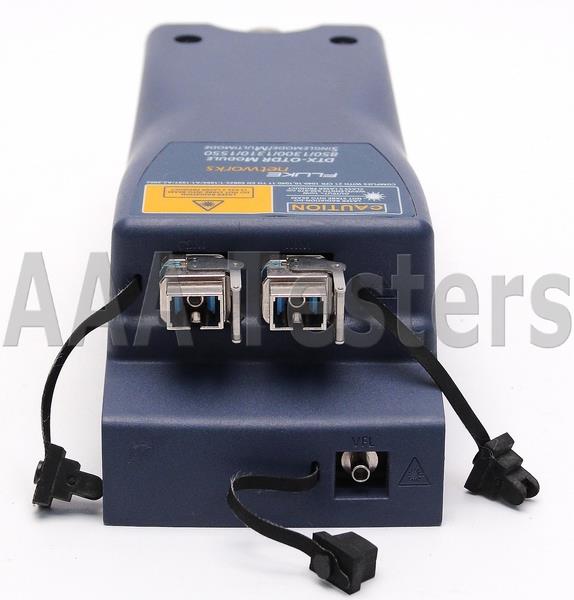

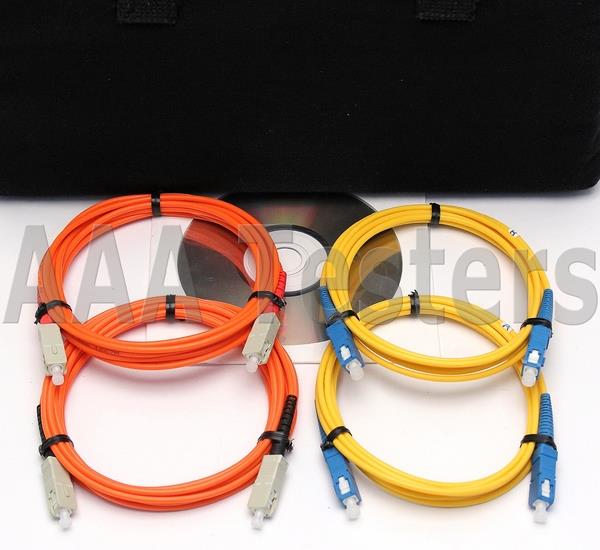

Includes Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Calibrated: Yes
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
The DTX Compact OTDR is a full featured Optical Time Domain Reflectometer (OTDR) module that snaps onto the Fluke Networks DTX CableAnalyzer. It makes the DTX powerful certification tool a complete, easy-to-use OTDR that shoots and analyzes traces on singlemode and multimode fiber.
The DTX Compact OTDR module makes every technician a fiber expert with unparalleled ease of use, automatic OTDR settings, loss limits for events and fiber links, launch fiber compensation, automatic event analysis, and results management - all with the familiar user interface of the DTX CableAnalyzer.
The DTX Compact OTDR Module leverages a contractor's investment in the DTX CableAnalyzer by:
- Expanding installation revenue without expanding staff
- Shortening the technicians' learning curve for fiber testing
- Performing Basic (Tier 1) and Extended (Tier 2) fiber certification with a single tool
- Accelerating troubleshooting with a powerful, single-ended OTDR
- Delivering integrated copper and fiber reports using LinkWare™
- Results Management Software
Specifications
| Key Specifications - DTX with OTDR |
| Dimensions |
Mainframe with Compact OTDR installed: 21.6 cm x 11.2 cm x 9.1 cm (8.5 in x 4.4 in x 3.6 in) nominal |
| Weight |
Mainframe with DTX Compact OTDR installed: 1.36 kg (3 lbs) |
| Display size |
9.4 cm (3.7 in) diagonal, 240 dots wide by 320 dots high, passive color, transmissive LCD with backlight. |
| Case |
High-impact plastic with shock absorbing over mold (mainframe) |
| Languages supported |
English, French, German, Spanish, Portuguese, Italian, Japanese, and Simplified Chinese |
| Operating temperature |
0° C to 45° C (32° F to 113° F) |
| Non-operating temperature |
Storage: -20° C to 60° C (-4° F to 140° F) |
| Relative humidity |
% RH operating without condensation: 0° C to 35° C (32° F to 95° F): 0% to 90%
35° C to 45° C (95° F to 113° F): 0% to 70% |
| Trace file format |
LinkWare or Bellcore GR-196 V1.1 |
| Typical trace storage capability |
>200 internal, thousands on removable MMC/SD card |
Altitude
(OTDR module) |
Operating: 3000 m
Storage: 12000 m |
| EMC |
EN 61326-1 |
| OTDR laser safety |
Class I CDRH, complies to EN 60825-2 |
| Battery pack |
Removable/rechargeable 7.4 V, 4000 mAh Li Lithium-ion |
| Battery pack life |
>8 hours |
Charge time*
(with tester off) |
4 hours (below 40° C) |
| Vibration |
Random, 2 g, 5-500 Hz |
| Shock |
1 meter drop test with and without module attached to mainframe |
| Safety class |
Class I C , Class 1 CDRH complies to EN60825-2 |
| Safety |
CSA C22.2 No. 1010.1: 1992, EN 61010-1 1st. edition + amendments 1, 2 |
| Calibration |
Service center calibration period is one year |
| VFL specifications (23º C) |
Output power
(into SM fiber) |
316 µw (-5 dBm) = peak power = 1.0 mw (0 dbm) |
| Operating wavelength |
650 nm nominal |
| Spectral width (RMS) |
±3 nm |
| Output modes |
Continuous wave and pulse mode (2-3 Hz blink frequency) |
| Connector adapter |
2.5 mm universal |
|
|
| Extended specifications |
Multimode |
Singlemode |
| OTDR port connector |
Cleanable ferrule, UPC polish, with removable SC adapter |
Cleanable ferrule, UPC polish, with removable SC adapter |
| Fiber under test |
50/125 μm or 62.5/125 μm multimode |
9/125 μm singlemode |
| Emitter type |
Laser |
Laser |
| Wavelengths |
850 ±20 nm and 1300 ±30 nm |
1310 ±30 nm and 1550 ±30 nm |
| Dynamic range |
850 nm: 24 dB with 200ns, 1300 nm: 26 dB with 1 us |
1310 nm: 26 dB with 10 us, 1550 nm: 24 dB w/ 10 us |
| Event deadzone |
850 nm: 3.7m typical, 1300 nm: 3.5 m typical |
1310 nm: 3.5 m typical, 1550 nm: 3.5 m typical |
| Attenuation deadzone |
850 nm: 10 meters, 1300 nm: 13 meters |
1310 nm: 10 meters, 1550 nm: 12 meters |
| Pulse widths (nominal) |
850 nm: 20ns, 40 ns, 100 ns, 300 ns. 1300 nm: 20ns, 40 ns, 100 ns, 300 ns, 1us |
1310/1550: 40 ns, 100 ns, 300 ns, 1 us, 3 us, 10 us |
| Max distance range |
850 nm: 6 km, 1300 nm: 20 km |
1310 nm: 20 km, 1550 nm: 20 km |
| Linearity |
±0.05 dB/dB |
±0.05 dB/dB |
| Loss threshold |
0.01 dB to 1.5d B (settable in .01 dB increments) |
0.01 dB to 1.5 dB (settable in .01 dB increments) |
| Sample resolution |
3 cm to 4 m |
3 cm to 4 m |
| Distance accuracy |
±1 m ±0.005% of distance ±50% of resolution ± IOR error ± event location error |
±1 m ±0.005% of distance ±50% of resolution ± IOR error ± event location error |
| Testing speed per wavelength |
Auto OTDR: <15 seconds typical Manual OTDR: 15 sec – 3 minutes |
Auto OTDR: <15 seconds typical Manual OTDR: 15 sec – 3 minutes |
| Reflectance accuracy |
±4 dB |
±4 dB |
For full Fluke Networks DTX-QUAD-OTDR product specifications, please click here: Fluke Networks DTX-QUAD-OTDR
|
|
|
|
