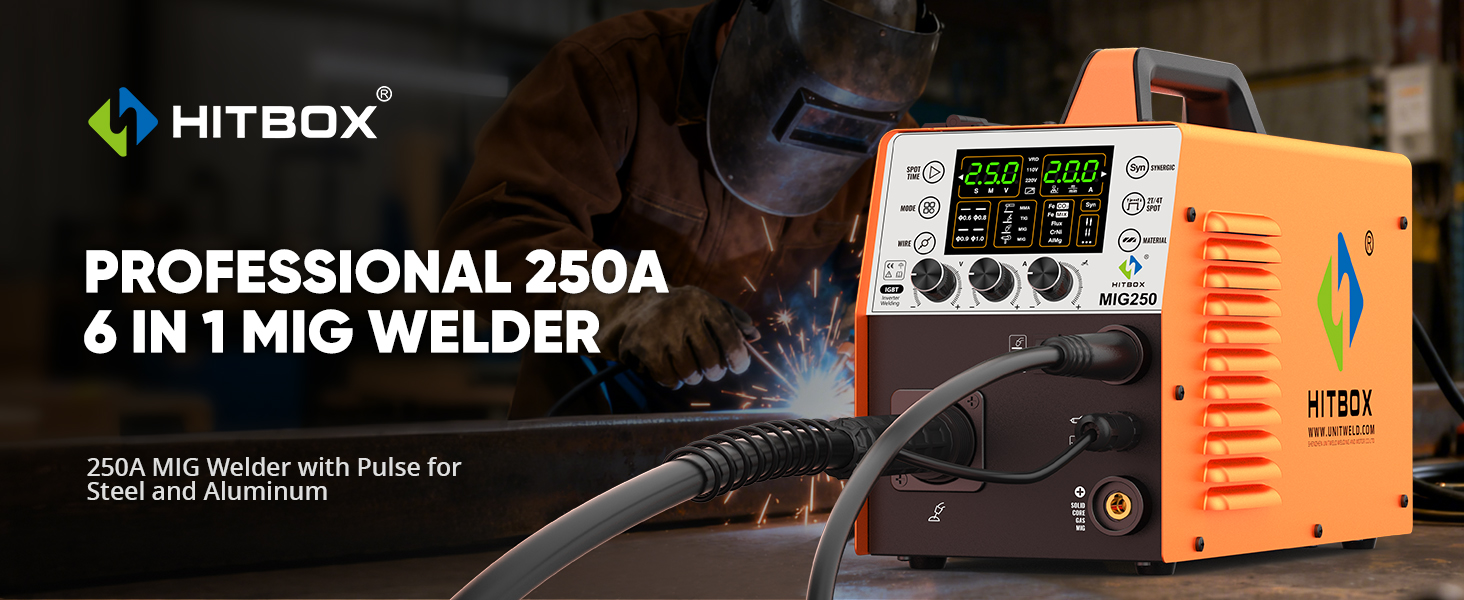

HITBOX 6 in 1 MIG Welder Gas/Gasless 250A 240V LED Digital MIG Welding Machine Flux Core Wire / Solid Wire MIG / MMA / Lift TIG / Support Spool Gun, Inverter Welders, Aluminum WeldableWhy you select our HITBOX New MIG250 welding machine?
The reason is:
【6 IN 1 MIG Welder】- The HITBOX DC 240V multi-process welding machine supports MIG MIX, MIG CO2, FLUX CORED, LIFT TIG, MMA and SPOOL GUN. Suitable for all kinds of welding requirements 0.8/0.9/1.0mm solid wire, 0.6/0.8/0.9/1.0 flux core wire, 0.8/1.0mm aluminum wire. 250A output is sufficient for normal maintenance applications: metalworking, automotive repair, manual work etc.
【Ultra Large LED Display】- Unique human-machine interactive display panel for clear display of welding details. You are provided with parameters such as welding function, wire diameter, metal workpiece, wire feed speed, voltage factorfor you to set. This makes it easy for you to start welding accurately. Cooling fan that runs only when it's needed so no constant buzzing sounds.
【Extensive Welding of Metals】- The HITBOX MIG250 could weld iron, stainless steel, carbon steel, cadmium-nickel metal, cadmium-copper metal and aluminium-magnesium metal. For better seams, the gasless welder also supports pre-flow/post-flow settings and 2T/4T welding methods to meet your needs. Note: Without a graphite catheter.
【Built-in VRD Function】The HITBOX flux-cored welder has a built-in VRD function. With the LIFT TIG function, the VRD light comes on to better prevent the tungsten needle from sticking to the workpiece and the unique anti-stick process allows for smooth welding. Under ARC operation, the VRD is not lit by default, but is actually switched on.
【Buy in confident】The NEW MIG250 gasless welding machine provides an quality after-sales service. If you encounter any problems when using this machine, please contact us first, we'll provide best solution asap.
【Ultra Large LED Display】- Unique human-machine interactive display panel for clear display of welding details. You are provided with parameters such as welding function, wire diameter, metal workpiece, wire feed speed, voltage factorfor you to set. This makes it easy for you to start welding accurately. Cooling fan that runs only when it's needed so no constant buzzing sounds.
【Extensive Welding of Metals】- The HITBOX MIG250 could weld iron, stainless steel, carbon steel, cadmium-nickel metal, cadmium-copper metal and aluminium-magnesium metal. For better seams, the gasless welder also supports pre-flow/post-flow settings and 2T/4T welding methods to meet your needs. Note: Without a graphite catheter.
【Built-in VRD Function】The HITBOX flux-cored welder has a built-in VRD function. With the LIFT TIG function, the VRD light comes on to better prevent the tungsten needle from sticking to the workpiece and the unique anti-stick process allows for smooth welding. Under ARC operation, the VRD is not lit by default, but is actually switched on.
【Buy in confident】The NEW MIG250 gasless welding machine provides an quality after-sales service. If you encounter any problems when using this machine, please contact us first, we'll provide best solution asap.
HITBOX MIG250 Basic Features
1 Welding function: MIG gasless, MIGCO2, LIFT TIG, MMA, Spool Gun, Aluminium Weldable
2 Suitable for welding wire diameter: 0.6/0.8/0.9/1.0mm
3 Suitable electrode diameter: φ1.6-4.0
4 MAX Current: 180A
5 Welding metal: iron, stainless steel, alloy steel
6 Applicable scenarios: car shell repair, ship repair, handmade, door and window welding
7 MIG time: 2T/4T, support long time MIG pull welding
8 Inductance effect: adjust tarc width to enhance welding effect
Technical Parameter
Rated input power：5.9KW
Rated input current: 26.2A
Welding current range (MMA): 30-180A
Welding current range (TIG): 20-180A
Welding voltage range (MIG): 30-180A
Overall efficiency: 75%
Enclosure class: IP21S
lnsulation class: H
MIG WELDER Support gas/gasless mig welding, welding current 30-180A.
Voltage adjustment range: 11-26V
Wire feed speed range(m/min): 214
Duty Cycle: 60%
Applicable electrode/wire(mm): 1.6mm – 4.0mm (1.6-4.0mm rod) 6013 can be used very good, also 7018 0.6/0.8/0.9/10mm
Applicable wire: 2lb / 11lb
IGBT inverter welding Compared with traditional MOS transistors, it has the advantages of more efficient and safer welding. Not easy to penetrate the welded iron plate MMA WELDER It can weld 1.6-4.0mm electrodes, and can weld 3-5 4.0 electrodes continuously.
Electrode attributes: 6013, 7018
Enclosure class: IP21S
lnsulation class: H
MIG WELDER Support gas/gasless mig welding, welding current 30-180A.
Voltage adjustment range: 11-26V
Wire feed speed range(m/min): 214
Duty Cycle: 60%
Applicable electrode/wire(mm): 1.6mm – 4.0mm (1.6-4.0mm rod) 6013 can be used very good, also 7018 0.6/0.8/0.9/10mm
Applicable wire: 2lb / 11lb
IGBT inverter welding Compared with traditional MOS transistors, it has the advantages of more efficient and safer welding. Not easy to penetrate the welded iron plate MMA WELDER It can weld 1.6-4.0mm electrodes, and can weld 3-5 4.0 electrodes continuously.
Electrode attributes: 6013, 7018
How to Weld Aluminum Perfectly with MIG250 Welder?
Please follow the steps below for smooth and stable aluminum welding results:
1. Replace with U-groove drive roll Aluminum wire is soft and easily deformed. The original V-groove roller will squeeze and flatten the aluminum wire, causing wire jamming. Please use a U-groove drive roll for aluminum welding.
2. Install low-friction graphite liner Standard metal liners will scratch and damage soft aluminum wire. Replace it with a non-metallic low-friction graphite liner to ensure smooth wire feeding.
3. Switch to AL-MG aluminum welding mode Select the ALMG 1.2 (1.2mm aluminum wire) preset program. The machine will automatically match the optimal current and voltage for aluminum welding.
4. Use 100% pure argon shielding gas Only use 100% Argon for aluminum welding. Set the gas flow rate to 15–20 L/min. Do NOT use CO2 mixed gas, which will cause welding pores and poor weld quality.
5. Pre-weld cleaning & correct welding technique Thoroughly remove oxide film and oil stains on the aluminum surface with a stainless steel brush before welding. Use a 10–15° forward pushing torch angle. Always test weld on scrap aluminum first to confirm smooth wire feeding, stable arc and no pores before official welding.
2. Install low-friction graphite liner Standard metal liners will scratch and damage soft aluminum wire. Replace it with a non-metallic low-friction graphite liner to ensure smooth wire feeding.
3. Switch to AL-MG aluminum welding mode Select the ALMG 1.2 (1.2mm aluminum wire) preset program. The machine will automatically match the optimal current and voltage for aluminum welding.
4. Use 100% pure argon shielding gas Only use 100% Argon for aluminum welding. Set the gas flow rate to 15–20 L/min. Do NOT use CO2 mixed gas, which will cause welding pores and poor weld quality.
5. Pre-weld cleaning & correct welding technique Thoroughly remove oxide film and oil stains on the aluminum surface with a stainless steel brush before welding. Use a 10–15° forward pushing torch angle. Always test weld on scrap aluminum first to confirm smooth wire feeding, stable arc and no pores before official welding.
Package Include:
1 × MIG250 Upgrade MIG Welding Machine
1 × 3m MIG Torch
1 × 1.5m Earth Clamp
1 × 1.5m Electrode Holder
1 × 3.5m Graphene Liner
1 × U-Shaped Wire Feeder Wheel (1.0/1.2mm)
1 × V-Shaped Wire Feeder Wheel (0.6/0.8mm, pre-installed inside the torch)
1 × 0.8mm Conductive Nozzle (pre-installed on torch) + 1 × 0.8mm Conductive Nozzle + 2 × 1.0mm Conductive Nozzles
1 × Multi-function Wrench
2 × Hose Clamps
1 × Gas Tube
1 × 0.8mm Flux Cored Wire (0.45kg per roll)
1 × Stainless Steel Brush
1 × User Manual
1 × 3m MIG Torch
1 × 1.5m Earth Clamp
1 × 1.5m Electrode Holder
1 × 3.5m Graphene Liner
1 × U-Shaped Wire Feeder Wheel (1.0/1.2mm)
1 × V-Shaped Wire Feeder Wheel (0.6/0.8mm, pre-installed inside the torch)
1 × 0.8mm Conductive Nozzle (pre-installed on torch) + 1 × 0.8mm Conductive Nozzle + 2 × 1.0mm Conductive Nozzles
1 × Multi-function Wrench
2 × Hose Clamps
1 × Gas Tube
1 × 0.8mm Flux Cored Wire (0.45kg per roll)
1 × Stainless Steel Brush
1 × User Manual
1X Lift Tig Torch
1X Spool Gun
1X Welding Helmet
1X Welding Gloves
Tips:
✅ Package will ship within 1 working day.
✅ Prefessional technical support.
✅ Warranty: 2 Years.
✅ Prefessional technical support.
✅ Warranty: 2 Years.
✅ Our welder is fitted with a 15A power plug
👉 Spool‑gun full details: https://www.ebay.com.au/itm/336790055715
