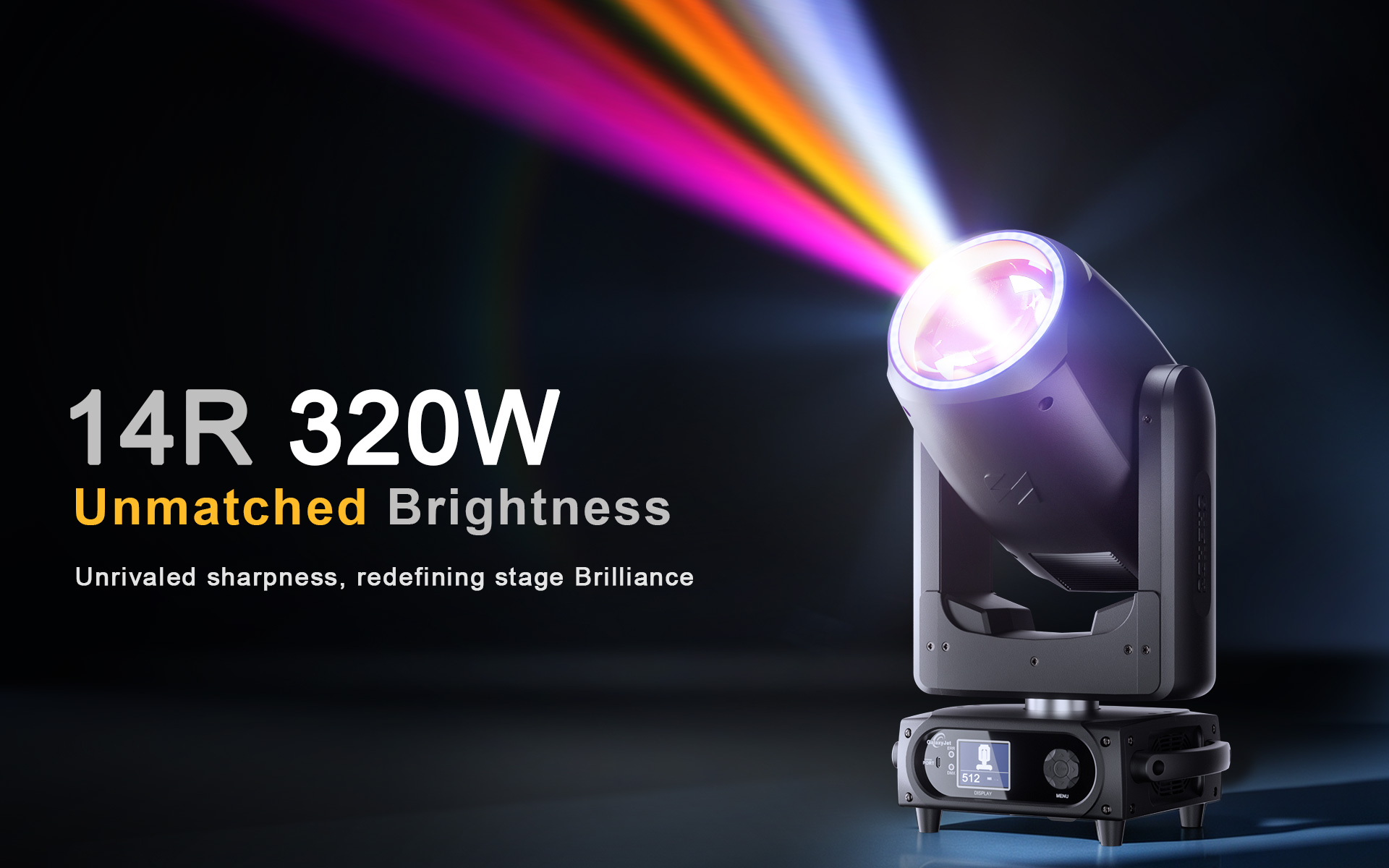

14R 320W Unmatched Brightness
Unrivaled sharpness, redefining stage Brilliance

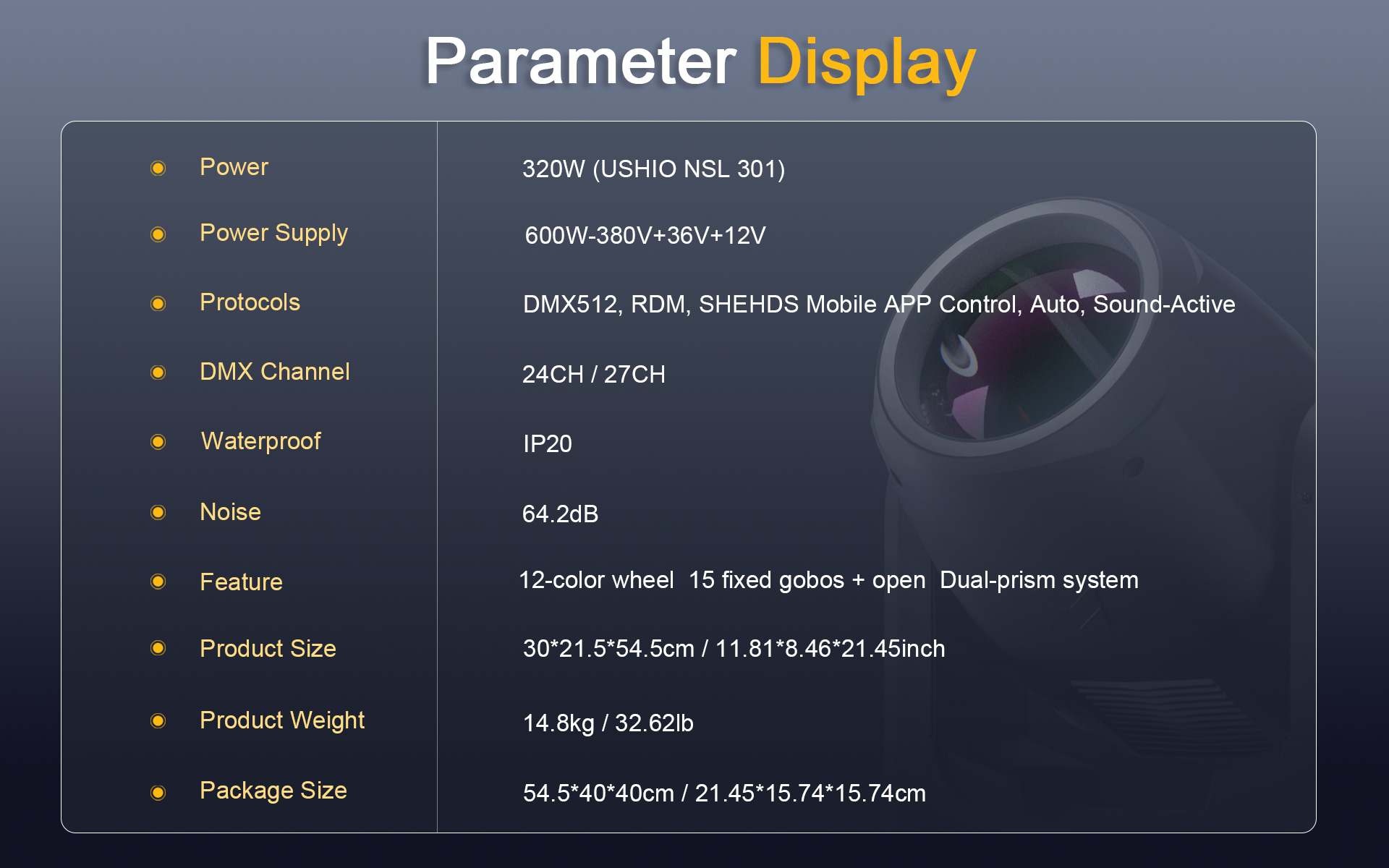

Parameter Display
|
Light source parameters |
|
|
Light source: |
320W white color |
|
Color Temperature: |
8100K±500 K |
|
Luminous lumens/5m: |
797200LX/5m |
|
Diameter of the sport : |
13cm@5m |
|
Beam Angel: |
1.5°-3° |
|
Lifespan light source: |
2000h |
|
Diameter of the outgoing lens: |
152mm |
|
Dimming: |
0-100% linear dimming |
|
CRI: |
Min.Ra 70 |
|
Optical effect |
|
|
Gobos 1: |
15 gobos + Open |
|
Colors: |
12 colors + CMY + Open |
|
Prism 1: |
46mm 8 prism |
|
Prism 2: |
46mm 48 prism |
|
Frost: |
42mm Simple frost |
|
Rianbow effect: |
6 color |
|
Security System |
|
|
Safety Item |
Over current and voltage protection |
|
Degree Of Protection |
IP20 |
|
Operating Temperature |
-15℃~45℃ |
|
Interface And Control System |
|
|
Control Interface |
3-pin and 5-pin XLR In/Out |
|
DMX Channel |
24/27CH |
|
Power Interface |
Power Con |
|
Cooling System |
|
|
Cooling Method |
Air cooled |
|
Heat dissipation noise: |
64.2 dB@1mi |
|
Power Consumption |
|
|
Working Power |
AC100~240V 50/60HZ |
|
Power supply: |
600W-380V+36V+12V |
|
Full Power |
500W |

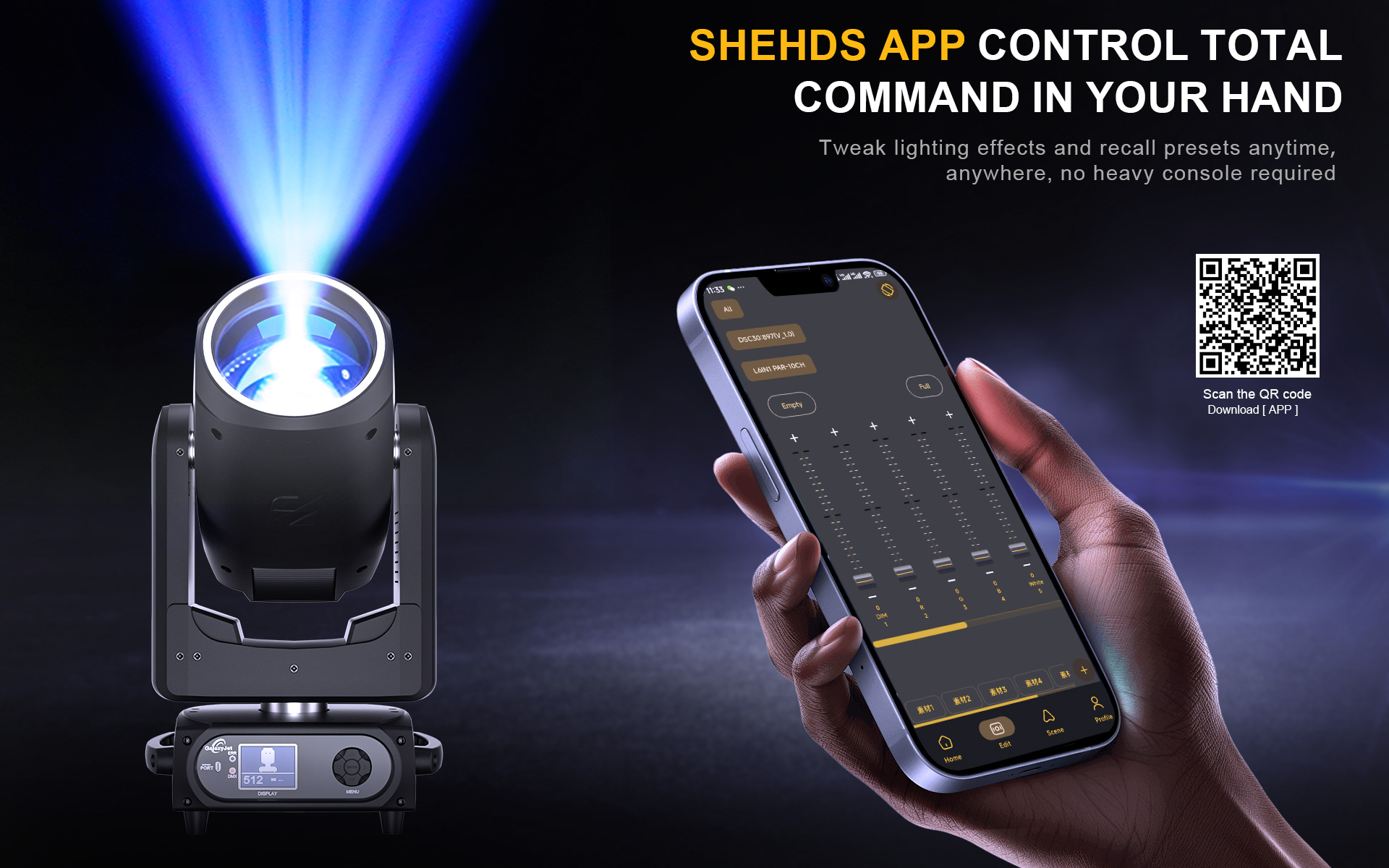

SHEHDS APP Control Total Command in Your Hand
Tweak lighting effects and recall presets anytime, anywhere, no heavy console required

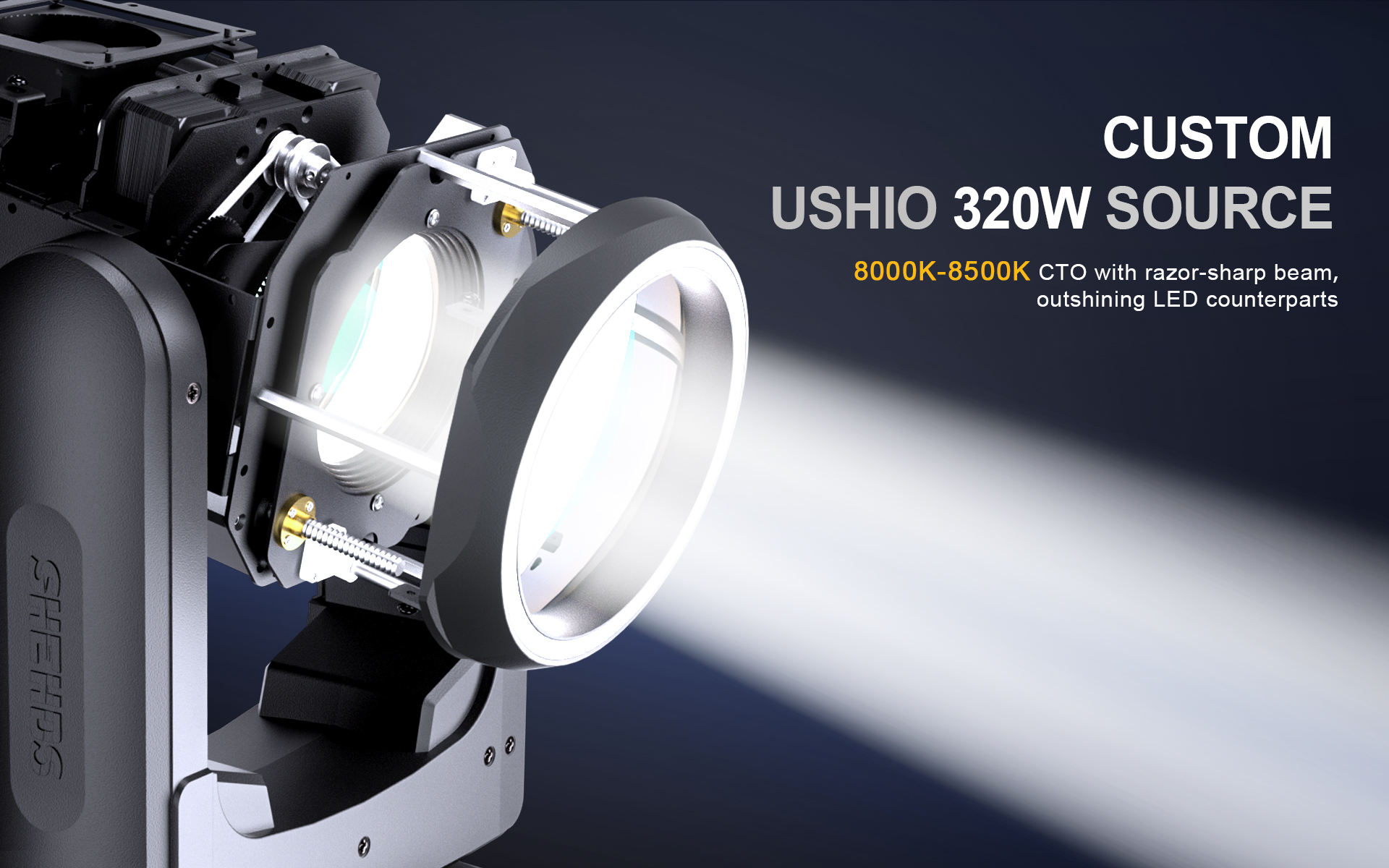

Custom Ushio 320W Source
8000K-8500K CTO with razor-sharp beam, outshining LED counterparts

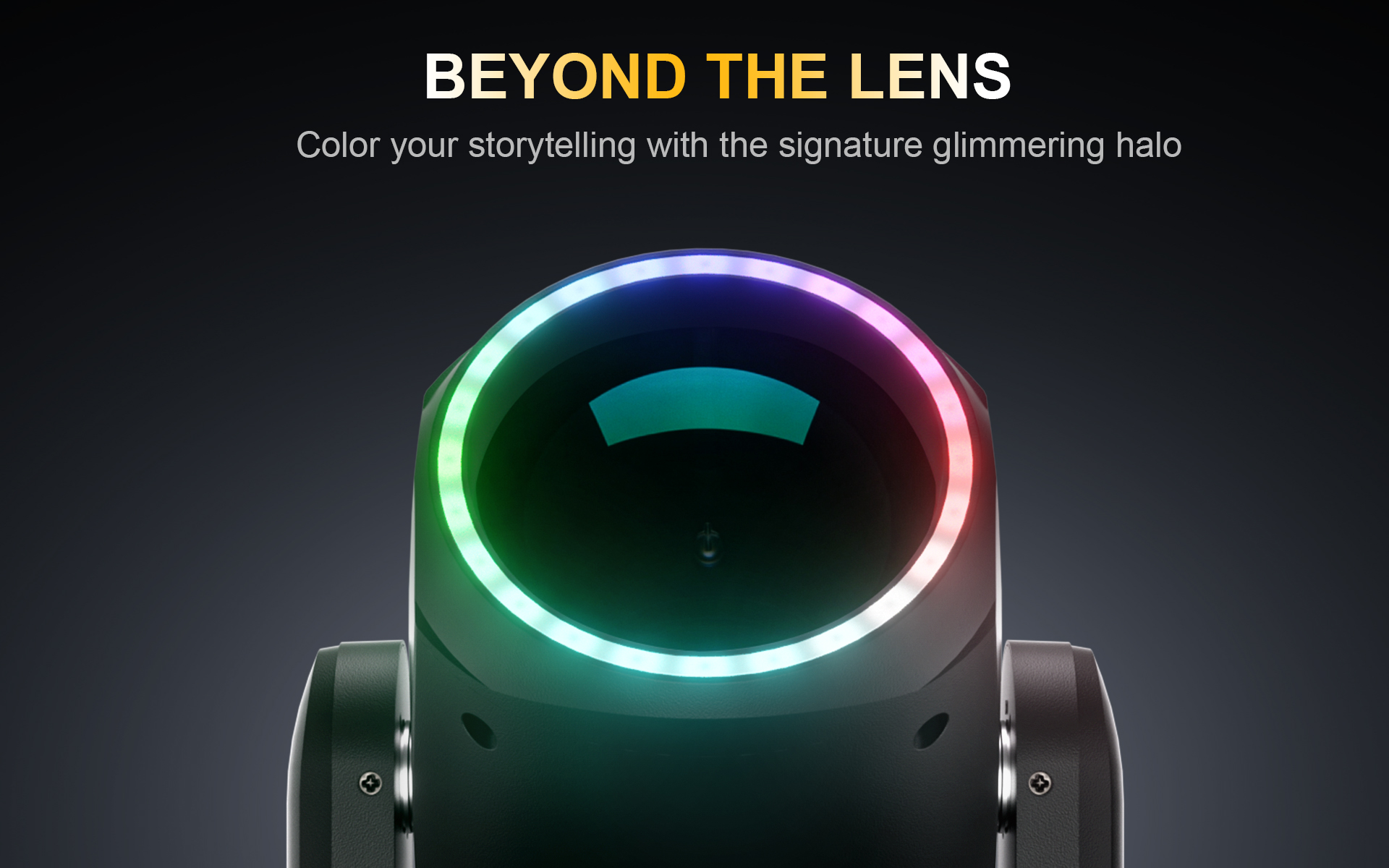

Beyond the Lens
Color your storytelling with the signature glimmering halo
1.5°–3° Ultra-Narrow Beam
Powerful long-distance throw with pristine column
Master the Spectrum
12 Rich Colors & CMY, smooth transitions and vibrant hues with white
8-Facet & Diamond Prism
Independent/overlapping bi-directional rotation for explosive beams
Frost & Mechanical Dimmer
Softens beam or acts as a wash light- all in one
15 Static Gobos & Open
With shake/rotation/indexing for endless creativity
6‑Color Rainbow Wheel
Adds dynamic rainbow sweeps, flowing spectrum bringing extra vitality and visual fun to the beam

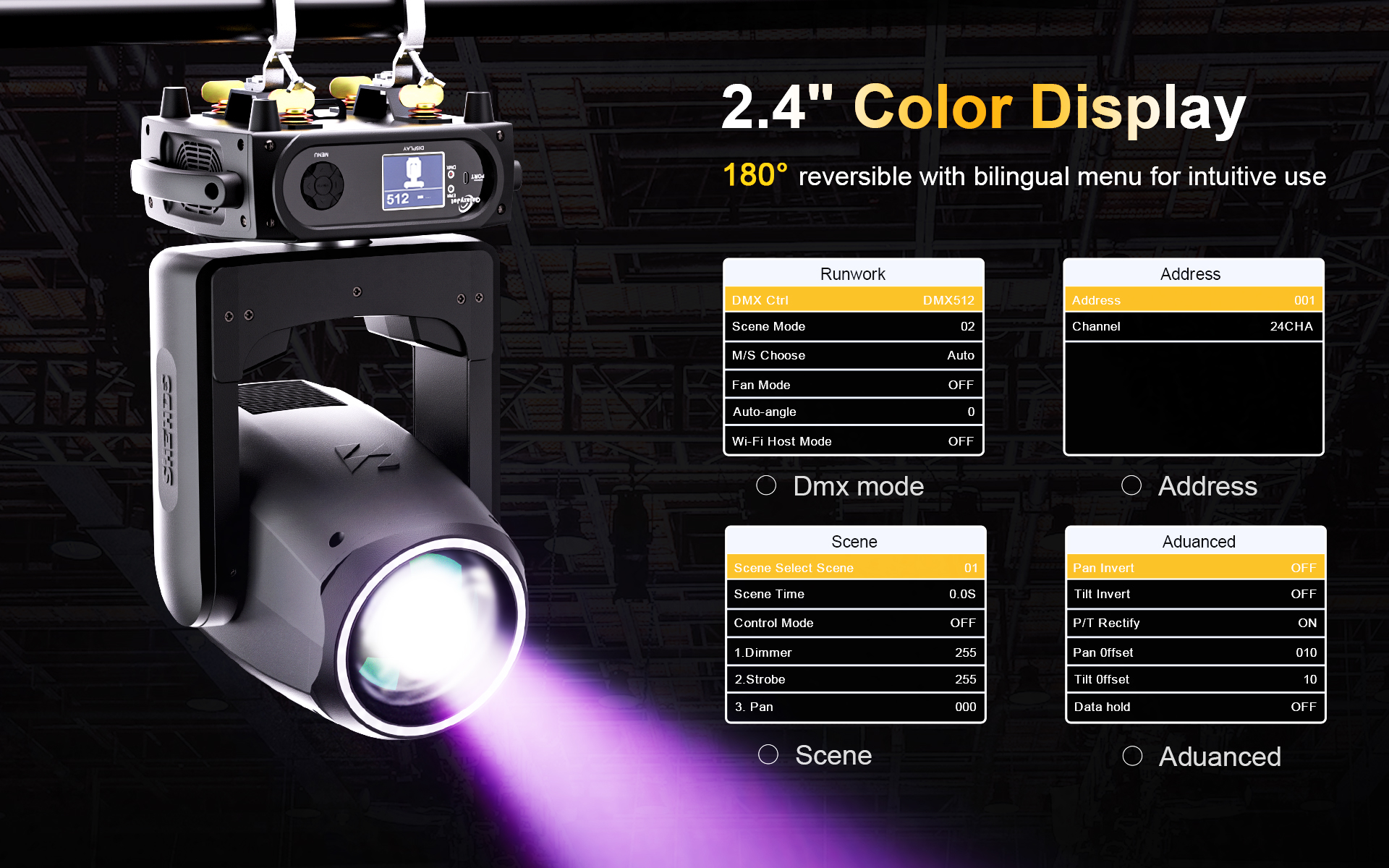

2.4" Color Display
180° reversible with bilingual menu for intuitive use

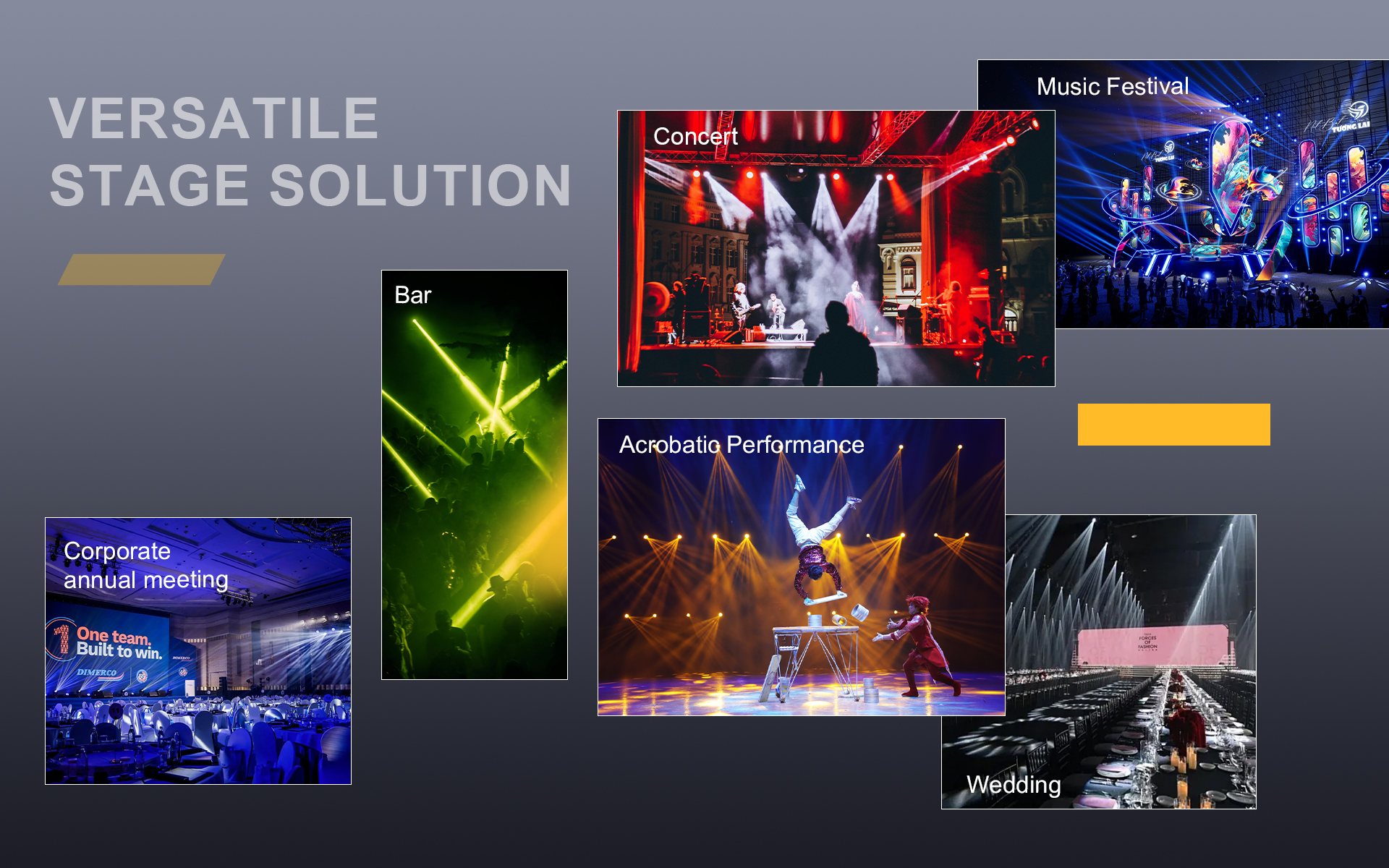

Versatile Stage Solution
Ideal for Bars, Clubs, Weddings, Rentals & TV Shows

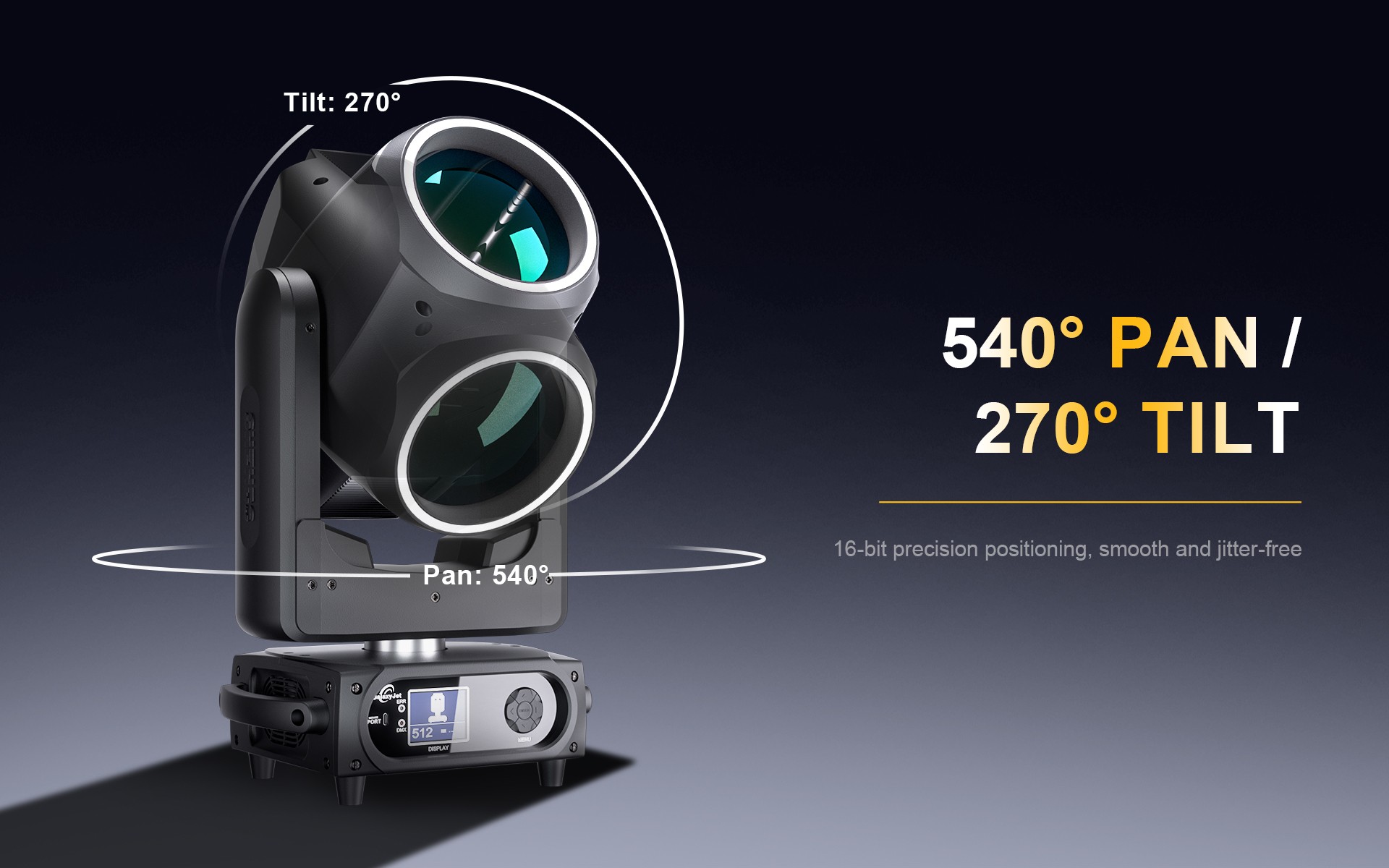

540° Pan / 270° Tilt
16-bit precision positioning, smooth and jitter-free

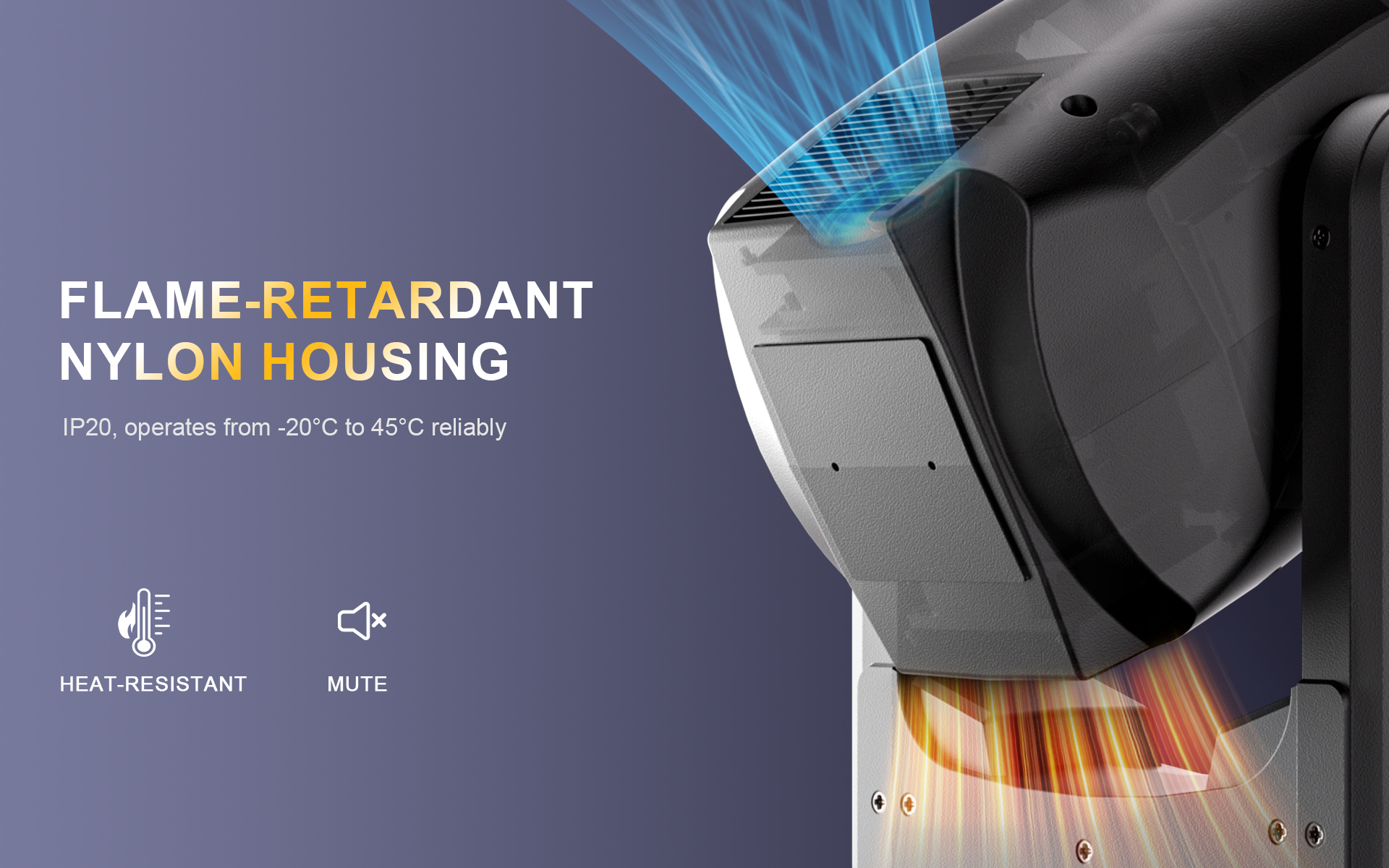

Flame-Retardant Nylon Housing
IP20, operates from -20°C to 45°C reliably

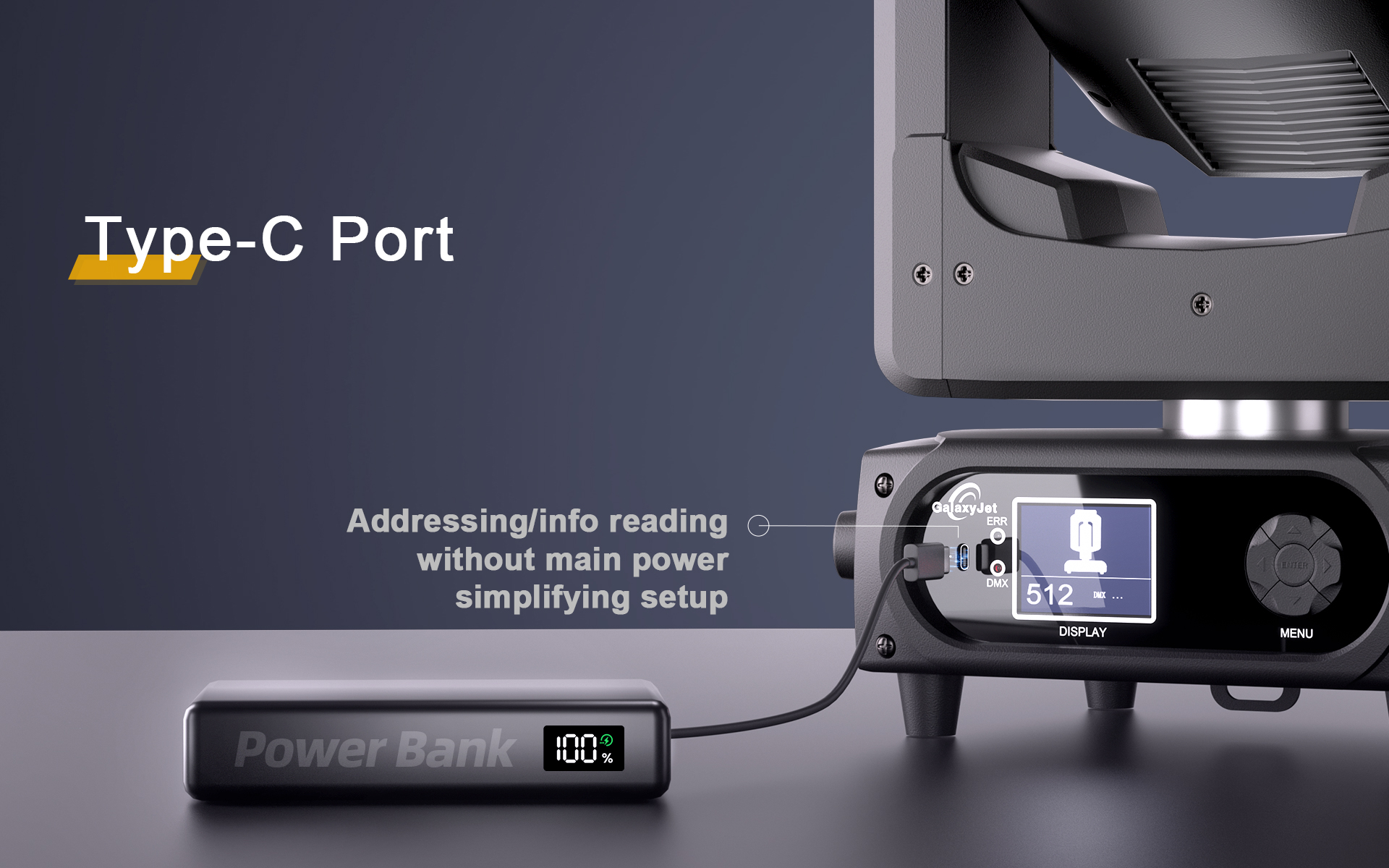

Type-C Port
Addressing/info reading without main power, simplifying setup

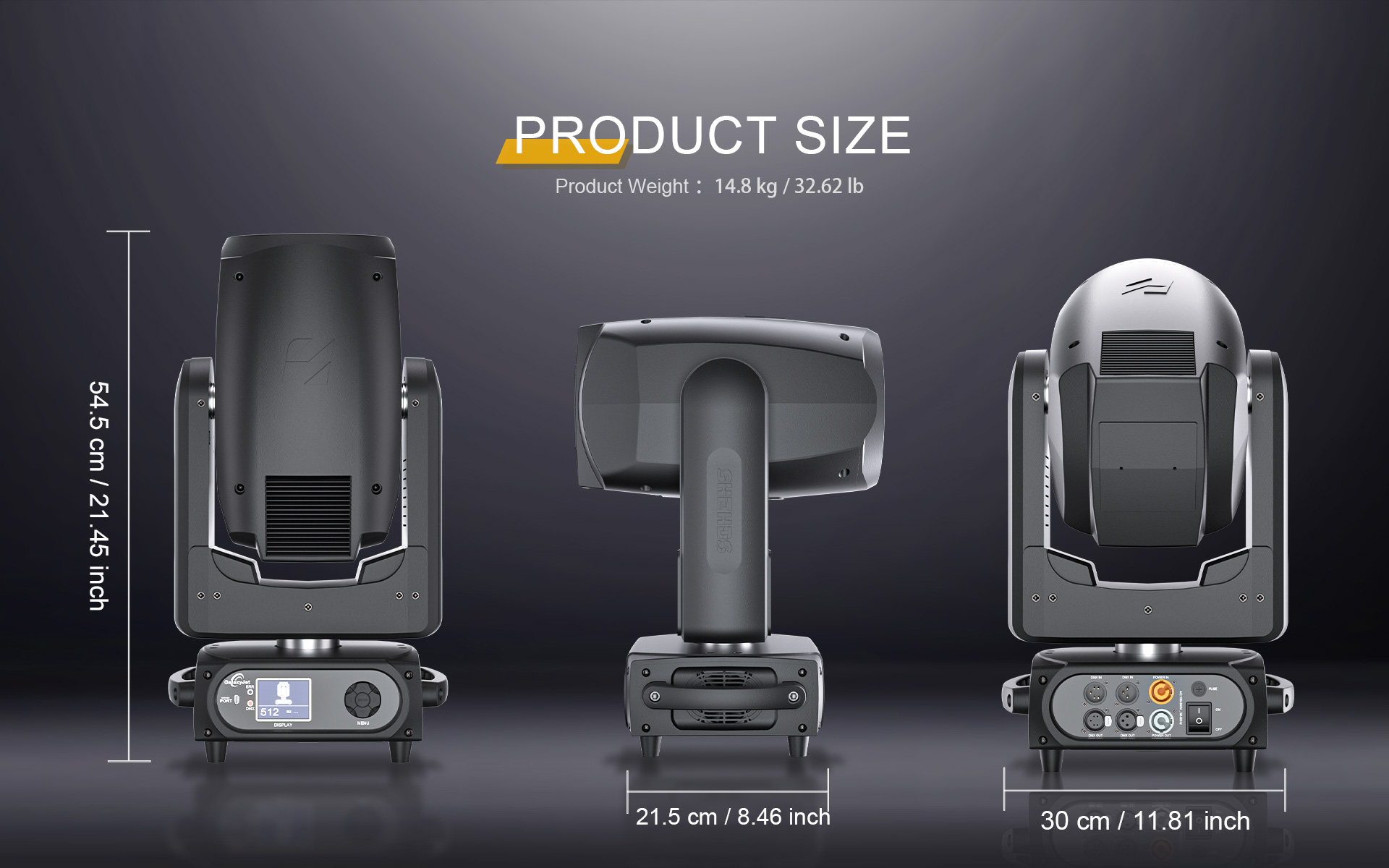

Compact & Lightweight
14.8kg net weight, easy rigging and cost-effective shipping

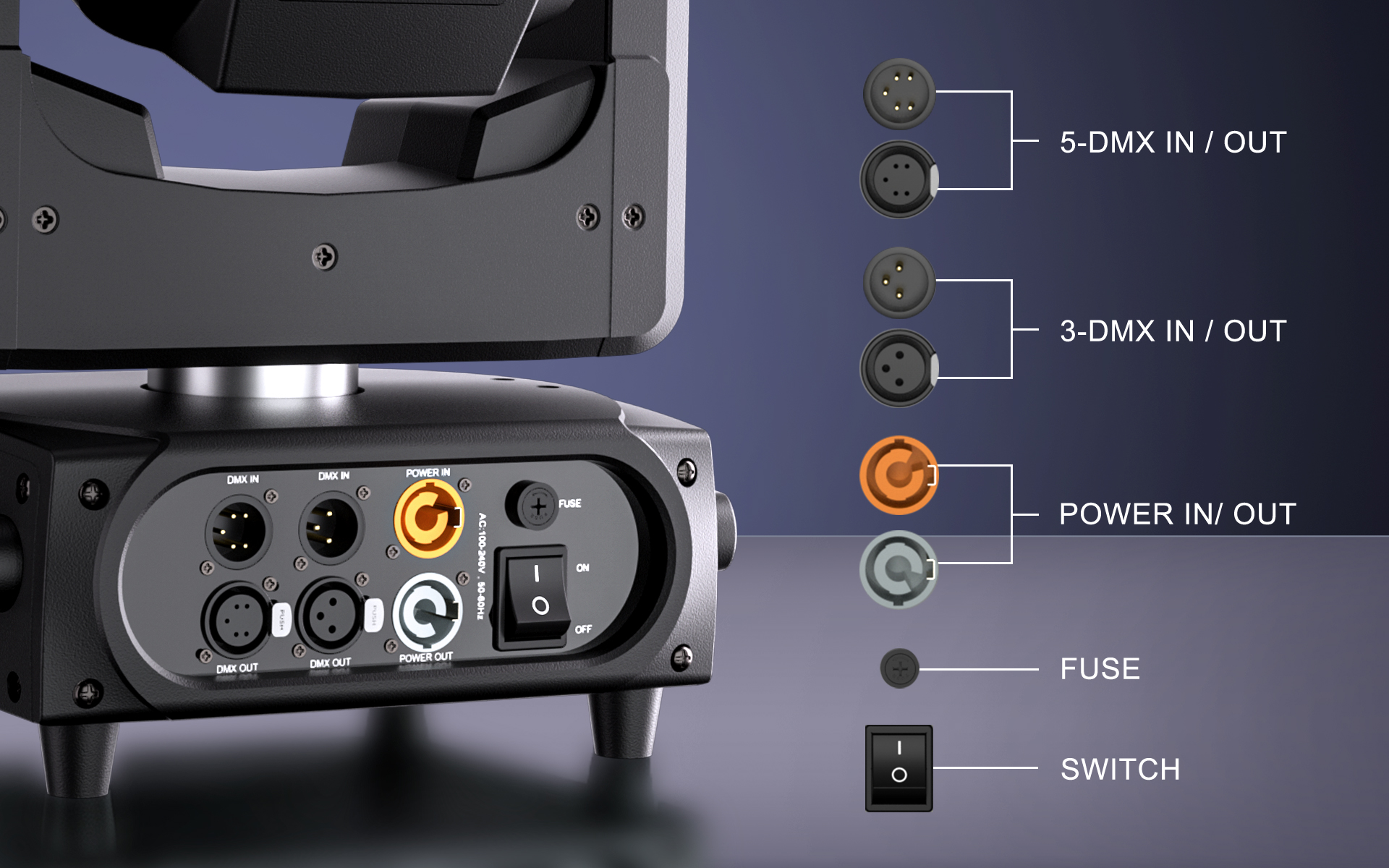

Ready for Any Stage Setup
5-pin & 3-pin DMX, power loop, switch & fuse

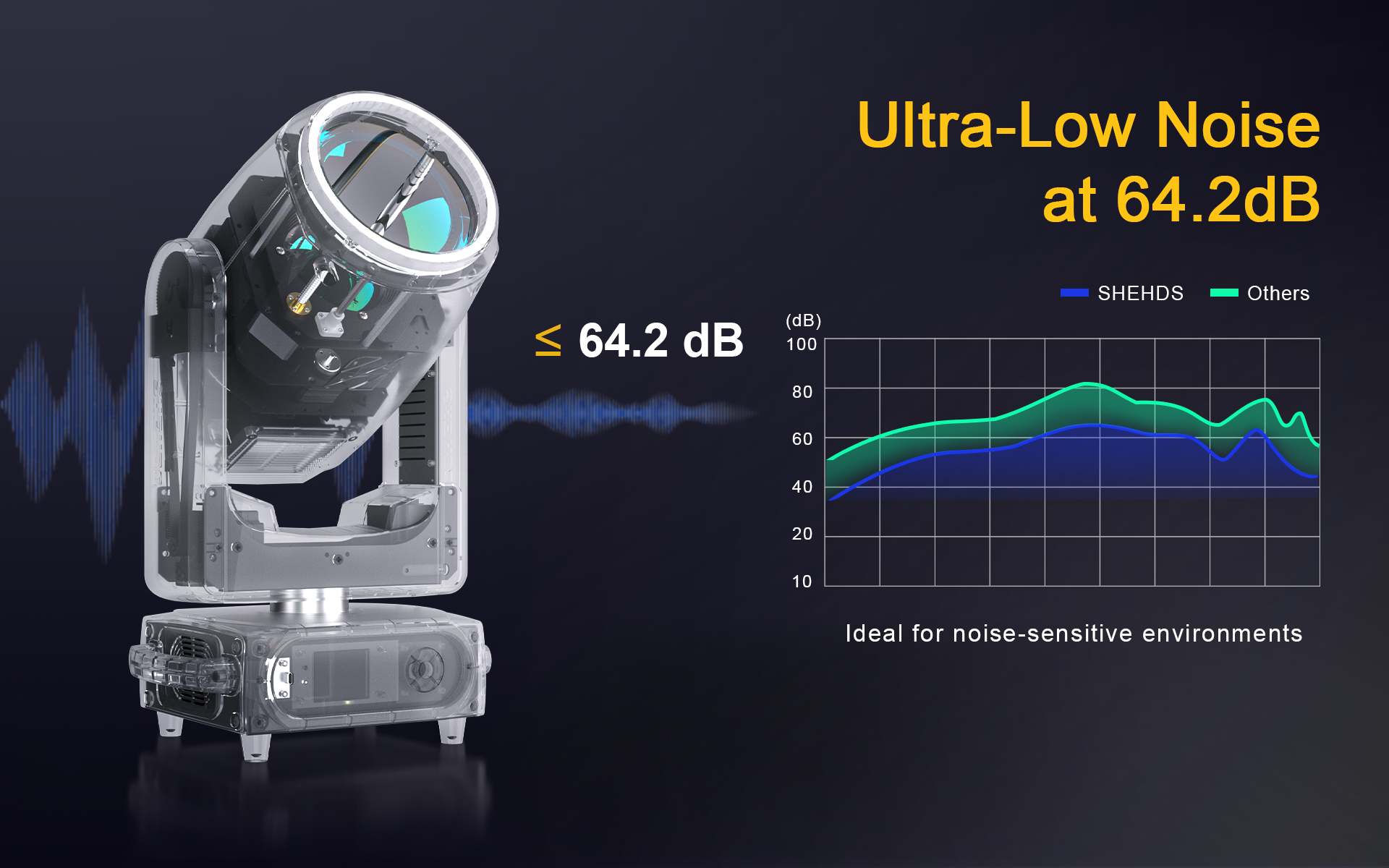

Ultra-Low Noise at 64.2dB
Ideal for noise-sensitive environments

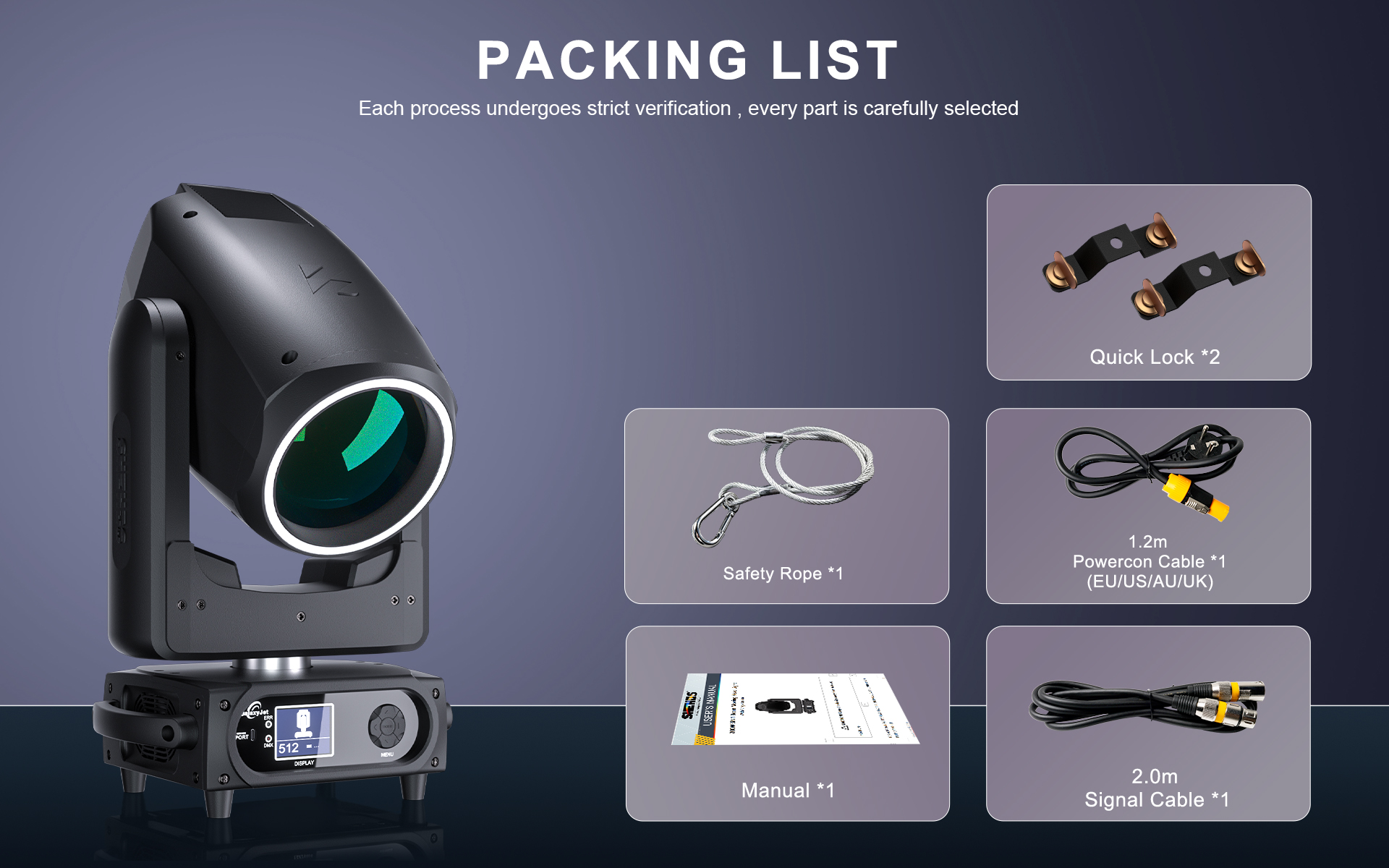

Packing List
Before leaving the factory, each of our products undergoes rigorous testing to ensure they are in perfect condition.
Our strict control over quality is like an artist polishing their masterpiece, striving for perfection in every detail.
Only those products that have gone through layers of checking can confidently leave our factory and arrive in your hands,
bringing you an excellent using experience.

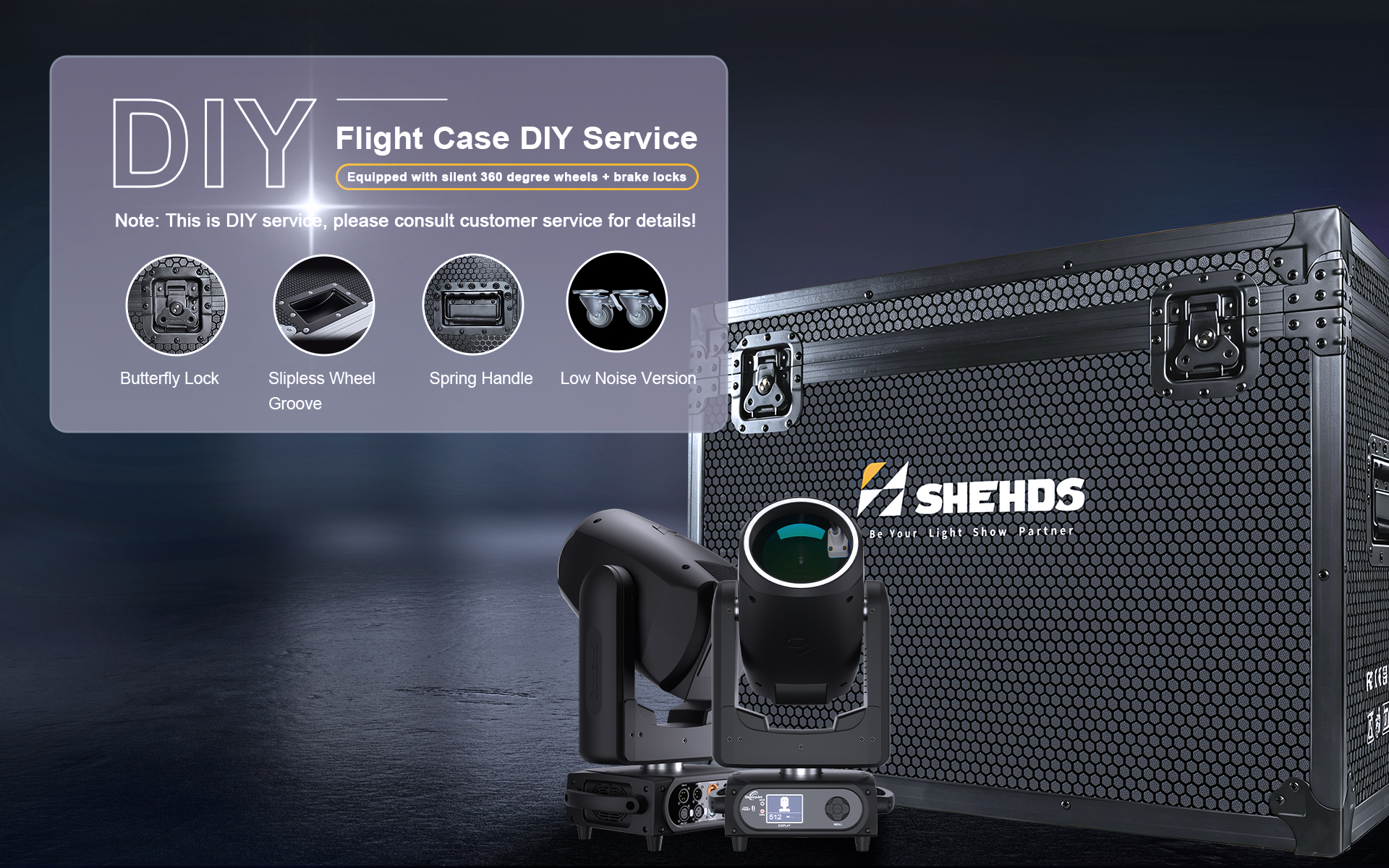

Flight Case DIY Service
It equipped with silent 360 degree wheels + brake locks.
We offer customized road cases that perfectly meet your needs. Whether precision equipment, fragile items, or valuable goods, our road case not only ensures safety protection,
but also adapts flexibly to various specifications and shapes. Each case is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products.
From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service, please consult customer service for details!
Qualification Certificate
Our products comply with international safety standards and environmental requirements.
They have multiple voltage options to meet different voltage around the world.
In addition, we also provide comprehensive after-sales service and technical support to ensure that any problems you encounter during use can be promptly and effectively resolved.
