2.4L DOHC TURBOCHARGER 25PSI FOR 03-06 JEEP TJ WRANGLER LIBERTY TURBO KIT CH | ||||||||||
|
Upgrade your Chrysler 2.4L Series build with the Heavy Work Customs Turbo Package. This is one of the most comprehensive and budget-friendly forced-induction kits on the market, engineered with all-new, high-quality components to take your car from a reliable street machine to a high-horsepower track project.
COMPATIBILITY 03-06 Jeep TJ 2.4L
03-06 Jeep Wrangler 2.4L
02-05 Jeep Liberty 2.4L
01-10 Chrysler PT Cruiser 2.4L
01-03 Chrysler Voyager 2.4L
02-06 Chrysler Sebring 2.4L
03-05 Dodge Neon SRT-4 2.4L
01-06 Dodge Stratus 2.4L
01-07 Dodge Caravan 2.4L
**fits vehicle running with Chrysler 2.4L Dohc 16-Valve 4 Cylinder or engine swap.

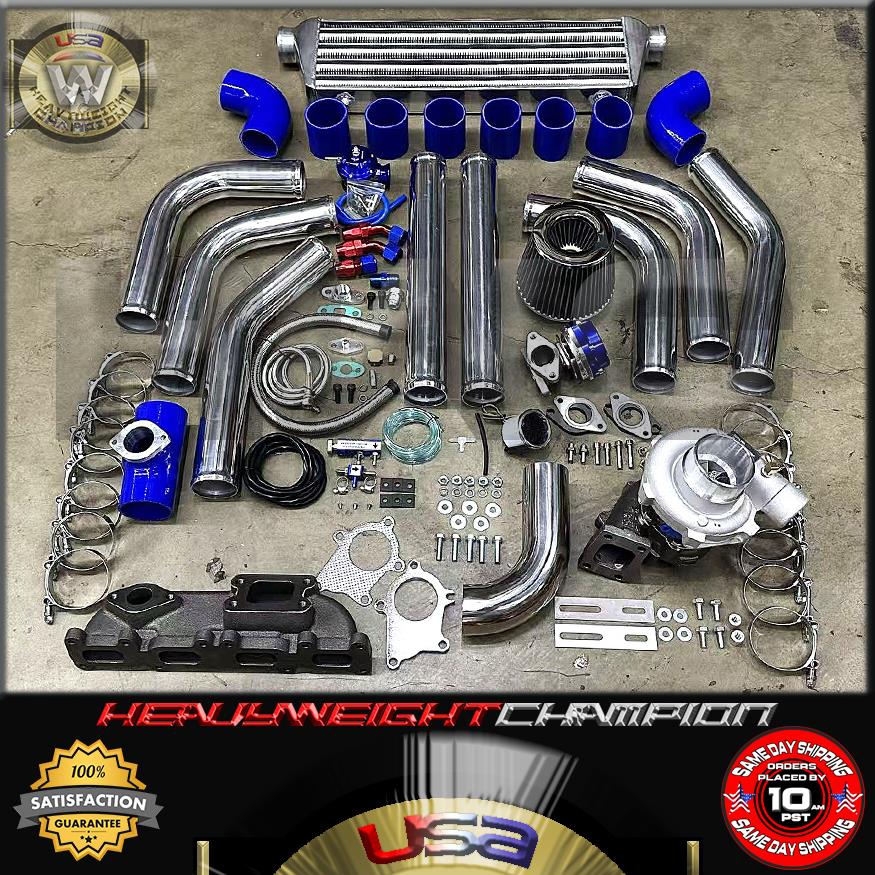

PACKAGE CONTENT
Turbocharger
Turbo Manifold
Front Mount Intercooler
Intercooler Mounting Kit
Piping Kit
Silicone Coupler Boot
Stainless T-Bolt Clamp
Turbo Air Filter
Blow off Valve
BOV Silicone Adapter
External Wastegate Exhaust Turbo Down Tube
Boost Controller
Boost Gauge
Oil Feed Line
Oil Return Drain Line
Oil Pan Drain Plug Adapter
Wastegate Flange & Gasket 5 Bolt & Flange & Gasket 4 Bolt Gasket & Bolt Kit Vacuum Hose Line  T3/T4 TURBOCHARGER Our brand new, high-quality guaranteed T3/T4 Turbocharger features a rugged cast housing, durable steel components, and precision CNC-machined flanges engineered for longevity and strength under demanding conditions. Built for maximum performance & thermal efficiency, it utilizes a forged turbine wheel that provides superior oxidation stability and extreme temperature resistance, this premium unit is built to efficiently boost engine output up to 350+ BHP. Turbo Specification: Standard T3 4 Bolt Turbine Flange 5 bolt Hot Side Exhaust Outlet 1/8 NPT Oil Inlet Journal Bearing Wet Floating Bearings
Oil Cooled
Compressor Specs: 12-Blades Super Flow Compressor Wheel 3" Compressor Inlet 2.07" Inducer, 2.36" Major 2" Compressor Outlet T04B/T4 Type Compressor Housing Compressor .50 AR Compressor .57 Trim
Turbine Size:
Turbine .63 A/R 2.48" Minor and 2.89" Major Propellar 2.274" Outlet TURBO MANIFOLD Standard T3 Turbo Flange Configuration Outlet. Bottom mount Turbo Set Up. Pre-weld 35mm/38mm external WG flange. Increase Engine Intercooler Output and Efficiency. Made of High Quality Cast Iron Material for Strength and Durability. EXHAUST TURBO TUBE High Strength T-304 Stainless Steel Construction. High Flow Air Rate & Maximizes Performance. Included CNC Machine Flange & Hardware. INTERCOOLER
6061 Light Weight Billet Aluminum Construction.
Tube & Fin Light Weight Design.
Machine Cut and Stamped Hand Welded.
Working Pressure: 5~50PSI.
Pressure Drop:2~5psi@35psi;0.2~0.5psi@15psi.
Working Temperature: 32°F~302°F (0°C~150°C)
Air Flow Rate: < 350 Cubic Feet/Min Rated to 500 Max HP.
Overall Size - 27" x 7" x 2.5"
Core Size - 21" x 6.5" x 2.5"
In/Outlet - 2.5" OD / 2.25" ID
PIPING
Made of High quality T-6061 lightweight Aluminum.
Powder-Coated Surface Finish.
2.5" Piping Diameter, 2.0mm Thickness.
SILICONE COUPLER
Made of quality reinforce silicone material.
Wall thickness :5 mm, 4 ply reinforced.
Working Pressure: 0.3 Mpa (43.5 PSI) to 0.9 Mpa (130.5 PSI)
Bursting Pressure: 2 Mpa.
Working Temperature: -76°F (-60°C ) to +500°F (+260°C)
Size tolerance:+/-0.5 mm
T-BOLT CLAMP
Stainless steel construction resists corrosion.
Provide uniform sealing pressure for a positive.
Polished finish increases engine bay aesthetics. TURBO FILTER Washable with water or soap and reusable. Improves Up to 95% Filtration Efficiency. Oil-free, Dry Air Filter. Micro cotton gauze type. BLOW OFF VALVE 40mm hard-anodized valve for increased airflow. 8 discharge ports that draw in surrounding air & release an aggressive Racing discharge sound. Dual spring system promoted response and allows for high boost pressures. Support up to 30 PSI Boost Pressure. OIL LINE KIT Oil Drain & Feed line Included. 10AN Fittings., 0.5" ID, 17" length. CNC Machined Turbo Adapter Plate. Included 10AN Weldable Oil Pan Fitting Adapter.
4AN Fitting 36" length, 0.25" ID.
1/8 NPT Fittings, CNC Machined Turbo Adapter Plates. Brass Fitting Block Fitting and Port Cover Included. BOOST GAUGE Digital Blue and Red LED display.
Measures up to 35 psi in pressure.
High accuracy and easy operation.
Smoke face display with aluminum bezel.
BOOST CONTROLLER Allows to adjust boost levels without changing the wastegate springs. Precise manual control: fine-tune your boost from 0 to 30 PSI. CNC Machined light weight & resistant to rust. EXTERNAL WASTEGATE Withstands temperatures up to 490 degrees.
Support up to 800hp / 30 PSI.
Cast Iron / Alloy Aluminum T6061.
Ultra Gate Wastegate, Flange, Gasket, O-Ring, Nut Fitting. Dual-spring setup (6 + 8 PSI) for a total 14 PSI base rate.
Inlet / Outlet: 38mm / 35mm Port.
A wastegate bypasses exhaust flow from the turbine wheel to control boost. ATTENTION
This kit is designed for performance applications. Due to chassis and setup variances, final installation may require modifications, custom fabrication, or welding. For emissions related items please check with your local jurisdiction for emission specific requirements before purchasing. Color may randomly selected depend on hand or inventory. NO instructions included. modification might required for complete installation. Professional TURBO INSTALLER is Highly recommend. Any damage during installation will not be refunded. Your valid phone number is very necessary for the shipping, otherwise we can't guarantee that the package would safely arrive. Don't hesitate to contact us if item stuck, unknown or fault installation !! | ||||||||||
|
| ||||||||||
| |
