Packing List：
● For Nema 23 Bracket:
1* Sliding Table With Cover
1* 8mm to 8mm Coupling
1* Nema 23 57mm stepper motor bracket
● For Nema 34 Bracket:
1* Sliding Table With Cover
1* 8mm to 14mm Coupling
1* Nema 34 86mm stepper motor bracket
● For 60mm Servo Bracket:
1* Sliding Table With Cover
1* 8mm to 14mm Coupling
1* 60mm servo motor bracket
●For 80mm Servo Bracket:
1* Sliding Table With Cover
1* 8mm to 19mm Coupling
1*80mm servo motor bracket

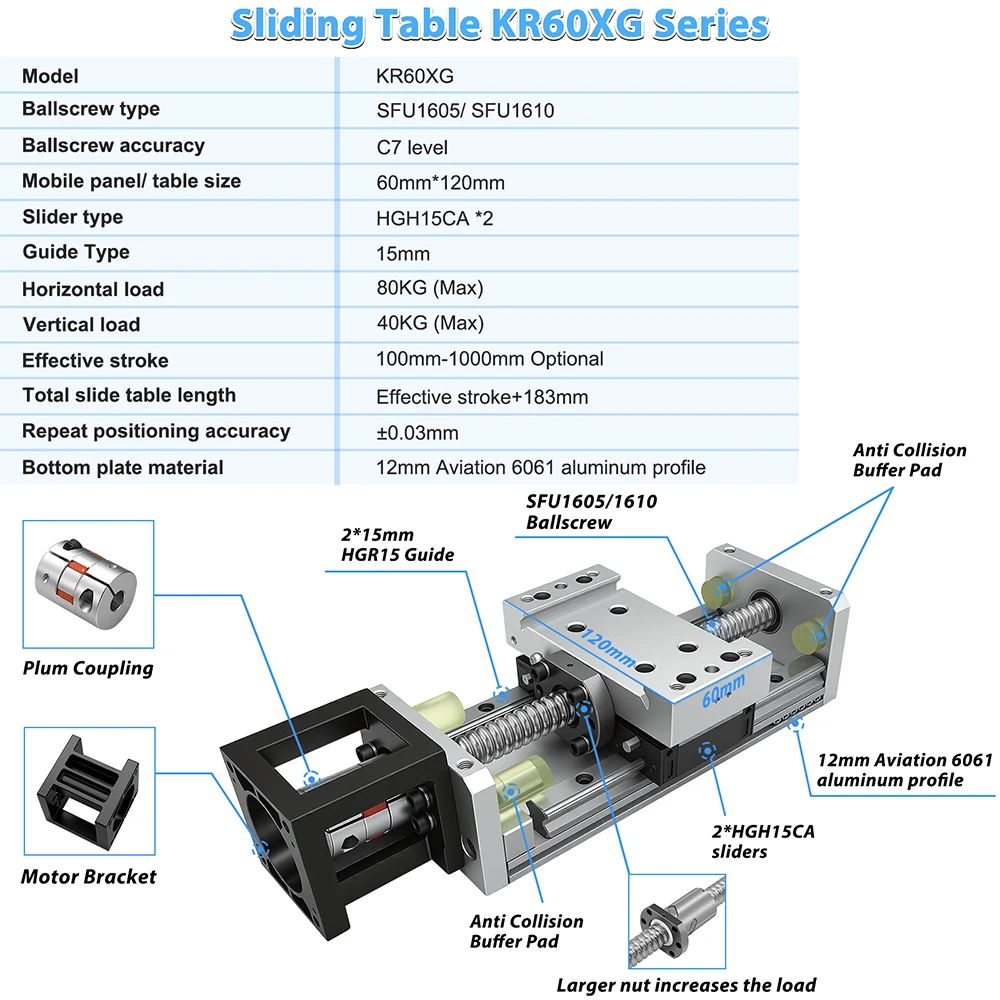

●Model: KR60XG
●Material: Industrial Aluminum Profile
●Ballscrew type: SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm)/ SFU1610
●Ballscrew accuracy: C7 level
●Mobile panel/ table size: 60mm*120mm
●Slider type: HGH15CA *2
●Guide Type:HGR15*2
●Guide size: 15mm
●Horizontal load: 80KG (Max)
●Vertical load: 40KG (Max)
●Motor bracket type:
For stepper motor: 57mm/86mm Optional
For servo motor: 60mm/80mm Optional

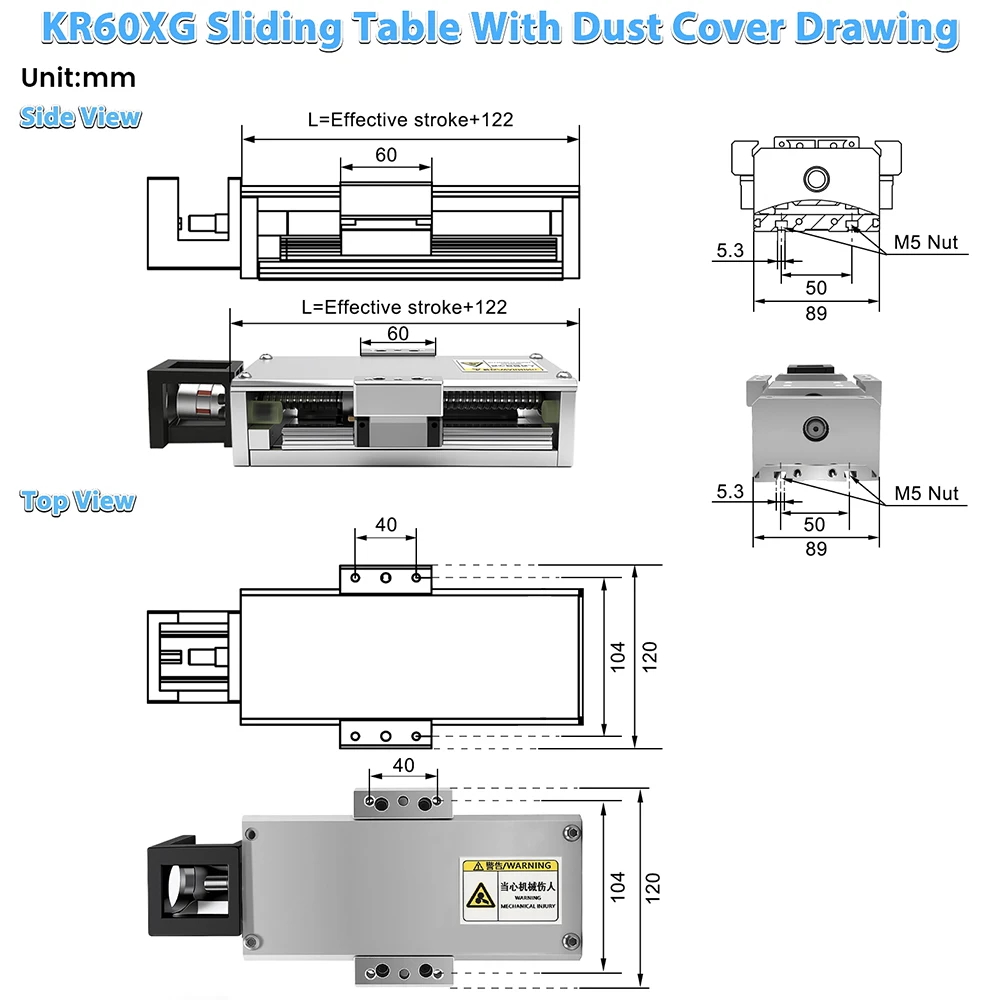

●Effective stroke: 100mm-1000mm Optional
●Total slide table length:
Electric version: Effective stroke+183mm
●Maximum speed: 500mm/s
●Ballscrew Repeat positioning accuracy: ±0.03mm
1* Sliding Table With Cover
1* 8mm to 8mm Coupling
1* Nema 23 57mm stepper motor bracket
● For Nema 34 Bracket:
1* Sliding Table With Cover
1* 8mm to 14mm Coupling
1* Nema 34 86mm stepper motor bracket
● For 60mm Servo Bracket:
1* Sliding Table With Cover
1* 8mm to 14mm Coupling
1* 60mm servo motor bracket
●For 80mm Servo Bracket:
1* Sliding Table With Cover
1* 8mm to 19mm Coupling
1*80mm servo motor bracket
●Model: KR60XG
●Material: Industrial Aluminum Profile
●Ballscrew type: SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm)/ SFU1610
●Ballscrew accuracy: C7 level
●Mobile panel/ table size: 60mm*120mm
●Slider type: HGH15CA *2
●Guide Type:HGR15*2
●Guide size: 15mm
●Horizontal load: 80KG (Max)
●Vertical load: 40KG (Max)
●Motor bracket type:
For stepper motor: 57mm/86mm Optional
For servo motor: 60mm/80mm Optional
●Effective stroke: 100mm-1000mm Optional
●Total slide table length:
Electric version: Effective stroke+183mm
●Maximum speed: 500mm/s
●Ballscrew Repeat positioning accuracy: ±0.03mm
