DC 12V 24V Brushless Motor 5RPM - 600RPM Slow Speed Full Metal Gear Motor CW/CCW
Specifications:
Model: XD-WS37GB3525

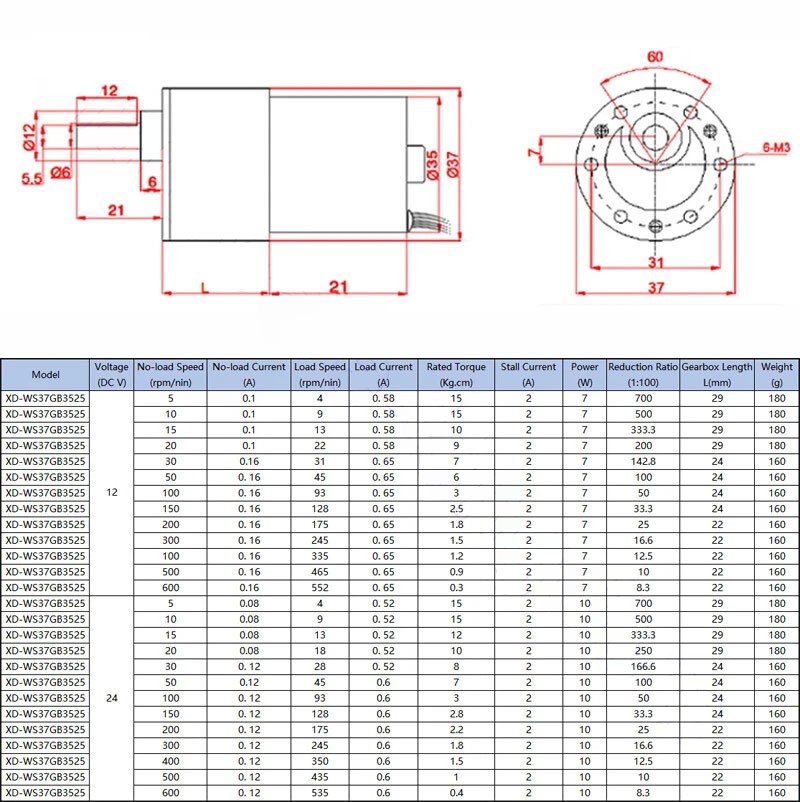

Motor size: Ø37mm x (21+L)mm (L as the picture shows) (exclude shaft)
Shaft diameter: 6 mm (0.236 inch)
Shaft length: 12 mm (0.472 inch)
Rated Voltage: DC 12V 24V
Rated Speed: 5 - 600 RPM
Rated Torque: 0.03-1.5 N.m (0.3-15 kg.cm)
Input Power: 10 W
Reversible / Not Reversible: Reversible
Gear Material: Full Metal
Weight: 180 g (0.397 lb)

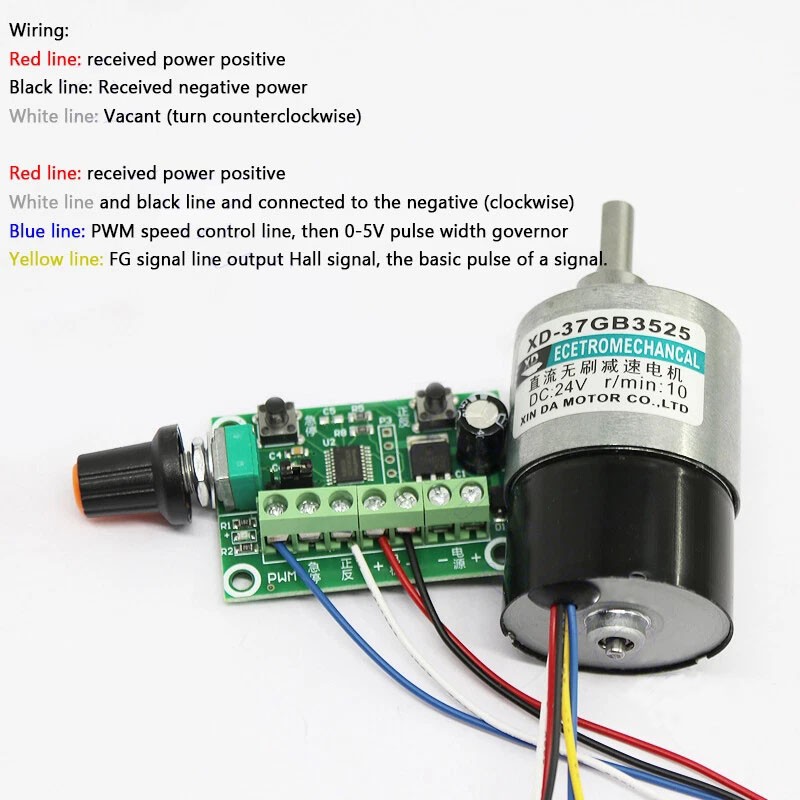

Wiring:
Red line: received power positive
Black line: Received negative power
White line: Vacant (turn counterclockwise)
Red line: received power positive
White line and black line and connected to the negative (clockwise)
Blue line: PWM speed control line, then 0-5V pulse width governor
Yellow line: FG signal line output Hall signal, the basic pulse of a signal
Features:
24 hours continuous operation, pure copper wire, metal gear, adjustable speed, can CW and CCW.
Applications:
Office automation, home automation, production automation, medical instruments, safety instruments, consumer electronics, aircraft models, automotive electronics, automatic coin-operated machines, vending machines, VCR, etc.
Package Including:
According to your choice.
