Description

Main Control Compatibility Instructions:
- ASM2464PDX (USB4 Graphics Dock): It is recommended to contact customer service before purchasing to confirm whether the device's Thunderbolt interface or USB4 interface firmware has been adapted for the ASM2464 controller. If customer service cannot provide a clear response or indicate that no adaptation has been made, there is a high probability of compatibility issues.
- JHL9480 (Thunderbolt 5 Universal Graphics Dock): The Thunderbolt 5 interface is backward compatible with Thunderbolt 4, Thunderbolt 3, and USB4, but also depends on the compatibility of the host firmware with the JHL9480 controller. It is recommended to confirm before purchasing whether the firmware of the host's Thunderbolt interface is the latest version and has been adapted to Thunderbolt 5 devices.

Firmware Adaptation Instructions:
- Thunderbolt 3, Thunderbolt 4, USB4, and Thunderbolt 5 interfaces all have host firmware, which is provided by computer or motherboard manufacturers (OEM) for updates.
- For some desktop motherboards, NUCs, and other devices, OEM officials will periodically release USB4 or Thunderbolt interface firmware updates to enhance compatibility with docking stations.
- The graphics card docking station itself will also be optimized for compatibility through firmware updates, but compatibility needs to be updated synchronously between the host and the docking station, not solely determined by the docking station.

Special Note:
- Please make sure to confirm the firmware update status on the host side to avoid compatibility issues affecting normal use.

Key Features:
- OCuLink interface: The interface comes with a security lock to prevent the Oculink data cable from falling off when moving.
- Support for Lenovo TGX hot plugging; Suitable for ThinkBook14+/16+ 2024 Core Edition laptops.
- PCIE4.0x4 anti-interference expansion interface; The interface is equipped with metal armor, with a theoretical bandwidth of up to 64GT/s, signal anti-interference, and more stable.
- Dual specification power supply compatibility; Supporting ATX/SFX standard power supplies, both high-performance ATX power supplies and compact SFX power supplies can be seamlessly integrated, flexibly adapting to different power requirements.

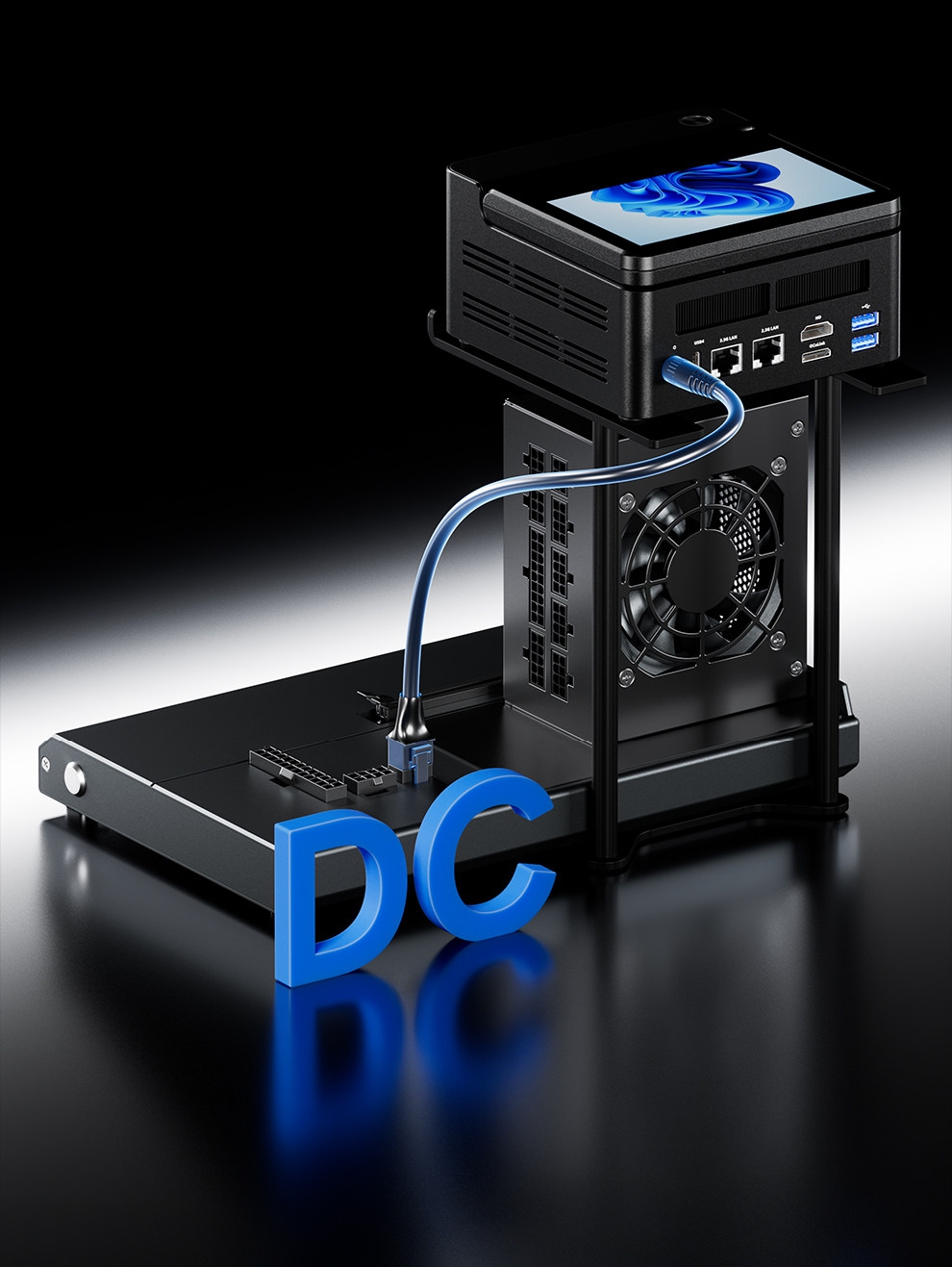

- Comes with a built-in DC power supply interface; The graphics dock supports 6Pin to DC power supply, which can provide strong power to mini hosts or other devices.

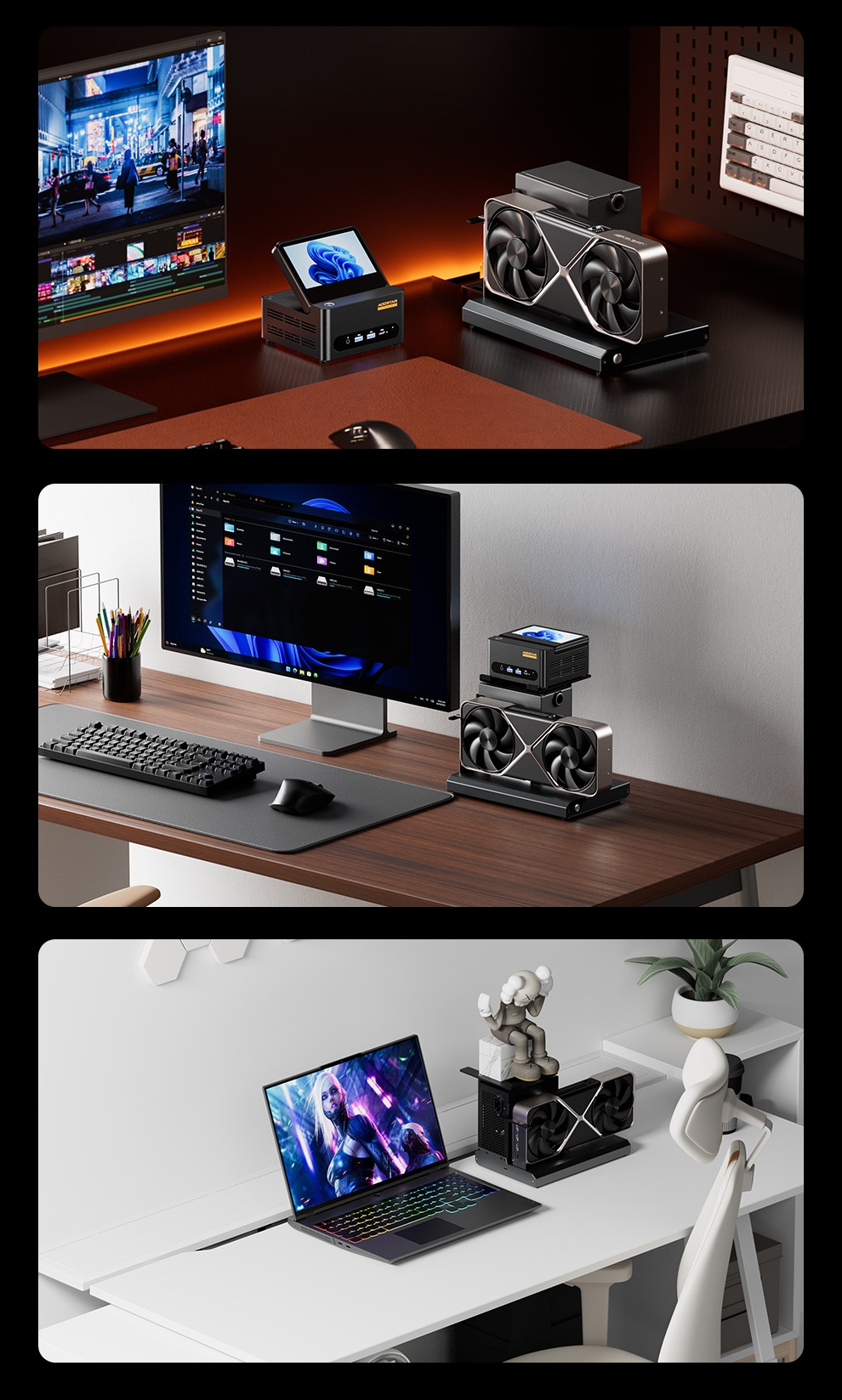

- Detachable multifunctional stand: can stack hosts or other objects, saving 40% desktop space.

Details:

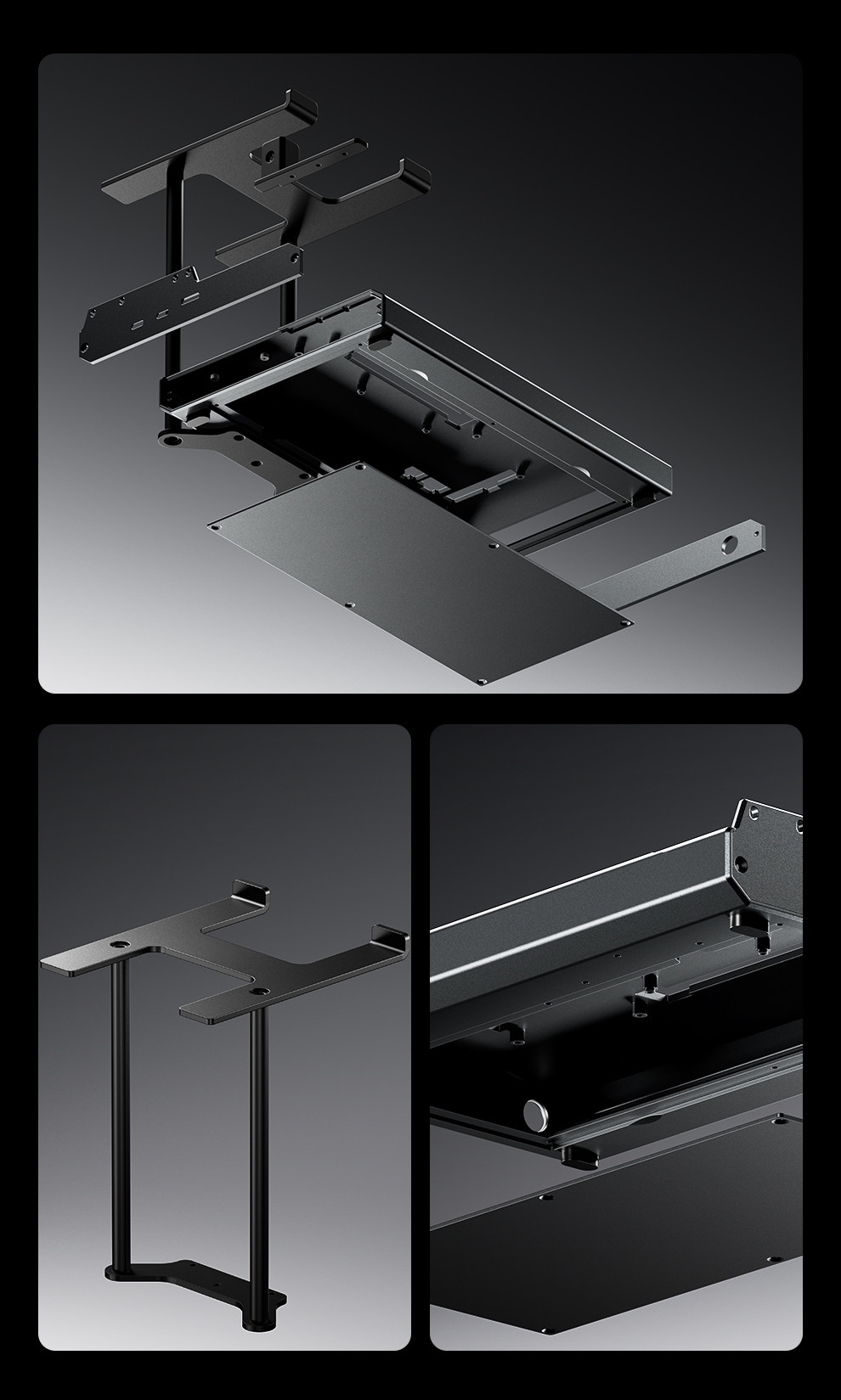

- Adopting an integrated aluminum alloy frame, the compressive strength is increased by nearly 300% compared to plastic, and a mini host bracket is added to stack the host or other items, creating a clean and technological aesthetic.
- The multifunctional bracket can be used in three different positions for free combination.

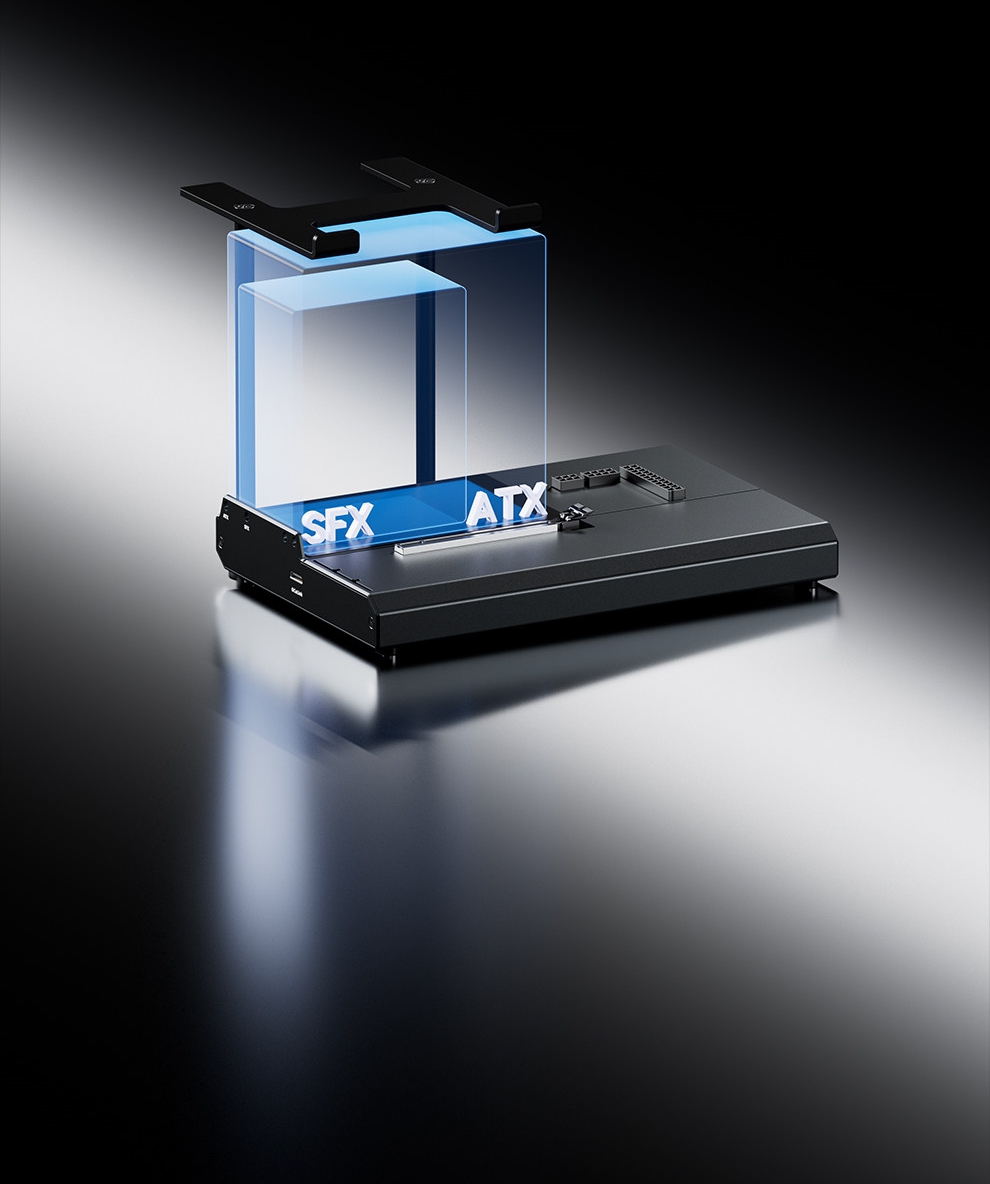

- Supporting ATX/SFX standard power supplies, both high-performance ATX power supplies and compact SFX power supplies can be seamlessly integrated, flexibly adapting to different power requirements.
- Including a DC adapter cable.
- The OCuLink interface has better transmission efficiency than traditional USB/Thunderbolt solutions, reducing signal interference and faster speed, making it suitable for external graphics cards and high-speed storage devices.

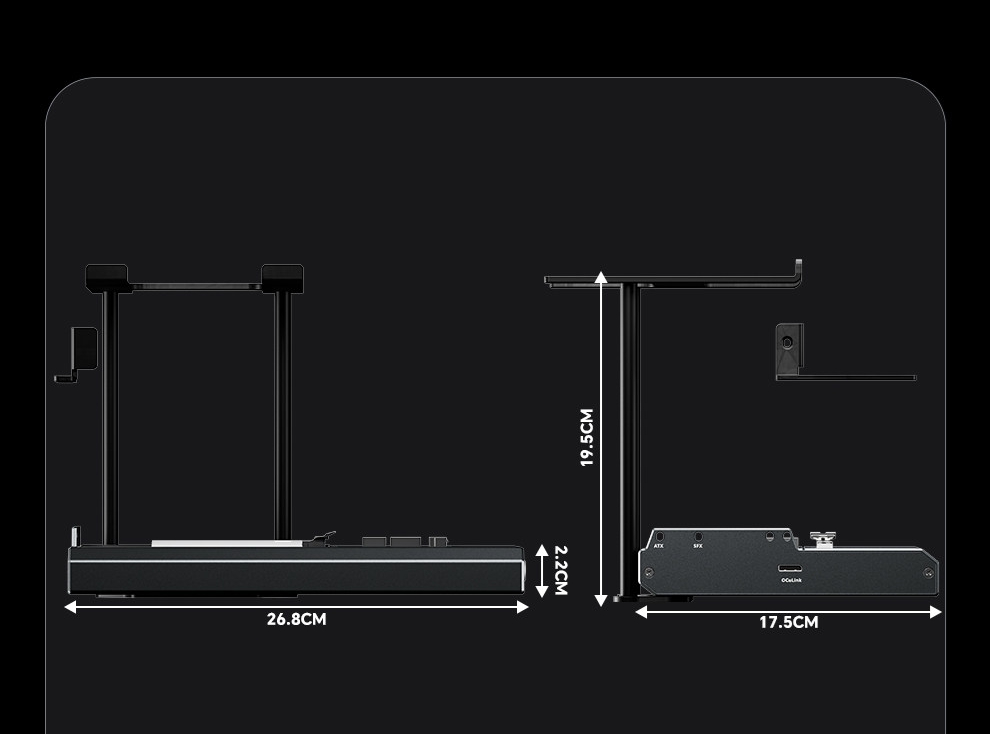

Specifications:
- Transmission channel: OCuLink (PCIE4.0x4)
- Power supply support: ATX/SFX

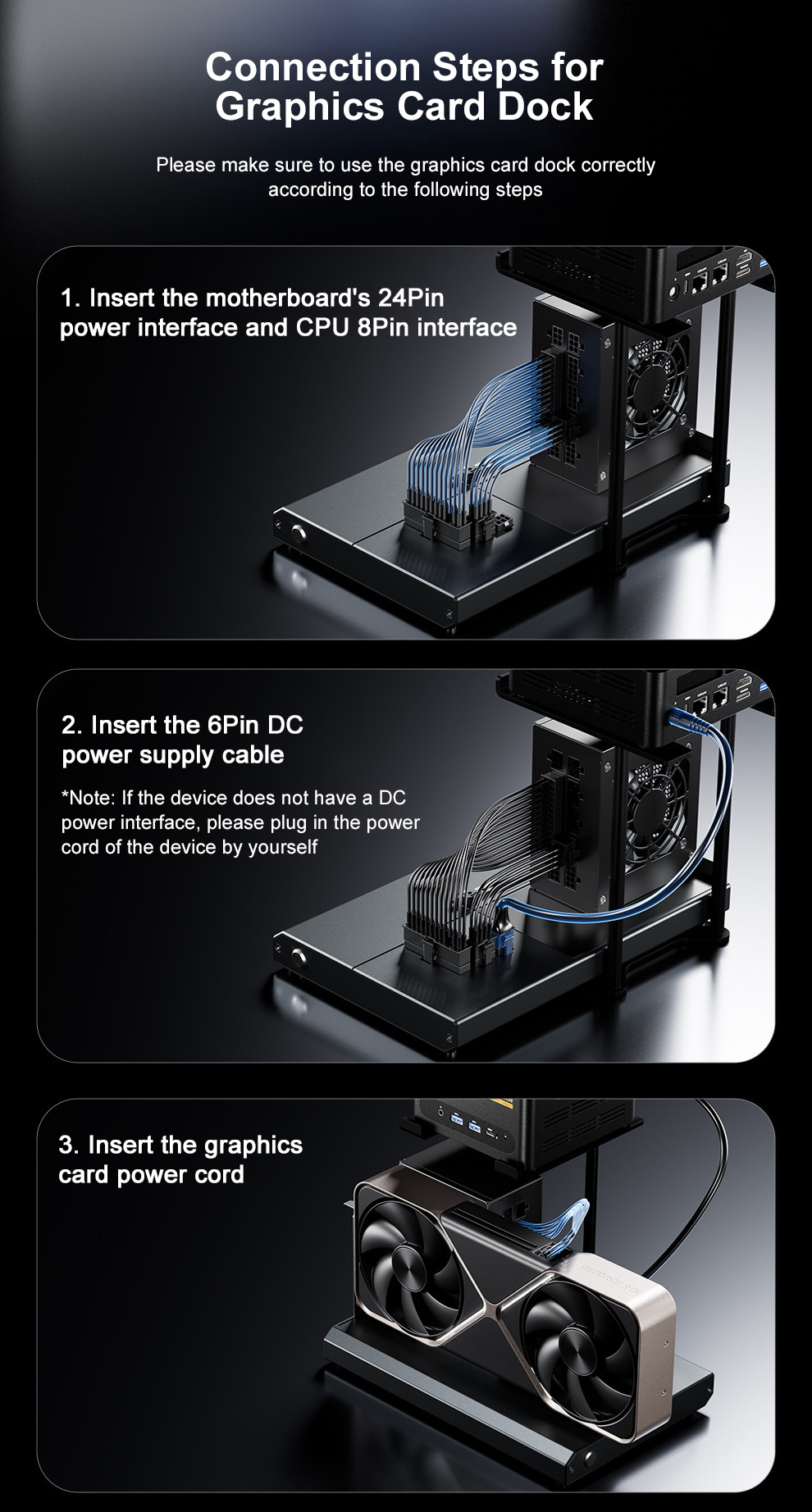

- Input interface: 24 Pin x1, CPU 8 Pin x1, 6 Pin to DC x1
- Graphics card slot: PCIE x16 (PCIE4.0x4 speed rate)

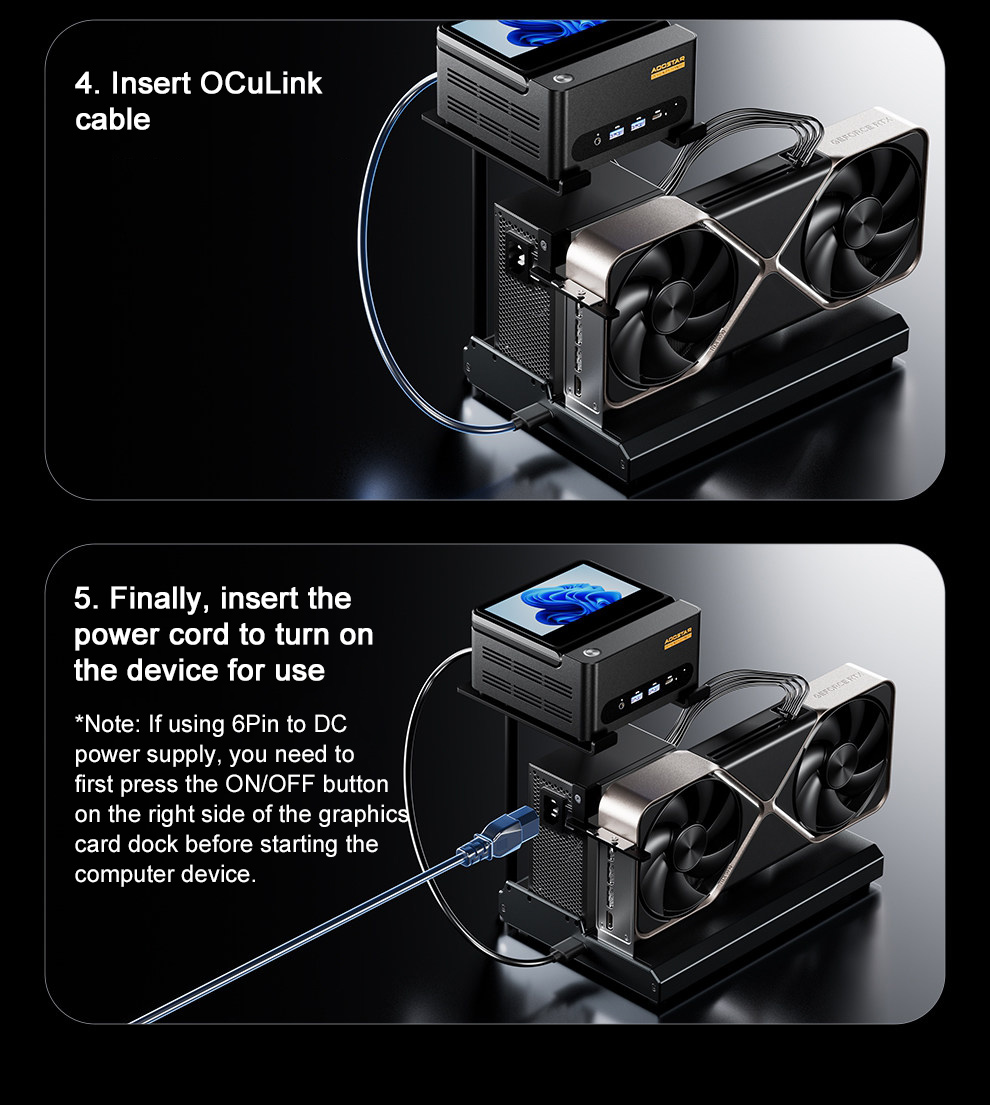

- Button: forced switch button

Package Included:
- 1 x GPU Dock
