Evertz HD9010TM HD Time Code Master Reader Generator System LTC ATC 2x PS
Evertz HD9010TM HD Time Code Master Reader Generator System LTC ATC 2x PS
Evertz HD9010TM HD Time Code Master Reader Generator System LTC ATC 2x PS
Functional Condition: Fully Functional
Cosmetic Condition: Very Good
CONDITION:
Functional: Fully Functional
Cosmetic: Very Good
Scroll down for additional photos
Overview:
For sale is ONE (1) used Evertz time code generator. Very good condition with only some minor wear and tear and some sticker residue. Because we have a quantity of these, appearances may vary, but condition is guaranteed to be better or equal to pictured sample. Serial numbers are unique to each unit sold and may be different from one depicted in the photos - we record all serial numbers of all items shipped. Power cords are not included unless otherwise mentioned.
SKU# 4682
Description:
The HD9010TM HDTV Time Code Master is a full function time code reader/generator system for high definition serial digital video. The HD9010TM is a combination dual generator / dual reader for Linear Time Code (LTC) and SMPTE ST 12-2 Ancillary Time Code (ATC), and contains a high resolution character inserter which can burn the generator or reader numbers directly into the high definition serial digital program output.
Features:
  • The HD9010TM requires SMPTE ST 292-1 (1.5Gb/s) high definition serial digital video for normal operation. The HD9010TMs time code generators can be referenced to the input video or to an analog bi-level or tri-level signal. When generating 24Fps timecode it will also lock the generator count sequence to a 6Hz pulse.
  • The HD9010TM generators can be slaved to incoming LTC or ATC or can be set to free run. The generators may also be momentarily synchronized to one of the readers, and then continue to increment normally regardless of the reader code. The second LTC output normally follows the primary output, however the two generators can be operated at different frame rates to supply both 24Fps and 30Fps time code when used in a 1080p/24 environment. The drop frame conversion mode allows you to generate Drop Frame code on 1080i/59.94 broadcast master tapes when adding 3.2 pulldown to 1080p/23.98sF source material.
  • Video formats supported: 1080i/60, 1080i/50, 1080p/30, 1080p/30sF, 1080p/25sF, 1080p/24sF, 1035i/60, 720p/60, 720p/50 and the 1/1.001 divisor versions where applicable
  • Reads SMPTE ST 12-2 LTC and VITC ancillary time code packets from incoming video - read line auto detected
  • Generates SMPTE ST 12-2 LTC and VITC ancillary time code packets on output video
  • Two LTC readers and two LTC generators operate at 24, 25 or 30 Fps nominal rate in accordance with SMPTE ST 12-1 specification
  • Generates 24 Fps and 30 Fps simultaneously
  • SMPTE ST 12-2 to/from LTC translator
  • Drop frame to/from Non drop frame converter
  • Generates character burn in windows for the reader and generator time and user bit data. Windows can be positioned and turned off and on independently

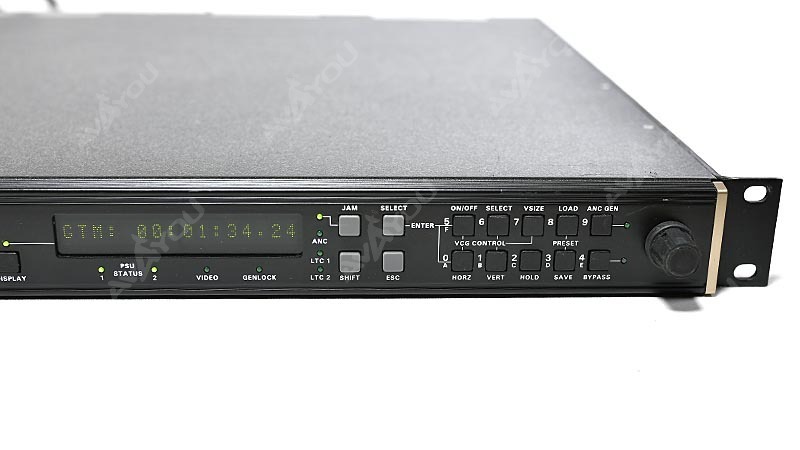

  • Front panel display and control using menu system
