Micro Magnetic Powder Brake 0.5–5 Nm 24V DC for Winding & Tension Control
The PMB Series Micro Magnetic Powder Brake provides smooth, adjustable braking torque for winding, unwinding and tension control applications.
With 24V DC operation and torque options from 0.5 to 5 Nm, this compact magnetic particle brake is suitable for wire winding, film, foil, tape and other precision tension control systems.
Key Features
Precise Torque Control
Smooth and adjustable braking torque helps maintain stable tension during winding and unwinding.
Smooth Braking
Magnetic powder technology provides stable torque transmission with smooth engagement.
Compact Design
Small size makes it suitable for compact winding machines and automation equipment.
Fast Response
Quick torque response supports frequent tension adjustments during operation.
24V DC Control
Easy to integrate with compatible tension controllers and automation systems.

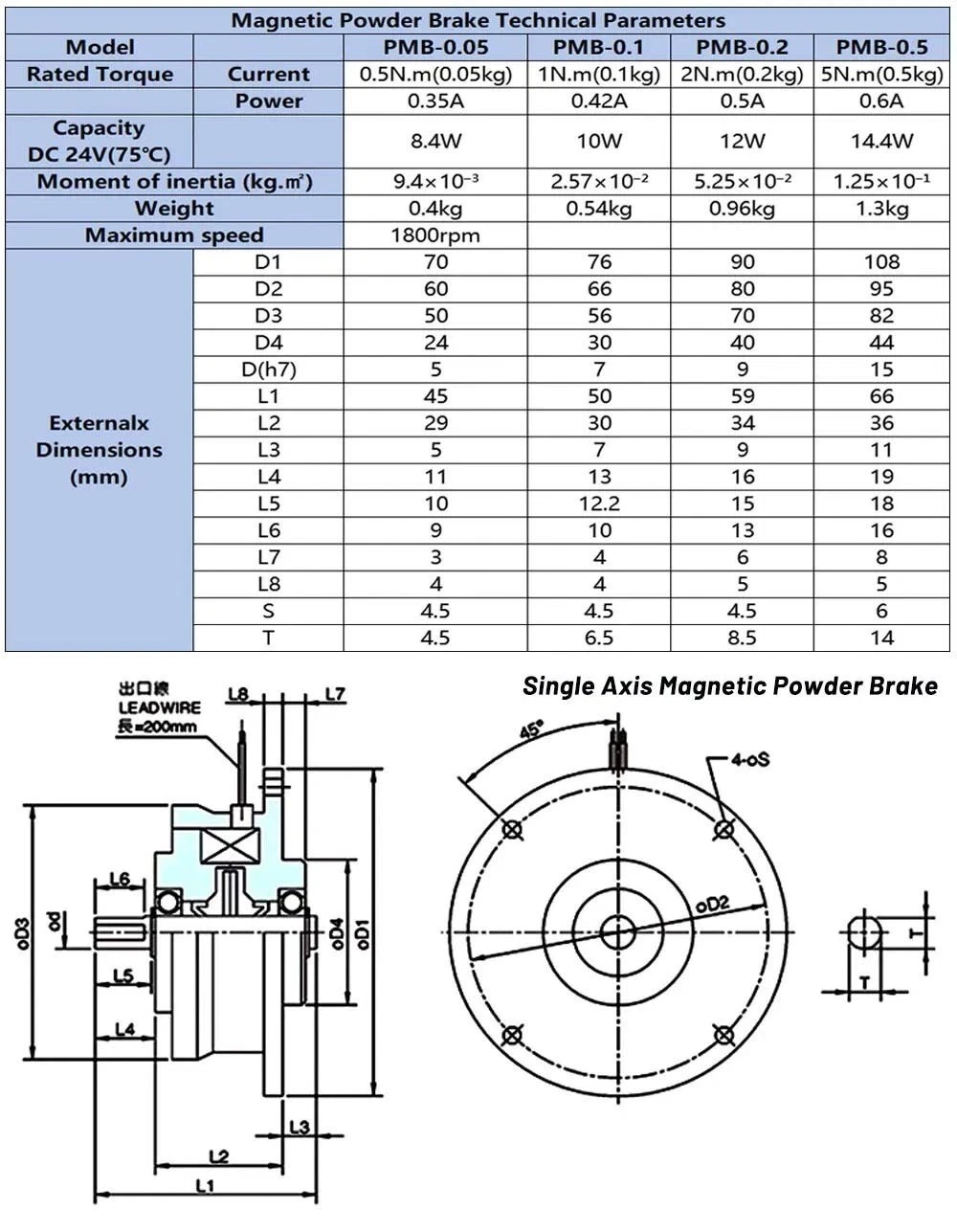

Specifications
Product Type: Magnetic Powder Brake / Magnetic Particle Brake
Series: PMB Series
Rated Voltage: 24V DC
Torque Range: 0.5–5 Nm
Maximum Speed: Up to 1800 RPM
Control Type: Adjustable Electromagnetic Torque
Main Function: Braking and Tension Control
Application: Winding and Unwinding Systems
Applications
- Wire and coil winding machines
- Film, foil and tape unwinding
- Roll-to-roll tension control
- Label and packaging machinery
- Textile and fibre equipment
- Material testing equipment
- Electronics manufacturing
- Automation systems
Reliable Tension Control for Winding Systems
The magnetic powder brake provides controllable braking torque to help maintain stable material tension as roll diameter and operating conditions change.
It is a practical solution for wire, film, foil, tape, fibre and other continuous material winding and unwinding applications.

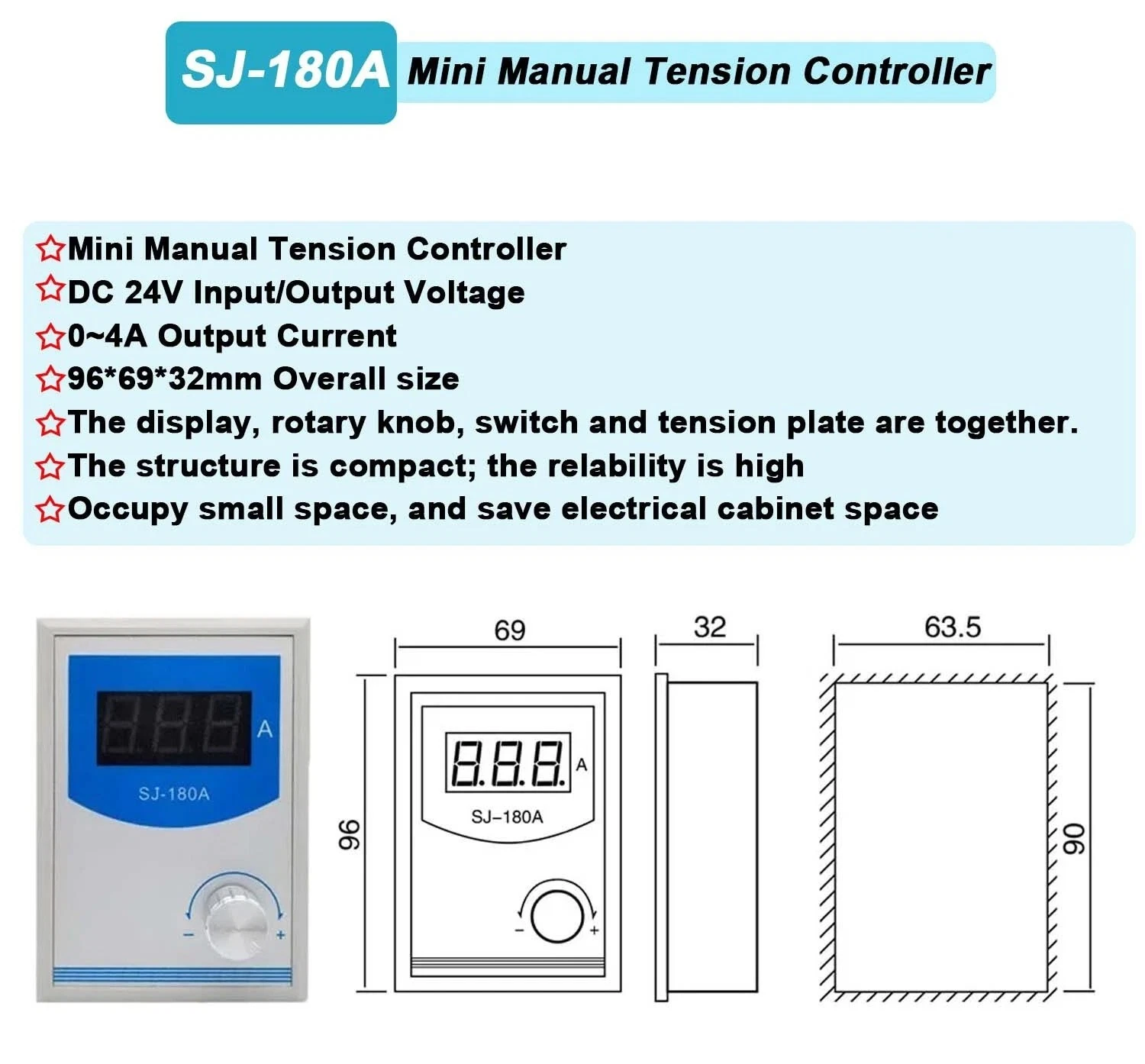

SJ-180A:Mini Manual Tension Controller
Input Voltage: DC 24V
Output Voltage: DC 24V
Output Current: 0~4A
Overall size: 96*69*32MM
Type: Manual controller / PLC / Potentiometer

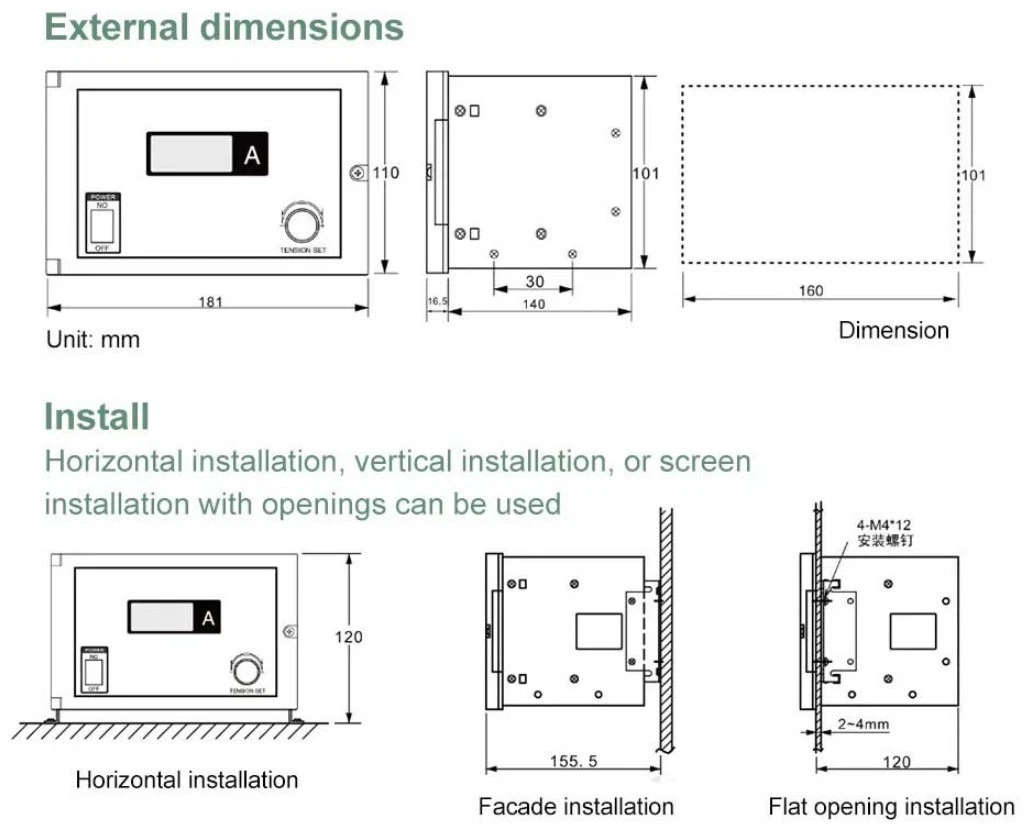

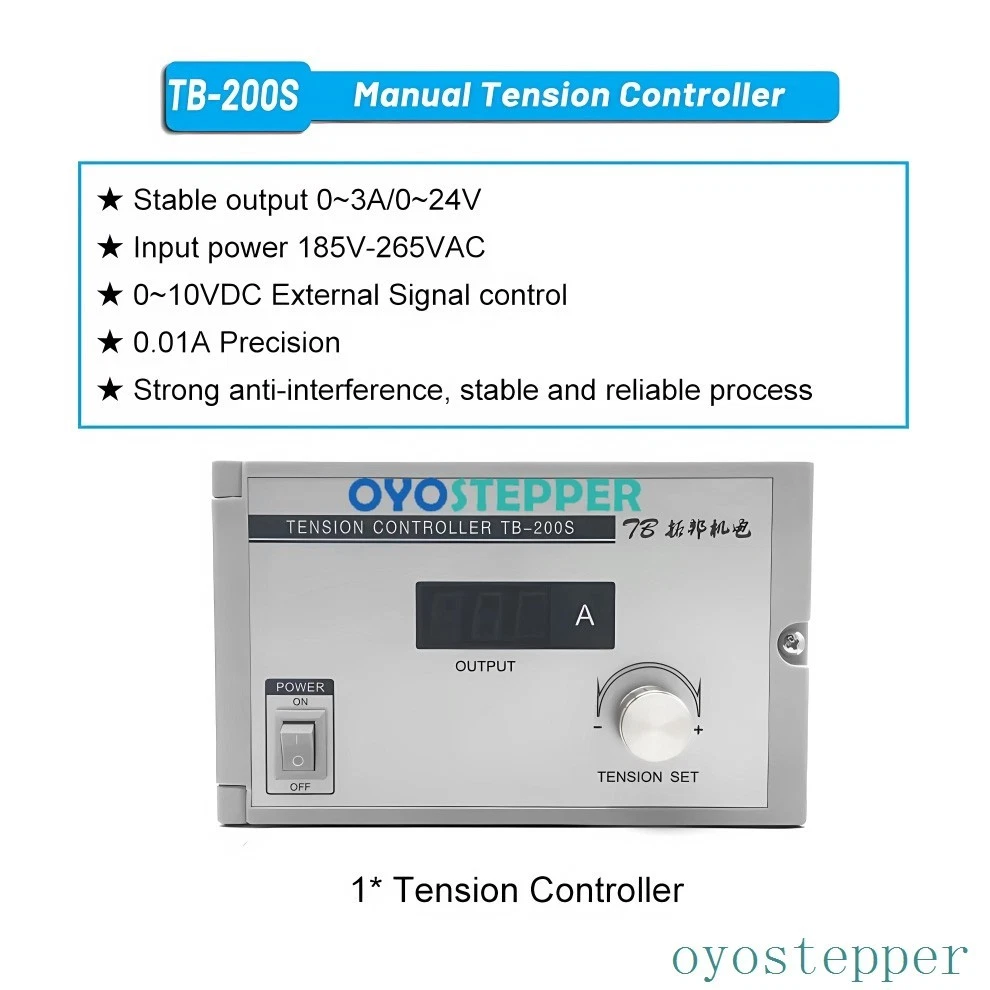

TB-200S:Manual Tension Controller
Power Supply: 185V-265VAC 50/60Hz
Output Voltage: 0~24VDC(0-3A)
External Signal control: 0~10VDC
Precision: 0.01A
Type: Manual controller / PLC / Potentiometer
Working Temperature: -10~40 degree centigrade
Overall size: 160*100*70MM
Mounting size: 163*103*70MM
Installation: wall-mounted, floor-mounted, embedded；

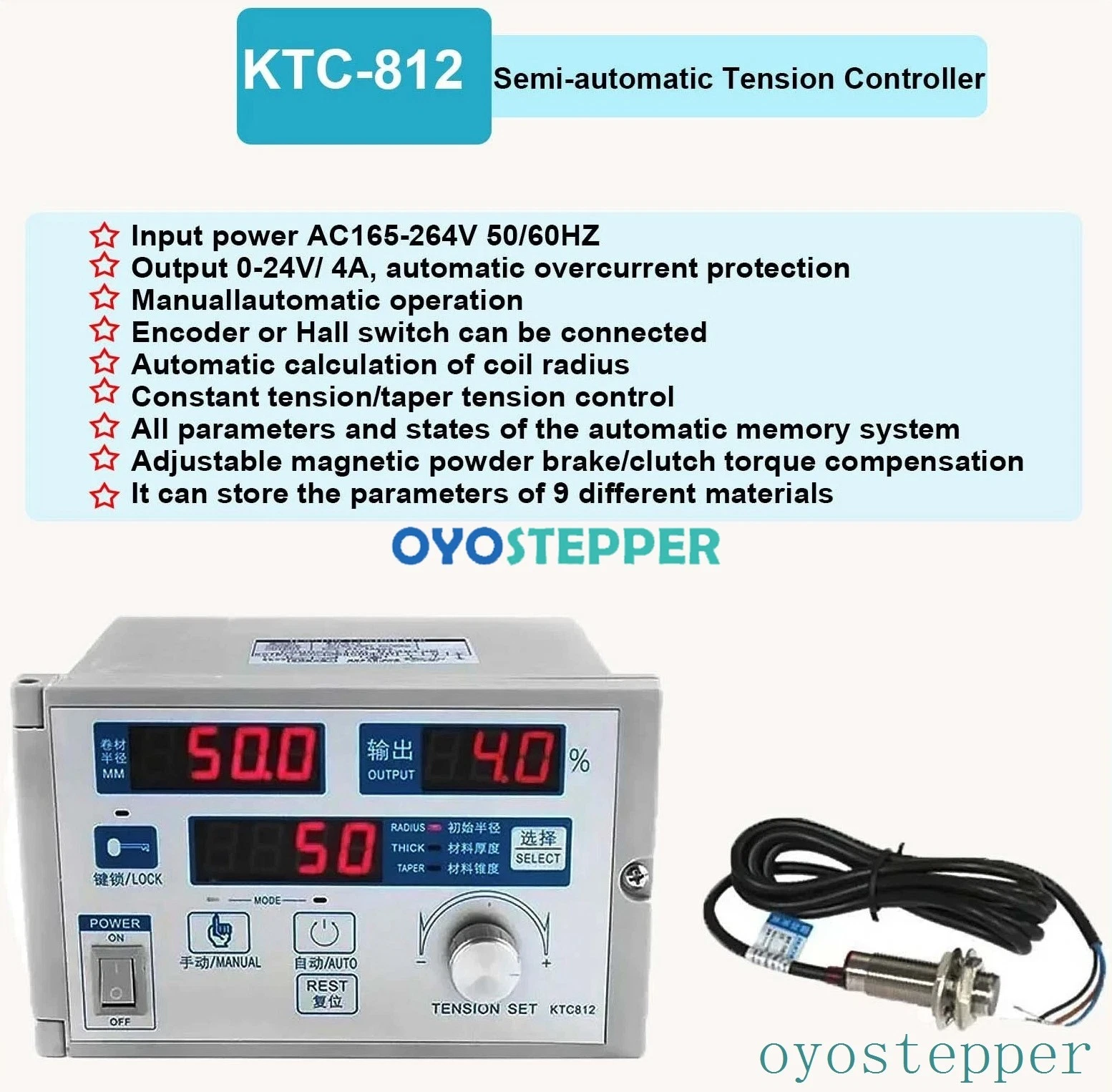

KTC-812:Semi-automaticTension Controller
Features:
Manual/automatic operation
Encoder or Hall switch can be connected
Automatic calculation of coil radius
It can store the parameters of 9 different materials
Constant tension/taper tension control
Output 0 - 2 4 V/4 A, automatic overcurrent protection
All parameters and states of the automatic memory system
Adjustable magnetic powder brake/clutch torque compensation.
Specification:
Power Supply: 185V-265VAC 50/60Hz
Output Voltage: 0~24VDC
Output current: 0-4A
External Signal control: 0~10VDC
Precision: 0.01A
Overall size: 181*110*120MM
Type: Manual controller / PLC / Potentiometer
Working Temperature: -10~40 degree centigrade
