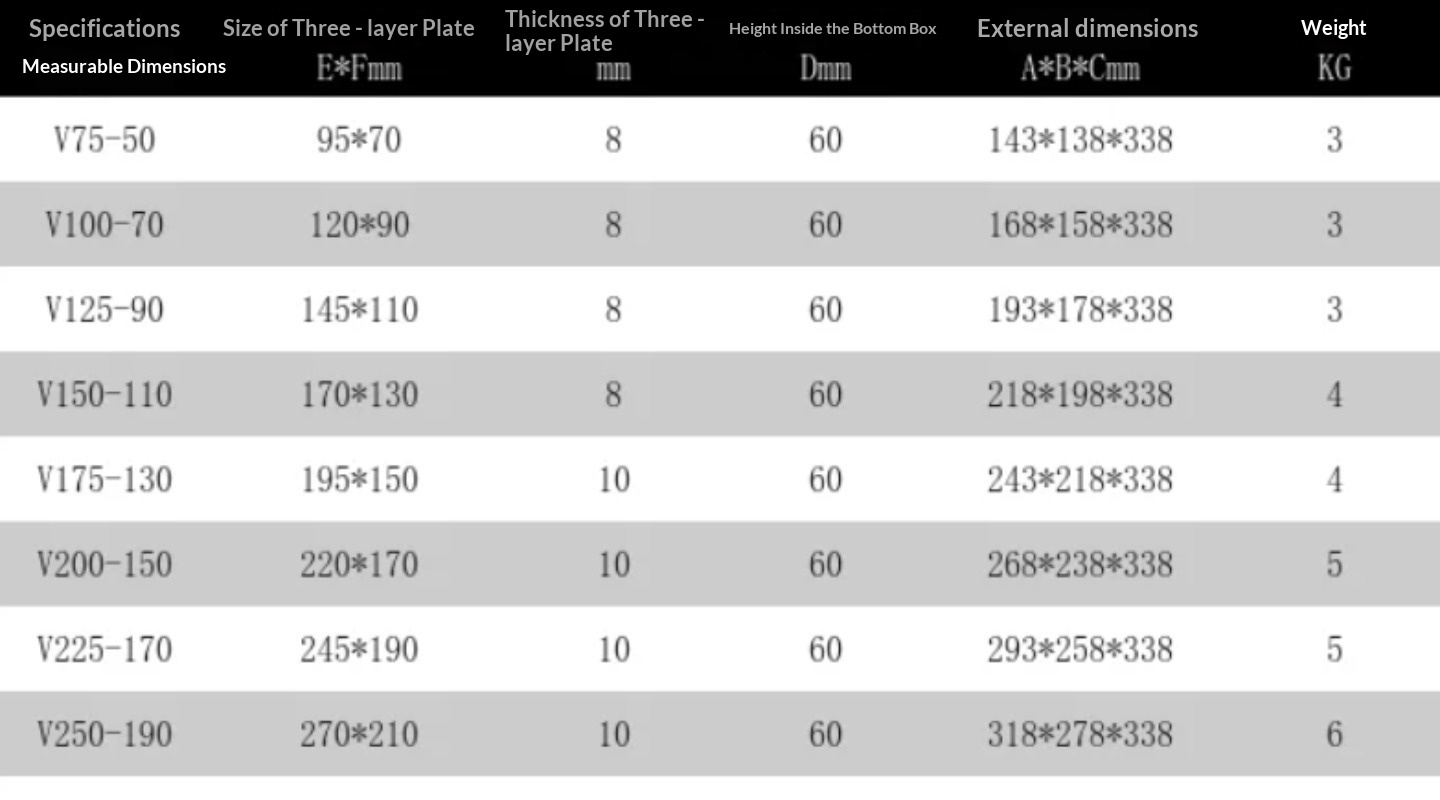

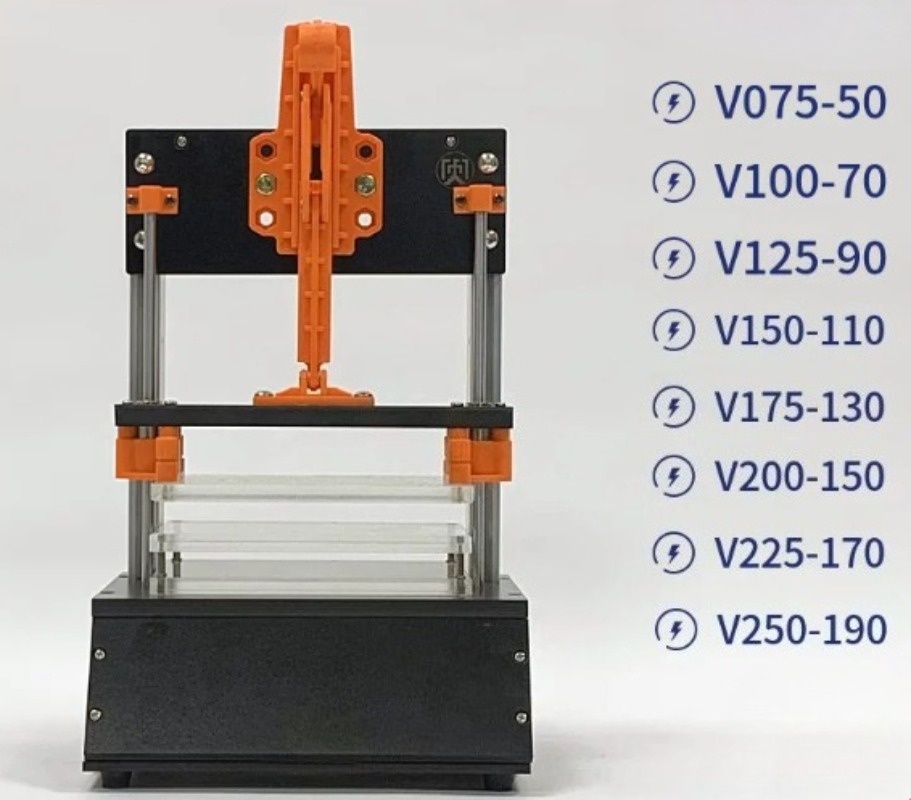

V75-50

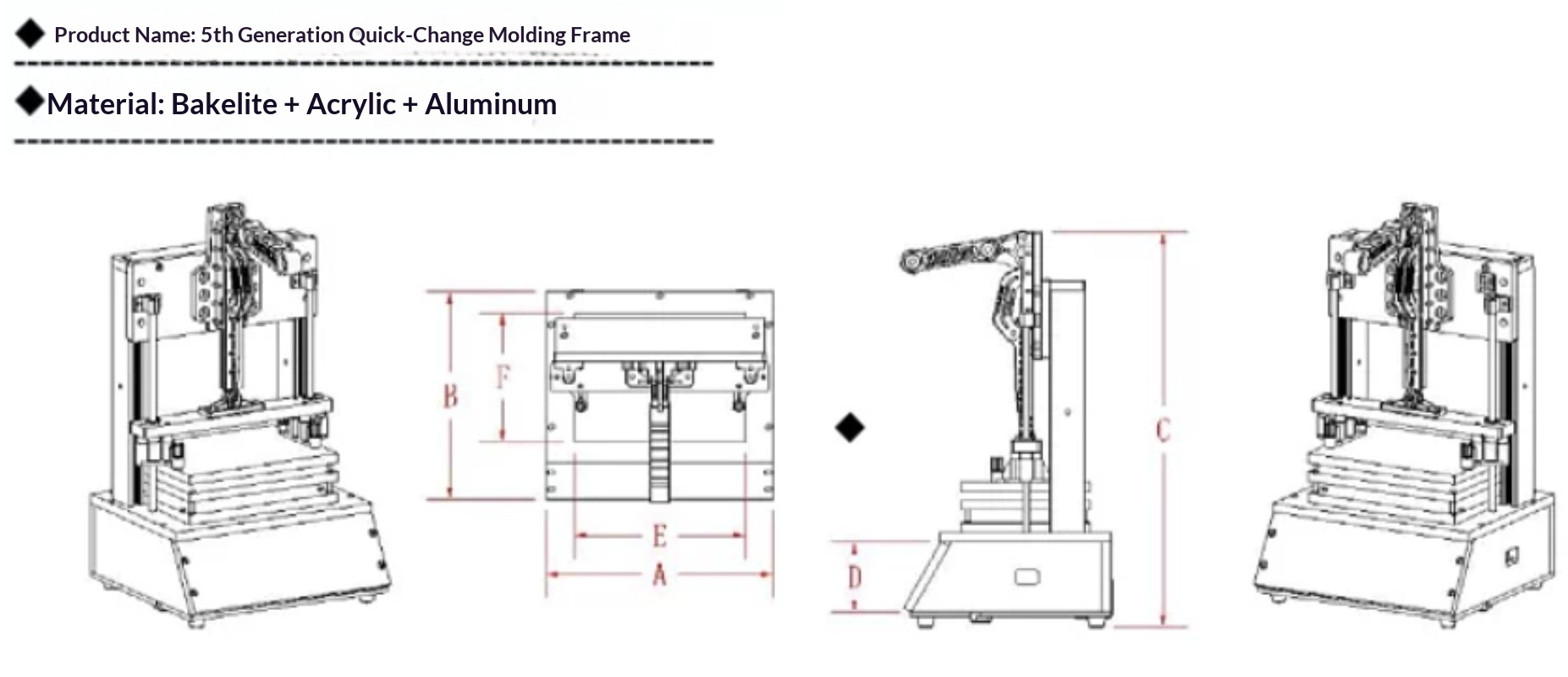

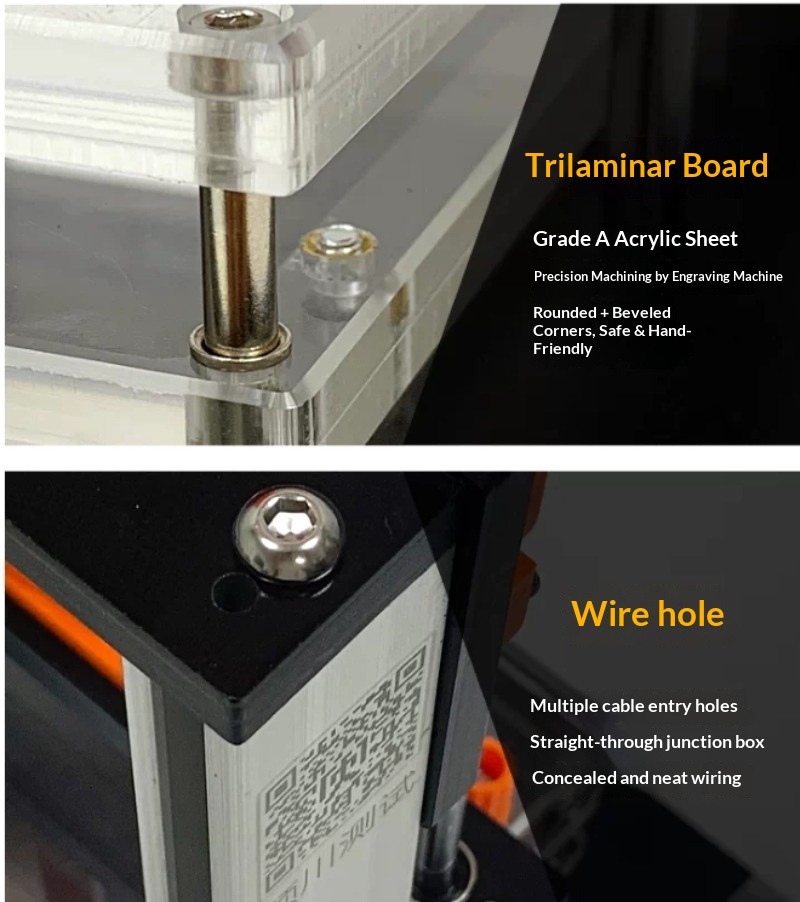

Triple-layer panel dimensions: 95 × 70 mm
Triple-layer panel thickness: 8 mm
Internal height of junction box: 60 mm
Overall dimensions: 143 × 138 × 338 mm
Weight: 3 kg

V100-70
Triple-layer panel dimensions: 120 × 90 mm
Triple-layer panel thickness: 8 mm
Internal height of base box: 60 mm
Overall dimensions: 168 × 158 × 338 mm
Weight: 3 kg

V125-90
Triple-layer panel dimensions: 145 × 110 mm
Triple-layer panel thickness: 8 mm
Internal height of base box: 60 mm
Overall dimensions: 193 × 178 × 338 mm
Weight: 3 kg

V150-110
Triple-layer panel dimensions: 170 × 130 mm
Triple-layer panel thickness: 8 mm
Internal height of junction box: 60 mm
Overall dimensions: 218 × 198 × 338 mm
Weight: 4 kg

V175-130
Triple-layer panel dimensions: 195 × 150 mm
Triple-layer panel thickness: 10 mm
Internal height of base box: 60 mm
Overall dimensions: 243 × 218 × 338 mm
Weight: 4 kg

V200-150
Triple-layer panel dimensions: 220 × 170 mm
Triple-layer panel thickness: 10 mm
Internal height of base box: 60 mm
Overall Dimensions: 268 × 238 × 338 mm
Weight: 5 kg

V225-170
Tray Dimensions: 245 × 190 mm
Tray Thickness: 10 mm
Internal Height of Base Box: 60 mm
Overall Dimensions: 293 × 258 × 338 mm
Weight: 5 kg

V250-190
Triple-layer panel dimensions: 270 × 210 mm
Triple-layer panel thickness: 10 mm
Internal height of base box: 60 mm
External dimensions: 318 × 278 × 338 mm
Weight: 6 kg
