24 Ways Adjustable Coilover For BMW E46 320i 323i 325i 328i 330i Shock Absorber

Features

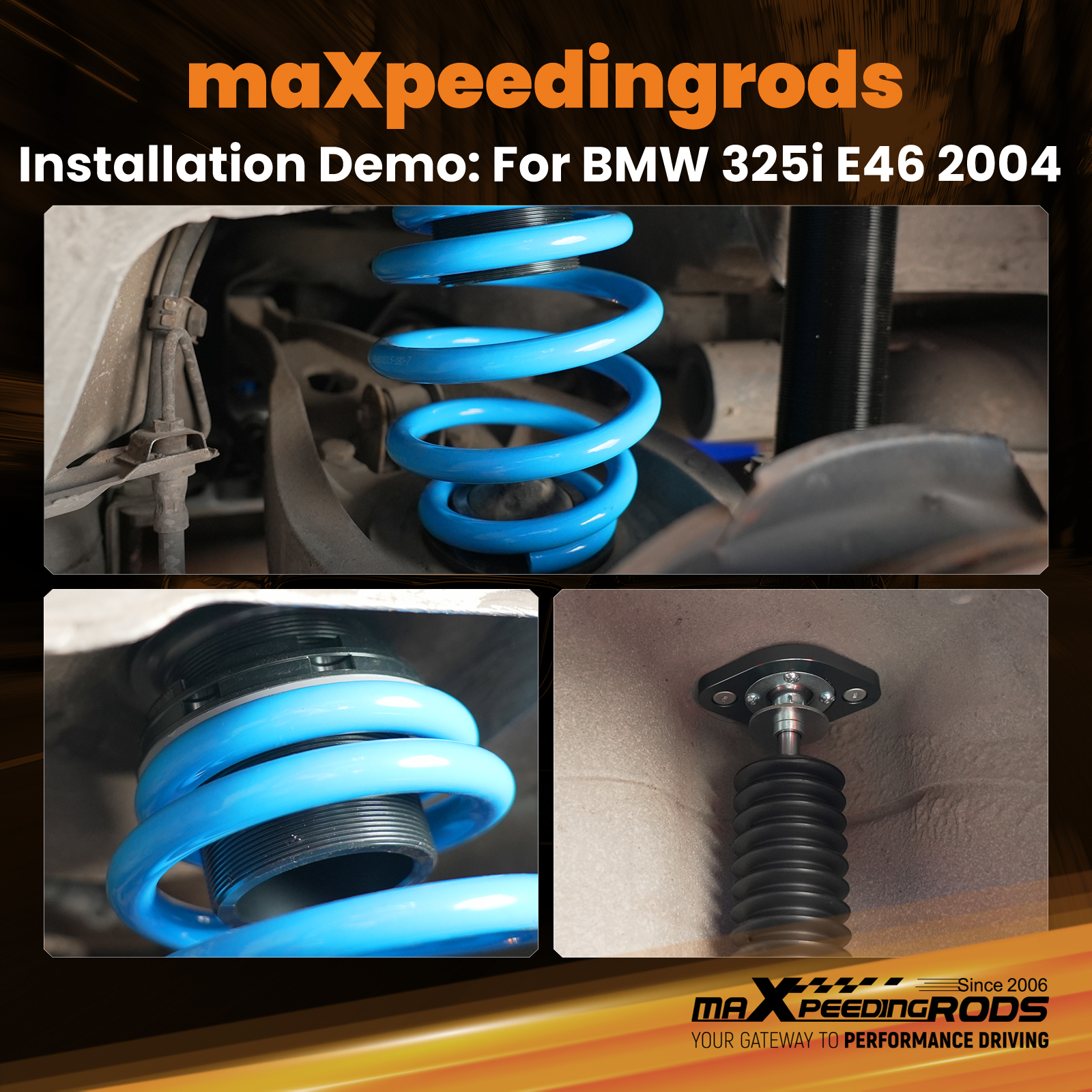

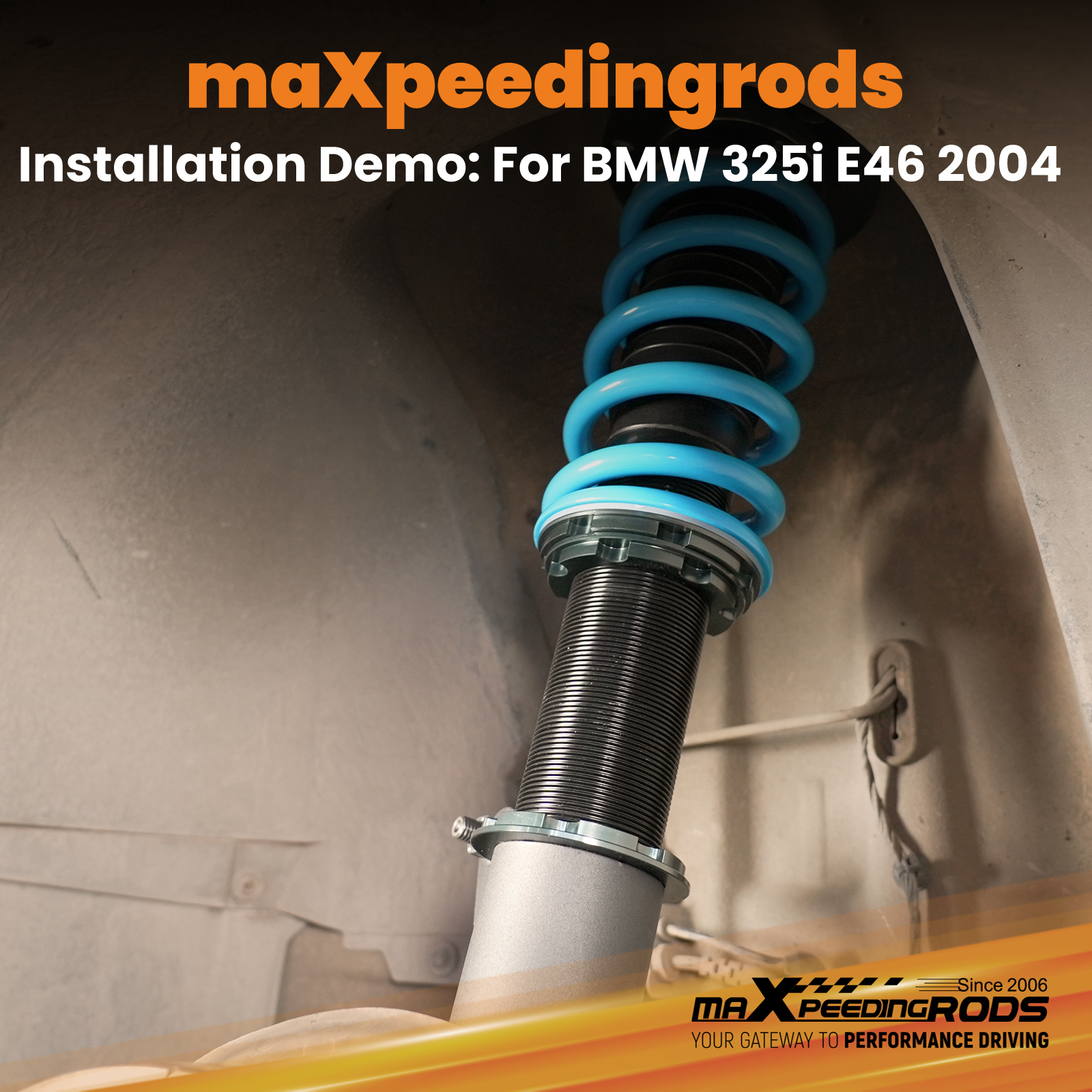

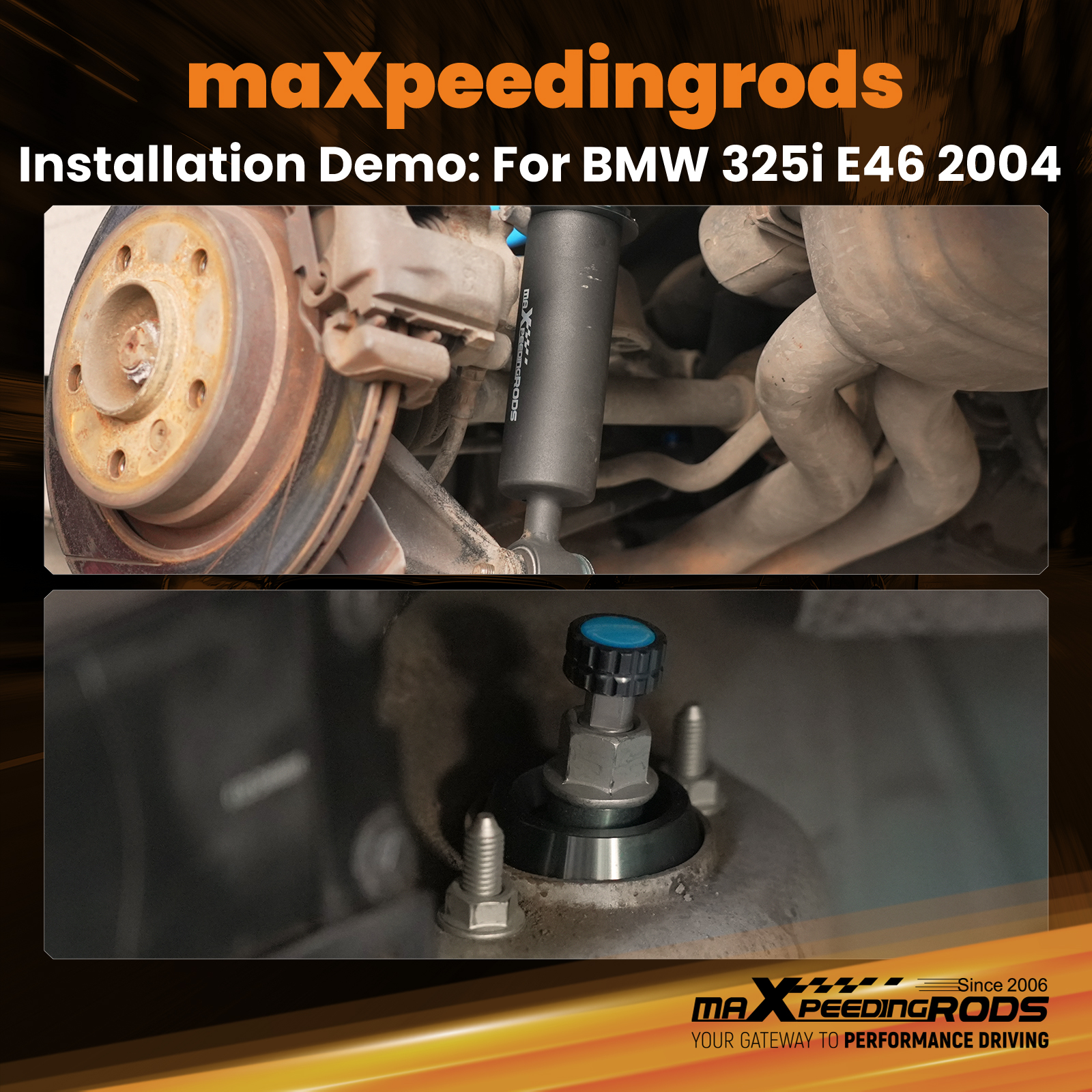

Search for "How to Install Coilover for BMW 325ci E46 256S531403060 2.5L 1999-2007" on YouTube

Specifications

Adjustable height	lowering 25-75mm depending on the vehicle models
Damping	24 levels rebound damping adjustable
Top mounts	pillow ball
Camber plates	Adjustable (Front Only)
Spring Rate Front	8 kg/mm (448 lbs/in)
Spring Rate Rear	7 kg/mm (392 lbs/in)
Front spring inner diameter	70.5 mm
Rear spring inner diameter	63-69 mm
Spring length	180 mm
Spring Preload	7-10 mm
Shock type	Twin tube
Warranty	2 years

Fitment

For BMW 3 E46 Sedan (02/1998-04/2005)

316i 318i 320i 323i 325i 328i 330i 318d 320d 330d

For BMW 3 E46 Convertible (04/2000-12/2007)

318Ci 320Ci 323Ci 325Ci 330Ci 320Cd 330Cd

For BMW 3 E46 Coupe (02/1999-12/2006)

316Ci 318Ci 320Ci 323Ci 325Ci 328Ci 330Ci 320Cd 330Cd

For BMW 3 E46 Touring (10/1999-05/2005)

316i 318i 320i 323i 325i 328i 330i 330d 318d 320d

not for Xi/xd 4 wheel drive
OE shims need to be installed on the rear eye bolt bushings

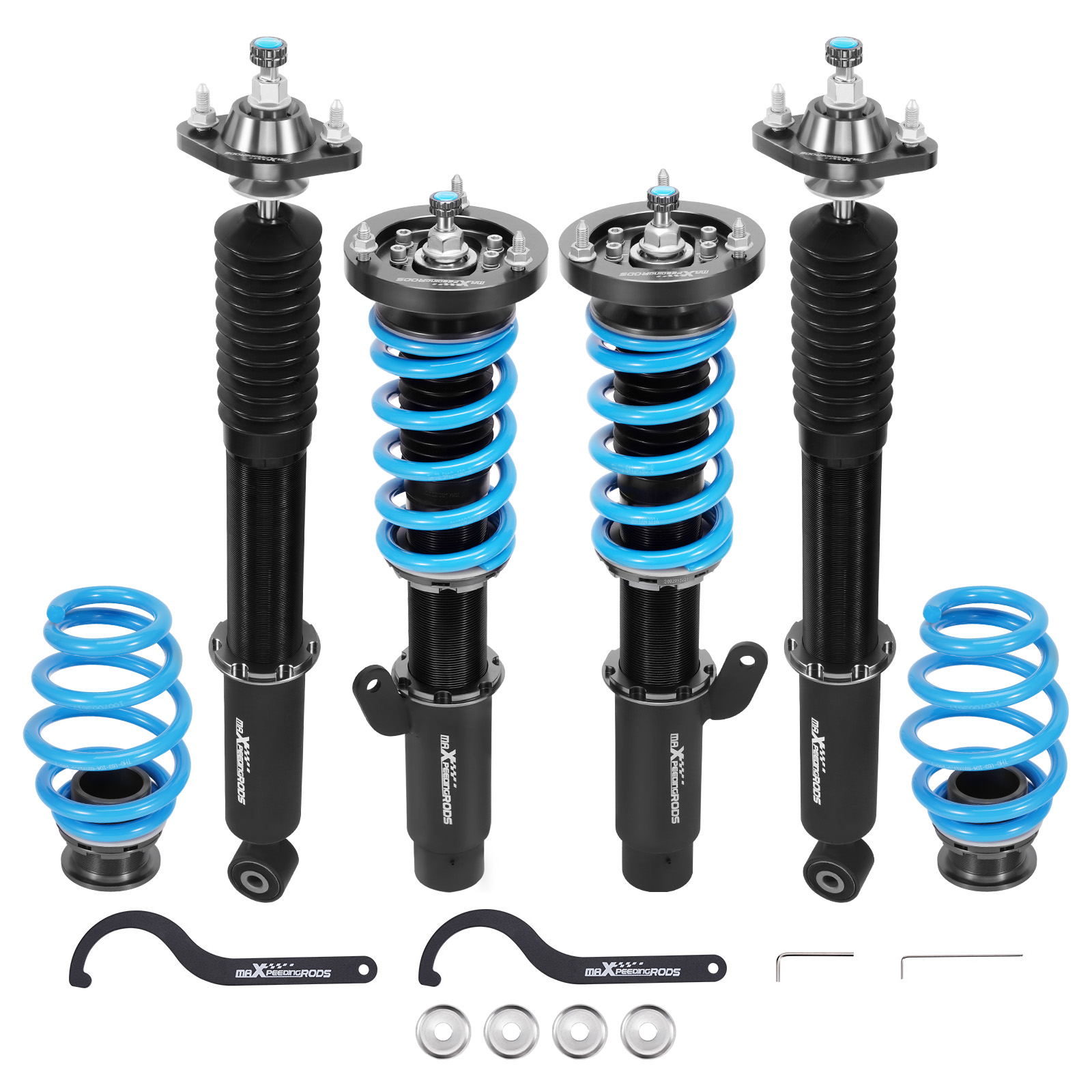

Packing List

2x front coilovers

2x rear coilovers

2x c spanners

2x allen wrench

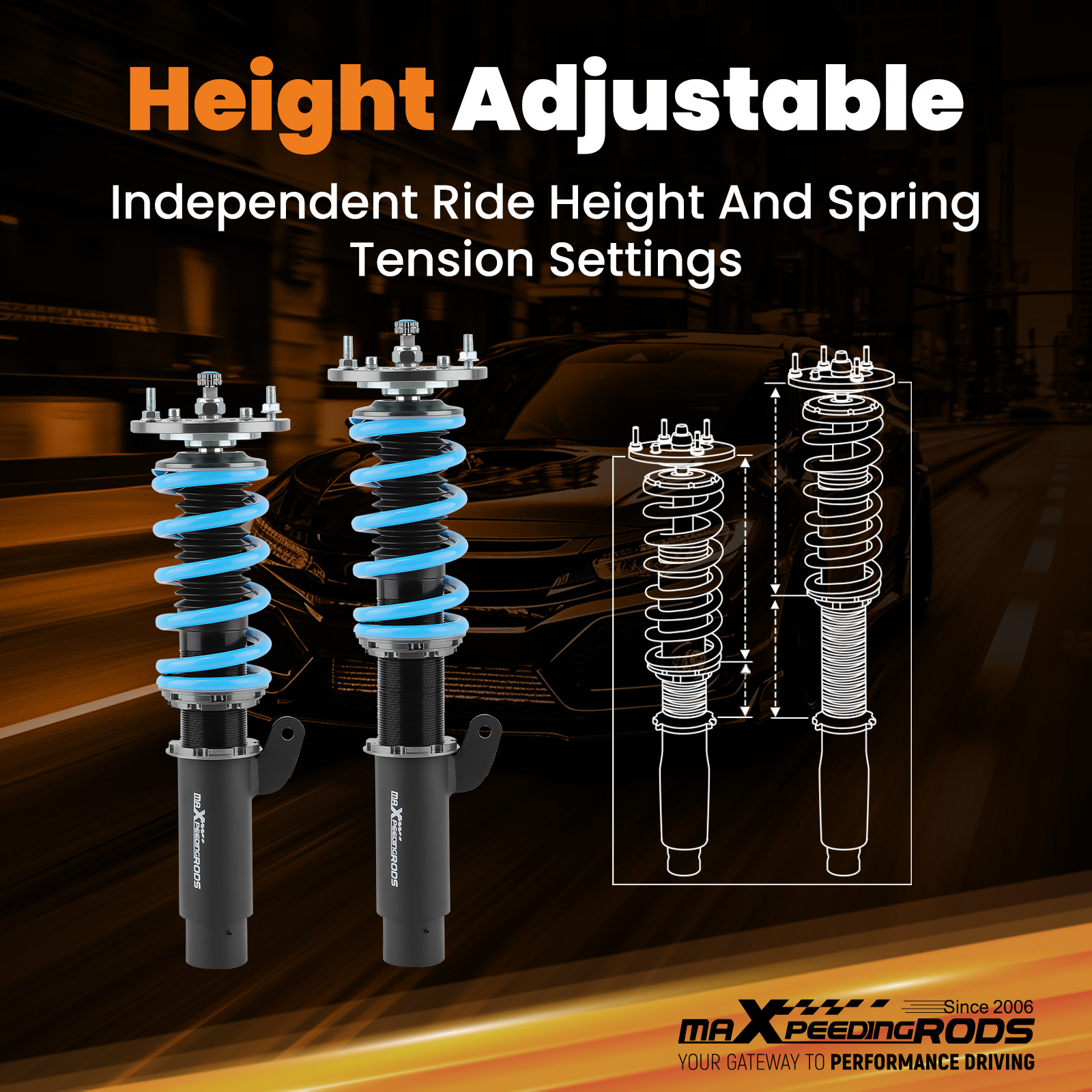

Adjustable Ride Height

lowering 25-75mm depending on the vehicle models

Height adjustment via bottom mount to retain full damper travel

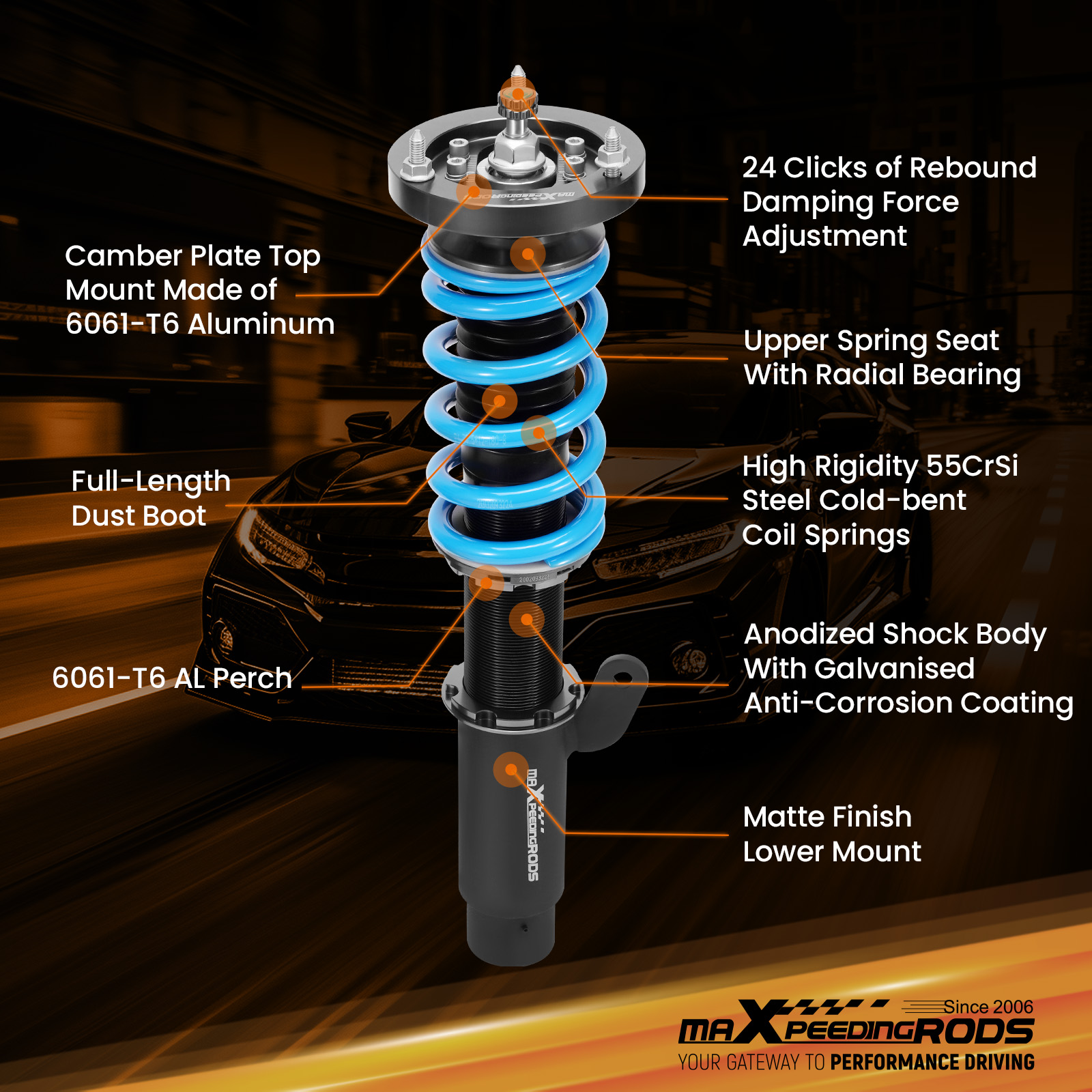

Adjustable Damper

24 levels rebound damping adjustable

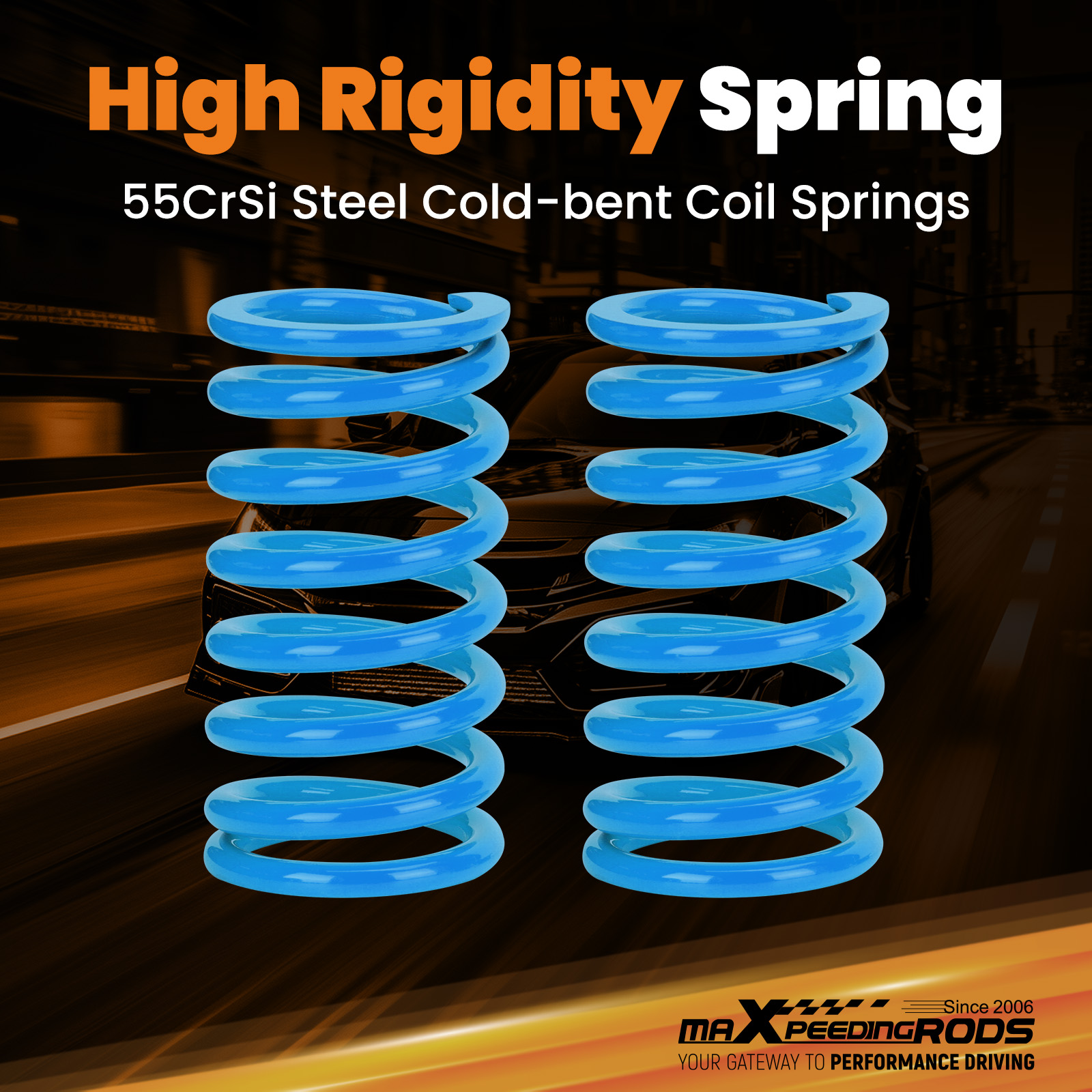

High tensile performance spring

over 600,000 Continuously Stress Test With 0.04% Distortion Rate

Steel shock bodies

with special surface treatment to improve the durability.

Customer Sharing

maXpeedingrods T6 lowering coil-over, standard with adjustable rebound damping, separate height adjustment without changing preload, developed damping oil and upgraded racing springs, adjustable camber plate（for some vehicles), and decent outlook, offers you more ability to tune your suspension on performance and gives your vehicle more impressive appearance. Besides, all our coil-overs are assembled in a dust-free factory, which turns out good quality and long life.

Low price but grate quality

Full-length system allows ride height adjustment with minimal ride changes

24 levels of adjustable damping force-adjust the Softness/Hardness to your preference

Dual-tube system makes street riding more comfortable

Aluminium top plates

High Tensile Performance Spring

Rubber Bump Stops for durability

TPV rubber plastic extended dust cover

Grade 12.9 high strength bolts

Surface anodized treatment (some parts)

Bolt and nut surface: Dacromet, efficient and environmentally friendly

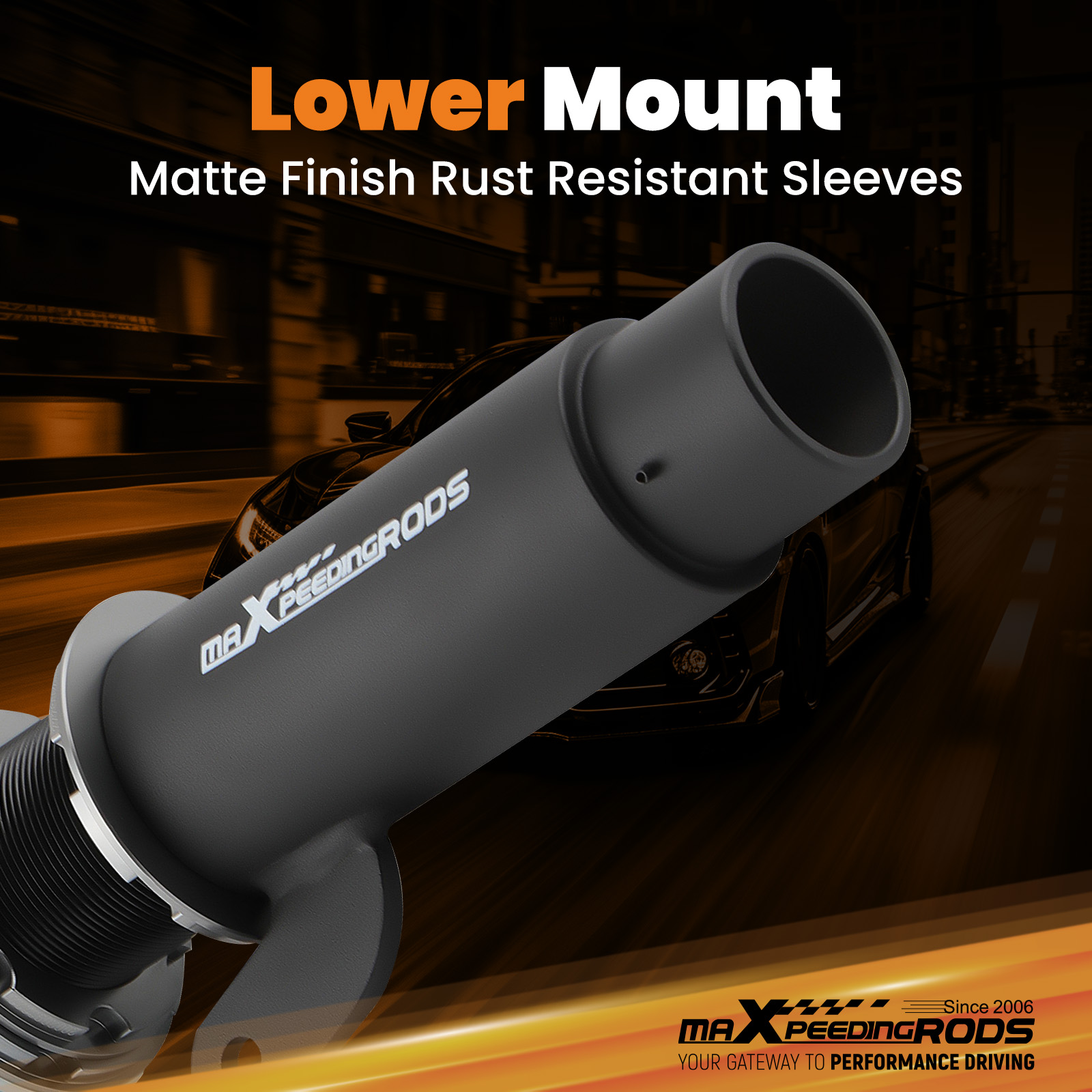

Optimized Sleeve Structure, Matte Surface Treatment---Lower Mount
