SKF TMEA 2 Shaft Alignment Tool
The SKF shaft alignment tool TMEA 2 offers an easy and accurate way of adjusting two units of rotating machinery so that the shafts of the units are in a straight line
Requires no special training to operate
Includes Hard Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
SKF TMEA 2 Shaft Alignment Tool
The TMEA 2 is an easy-to-use shaft alignment tool, which requires no special training to operate. The two measuring units can be easily attached to the shafts using magnetic breaks or chains. Each measuring unit emits a laser line, which is projected on the detector of the other unit.

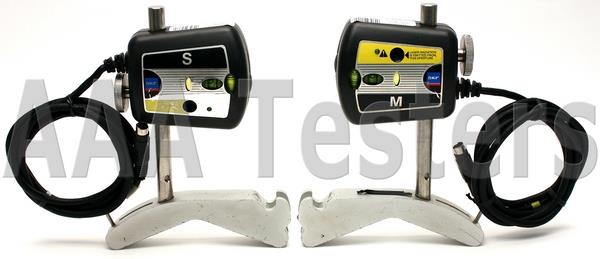

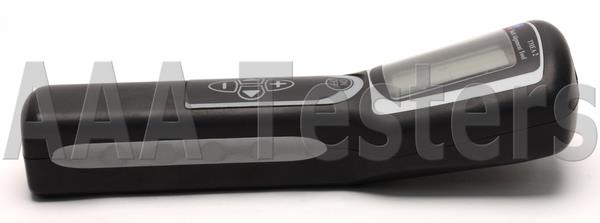

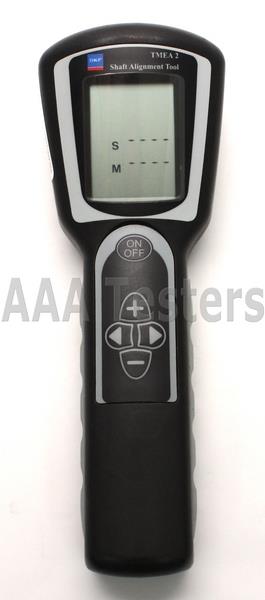

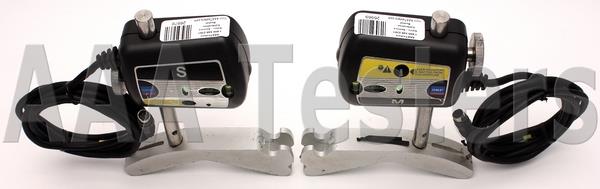

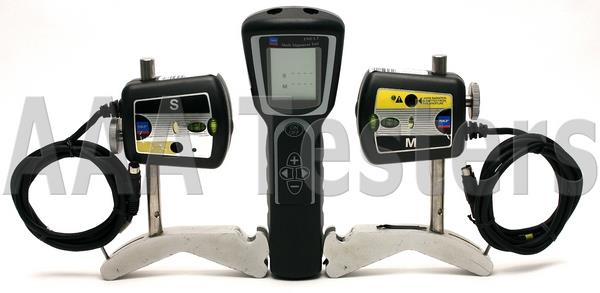

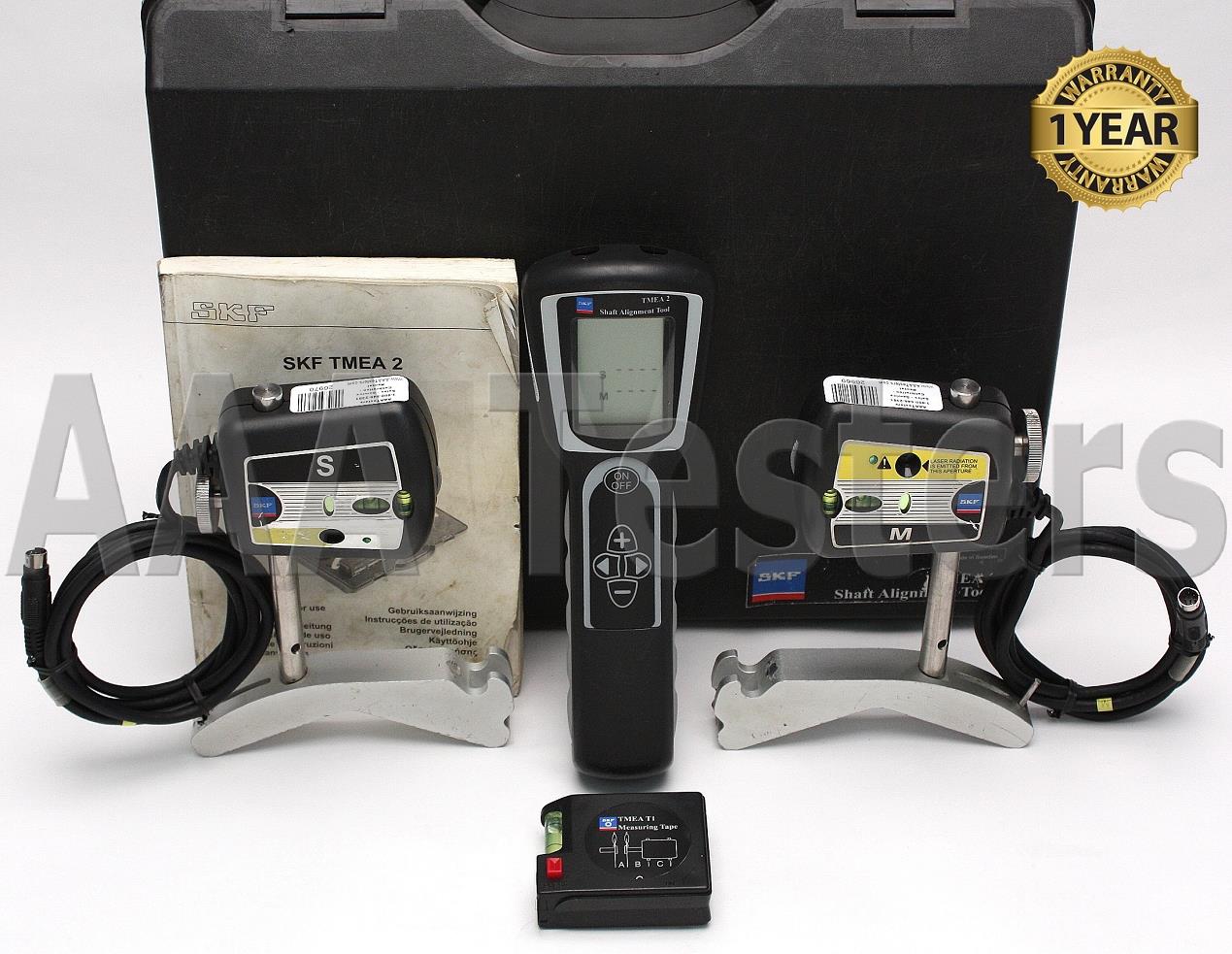

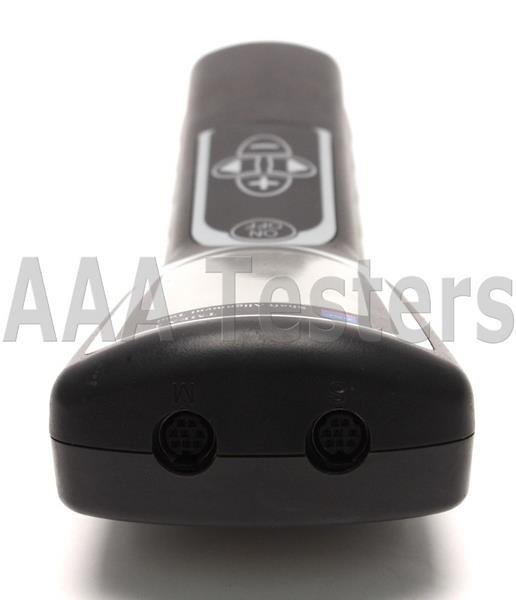

The TMEA 2 consists of two measuring units and a display unit. The measuring units are fitted with magnetic brackets for attachment to the shafts, but can also be attached using chains. Both measuring units emit a laser line, which is projected on the position sensor detector and a line scale on the other unit. The measuring units are also equipped with spirit levels, which allows easy positioning in the 9, 12 and 3 o'clock positions. The display unit is operated using just 5 buttons, including the on/off button and provides clear "real-time" of both coupling and feet values during the alignment process. After measuring shaft misalignment, alignment is easily performed by adjusting the moveable machine(s).
Application:
Perfect alignment of machinery shafts is crucial to prevent premature bearing failure, shaft fatigue, sealing problems and vibrations. It further reduces the risk of over-heating and excessive energy consumption. The SKF shaft alignment tool TMEA 2 offers an easy and accurate way of adjusting two units of rotating machinery so that the shafts of the units are in a straight line.
Features:
- Display unit simultaneously provides clear “real-time” coupling and feet values during alignment process making rechecking of the alignment unnecessary
- The laser and scale lines facilitate easy pre-alignment
- “Soft foot” feature is shown on the digital display, which easily guides the operator through this function
- Display unit can be held using one hand, freeing the operator to perform the alignment
- Magnetic brackets allow easy fixture of the measuring units onto the shaft
- A set of blank alignment reports to help you keep record of your alignment jobs
- Maximum distance of 0,85 m (2.8 ft) between the measuring units brackets

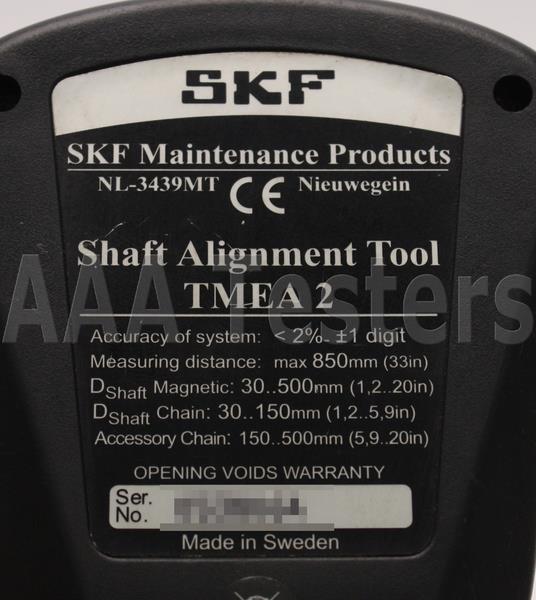

Specifications:
| Measuring units |
| Housing material |
ABS plastic |
| Type of laser |
Diode laser
|
| Laser wave length |
670 - 675 nm |
| Laser class |
2
|
| Maximum laser power |
1 mW |
| Maximum distance between measuring units brackets |
850 mm (2.8 ft) |
| Minimum distance between measuring units brackets |
70 mm (2.7 in) |
| Type of detectors |
Single axis PSD, 8.5 x 0.9 mm (0.3 x .0.04 in) |
| Cable length |
1,6 m (5.2 ft) |
| Dimensions |
87 x 79 x 39 mm (3.4 x 3.1 x 1.5 in) |
| Weight |
210 gram (7.3 oz) |
| Display unit |
| Housing material |
ABS plastic |
| Display type |
LCD 35 x 48 mm (1.4 x 1.9 in) |
| Battery type |
2 x 1,5V LR14 Alkaline |
| Operating time |
20 hours continuous operation |
| Displayed resolution |
0,01 mm (0.1 mil for 'inch' setting) |
| Dimensions |
230 x 81 x 62 mm (9.1 x 3.2 x 2.4 in) |
| Weight |
300 g (10.5 oz) |
| Shims |
Size
|
50 x 50 mm (2.0 x 2.0 in) |
| Thickness |
0.05 - 0.10 - 0.25 - 0.50 - 1.00 mm |
| Slot width |
13 mm |
| Complete system |
| Shaft diameter range |
40 - 500 mm (1.6 - 20 in)
Magnetic: 40-500 mm (1.6 - 20 in)
Chain: 40-150 mm (1.6 - 5.9 in) |
| Accuracy of system |
< 2% / ± 0,01 mm |
| Temperature range |
0 - 40 °C (32 - 104 °F) |
| Operating humidity |
< 90 % |
| Carrying case dimensions |
390 x 340 x 95 mm (15.4 x 13.4 x 3.7 in) |
| Total weight (incl. case) |
3.7 kg (8.1 lb) |
For full SKF TMEA 2 product specifications, please click here: SKF TMEA 2
|
|
|
|
