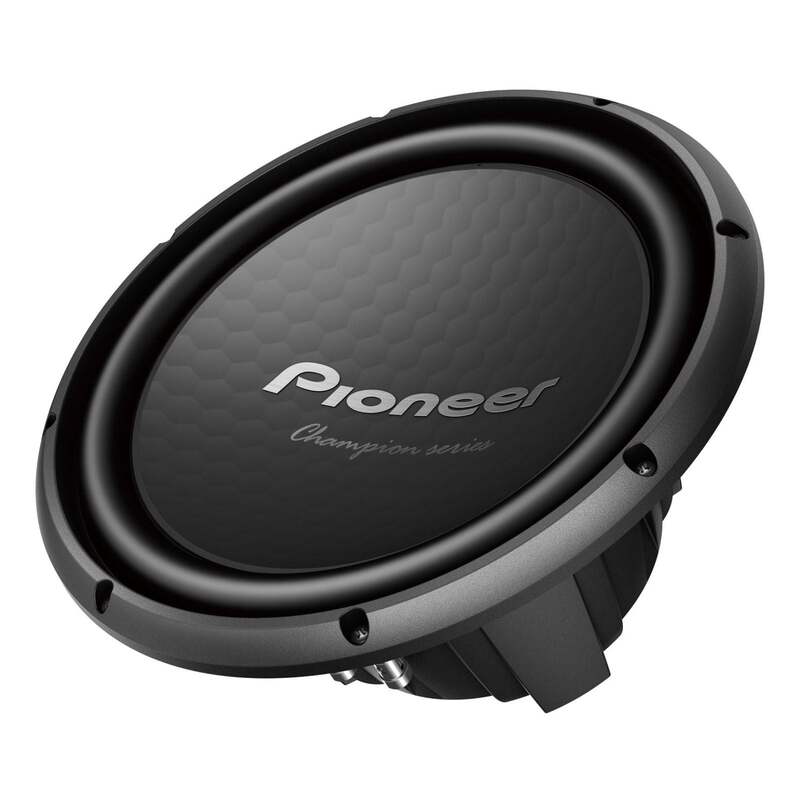

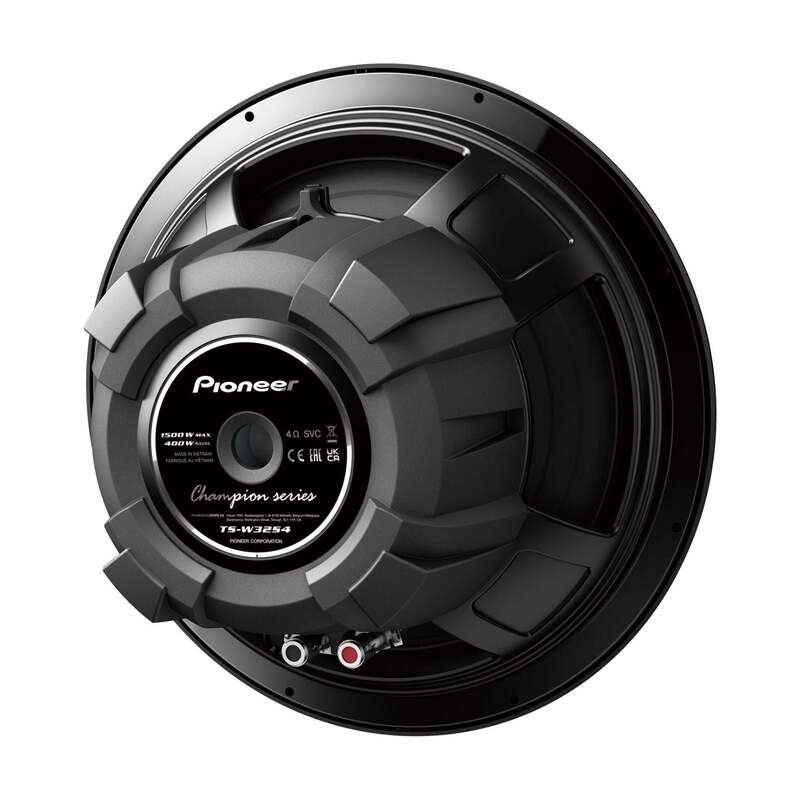

TS-W32S4 Champion Series

30 cm / 12 inch Champion Series Component Subwoofer, 1500 W MAX. 400 W NOM.

Upgrade your sound with powerful bass.

First-class subwoofer: like all Pioneer bass speakers, this subwoofer is characterised by excellent sound and strong performance.

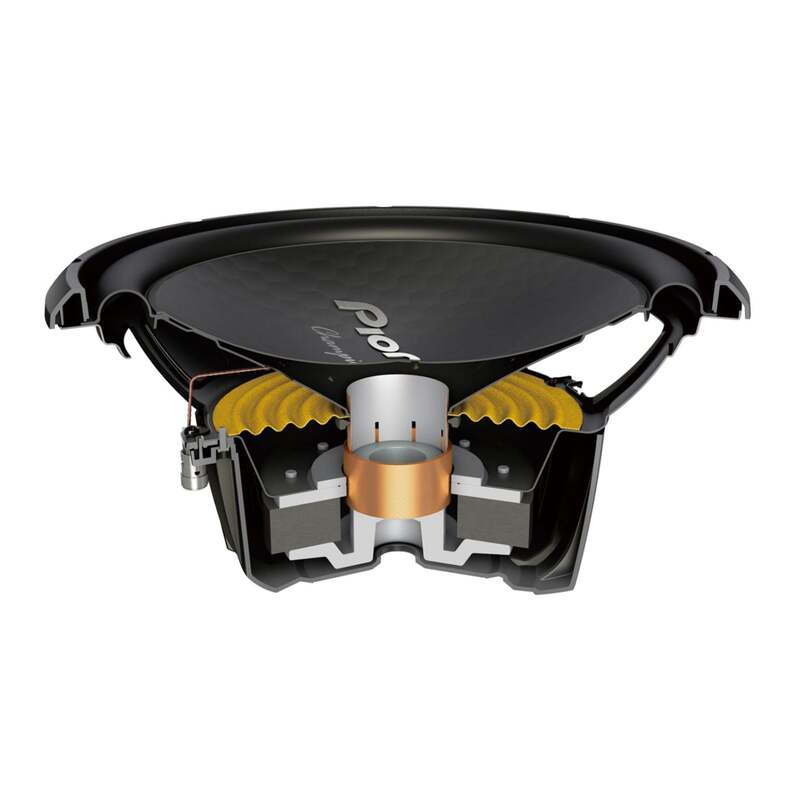

The TS-W32S4 Champion Series subwoofer features a light and rigid seamless cone, which delivers superior reliability, durability and rock solid bass, from it's lightweight yet ultra-rigid structure. All of these combined gives you high power handling and high endurance at high sound pressure levels.

STRONG SOUND

The Champion Series Pioneer subwoofers are solid and compact and designed for heavy loads at high volumes without compromising sound quality.

IMPP Membrane

IMPP membrane provides increased strength and rigidity for optimised bass response.

• Series: Champion Series

• Diameter Size: 30 cm

• Maximum input power: 1500W

• Nominal input power: 400 W

• Frequency response: 22 Hz - 1600 Hz

• Sensitivity: 90 dB

• Impedance: 4 Ω

• Dimensions: 318 mm x 163 mm

• Magnets: Ferrite

• Woofer material: IMPP™
• Cut-out Hole: 281 mm

• Mounting Depth: 146 mm

• Recommended Enclosure (ft³/litre): 1.25 / 35.4

• Speaker Grill: Not Included

• Weight: 3.76 kg

• Subwoofer Type: Component Subwoofer

• Pioneer TS-W32S4
