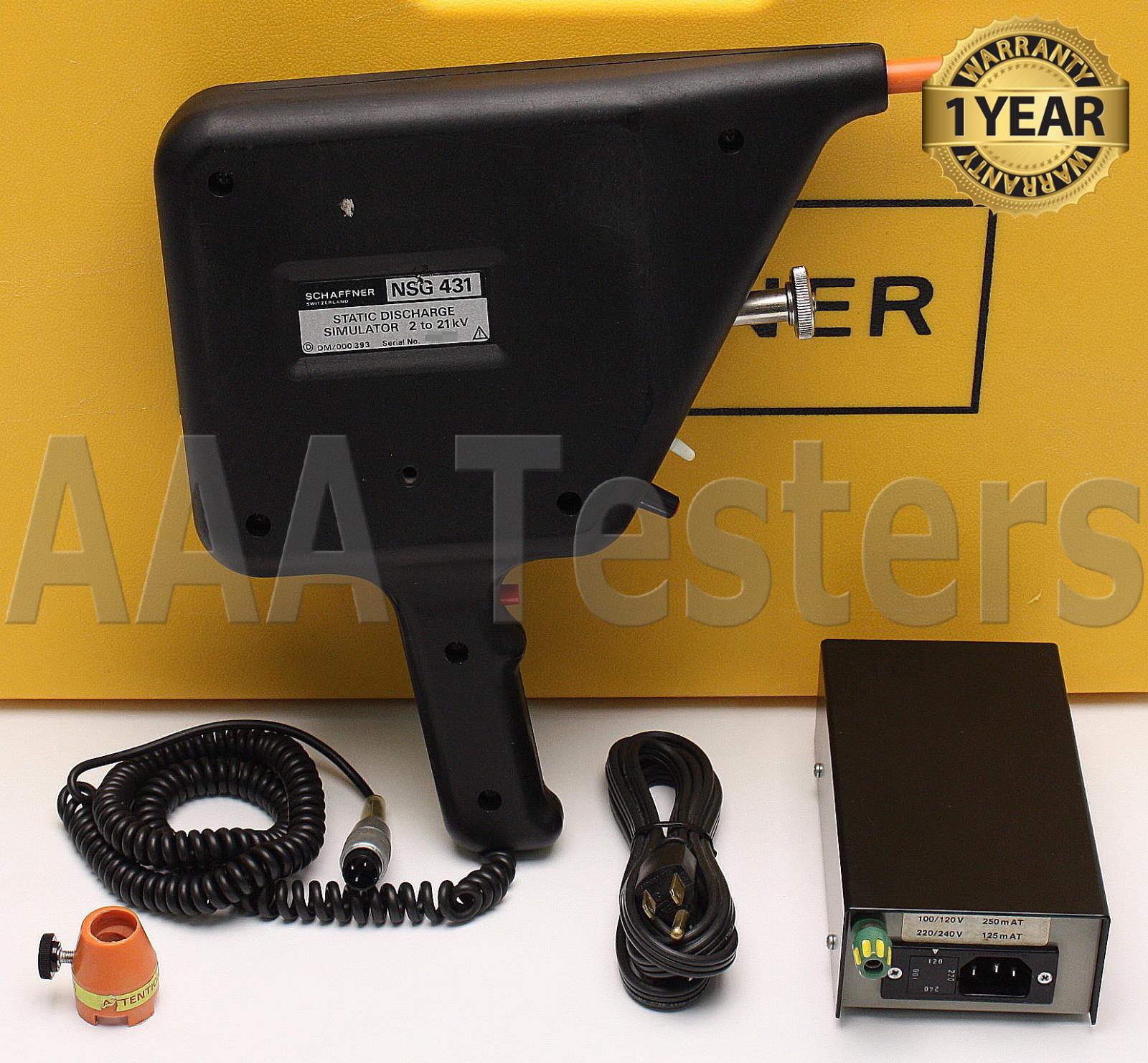

The Following Items Are Included:

  • Schaffner NSG 431 Electrostatic Discharge Simulator 2 To 21 kV (BC# 25833-L/T*)

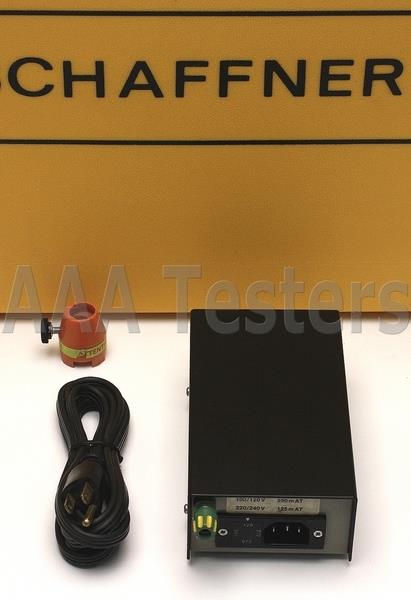

  • Schaffner Distance Ring w/ Adjustment Screw

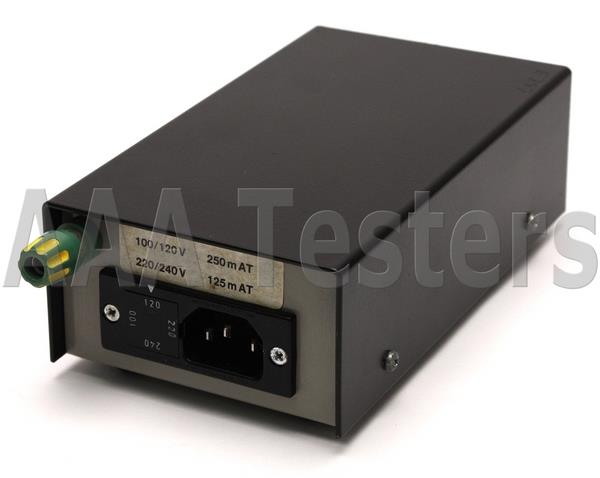

  • AC Adapter/Charger
  • Power Cord
  • Hard Carrying Case


BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS!

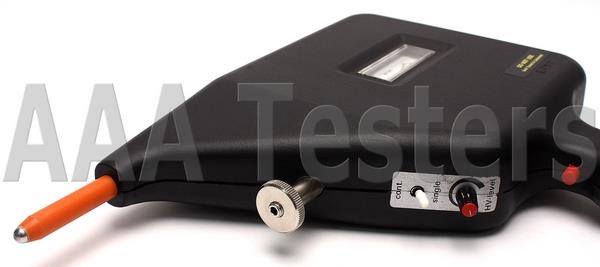

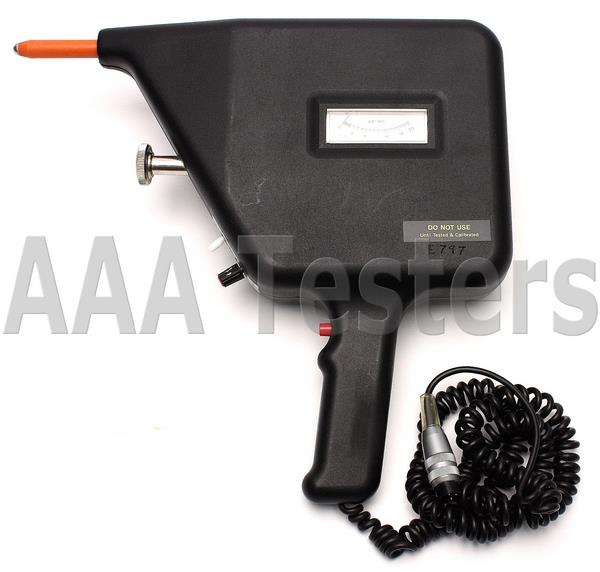

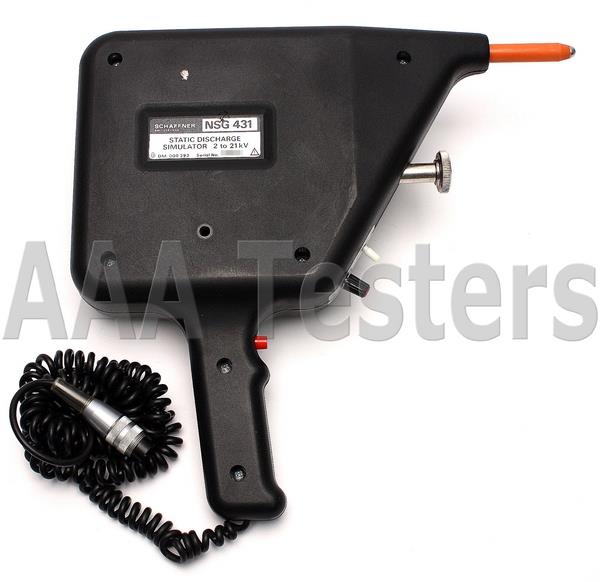

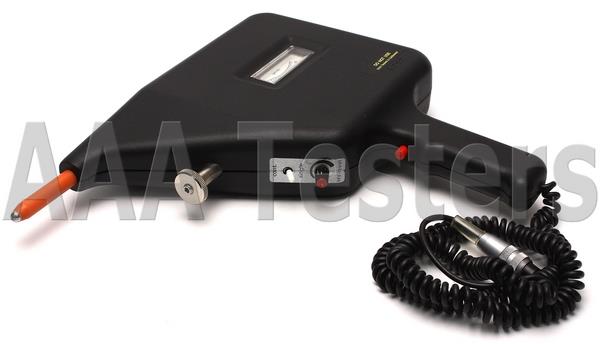

Schaffner NSG 431 Electrostatic Discharge Simulator
2 To 21 kV

The NSG 431 ESD Simulator generates electrostatic discharges of up to 21kv in a defined and reproducible form.

Includes Hard Carrying Case & Accessories As Listed Above!





Working Condition: Excellent
Condition: Refurbished
Warranty: 1 YEAR WARRANTY



 NSG 431 Electrostatic Discharge Simulator 2 TO 21 kV

Features:

* Rise Time: 5ns +/-30% at 2kV
* Discharge voltage: 2 to 21kV
* Polarity: positive - non switchable
* Discharge capacitor Co: 150pF +/-10%
* Discharge resistor Ro: 150 ohms +/-5%
* Mode of operation: single/continuous (20 Hz)
* For testing per IEC 801-2 / 1984


The NSG 431 ESD Simulator generates electrostatic discharges of up to 21kv in a defined and reproducible form . The instrument is modularly constructed so that the wide choice of networks can be easily interchanged . The instrument is hence suitable for testing for conformity with various standards .

Fulfils standards such as 1EC, ANSI-IEEE, VIDE, NAMAR, MIL and SAE.


TECHNICAL DATA


Discharge voltage U 2kV to 21 kV 1 100%
Rise Time 5 ns !:30% at 2kV
Half amplitude width
30 ns "_30°6 at 2kV
Polarity positive
Discharge condenser C 150 pF * ± .10%
Discharge resistance R 150 ohm * t 5%
Repetition frequency approx . 1 OHz Uc = 99%
Source resistance HV Generator
 150 M.cz. ± 10%
Hold time single 5s (Lit) - 10 a)
Supply voltages 100/120/220/240 V AC i 70%  50/60Hz
Power consumption approx . 25 VA
Temperature range 5 - 40C
Humidity 20% - 80001 (not condensing)
Suppression level N (according to VDE 0875)





For full Schaffner NSG 431 ElectroStatic Discharge Simulatr product specifications, please click here: Schaffner NSG 431
