Software Defined Radio AD9363 Dev Board for ZYNQ7020 ZedBoard FMComms3

DESCRIPTION

Features:

* Software-defined radios AD9363 development board, For ZYNQ7020, for Pluto for Communications, for Openwifi, for Zynqsdr.

* This development board is for ideal if you plan to use Zedboard + FMComms3 for learning and project development.

* Uses XC7Z020-2CLG400I chip (7Z020-2I)

* Uses AD9363 chip, replacing AD9361, with a for frequency range of 70MHz~6GHz and a maximum sampling rate of 61.44MHz. Current laboratory tests show no significant difference between the two chips.

* 1GB DDR3 32-bit memory, 1066MHz

* 32MB QSPI for Flash, supports TF card

* Onboard for JTAG circuitry and USB-to-serial adapter, allowing for power supply and debugging via a single cable

* Supports USB for OTG, usable as a master or slave device. Employs a Type-C USB interface; for OTG mode automatically identifies and powers on the USB port.

* Uses a VCTCXO with an initial for frequency accuracy of 0.5PPM, supporting and 10MHz external for frequency modulation.

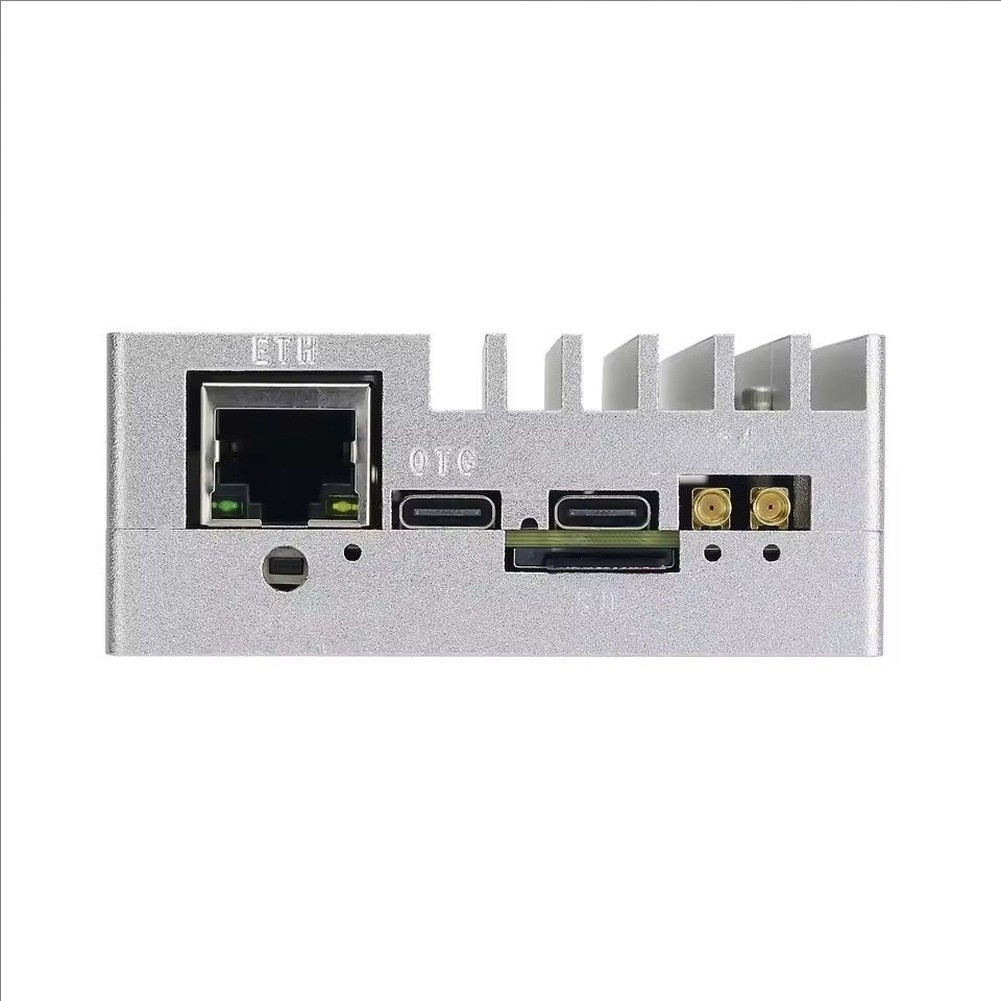

* Gigabit Ethernet interface.

* All power rails in the digital section are designed for 4A, providing ample current; the AD936x is powered by an ADP1755 high-performance LDO to enhance RF performance.

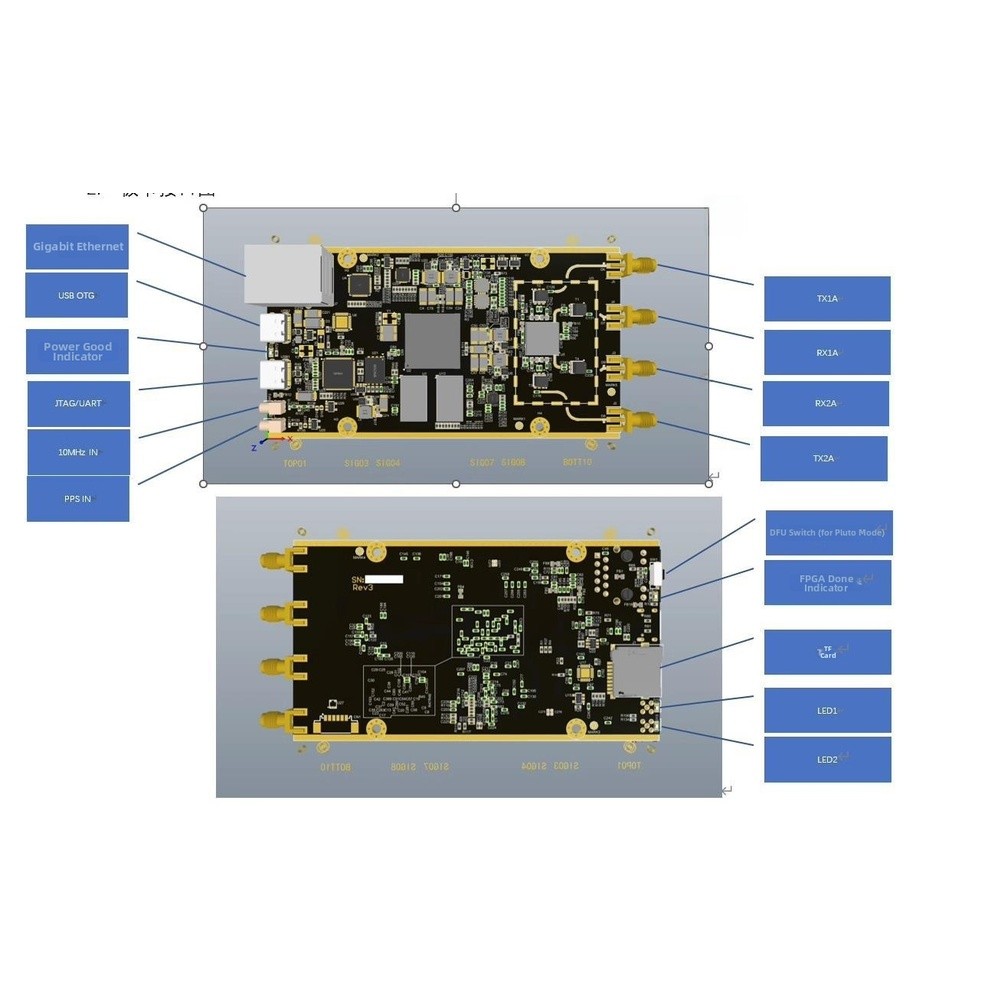

* Utilizes a 10-layer PCB layout with impedance matching and signal integrity design.

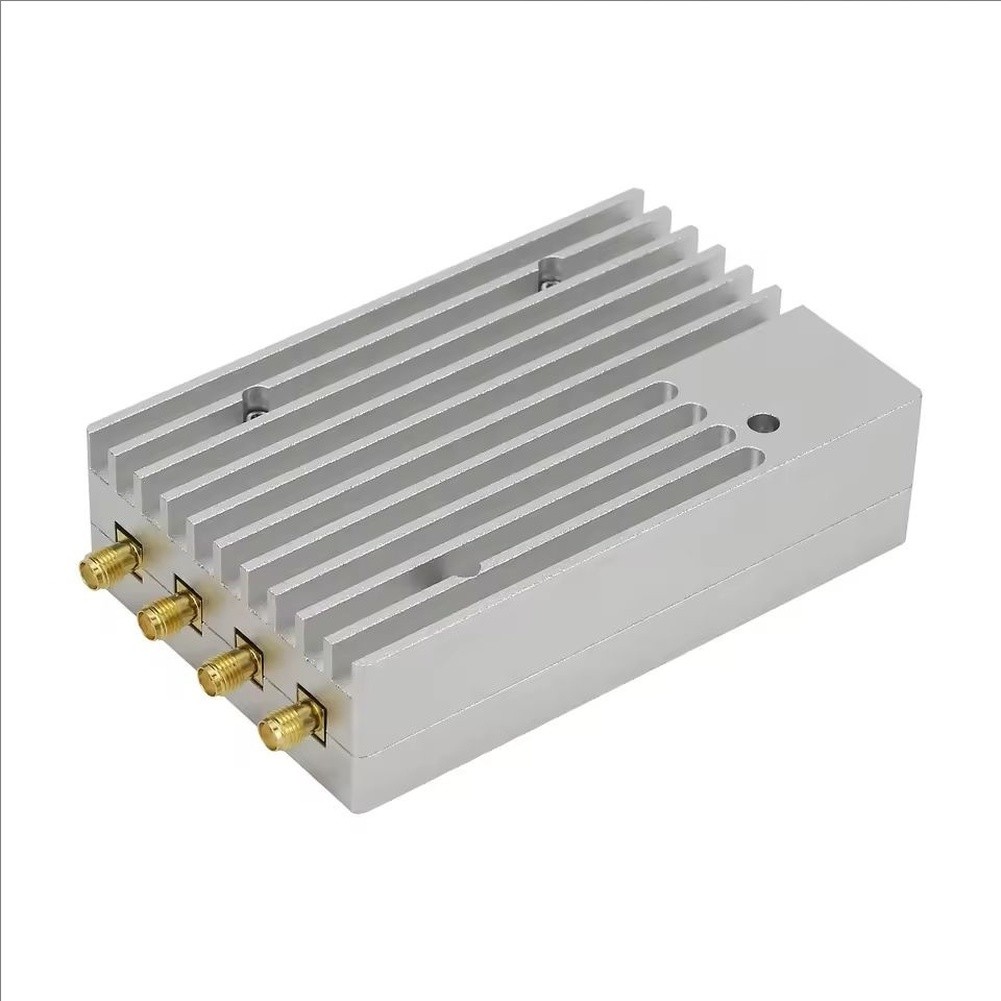

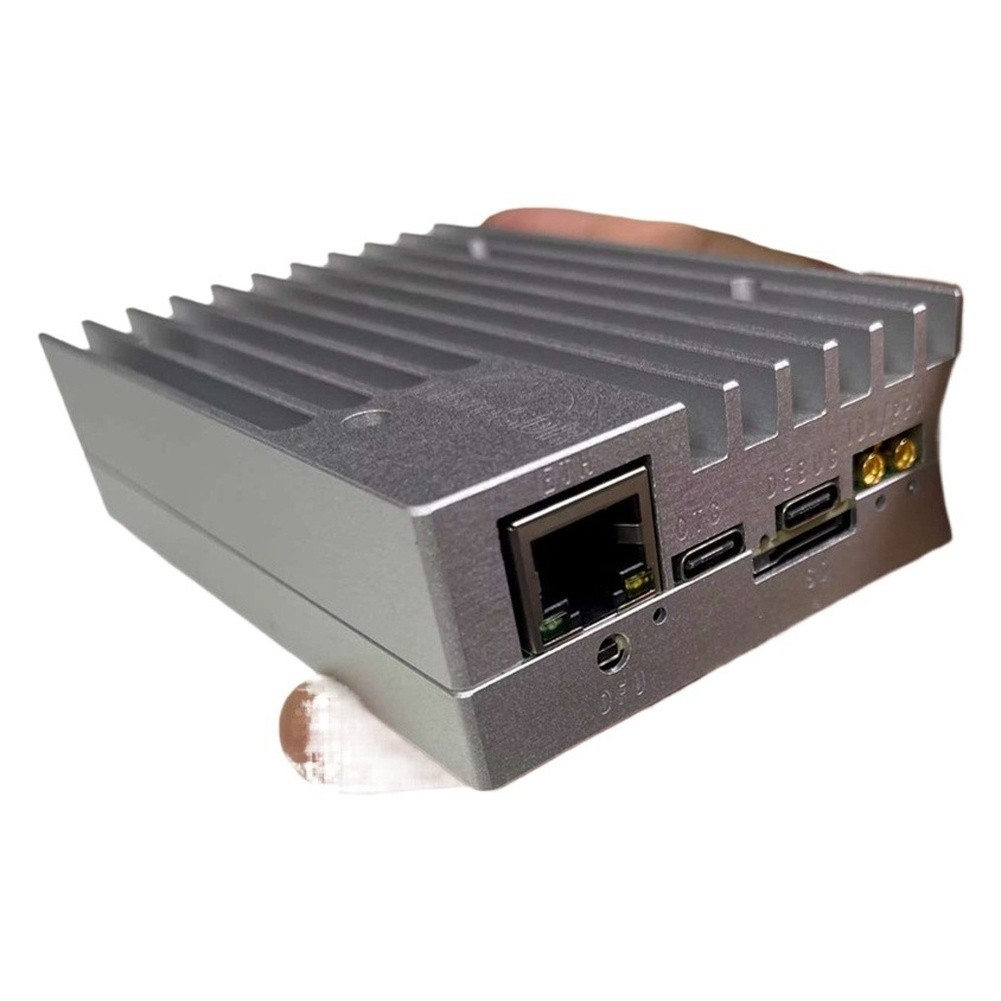

* Employs a CNC -machined housing for enhanced heat dissipation and robustness.

* Ready to use immediately upon power-on. The TF card comes pre-installed with system files; you can start using it by following the introductory tutorial.

Specifications:

Part Name: Radios Development Board

Material: Metal

Color: White

Size: Standard

Package Contents:

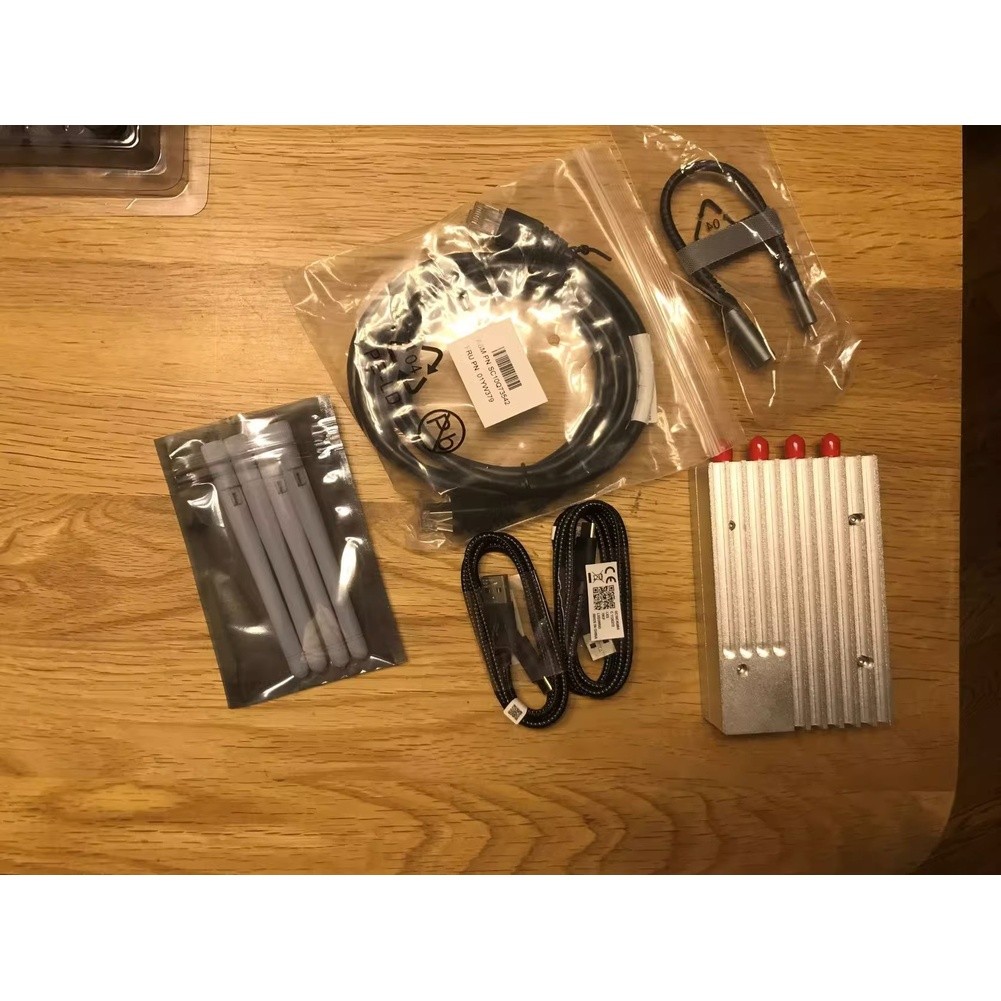

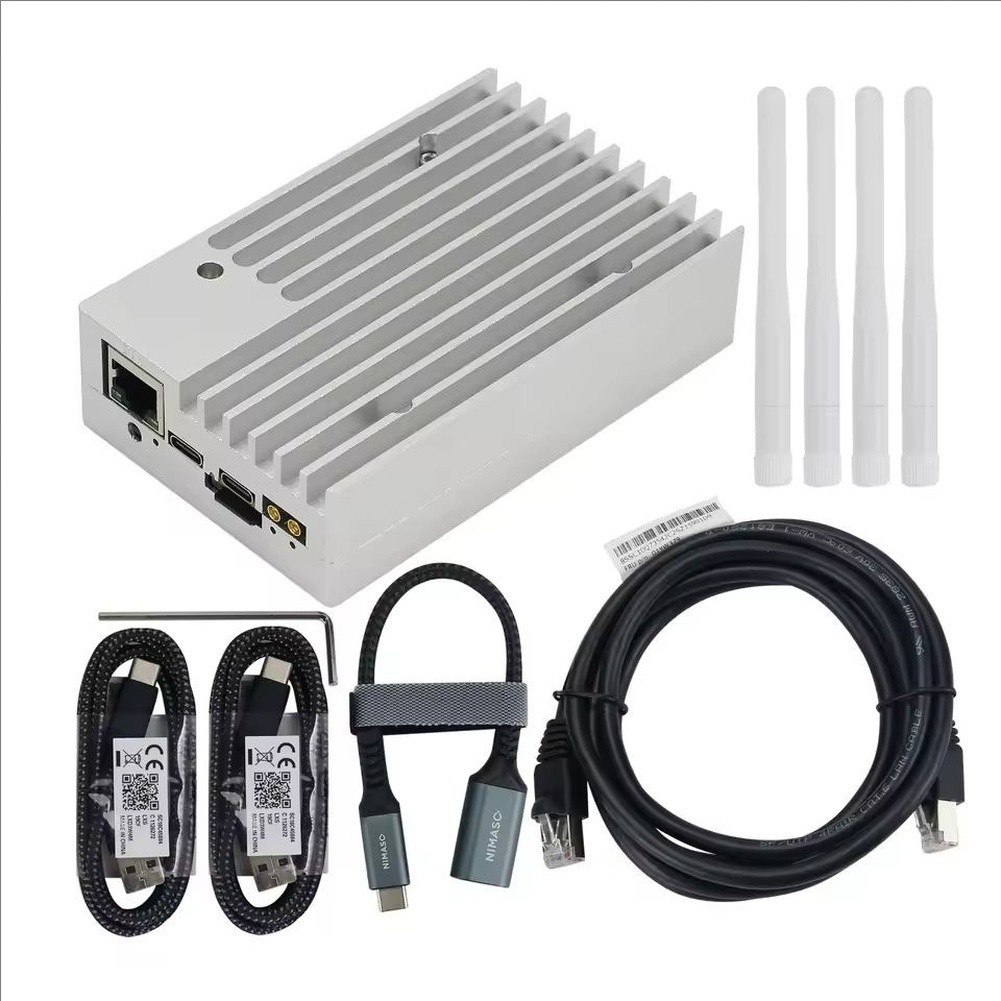

1 set x Radio Development Board Kit
