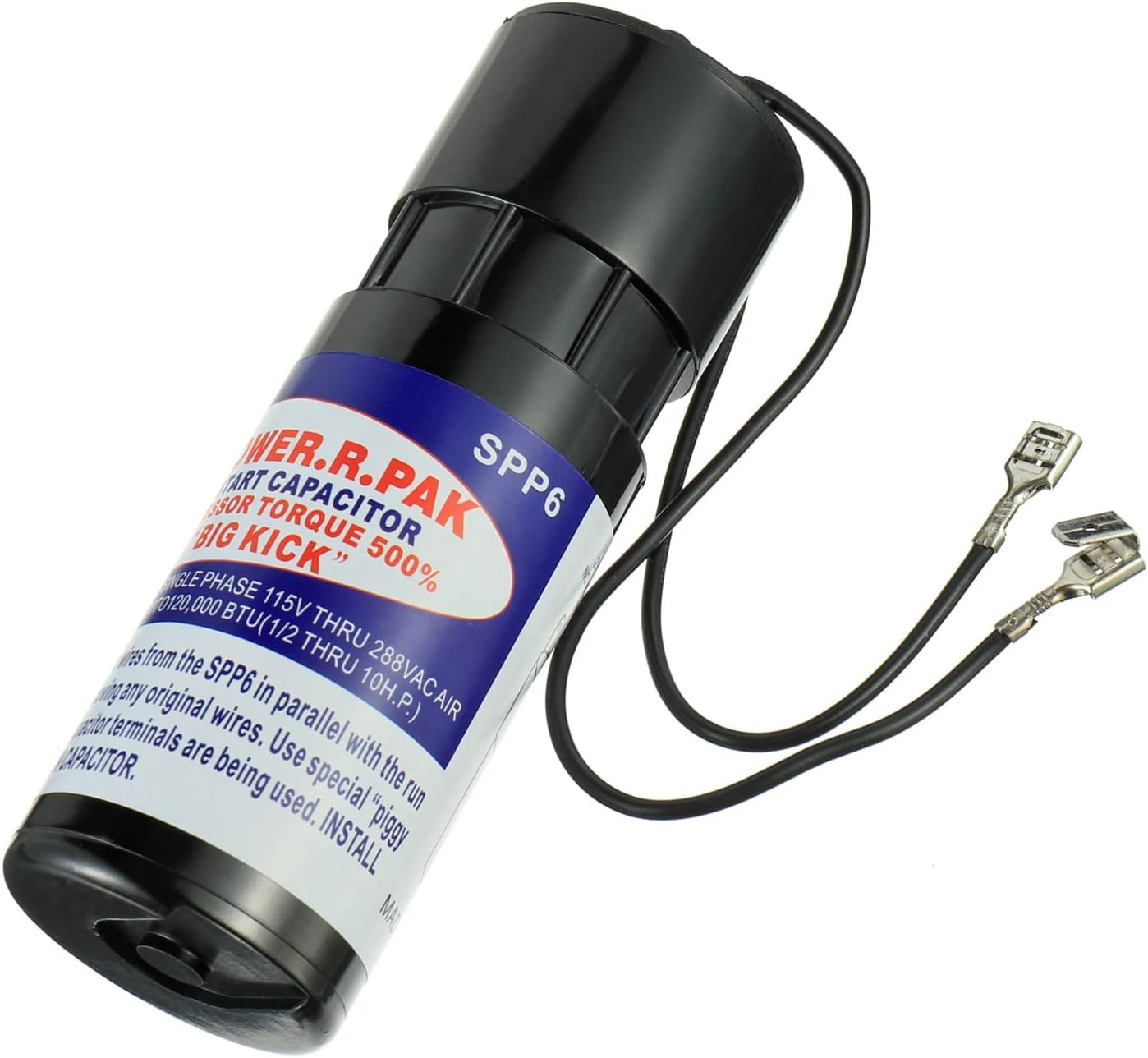

SPP6 Hard Start Capacitor 115-288VAC Increases Compressor Torque 500% AC Units

Description

Item Shape	Rectangular
Operating Voltage	288 Volts
Maximum Voltage	288 Volts
Mounting Type	Surface Mount
Material Type	Aluminum, Ceramic, Metal, Plastic
Part Number	BJ-SPP6
Model	BJ-SPP6
Unit Count	1.0 Count
Item Weight	7.3 Ounces
Included Components	no
Material	Aluminum, Ceramic, Metal, Plastic
Shape	Rectangular

BOJACK SPP6 Hard Start Air Conditioner Relay or Capacitor Kit

The SPP6 is designed for permanent split capacitor single phase air conditioning and heat pump systems.
Starting capacitors are used in single-phase AC motors, air conditioners, refrigerator compressors, etc.
Including relays and starting capacitors to provide 500% starting torque.

If your new or old compressor won't start, try installing this hard-start capacitor before doing anything else.
Starting an air conditioner or heat pump compressor (reciprocating and scroll) requires an extra electrical "shock" to start.
Equipment requiring hard-start capacitors: heat pump or condenser split systems with (TXV) installed.
Old heat pump or condenser that is mechanically stuck and not working.

Installation Notes
Connect the two wires of the SPP6 in parallel with the run capacitor (one wire on each side) without removing any of the original wires.
If all run capacitor terminals are being used, use the SPP6's special "piggyback" terminals.
2-wire connection:The two-wire hard-start kit is connected in parallel with the run capacitor for Permanently Split Capacitor (PSC) type compressors;
and connects to the start and run terminals on the compressor for Capacitor Start Induction Run (CSIR) type compressors. A third connection to the common wire is not required.

Notice:
Check the model number on the compressor (printed on the nameplate on the side of the compressor) to determine the tonnage of the unit.

6000BTU=0.5 tons
12000BTU=1 tons
18000BTU=1.5 tons
and so on.

Package include：
1pcs * SPP6 Hard Start Air Conditioner Relay or Capacitor Kit

• SPP6 compressor hard start boost capacitor can save compressor aging by increasing compressor starting torque by 500%.
• Available for a variety of air conditioner compressors from 4,000 BTU window units to 120000 BTU commercial units.
• The motor starting capacitor and the PTC thermistor are connected in series, there are no loose parts and complicated wiring, only need to be connected in parallel with the running capacitor; the "piggyback" terminal wiring is adopted, which is easy to install on the running capacitor.
• Replacement Part Numbers: TJ90HS6, AP4502872, HS6, HS650, 35702, DST-6, EPP6, HS6, HS650
• Widely used in air conditioner start capacitor, air conditioner soft start, AC hard start kit, AC capacitor, hvac capacitor, hvac hard start kit, etc.
