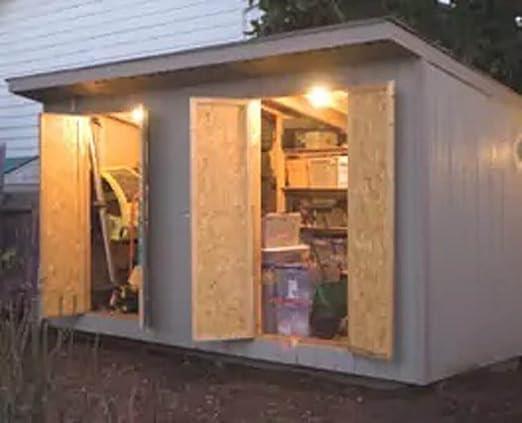

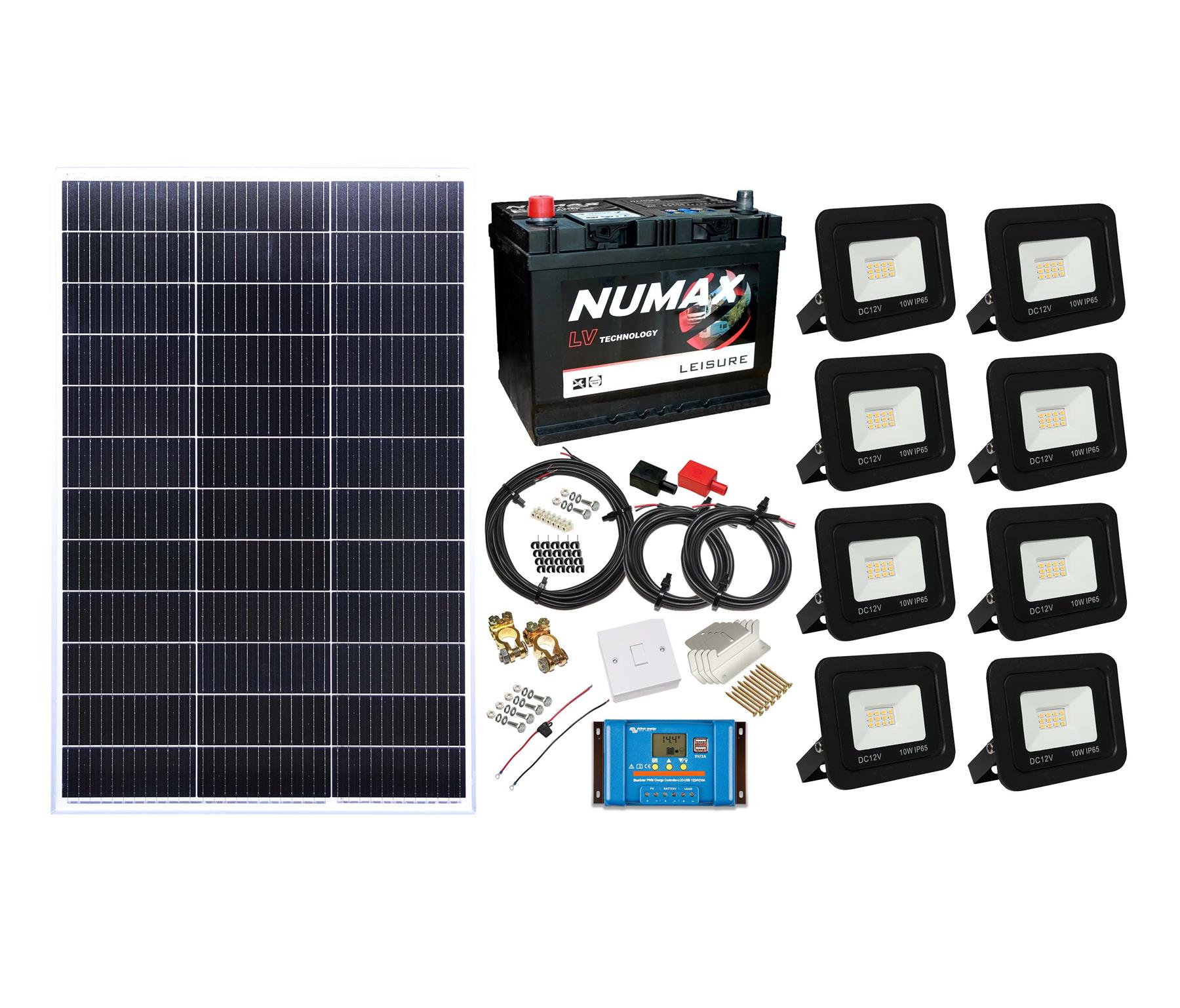

Solar Powered Lighting Kit Sheds Garage Off Grid up to 7hrs per day 8X10w Light

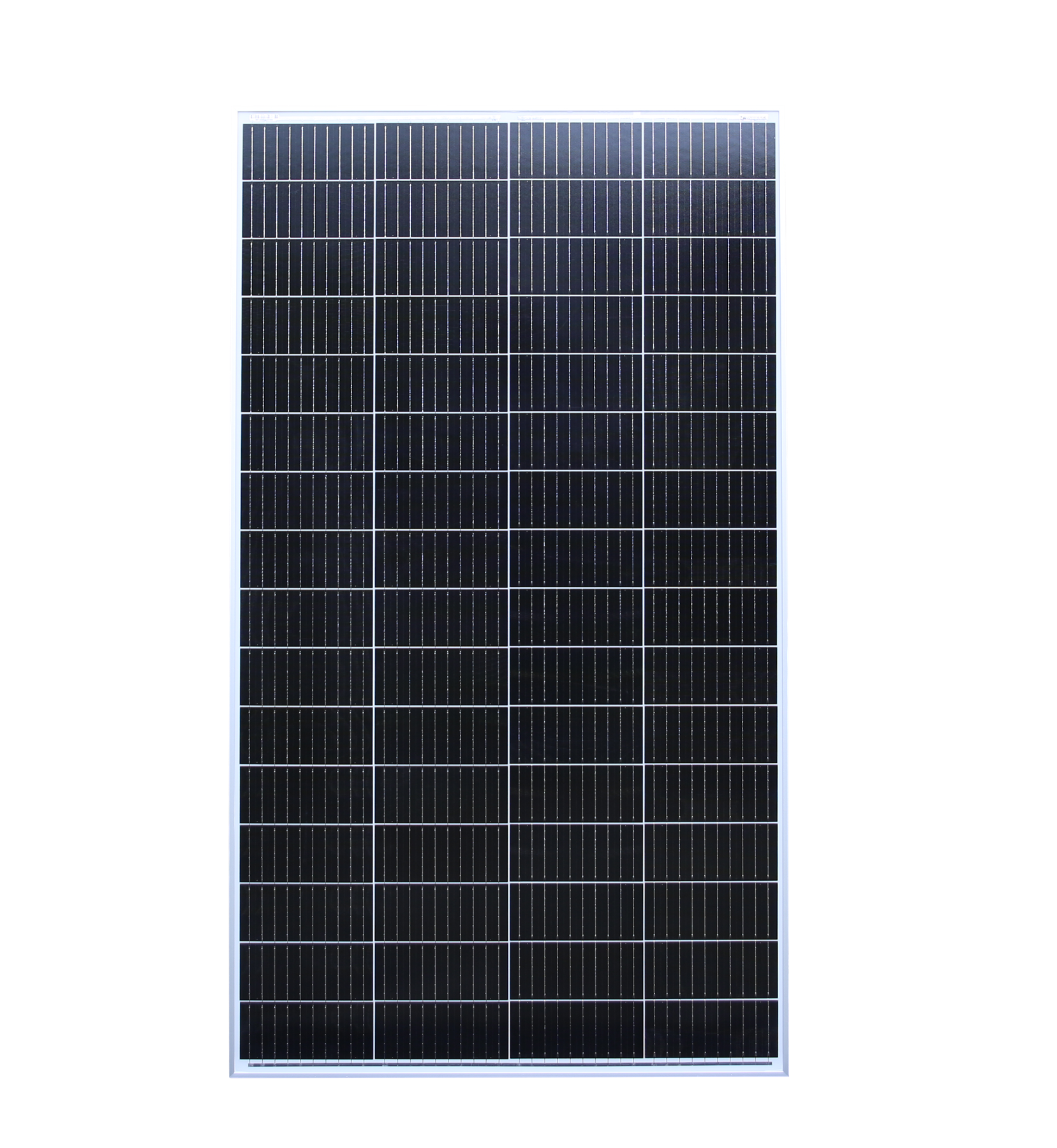

- 1x 150w Monocrystalline quality solar panel
- 1x 100Ah Numax Lead Acid Battery
- 8x 10w LED Floodlights
- 18 x cable connector blocks
- 3m solar panel to charge controller cable
- 1 x 10A Victron Solar battery charger with load output
- 4 x solar panel mounting bracket, for flat roof or wall mounting, incl bolts
- 28 x screws for LED light, panel and light switch mounting
- 46 x cable clips
- Pair of fused battery to solar charger connection cables, with spade fuse
- 2m cable, solar controller load output to light switch
- 1x Light switch and back mounting box
- 18m of cable to supply light fittings
- Battery connection terminals
- Installation Instructions
Operational Information
- Winter up to 2 hours lighting per day, or use up to 7 hours lighting at any one time, battery recharge time from full discharge 4 days.
- Summer up to 7 hours lighting at any one time, battery recharge time from full discharge 1.5 days.

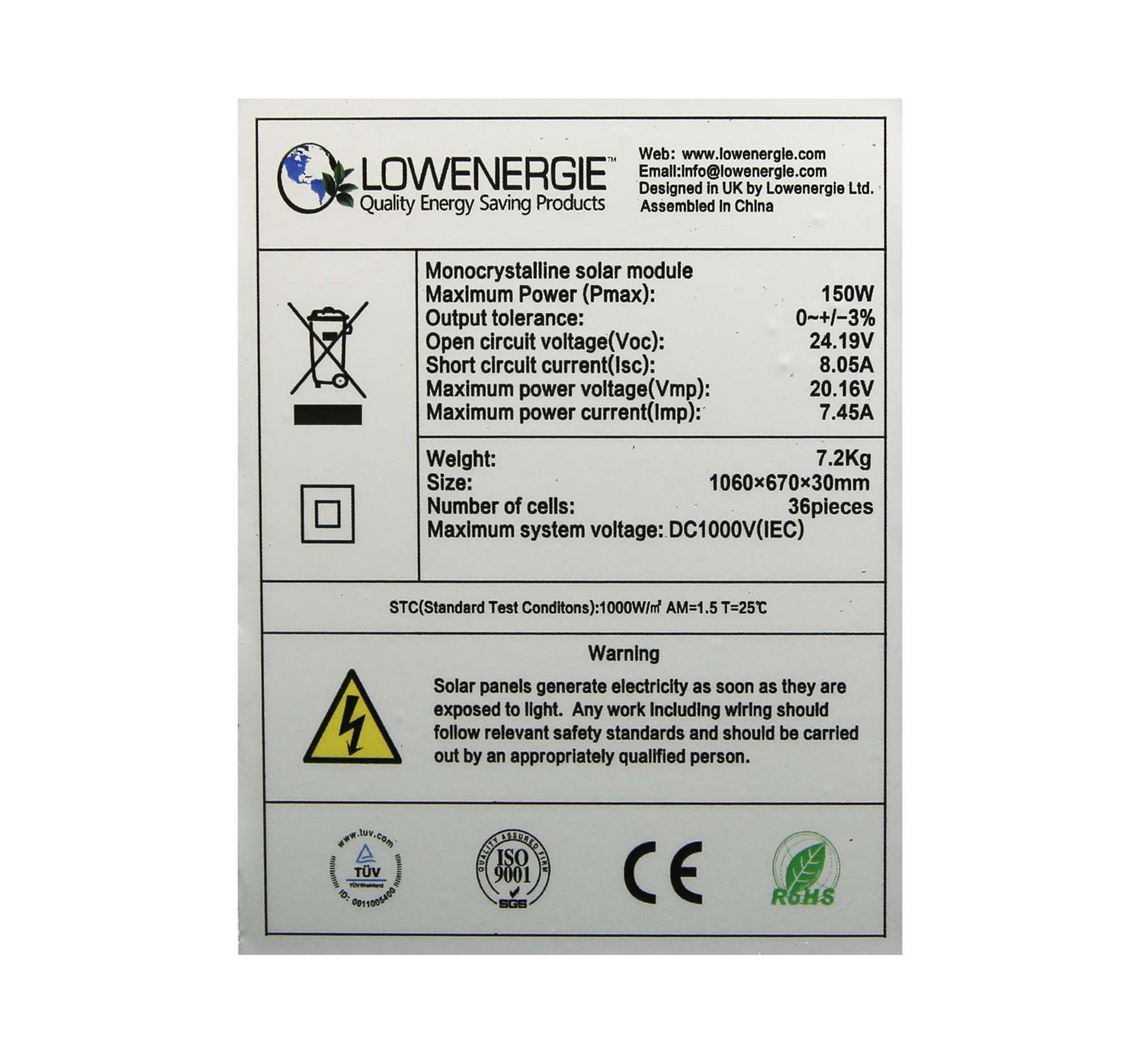

- Maximum Power (Pmax): 150W
- Maximum Power Voltage (VMP): 20.16V
- Maximum Power Current (IMP): 7.45A
- Open Circuit Voltage (VOC): 24.19V
- Short Circuit Current (ISC): 8.05A
- Weight: 7.2KG
- Size: 1060 x 670 x 30mm
- Power Tolerance: +/-3%
- Maximum System Voltage: DC1000V
- Number of cells: 36

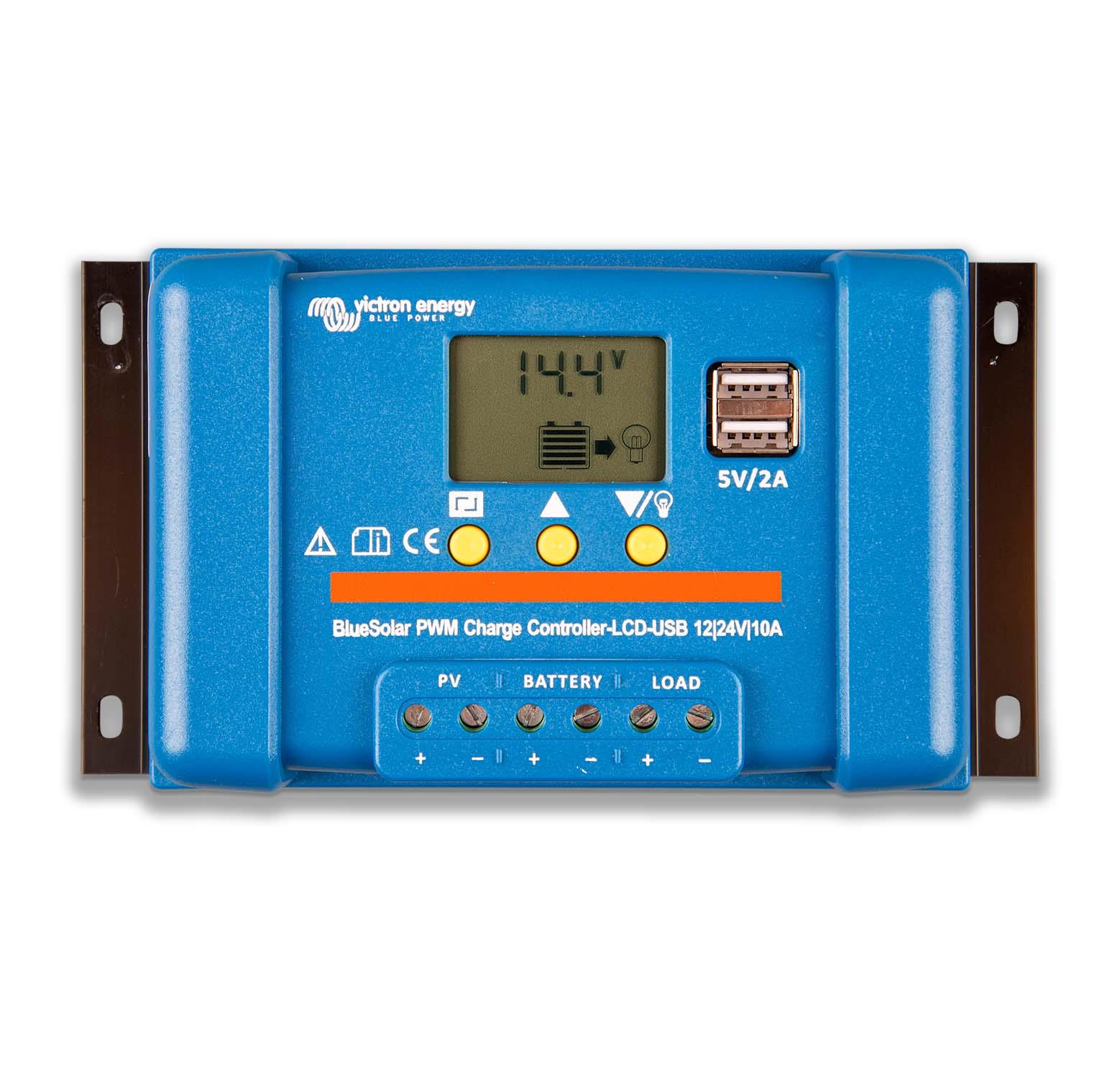

BlueSolar PWM-LCD & USB
- Liquid Crystal Display
- Two 5 Volt USB outputs
- Lighting control function, fully programmable
- Three stage battery charging (bulk, absorption, float), fully programmable
- Load output with low voltage and manual disconnect (programmable)
- Load output protected against over load and short circuit
- Protected against reverse polarity connection of the solar panels and/or battery
Technical Specification
- Charge Controller: 12/24-10
- Battery Voltage 12/24 V
- Rated charge current 10A
- Automatic load disconnect Yes
- Maximum solar voltage 28V / 55V
- Self-consumption < 10 mA
- Load output Manual control + low voltage disconnect +timer
- Protection: Battery reverse polarity (fuse) Output short circuit Over temperature & Overload protection
- Shut down after 60 s in case of 130% load
- Shut down after 5 s in case of 160% load
- Short circuit: immediate shut down
- Grounding Common positive
- Operating temp. range -35 to +60°C (full load)
- Humidity (non-condensing) Max 95%
Battery
- Charge voltage 'absorption' Factory setting: 14,4V / 28,8V
- Charge voltage 'float' (2) Factory setting: 13,7V / 27,4V
- Low voltage load disconnect Factory setting: 11,2V / 22,4V
- Low voltage load reconnect Factory setting: 12,6V / 25,2V
USB
- Voltage 5V
- Current 2A (total from 2 outputs)
Enclosure
- Protection class IP20
- Terminal size 6 mm² / AWG10
- Weight 0,15kg
- Dimensions (h x w x d) 96 x 169 x 36 mm

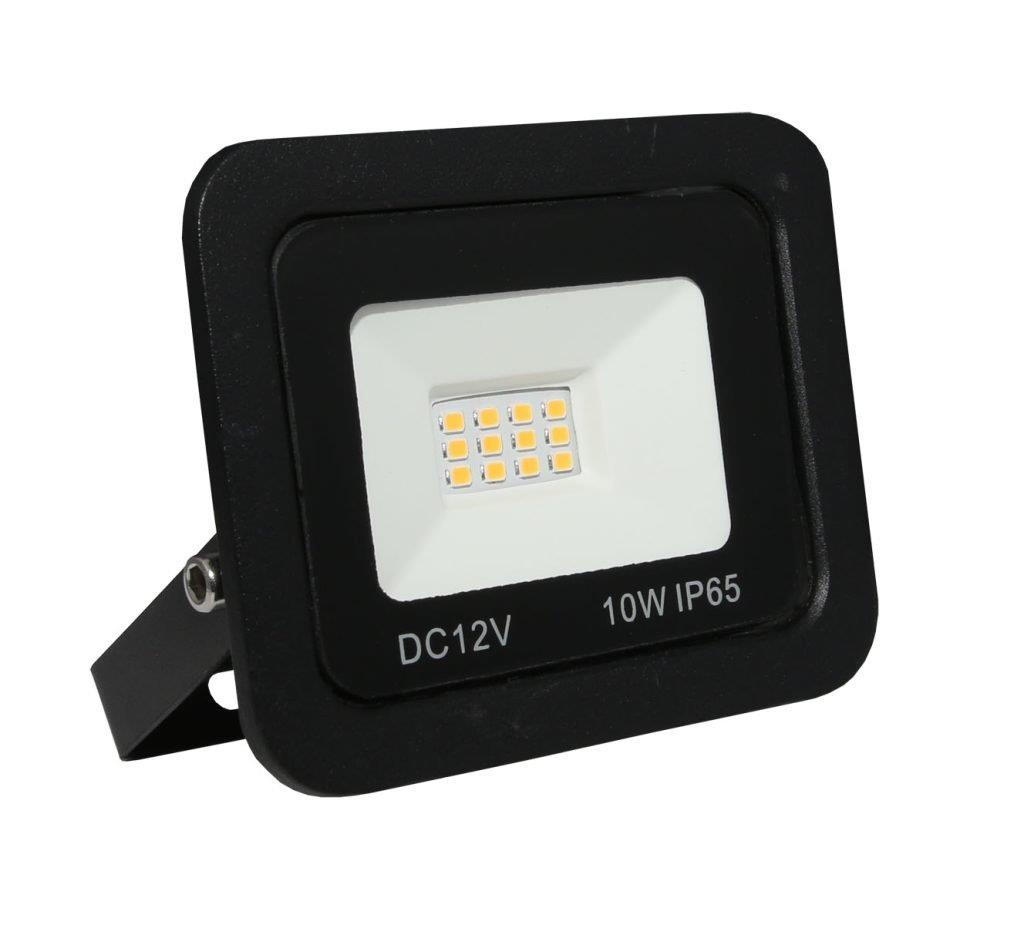

- 12 Volts
- Power: 10W
- Input: DC 12V
- LED Type: SMD
- Material: High Strength Aluminium
- Lumens: 90lm/watt
- Working Temp.: -20° to 50°
- Approx. 200mm connection cable
- Dimensions 103mm x 84mm x 23mm (W x H x D)
