Features:

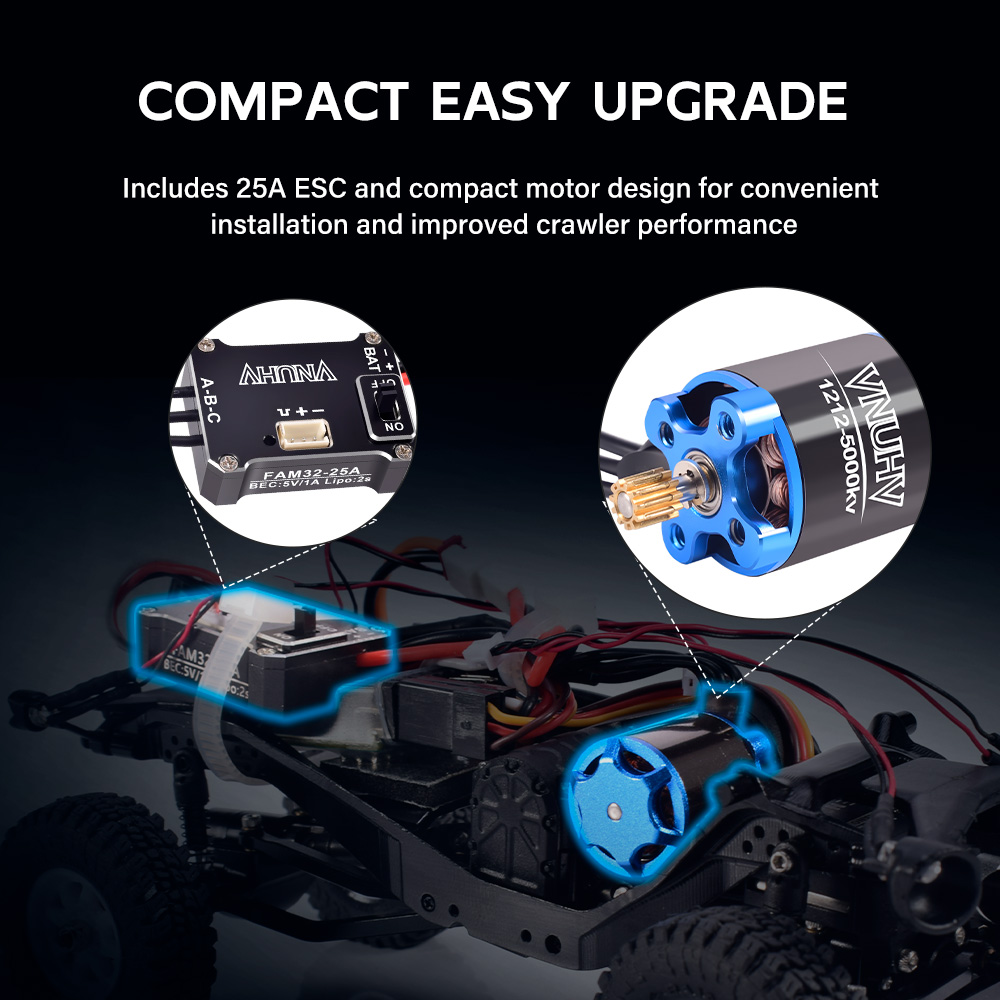

Designed for SCX30 Crawlers
Specially designed for 1/30 SCX30 RC crawler vehicles this brushless combo includes a 25A ESC and 1212 outrunner motor for a compact and convenient upgrade

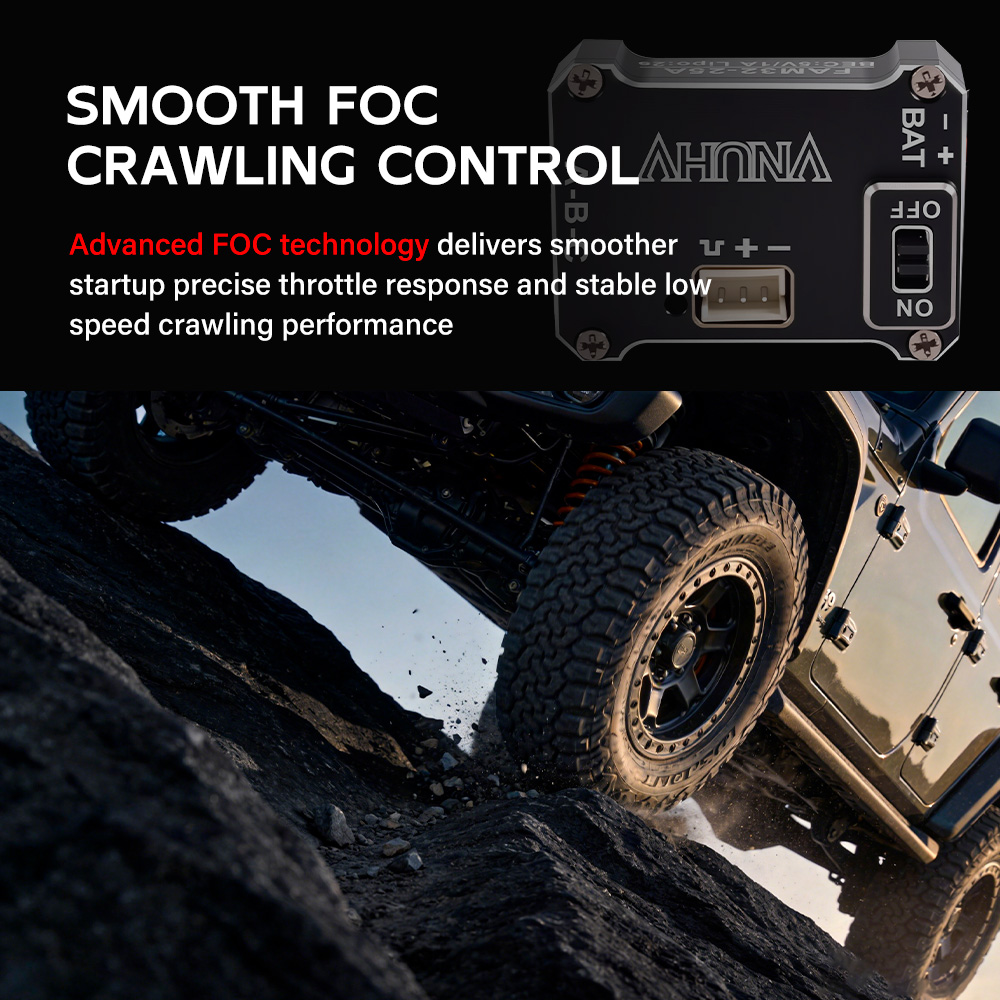

Smooth FOC Crawling Control
Advanced FOC technology delivers smooth startup precise throttle response and strong low speed torque for technical crawling performance

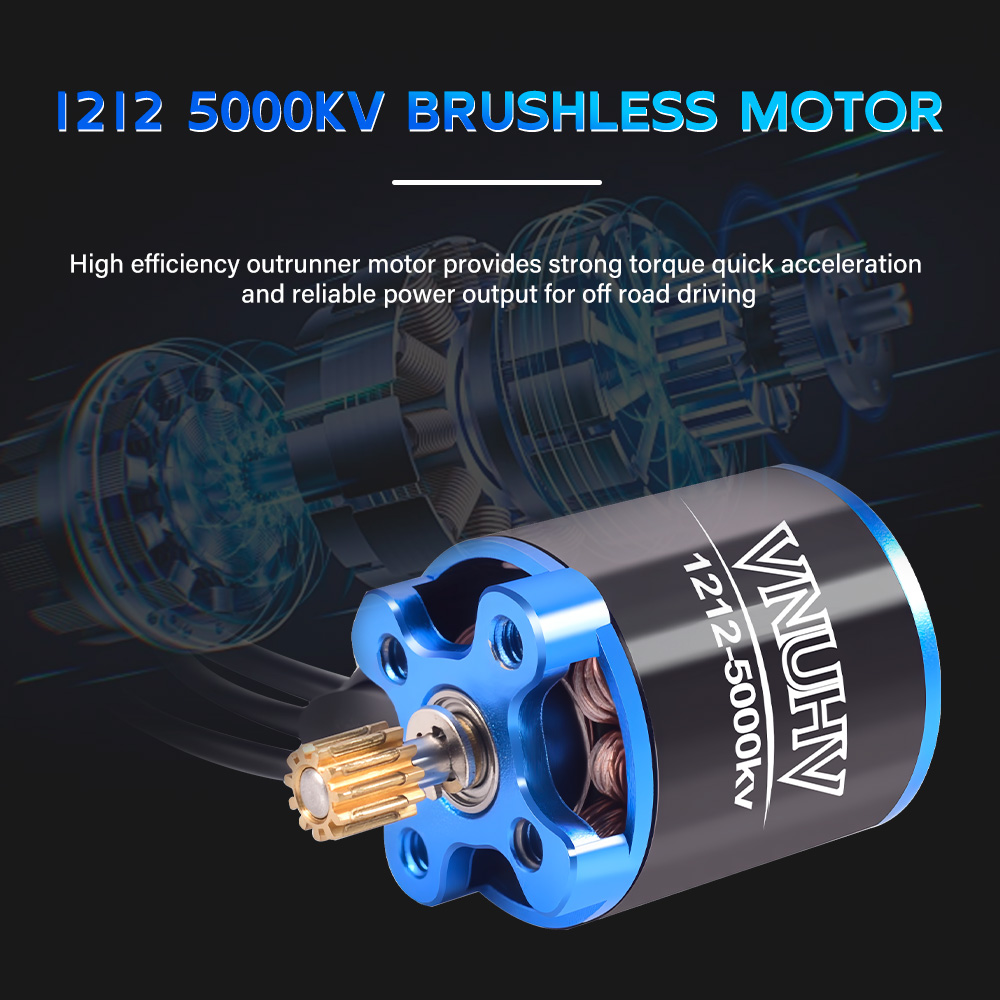

1212 5000KV Brushless Motor
High efficiency 1212 sensorless outrunner motor provides stable power quick acceleration and excellent low speed driving control
Efficient Cooling and Waterproof Design
ESC and motor feature effective heat dissipation and waterproof protection for reliable operation in mud rocks and wet environments
2S LiPo Support with Adjustable BEC
Supports 2S LiPo batteries only and includes a built in adjustable 5V 1A BEC for stable and dependable electronics performance
Description:

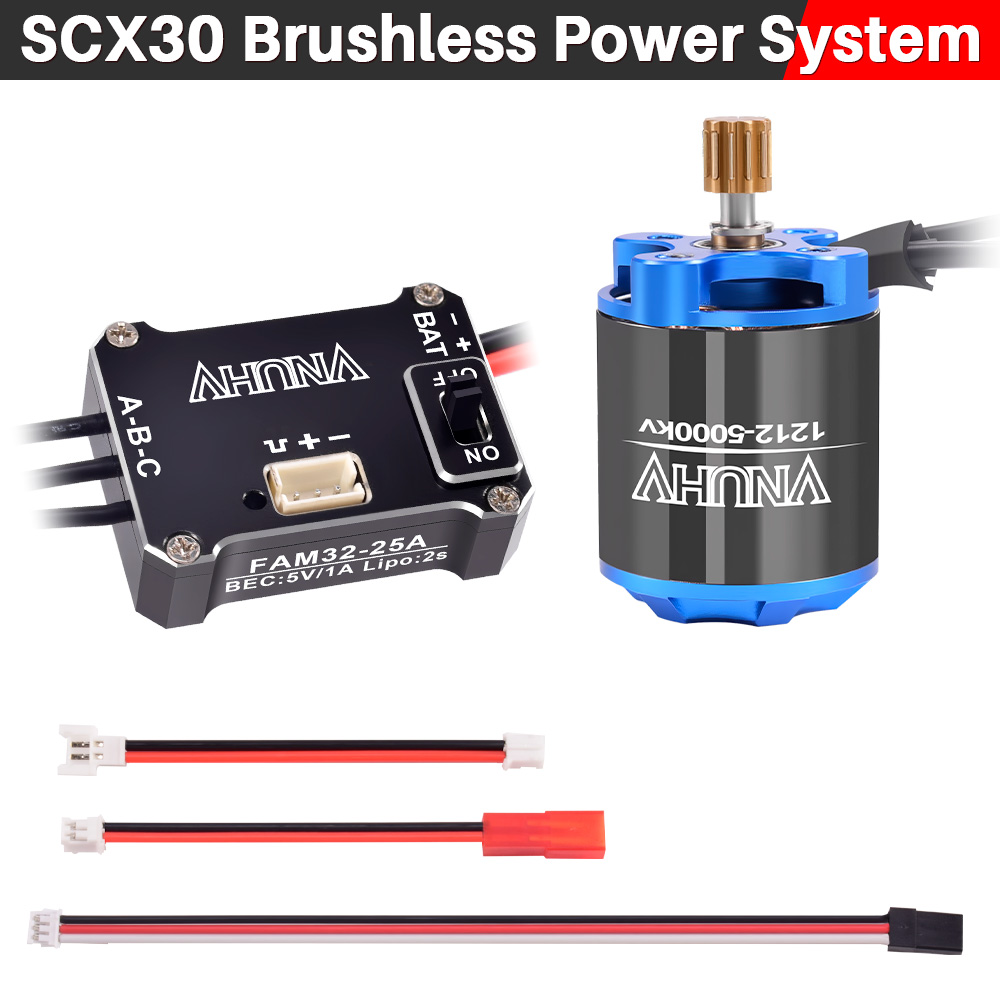

SCX30 brushless combo includes a 25A brushless ESC and 1212 5000KV sensorless outrunner motor delivering smooth throttle response stable power output and reliable crawling performance for 1 30 RC crawler cars
Specifications
ESC Specifications
Continuous Current: 25A
Supported Motor Type: Brushless Motor
Battery Support: 1S to 2S LiPo
BEC Output: 5V 1A
ESC Dimensions: 30mm x 22mm x 12.1mm
ESC Weight: 11.4g with wires
Motor Specifications
Model Number: 1212
Motor Type: Sensorless Brushless Outrunner
KV Rating: 5000KV
Operating Voltage: 7.4V 2S LiPo
Waterproof: Yes
Motor Slots: 9
Motor Poles: 12
No Load Current at 7.4V: 0.9A
Max Current: 12A
Motor Connectors: PH2.0 3 Pin
Motor Output Shaft Diameter: 1.98mm
Motor Pinion: 0.3mod 11T
Lead Length: 85mm
Motor Weight: 15.5g
Package contents:
1 * 1212 Brushless Motor
1 * 25A Brushless ESC
