Fluke ESA609 Electrical Safety Analyzer
Compliant standards include: ANSI/AAMI ES1, NFPA-99, and parts of IEC62353 and IEC60601-1

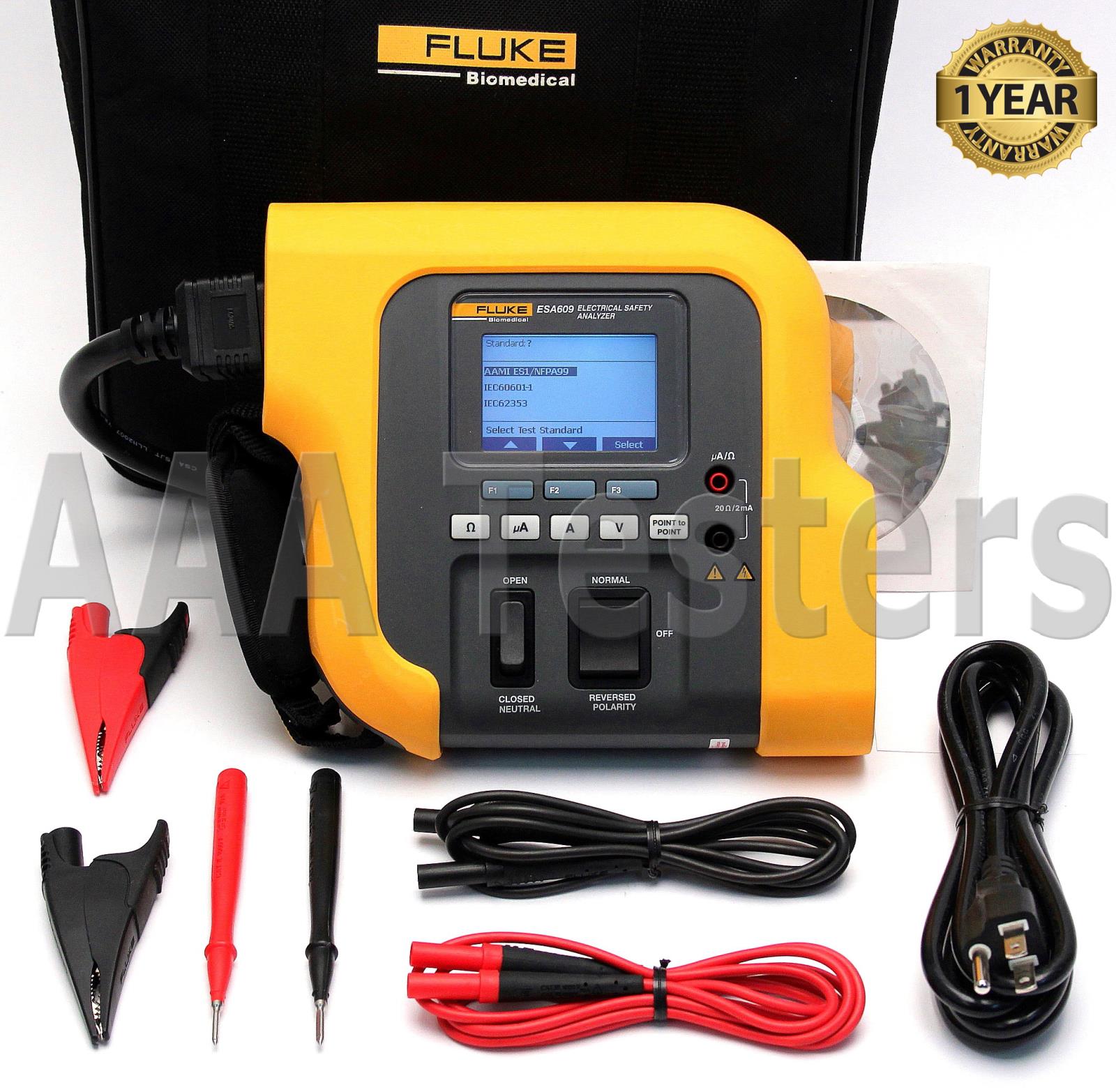

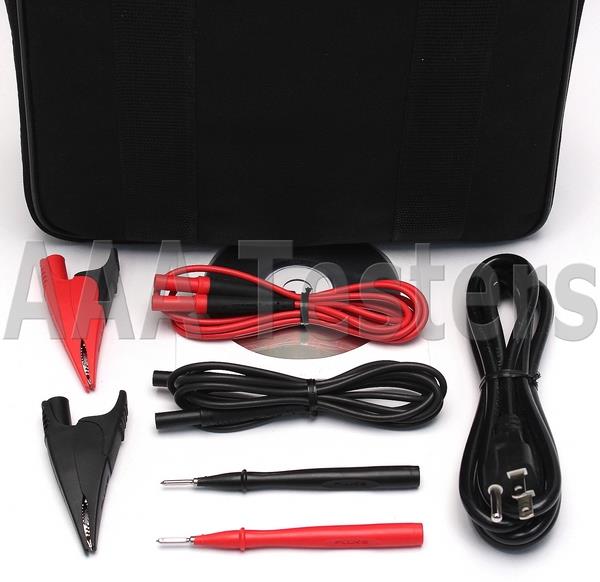

Includes Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Fluke ESA609 Safety Analyzer
The on-the-go analyzer

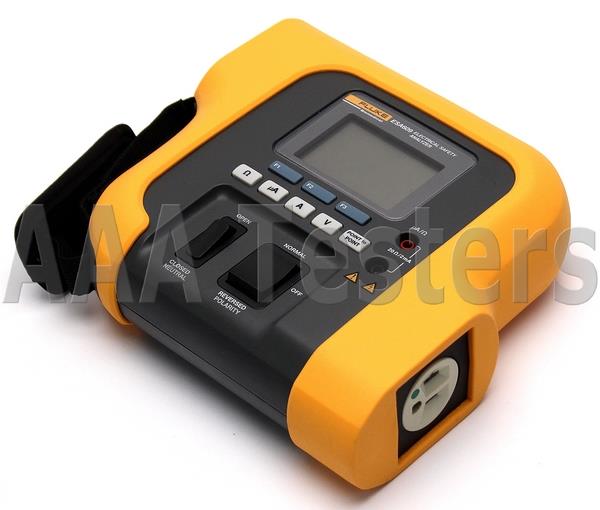

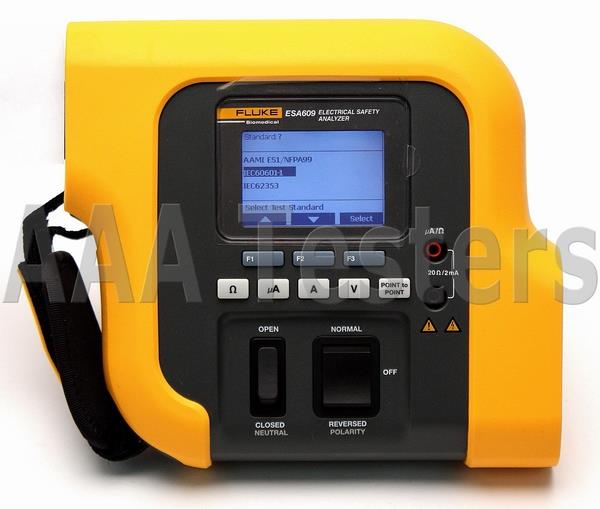

The ESA609 Electrical Safety Analyzer is a rugged, portable and easy-to-use analyzer designed for general electrical safety testing. Engineered for onthe-go technicians, the ESA609 requires no training to use and has a rubberized case that allows it to sustain the rigor of transportation, and helps prevent damage when accidentally dropped. Additionally, its functional strap and featherweight design make it one of the most portable electrical safety analyzers in its class. Heavy-duty switches allow users to effortlessly change polarity and configuration of the neutral connection between open and closed, while push-button operation ensures fast transition between tests for complete basic testing in minutes. The ESA609 integrates all functions needed to test medical devices when patient lead testing is not required, including: line (mains) voltage, ground wire (protective earth) resistance, equipment current, leakage current and point-to point tests. Versatile to global electrical safety standards of choice, the ESA609 tests to ANSI/AAMI ES1, NFPA-99, and parts of IEC62353 and IEC60601-1.
Features:
- Compliant standards include: ANSI/AAMI ES1, NFPA-99, and parts of IEC62353 and IEC60601-1
- Test current consumption up to 20 A for a diverse set of medical devices

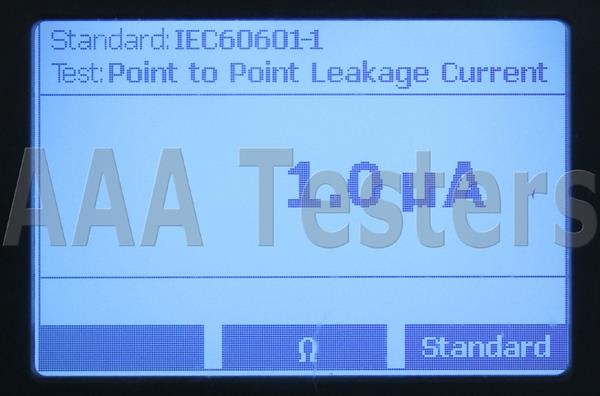

- All parameters needed for basic electrical safety testing: Line (mains) voltage, ground wire (or protective earth) resistance, equipment current, ground wire (earth) leakage, chassis (enclosure) leakage, direct equipment leakage, and point to point leakage and resistance
- Global use: the ESA609 will operate at 120 V and 230 V
- Rugged: Built tough with a rubberized case and ingress protection rating of IP30
- User-friendly: Quick push-button operation for rapid testing

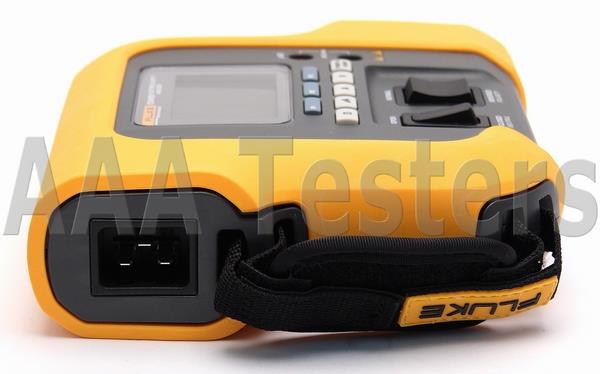

- Portable: Featherweight (1.5 lb) design, functional strap, and tilt stand make it easy for transportation and operation on-the-go (onsite or offsite)
- Rigorously tested for safety and reliability, with CE, CSA and Australia RCM in addition to Fluke quality
Specifications:
| Test standard selections |
ANSI/AAMI ES-1/NFPA99, IEC62353, IEC60601-1 |

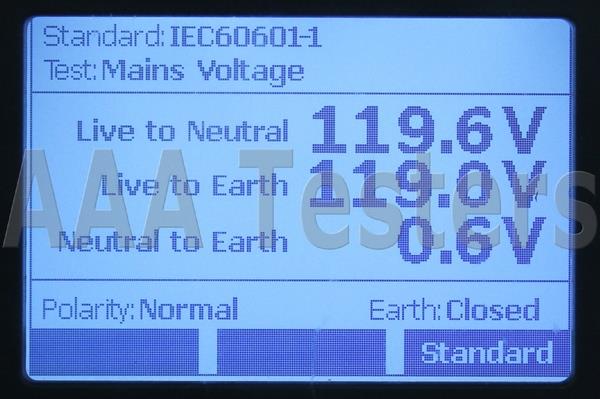

| Mains voltage measurement |
| Range |
90.0 to 264.0 V ac rms |
| Accuracy |
± (2 % of reading + 0.2 V) |
| Earth resistance |
| Modes |
Two wire |
| Test current |
> 200 mA dc |
| Range |
0.000 Ω to 20.000 Ω |
| Accuracy |
± (1 % of reading + 0.010 Ω) |
| Resistance tests |
Earth resistance and point to point |
| Equipment current |
| Mode |
AC RMS |
| Range |
0.0 A to 20.0 A |
| Accuracy |
± (5 % of reading + (2 counts or 0.2 A, whichever is greater)) |
| Duty cycle |
15 A to 20 A, 5 min on / 5 min off 10 A to 15 A, 7 min on / 3 min off 0 A to 10 A, continuous |
| Leakage current |
| Modes |
True-RMS
|
| Patient load selection |
AAMI ES1-1993 Fig. 1 IEC 60601: Fig. 15 |
| Crest factor |
Less than or equal to 3 |
| Ranges |
0.0 µA to 1999.9 µA Accuracy |
| DC to 1 kHz |
± (1 % of reading + (1 µA , whichever is greater)) |
| 1 kHz to 100 kHz |
± (2.5 % of reading + (1 µA, whichever is greater)) |
| 100 kHz to 1 MHz |
± (5 % of reading + (1 µA, whichever is greater)) |
| Leakage tests |
Ground wire earth
Chassis (enclosure)
Direct equipment
Point to point |
| Temperature |
| Operating |
0 °C to 50 °C (32 °F to 122 °F) |
| Storage |
-20 °C to 60 °C (-4 °F to 140 °F) |
| Humidity |
10 % to 90 % non-condensing |
| Altitude |
| 120 V ac mains supply voltage |
5000 m |
| 230 V ac mains supply voltage |
2000 m |
| Display |
LCD display |
| Modes of operation |
Manual
|
| Power ratings |
| 115 volt power outlet |
90 to 132 V ac rms, 47 to 63 Hz, 20 A maximum |
| 230 volt power outlet |
180 to 264 V ac rms, 47 to 63 Hz, 16 A maximum |
| Power input |
115 V 20 A - 2.6 kVA and 230 V at 16 A - 4.2 kVA |
| Physical case |
Weight
|
0.7 kg (1.5 lb) |
| Dimensions |
22.9 cm x 17.8 cm x 6.4 cm (9 in x 7 in x 2.5 in) |
| Safety |
IEC 61010-1: Overvoltage Category II, Measurement 300 V CAT II, Pollution Degree 2 |
| Electromagnetic environment |
IEC 61326-1: Portable |
| Emissions classification |
IEC CISPR 11: Group 1, Class A. |
For full Fluke ESA609 product specifications, please click here: Fluke ESA609
|
|
|
|
