Single direction thrust ball bearings are designed to accommodate axial loads in one direction only and must not be subjected to radial loads. Their separable design allows for easy mounting, dismounting, and maintenance inspections, making them convenient for a variety of applications. Interchangeable components enhance versatility and simplify replacement, while the ground bore on the shaft washers enables an interference fit for secure and reliable positioning. These features make single direction thrust ball bearings an efficient choice for directional load-bearing needs.
Responsive image

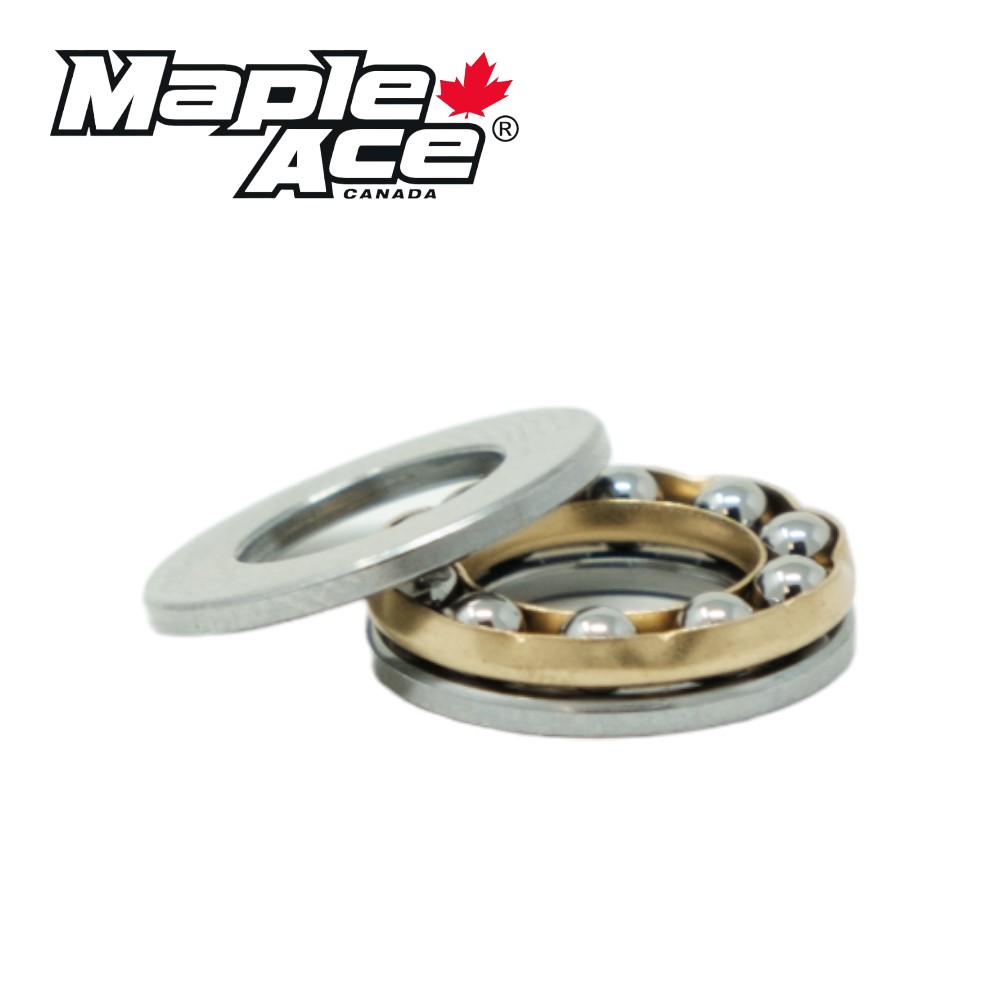

F8-16M Thrust Ball Bearing 8x16x5mm (Qty 4)

  • Single direction thrust ball bearings designed to accommodate axial loads in one direction only.
  • Must not be subjected to radial loads.
  • Key features:
    • Separable design allows for easy mounting, dismounting, and maintenance inspections.
    • Interchangeable components enhance versatility and ease of replacement.
    • Ground bore on shaft washers enables an interference fit for secure positioning.

Features:

  • F8-16M Thrust Ball Bearing dimensions: Bore Diameter 8mm, Outside Diameter 16mm, Width 5mm. 100% Chrome Steel.
  • Interchange to F8-16G(X), F8-16M, F8-16, F-8-16G, F8 16
  • This Thrust Ball Bearing has two flat washers (raceways) and a ball set positioned between them. One washer is known as the shaft washer (connected to the shaft), and the other is the housing washer (connected to the housing).
  • Application: Industrial Applications, Food & Beverage, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Sporting Machines, Medical Devices, Automotive, Agriculture Machines...etc
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Product Details

Specification
Item  F8-16M
Bearing Type  Thrust ball bearing
Bore Diameter  8.00mm
Outside Diameter  16.00mm
Width  5.00mm
Inner diameter housing washer  8.2mm
Outside diameter shaft washer  15.8
Dynamic Load Rating Cr  2500 N
Static Load Rating Cor  3000 N
Limiting Speed  4000 r/min
Number of rows  1
Tolerance Classes  Normal
Cage  Bronze
Rolling Element Indicator  Ball
Material  Gcr15
Product Weight  0.0045 KG
Interchange
F8-16M
Application

Application Application

You can use this DEEP GROOVE BALL BEARING as a Replacement Part for:

  • Industrial Applications
  • Furnaces
  • Transmissions
  • Gearboxes
  • Robots
  • Elevator
  • Lifts and Hoists
  • Moulding Machines
  • Polishing Equipment
  • Rolling Mills
  • Aggregate Crushers
  • Agriculture Machines
  • Irrigation Machinery
  • Sewing Machines
  • Mining Construction Equipment
  • Medical Devices
