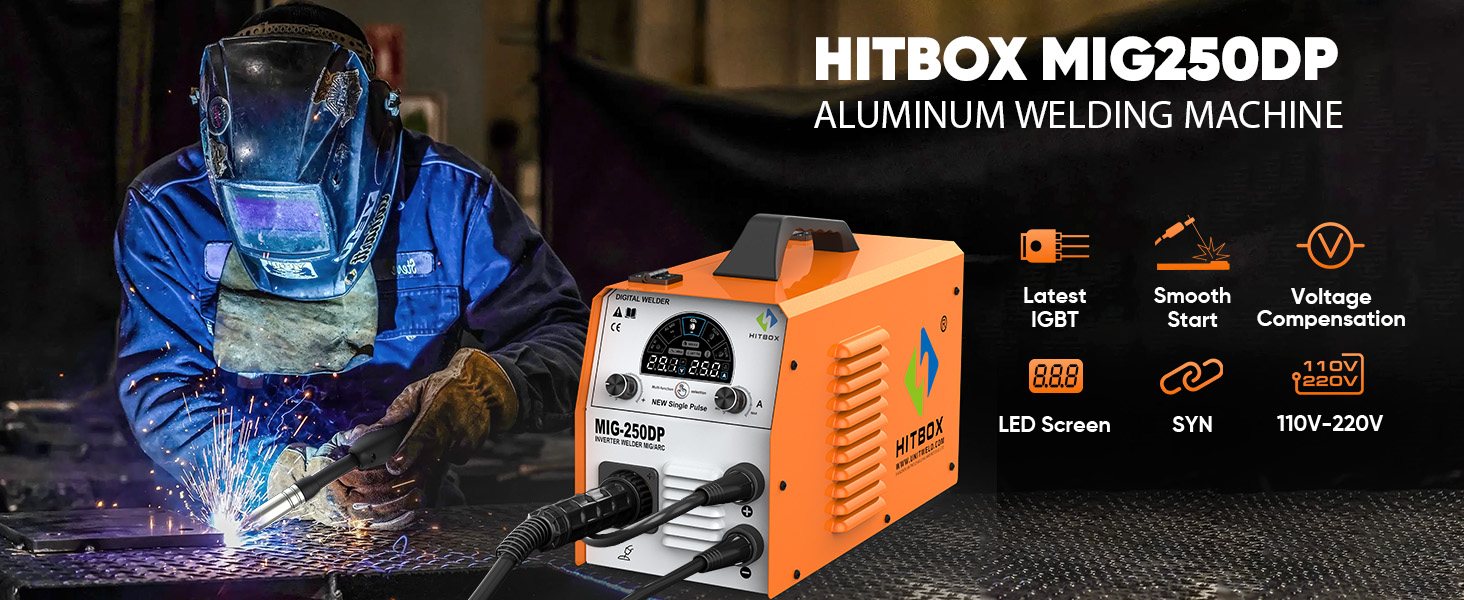

Why you choose HITBOX MIG250DP?
The reason is:
【5-in-1 Synergic MIG Welder】 – Combines MIG/MAG, Single Pulse MIG, Flux Core, Lift TIG, and Aluminum MIG in one machine. The synergic digital control automatically matches the recommended current and wire feed speed when selecting wire diameter and gas type, making it extremely easy for beginners and convenient for professionals.
【Pulse MIG Function】 – The MIG250DP features an automatic single-pulse MIG mode. The system program precisely controls the start, peak, and end current for each pulse, ensuring sufficient heat to melt the base material while preventing excessive penetration. This results in smooth, clean welds with minimal spatter and consistent fusion, all without manual current adjustments.

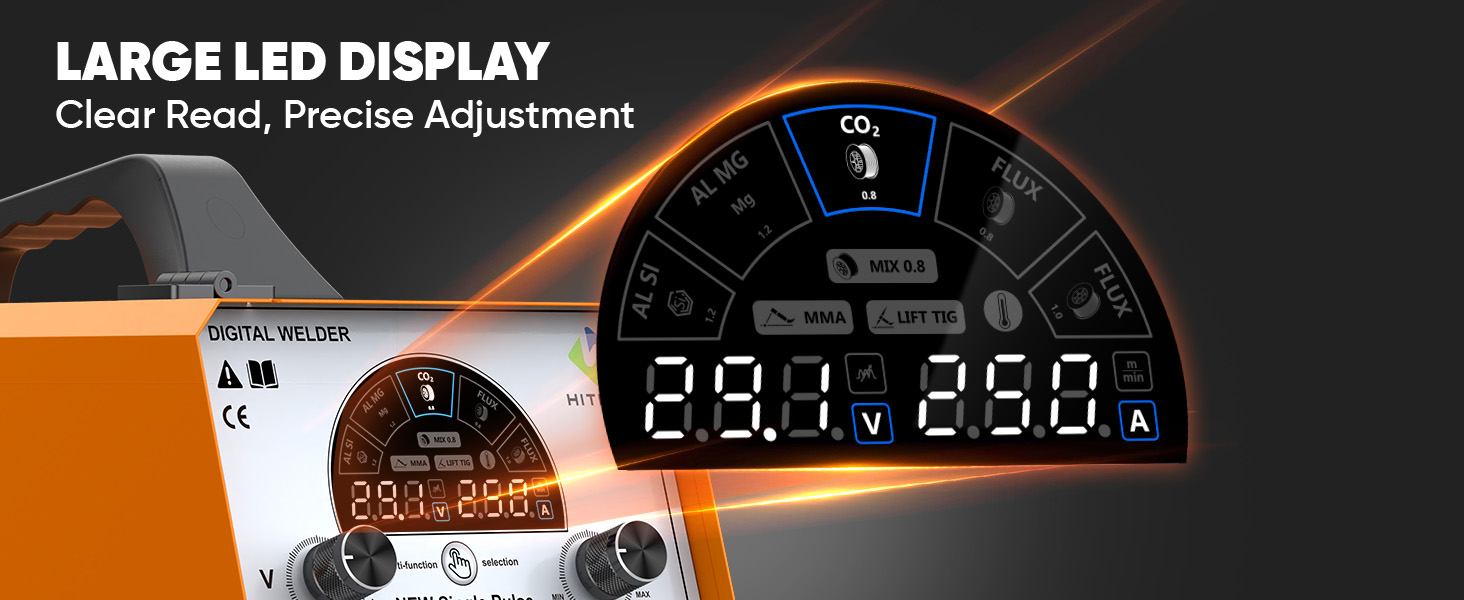

【Digital LED Display】 – The large, colorful LED panel provides accurate and crystal-clear parameter readings, making setup and operation simple. The rear AC 36V gas heating connection helps protect the aesthetics of the welding surface.
【Specifications & Accessories】 – Welding thickness: MIG 0.7–10 mm, Lift TIG 1.2–6 mm, Arc/MMA 2–12 mm. Applicable electrodes: 1.6–3.2 mm. Applicable wires: 0.6/0.8/1.0 mm. Includes MB15 MIG torch, 300A ground cable, electrode holder, gas hose, 2 hose straps, and 1 feed roller. Note: TIG torch is not included (LIFT TIG Torch Included).
【Voltage Compensation & Safety】 – Features automatic voltage compensation within -5V to +5V to ensure stable performance. Equipped with protections against over-current, overload, over-heating, and voltage fluctuations for reliable and safe operation.
【Buy in confident】We provides an quality after-sales service. If you encounter any problems when using this machine, please contact us first, we'll provide best solution asap.
*Advanced IGBT - Maximize durability to overloads, improve work efficiency, longer service time and improve stability.
* Adopt copper amorphous transformer - High frequency transformer with strong conductivity can save energy, resist to high temperature, provide long working hours and lower loss.
* Smart chip - Insert smart chip, cooler welder rapidly. When there is something stuck in the machine, it will power off automatically to protect welding machine being damage from overheating.
* Upgraded large capacitor with premium quality - Its strong anti-electricity fluctuation ability and high energy storage ability can stabilize output current.
* Aluminum MIG Welder: The 250amp gas-powered mig welding machine can weld aluminum sheets, with its own single-pulse technology, and will not weld through the sheet. (The graphite guide tube needs to be replaced when welding aluminum metal)

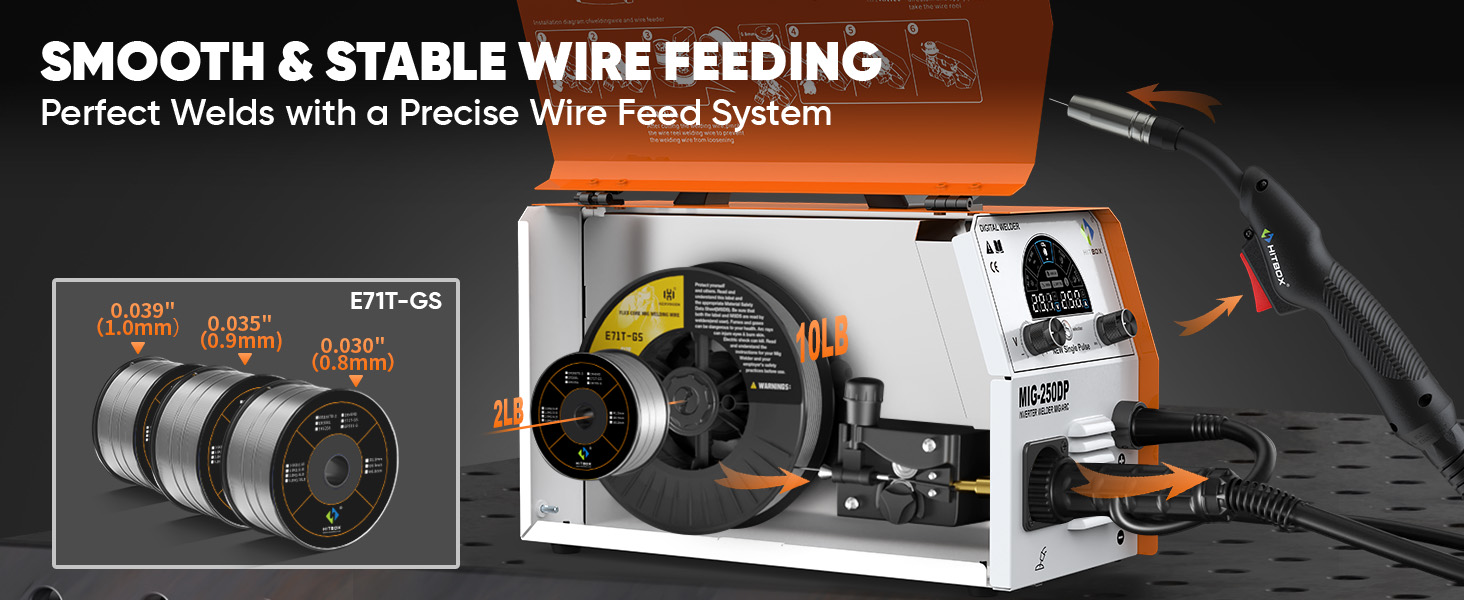

1.MIG/MAG/FLUX Welding,Can take up to 035"(0.8/1.0 mm) MIG solid wire(Gas MIG), .035"(0.8/1.0 mm) MIG FLux wire(Gasless MIG), 035”/.045”(0.6/0.8/1.0 mm) aluminum wire.
2.Stick Welding,smooth weld and burning fast. This unit can weld with 7018/6011 electrodes up to 5/32.
3.Lift TIG is optional(LIFT TIG Torch Included).
Synergic Controlled

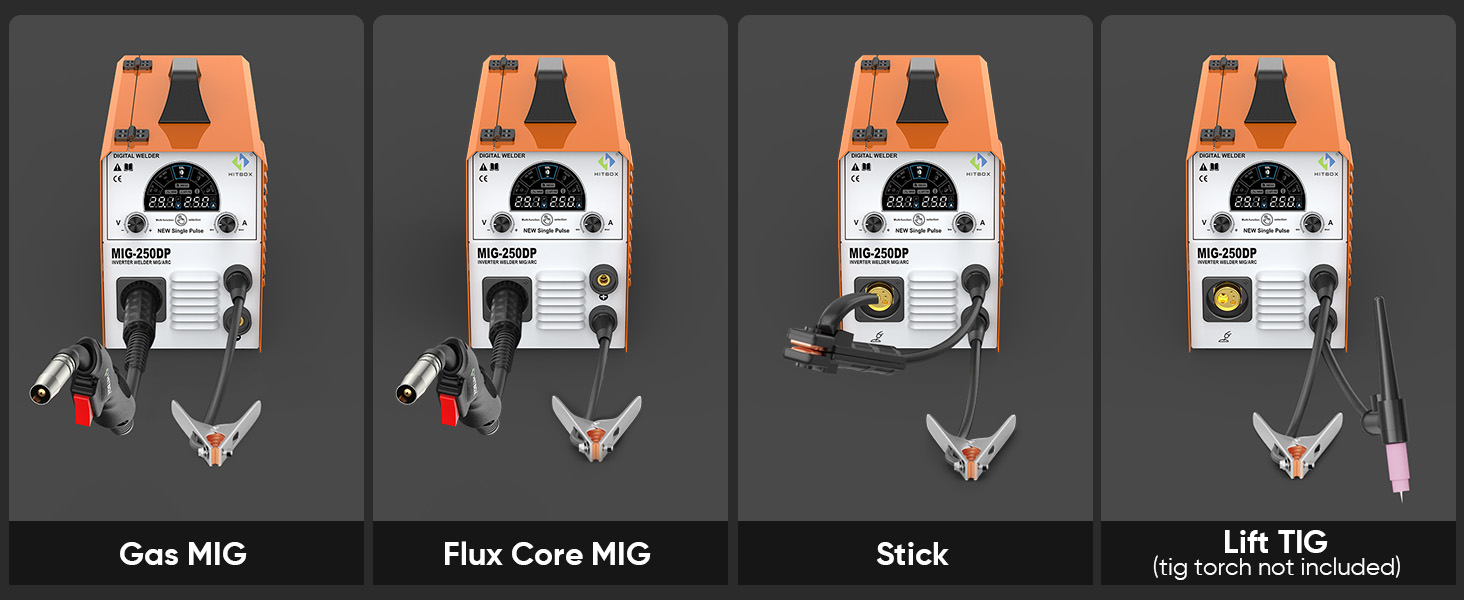

1.One button selection"design, easy to choose different welding mode to meet different welding requirements, Gas/Gasless MIG, Stick or Lift TIG.

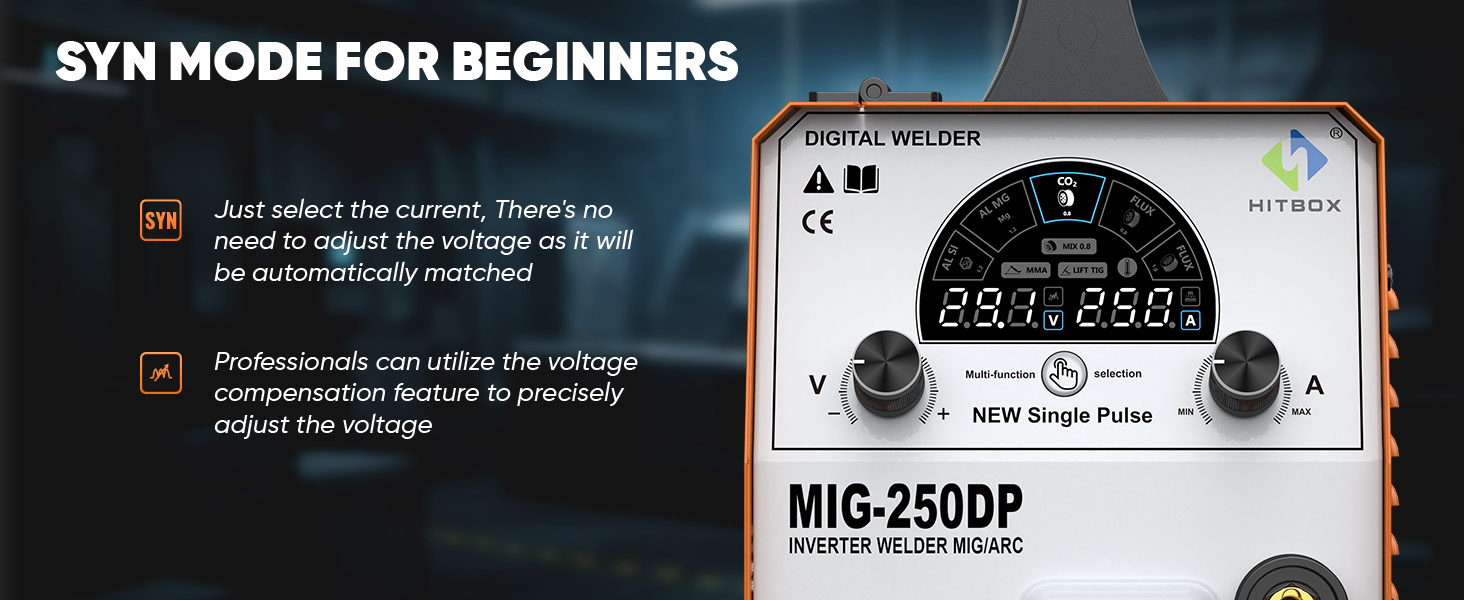

2.Synergic Control MIG Function allows the automatic change of the voltage & wire feeding speed by adjusting the amperage or choosing different thicknesses. It will match the welding chart set in the data.
Suitable for all kinds of welding requirements
1.023”/.030”/.035” solid/SS wire,
2.023”/.030”/.035” flux core wire for MIG manual setting; only .035” available in MIG synergistic setting
3.035”/.045” aluminum wire.
Product Details:
- Brand: HITBOX
- Type: MIG-250 DP
- Input power voltage (V): 220V-240v
- Welding current adjust range (A): 10 ~ 250Amp
- Voltage adjustment range (V): (Gas shielded arc welding) 11～26
- Package Weight: 12.5KG (27.56LB)

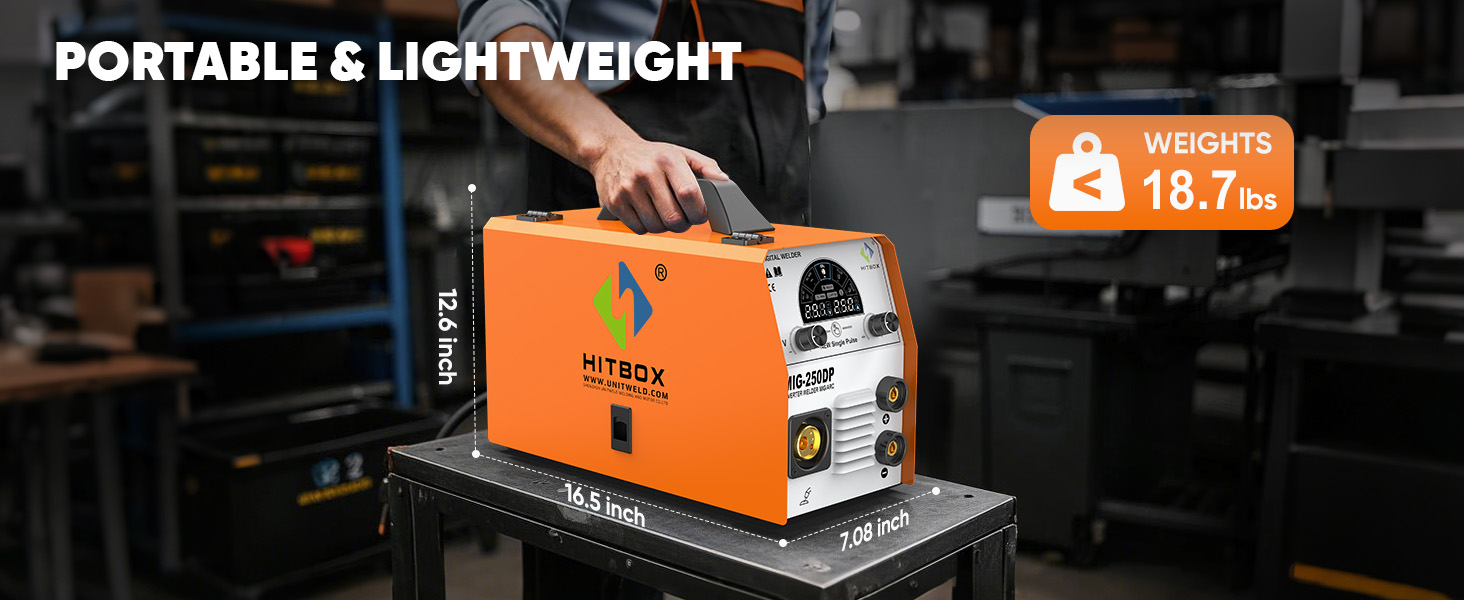

- Package Size: 49.2*28.5*38cm(19.37*11.22*14.96in)
- Inverter technology: IGBT
- Rated input current (A): 32
- Rated power capacity(KVA): 7.1
- Recommended fuse capacity(A): 50
- Feeding speed adjustment range (m/min): 1.5～16
- Welding wire diameter (mm): 0.6/0.8/1.0
- Rated duty cycle: 60%
- Efficiency (% ):85
- Welding thickness: 1-8mm
- Welding materials: iron, stainless steel, aluminum, galvanized sheet, carbon steel and other metals.
- Usable electrode size: 2.5/3.2

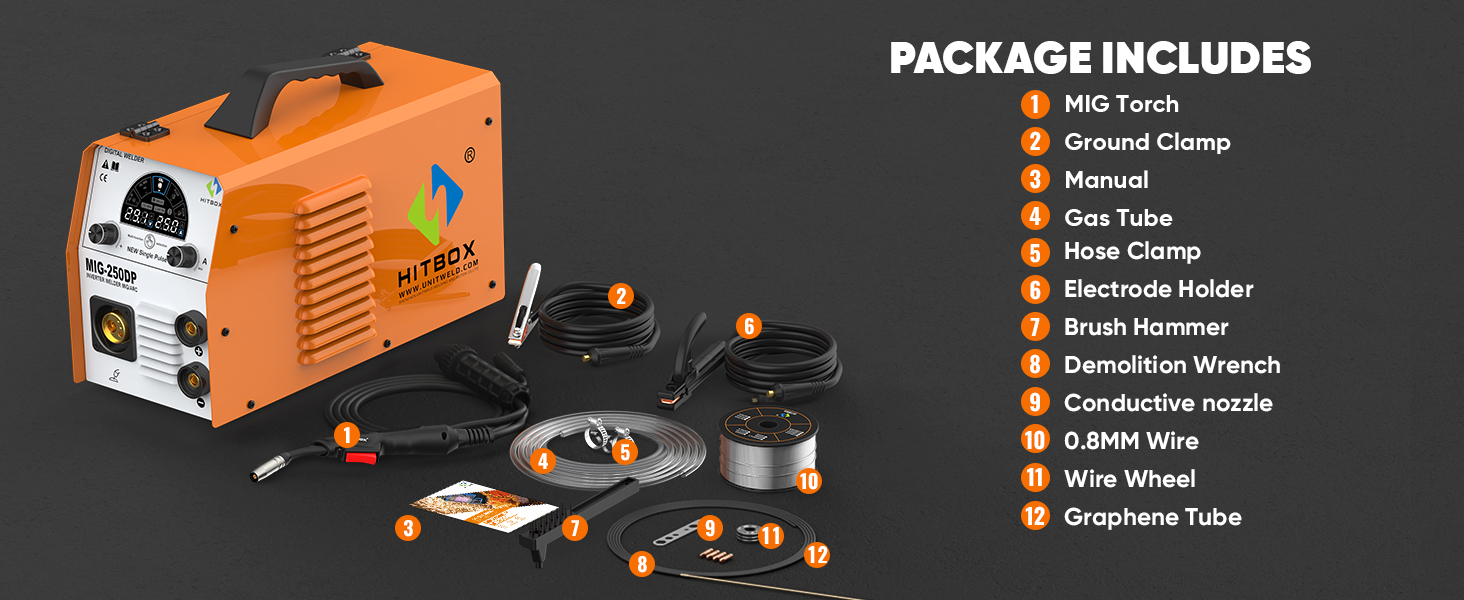

What You Get?
1X MIG250DP Mig Welder
1X MB24 Mig Torch
1X 1KG Flux Core Wire
1X Electrode Holder
1X Gas Tube
1X Earth Clamp
1X User's manual
1X 0.6mm/0.8mm V shape drive roller.
1X 1.0mm/1.2mm U shape drive roller.
1X Graphite wire feed tube(when welding aluminum, please do use it with the mig gun.
1X Welding Helmet
1X Lift Tig Torch
1X Welding Gloves
✅ Prefessional technical support.
✅ Warranty: 2 Years.
