Renusol Solar Panel Mounting Clamps
Professional German-engineered clamps • TUV & MCS Certified • Built for UK conditions

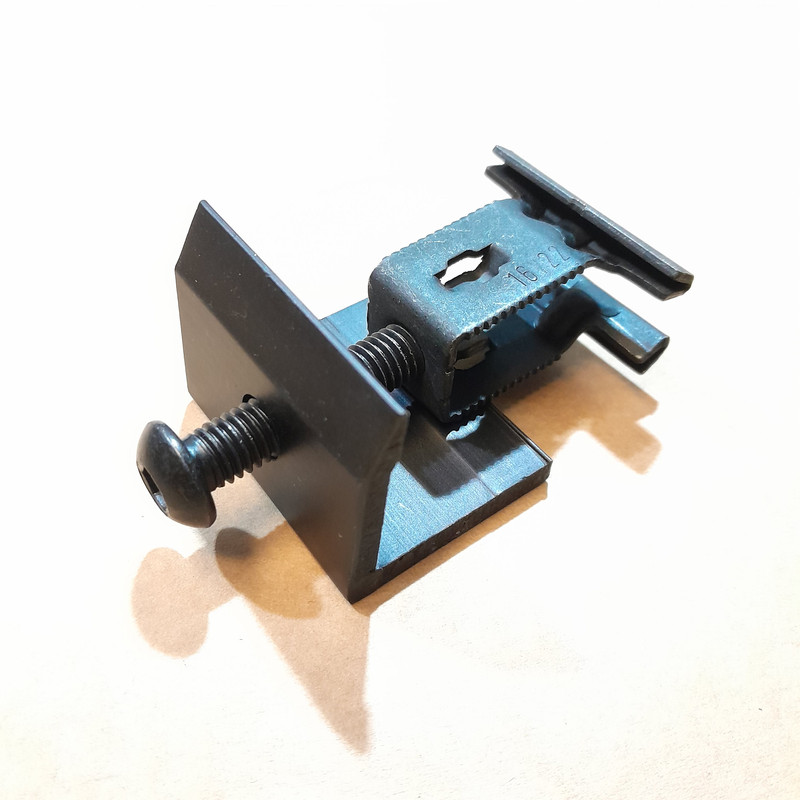

End Clamp 30-50mm Black
SOLAR MODULE MOUNTING CLAMP
Part No: R420081
Complete pre-assembled set for Renusol mounting rail systems.
Technical Data:
- Dimensions: 35 × 40 × 60 mm
- Weight: 0.064 kg
- Material: Aluminium + corrosion-resistant steel
- Module Thickness: 30–50 mm
- Maximum Torque: 12.00 Nm
- Driver: 5 mm hexagon socket
- Certification: TUV ID: 48970 • ETN BT120019 • MCS012 IK0197
Middle Clamp 30-50mm Black
SOLAR MODULE MOUNTING CLAMP
Part No: R420082
Complete pre-assembled set for Renusol mounting rail systems.
Technical Data:
- Dimensions: 35 × 40 × 60 mm
- Weight: 0.064 kg
- Material: Aluminium + corrosion-resistant steel
- Module Thickness: 30–50 mm
- Maximum Torque: 12.00 Nm
- Driver: 5 mm hexagon socket
- Certification: TUV ID: 48970 • ETN BT120019 • MCS012 IK0197
Why Professionals Choose Renusol Clamps
✓ Pre-assembled – ready to install in seconds
✓ High corrosion resistance – ideal for UK weather
✓ Secure 12 Nm torque hold for peace of mind
✓ Compatible with all major framed solar modules (30–50 mm)
✓ Part of the trusted Renusol rail system used worldwide
✓ TUV & MCS certified for safety & quality
💡 Installation Tip: Use End Clamps at the start and end of each row, and Middle Clamps between panels for maximum stability.
