This Item Has A Current Calibration!
|
|
|
|

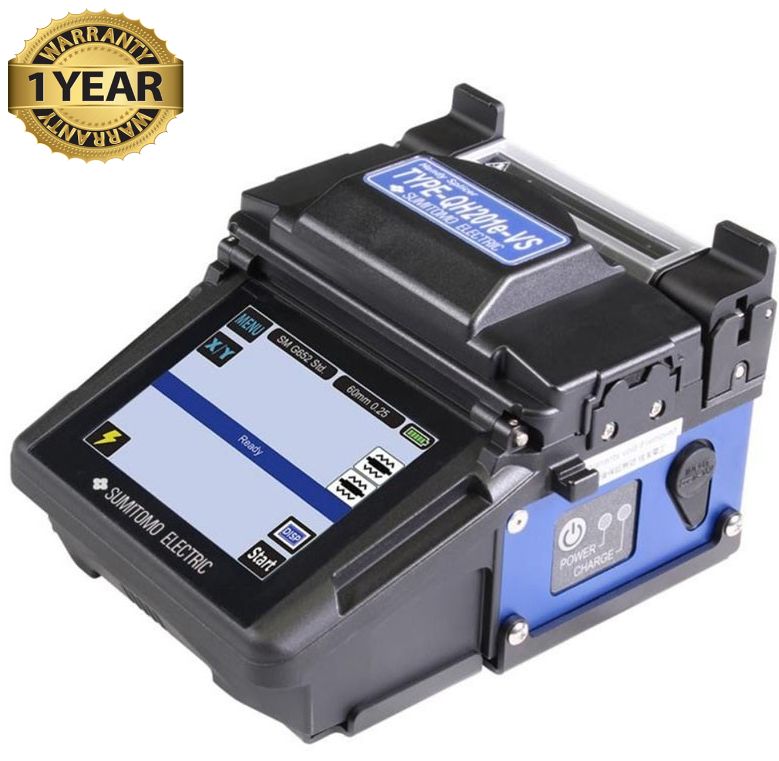

Sumitomo QH201e-VS Handheld Fusion Splicer
With new features and new technologies, the Q502S fusion splicer offers improved performance, reliability, and user experience.
Includes High Precision Fiber Cleaver, Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY
Sumitomo QH201e-VS Handheld Fusion Splicer
The Sumitomo Type-QH201e-VS is a compact, handheld fixed V-groove fusion splicer widely used for FTTH (Fiber to the Home) and splice-on connectors. When compared to other splicers—such as core-alignment models or entry-level cladded options—it shines in speed, portability, and ease of use in the field.
Features:
Alignment Method:
Uses a Fixed V-Groove. While cladding-aligned or core-aligned models offer higher precision for long-haul networks, fixed V-groove is highly reliable and significantly more cost-effective for standard last-mile drop cables.
Speed:
Delivers a rapid 12-second splice time and 30-second heater cycle, making it one of the fastest handheld units on the market.
Portability:
Boasts an incredibly small, lightweight footprint designed to survive harsh environments with superior shock, dust, and water resistance.
Interface:
Features a modern touchscreen designed for remote maintenance, easy software updates, and an intuitive fiber-holder system.
Specifications
|
Optical fiber requirements
|
| Material |
Silica glass |
Profile types
|
Single / SMF (G.652), MMF (G.651), DSF (G.653), NZDSF(G.655), BIF(G.657)
|
Fiber diameter
|
250µm,500µm,900µm,
|
Cleave length
|
5 to 10mm
|
Standard Performance
|
Splice loss (typical)
|
SMF : 0.05dB, MMF 0.03dB, DSF : 0.08dB, NZDSF : 0.08dB
|
Splice time (typical)
|
11sec
|
Heating time (typical)
|
30sec
|
Splice & Heat cycles per battery full charge
|
Approx. 100
|
Fiber view & Magnification
|
2 CMOS cameras observation, 72X (zoom 216X)
|
Proof test
|
1.96 ~2.09n
|
Programs
|
Splice programs
|
Max. 200
|
Heating programs
|
Max. 100
|
Functions
|
Splice image capture / splice data storage
|
64 images / 10,000 splice data
|
Automatic arc calibration
|
Automatically compensates for environmental condition changes
|
Size / Weight
|
Size
|
110(W) x 140(D) x 89(H)mm |
Weight
|
700g (without battery) / 850g (with battery BU-12S)
|
Monitor
|
3.5 inch color monitor with touchscreen
|
Power supply
|
AC input
|
AC 100 ~ 240V, 50/60Hz
|
DC input
|
DC10 ~15V 4.5A
|
Battery pack
|
Li-ion 11.1V, 3,060mAh (BU-12L)
|
Electrode life
|
6000 arc discharges
|
Software updates
|
Internet
|
Data management
|
Can be stored, edited and analyzed by dedicated PC software
|
|
|
|
|
