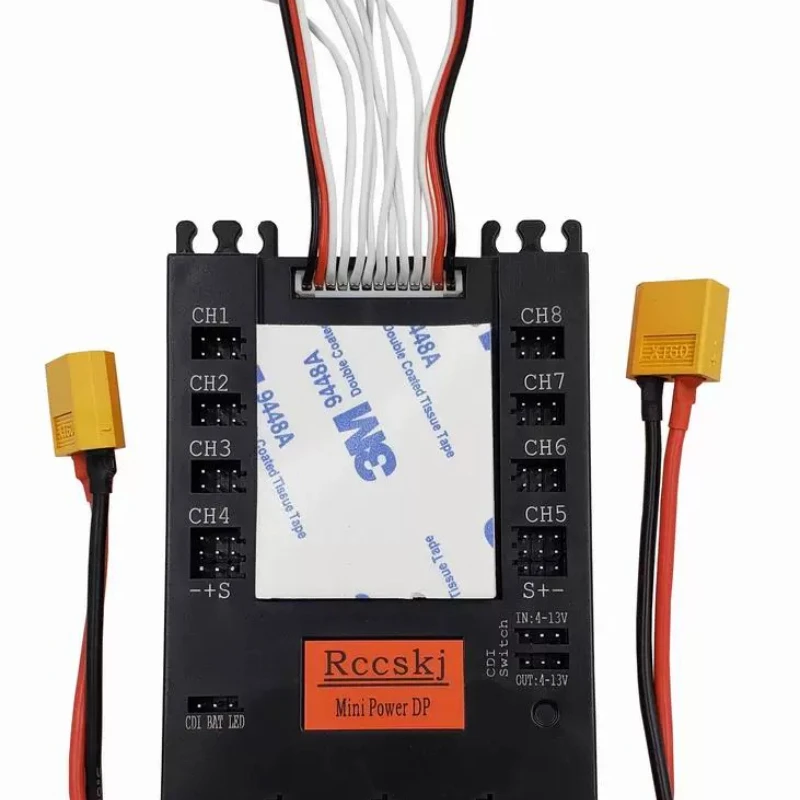

This product is mainly used for multi servo power distribution of large fixed wing aircraft such as gasoline engines. The distribution board integrates CDI remote shutdown switch and reserves a receiver placement position to make the wiring of the whole machine more convenient and tidy. The use of dual power input makes the power supply more stable and safe.

Product features: 1 8-channel input, 16 channel output (1 in 2)
2. Integrate CDI remote shutdown switch, remotely control the on/off of gasoline engine CDI through any channel or switch channel of the remote control (usually select switch channel)
3. Independent CDI power supply module, completely isolated between the receiver power supply and CDI power supply, no need to worry about high-frequency signals generated by CDI interfering with the receiver, LED real-time display of CDI power supply status
4. Two color LED real-time display of CDI power supply voltage
Technical parameters:

Working voltage: 4.8-13V
Operating current of servo motor: 0-20A


Weight: 70g
Volume: 116mm (length) * 68mm (width) * 13mm (height)
Working temperature: -20-85 degrees Celsius



1 x Min servo distribution board
